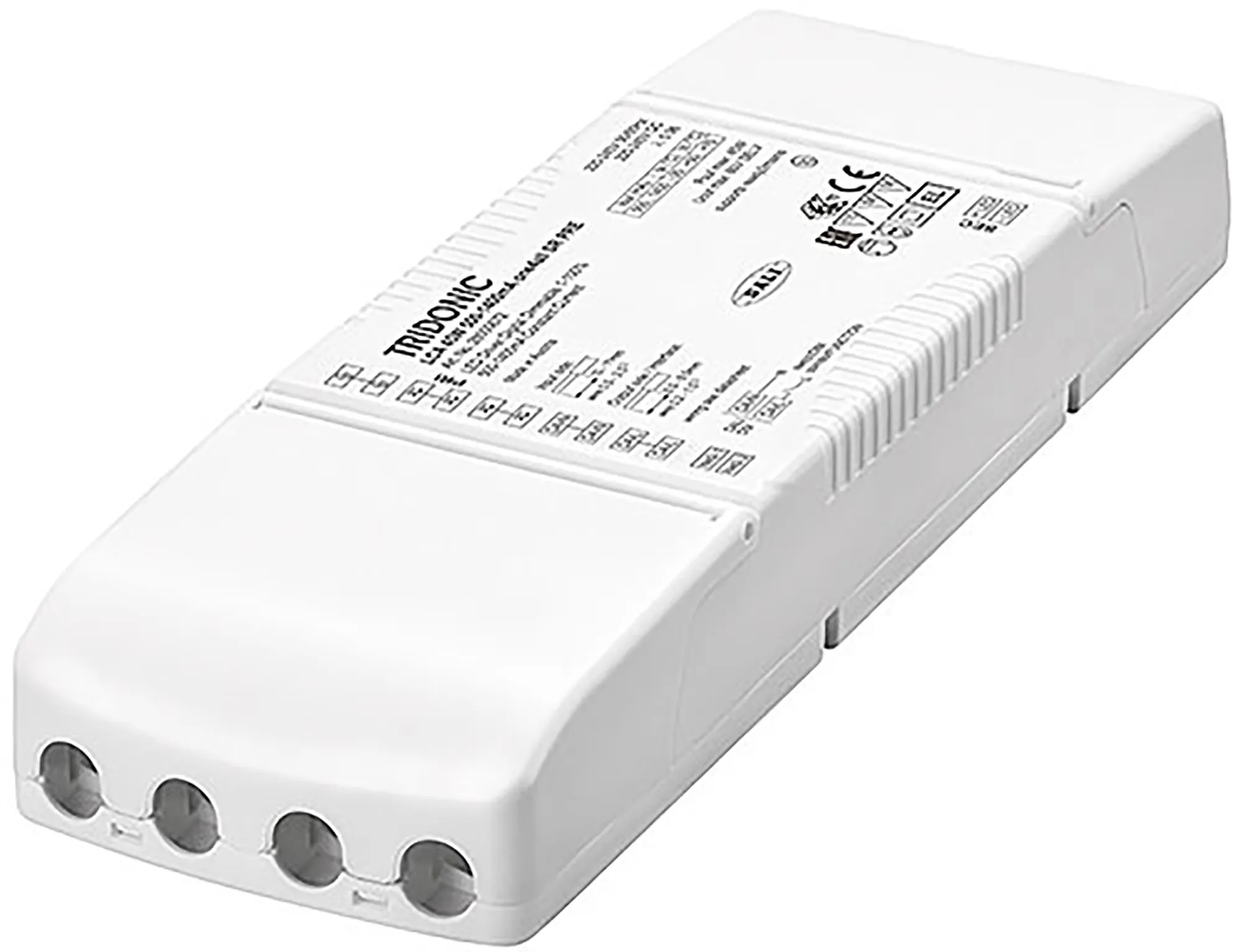

45W 500-1400mA one4all Dimmable SR PRE Constant Current LED Driver

Tridonic, LCA 45W 500-1400mA one4all SR PRE, LED Converter Compact PREMIUM, Made In Austria, 5yrs Warranty

28000672

Wattage :

Qty: Order Item Add to Wishlist

Independent dimmable LED Driver, Dimmable via DALI / DALI-2, Output current adjustable, High efficiency, Low stand by power conception, Wide dimming range, high working life time, Can be used with luminaires of protection class I and protection class II.Flexible configurations.
Tridonic is a world-leading supplier of lighting technology, supporting its customers with intelligent hardware and software and offering the highest level of quality, reliability and energy savings. As a global driver of innovation in the field of lighting-based network technology, Tridonic develops scalable, future-oriented solutions that enable new business models for lighting manufacturers, building managers, systems integrators, planners and many other types of customers. Tridonic has been Show More...
To Follow
Quick Spec
Brief Description45W 500-1400mA one4all Dimmable SR PRE Constant Current LED Driver
Colour FinishWhite
Item Nett Weight (kg)0.231kg

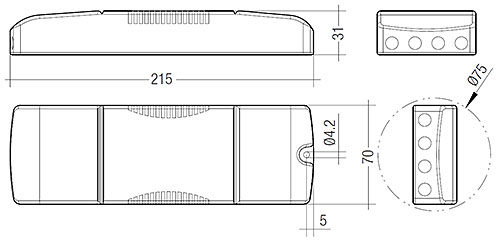

Length (mm)215MM
Width (mm)70mm
Height (mm)31mm
Energy ClassA++ to A
Protection ClassClass 2 - Double Insulated
DimmableYes - Suitable Dimmer Required
Dimmer IncludedNo
IP RatingIP20
Average Life (hrs)100000hrs
Warranty (yrs)5yrs
Features
Constant light output function (CLO), Power-up fading at AC, Configurable via ready2mains, Service monitor to log certain events, Over temperature, Short-circuit, Overload, noload, Input voltage range, Reduced surge amplification.Suitable for emergency escape lighting systems acc. to EN 50172.
Full Specifications
Collection GroupLCA
BarcodeTo Follow
Brief Description45W 500-1400mA one4all Dimmable SR PRE Constant Current LED Driver
Colour FinishWhite
Item Nett Weight (kg)0.231kg
Length (mm)215MM
Width (mm)70mm
Height (mm)31mm
Energy ClassA++ to A
Max Energy ClassA++
Min Energy ClassA
Lumen Maintenance (hrs)50000hrs / LM80 (±5%) ( ±5%)
Type of DriverConstant Current
Dimming Range (%)1-100%
Power Factor (?)>0.98 (±5%) ( ±5%)
Constant Current Output (mA)500-1400mA
Min/Max. Voltage Output (V)25-50V
Load Range (W)25-44.9W
Typical Current Ripple (%)±2%
Maximum Output Distance (m)2m
Ta (°C)-25° to +50°C
Tc (°C)85°C
Casing MaterialPolycarbonate
Connection TerminalPush-Fit
Dimming ProtocolDALI DT 6, DSI, switchDIM, corridor FUNCTION, ready2mains
Efficiency0.83
Protection ClassClass 2 - Double Insulated
Total Power Consumption (W)44.9W (±5%) ( ±5%)
Input Voltage (V)220-240V~50/60Hz
Input Current (A)0.224A
DimmableYes - Suitable Dimmer Required
Dimmer IncludedNo
IP RatingIP20
Average Life (hrs)100000hrs
Warranty (yrs)5yrs
UKCA/CEYes
RohsYes
ENECYes
SELVYes
Number of Cartons1
Carton Length (cm)21.5cm
Carton Width (cm)7.0cm
Carton Height (cm)3.1cm
Carton CBM0.0005
Carton Nett Weight (kg)0.231kg (±5%) ( ±5%)
Carton Gross Weight (kg)0.231kg (±5%) ( ±5%)
Additional DetailsTridonic, LCA 45W 500-1400mA one4all SR PRE
UK Commodity Code8504318050
Country of OriginAustria
