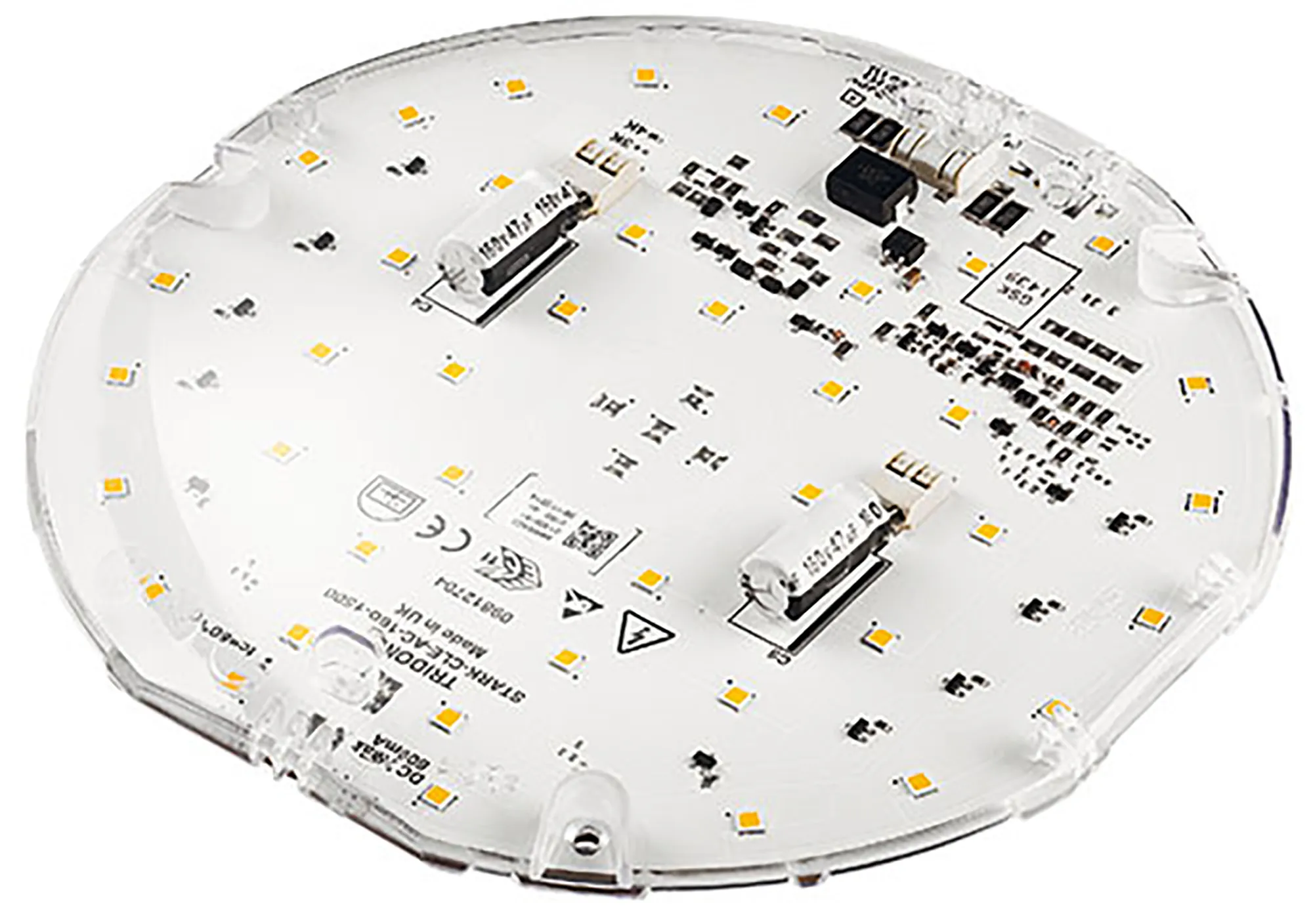

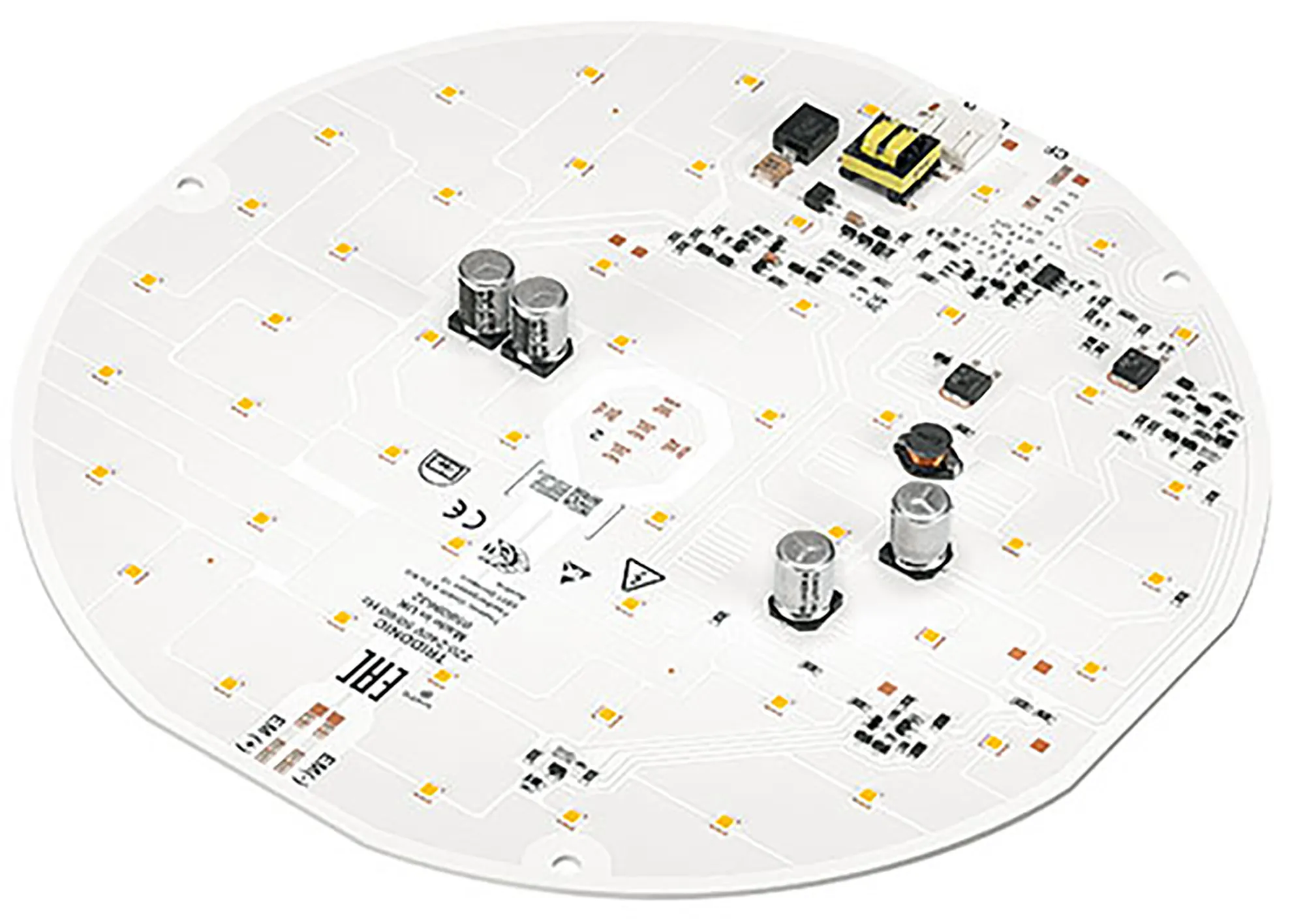

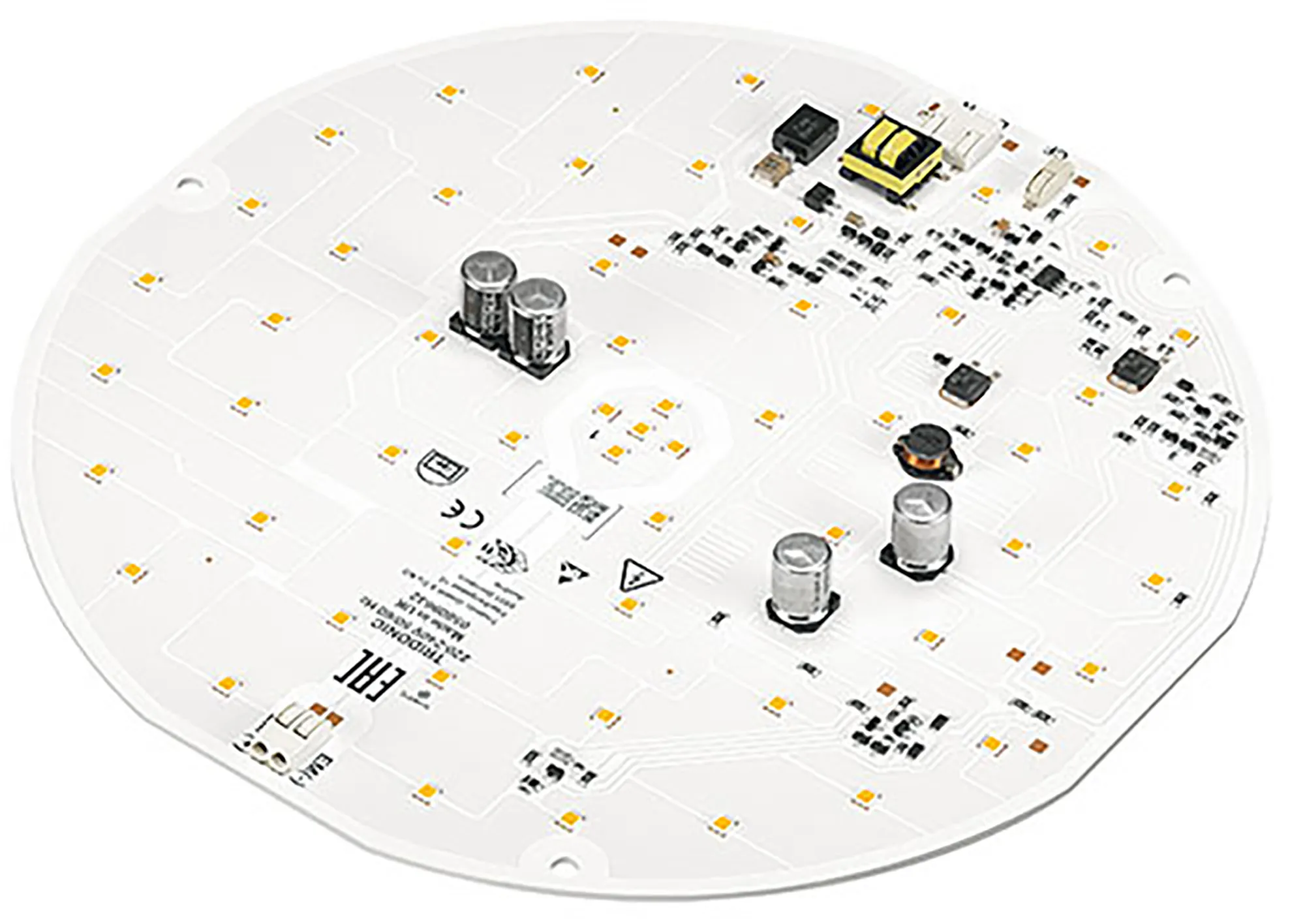

CLE AC G2 220mm 2500lm 840 ADV, LED Engine Integrated

Tridonic, CLE AC G2 220mm 2500lm 840 ADV, LED Engine Integrated, Made In UK, 5yrs Warranty

89800516

Qty: Order Item Add to Wishlist

Module with integrated electronics, Easy refitting of existing luminaries, Ideal for ceiling-mounted and wallmounted luminaires, High colour rendering index, MacAdam 3, Integrated seperate emergency LED modules with type EM, controlled via EM powerLED, Simple CORRIDOR FUNCTION in combination with any sensor.
Tridonic is a world-leading supplier of lighting technology, supporting its customers with intelligent hardware and software and offering the highest level of quality, reliability and energy savings. As a global driver of innovation in the field of lighting-based network technology, Tridonic develops scalable, future-oriented solutions that enable new business models for lighting manufacturers, building managers, systems integrators, planners and many other types of customers. Tridonic has been Show More...
To Follow
Quick Spec
Brief DescriptionCLE AC G2 220mm 2500lm 840 ADV, LED Engine Integrated
Colour FinishWhite
Item Nett Weight (kg)0.115kg

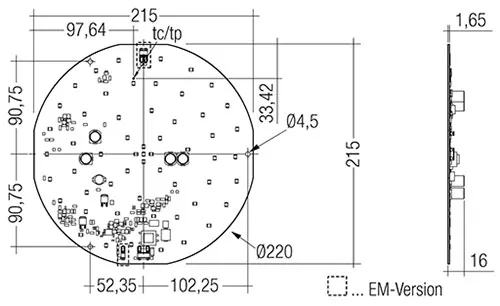

Length (mm)215mm
Width (mm)215mm
Diameter (mm)220mm
Height (mm)5mm
Energy ClassA+
Colour Temperature (K)4000K Cool White (±5%)
Beam Angle (°)120°
System Flux (lm)2700 lm (±5%)
CRI>80
Protection ClassClass 2 - Double Insulated
DimmableNo
IP RatingIP20
Average Life (hrs)50000hrs
Warranty (yrs)5yrs
Features
Economic one-piece solution, Enables thin designs of luminaries, System efficacy of the module up to 117 lm/W, Touch cover: Protection against direct touch of active parts in transparent or diffuse finish, see accessories, Life-time 50,000 h L80F10.
Full Specifications
Collection GroupCLE
BarcodeTo Follow
Brief DescriptionCLE AC G2 220mm 2500lm 840 ADV, LED Engine Integrated
Colour FinishWhite
Item Nett Weight (kg)0.115kg
Length (mm)215mm
Width (mm)215mm
Diameter (mm)220mm
Height (mm)5mm
Energy ClassA+
Max Energy ClassA+
Min Energy ClassA+
Colour Temperature (K)4000K Cool White (±5%)
Type of LEDSMD
Lumens Per Watt (lm/W)117lm/W (±5%)
Lumen Maintenance (hrs)50000hrs / LM80 (±5%)
Beam Angle (°)120°
System Flux (lm)2700 lm (±5%)
CRI>80
MacAdam3
Dimming Range (%)0%-100%
Typical Current Ripple (%)±30%
Ta (°C)-25° to +55°C
Tc (°C)85°C
Connection TerminalPush-Fit
Dimming ProtocolDippend of the Driver
Protection ClassClass 2 - Double Insulated
Total Power Consumption (W)22W (±5%)
Input Voltage (V)220-240V~50/60Hz
Input Current (A)0.095A
DimmableNo
IP RatingIP20
Average Life (hrs)50000hrs
Warranty (yrs)5yrs
UKCA/CEYes
RohsYes
ENECYes
Number of Cartons1
Carton Length (cm)21.5cm
Carton Width (cm)21.5cm
Carton Height (cm)0.5cm
Carton CBM0.0002
Carton Nett Weight (kg)0.115kg (±5%)
Carton Gross Weight (kg)0.115kg (±5%)
Additional DetailsTridonic, CLE AC G2 220mm 2500lm 840 ADV
UK Commodity Code94054090
Country of OriginUK
