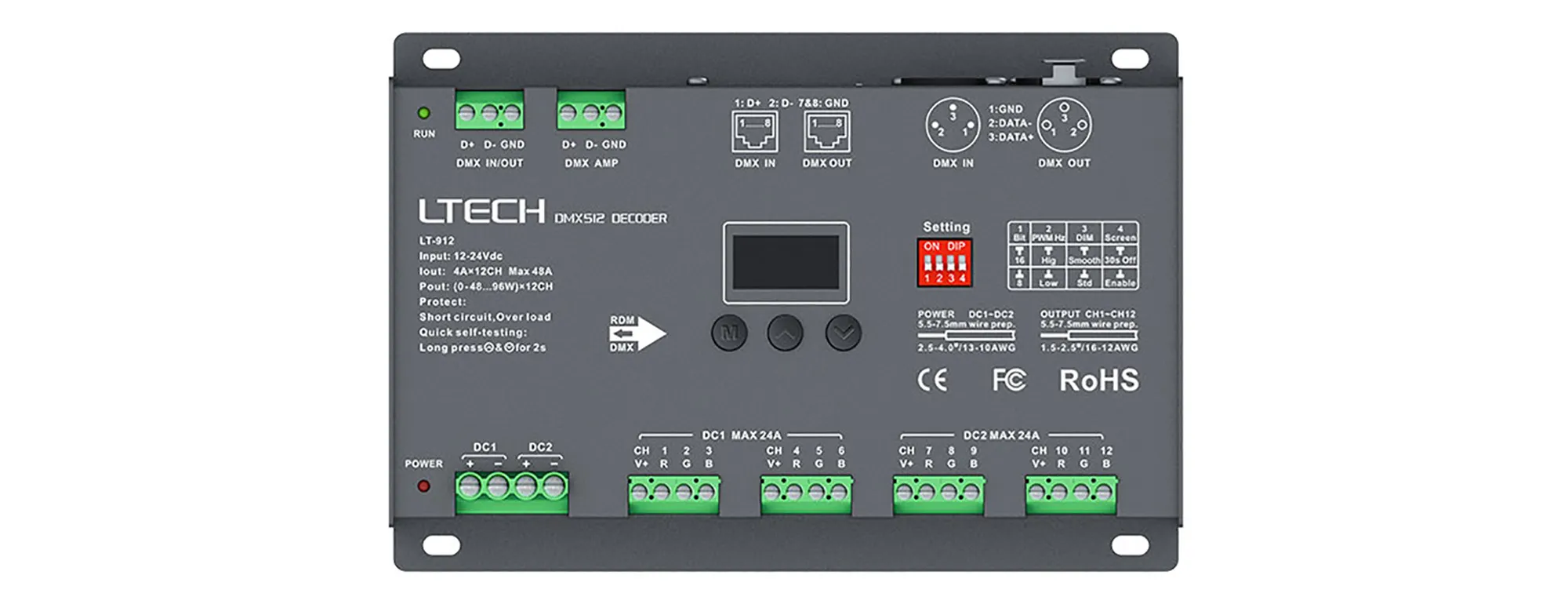

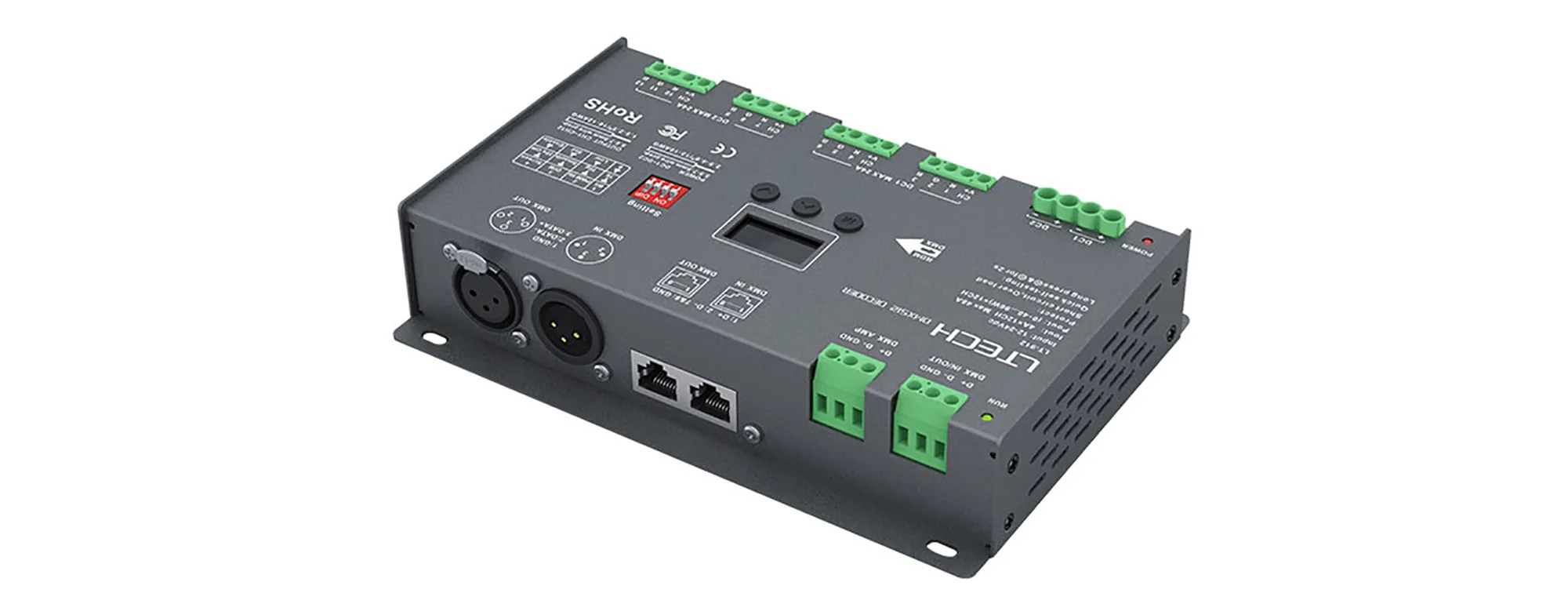

12Ch 4A CV DMX Decoder, 1152W Max.Power, XLR-3 , Green connector & RJ45 Port, Self testing, DMX512/RDM I/P signal, IP20.

12 Channel CV DMX Decoder, 12/24V DC, 48A (4A x 12CH), XLR-3, Green Terminal & RJ45 Ports, 1152W Max, Self Test function, RDM Support, IP20.

912

Qty: Order Item Add to Wishlist

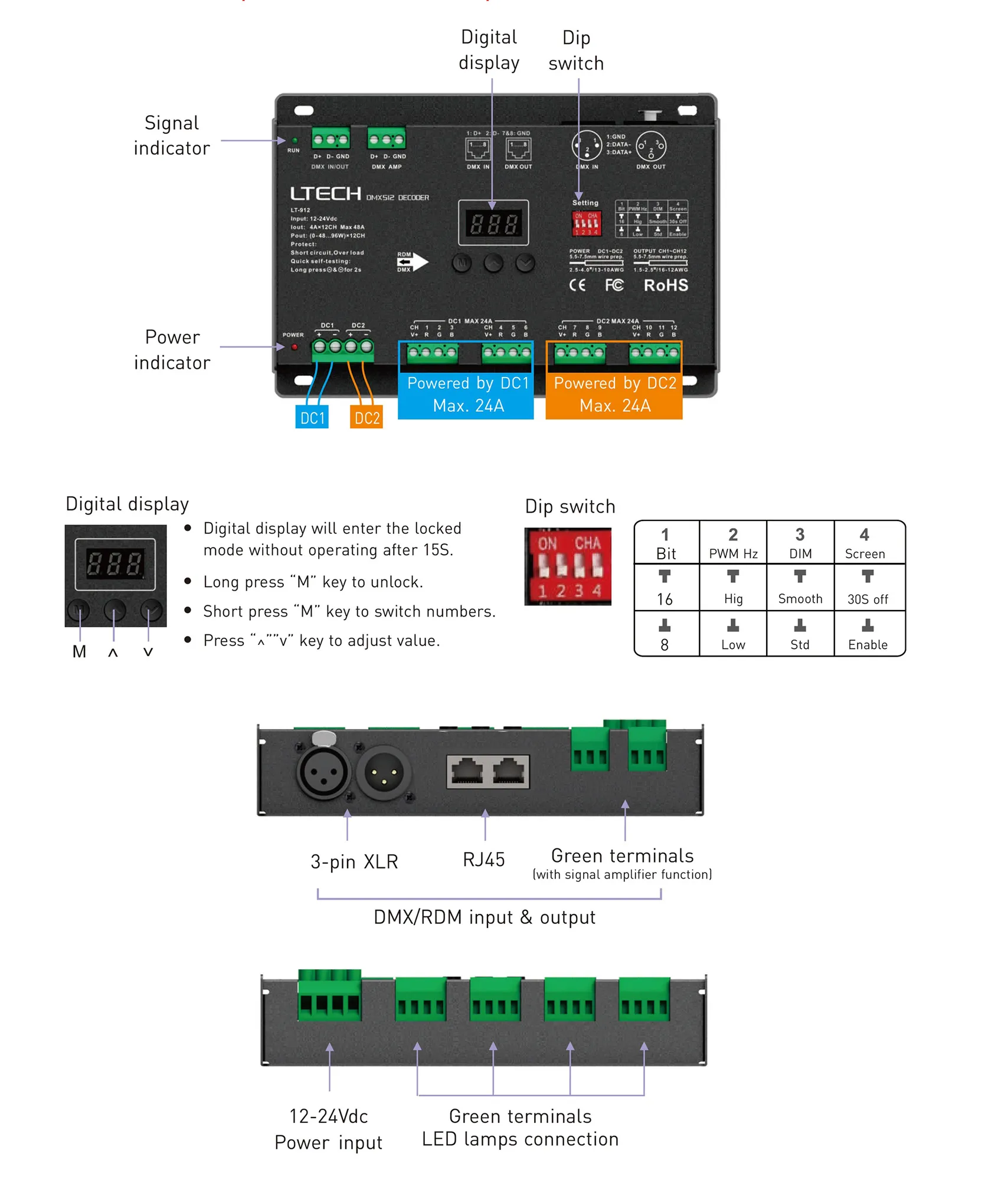

12CH output and Max. 4A current per channel, up to 1152W output power. Easy operation with digital display and the touch buttons. Self-testing function, High/low frequency PWM optional.16bit (65536 levels)/8bit (256 levels)grey level options.
LTECH is a front-runner in the field of LED lighting controller. As the first high-end manufacturer in China and one of the leading suppliers in the world, they have engaged in R&D of LED lighting control technology since 2001. As an intelligent lighting technology enabler, LTECH has developed hundreds of intelligent LED controlling technologies, which creates a more efficient, energy-saving, healthy and comfortable lighting life. Widely applied to the global lighting industry, innovative produc Show More...
To Follow
Quick Spec
Brief Description12Ch 4A CV DMX Decoder, 1152W Max.Power, XLR-3 , Green connector & RJ45 Port, Self testing, DMX512/RDM I/P signal, IP20.
Colour FinishBlack
Item Nett Weight (kg)0.73kg

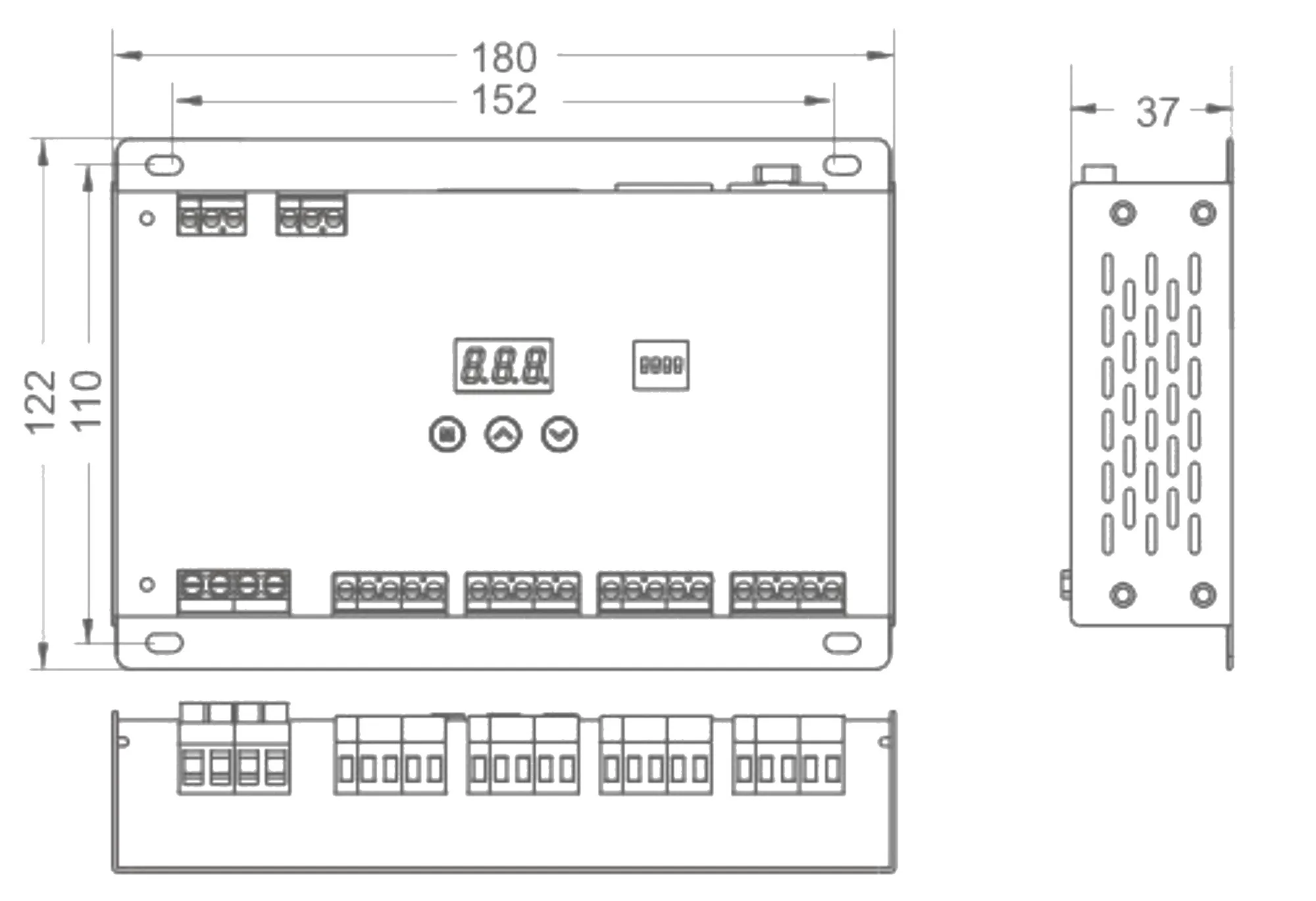

Length (mm)180mm
Width (mm)122mm
Height (mm)39mm
DimmableYes - Item Is a Dimmable Driver
Dimmer IncludedNo
IP RatingIP20
Working Humidity (%RH)20~95%RH
Average Life (hrs)50000hrs
Warranty (yrs)5yrs
Features
Features, Will be added soon
Full Specifications
Collection GroupRGB/DMX Controller
Overview12CH output and Max. 4A current per channel, up to 1152W output power. Easy operation with digital display and the touch buttons. Self-testing function, High/low frequency PWM optional.16bit (65536 levels)/8bit (256 levels)grey level options.
Brief Description12Ch 4A CV DMX Decoder, 1152W Max.Power, XLR-3 , Green connector & RJ45 Port, Self testing, DMX512/RDM I/P signal, IP20.
Colour FinishBlack
Item Nett Weight (kg)0.73kg
Length (mm)180mm
Width (mm)122mm
Height (mm)39mm
Type of DriverConstant Voltage
Constant Voltage Output (V)12/24V DC
Max. Current Output (A)48A(4A x 12CH)
Load Range (W)1152W
Ta (°C)-30° to +65°C
Tc (°C)80°C
Casing MaterialMetal Body
Connection TerminalXLR-5, RJ45, Green Terminal
Average Life Of Driver (hrs)50000hrs
Dimming ProtocolDMX512/RDM
Input Voltage (V)12-24V DC
DimmableYes - Item Is a Dimmable Driver
Dimmer IncludedNo
IP RatingIP20
Working Humidity (%RH)20~95%RH
Average Life (hrs)50000hrs
Warranty (yrs)5yrs
UKCA/CEYes
RohsYes
Additional CertificationFCC
Number of Cartons1
Carton Length (cm)19.3cm
Carton Width (cm)12.7cm
Carton Height (cm)4.1cm
Carton CBM0.001
Carton Nett Weight (kg)0.73kg (±5%)
Carton Gross Weight (kg)0.73kg (±5%)
Additional DetailsShort circuit and Overload protection. High reliability and fast self-testing function. Fault Indication, High/low frequency PWM option
UK Commodity Code8543709990
Country of OriginChina
