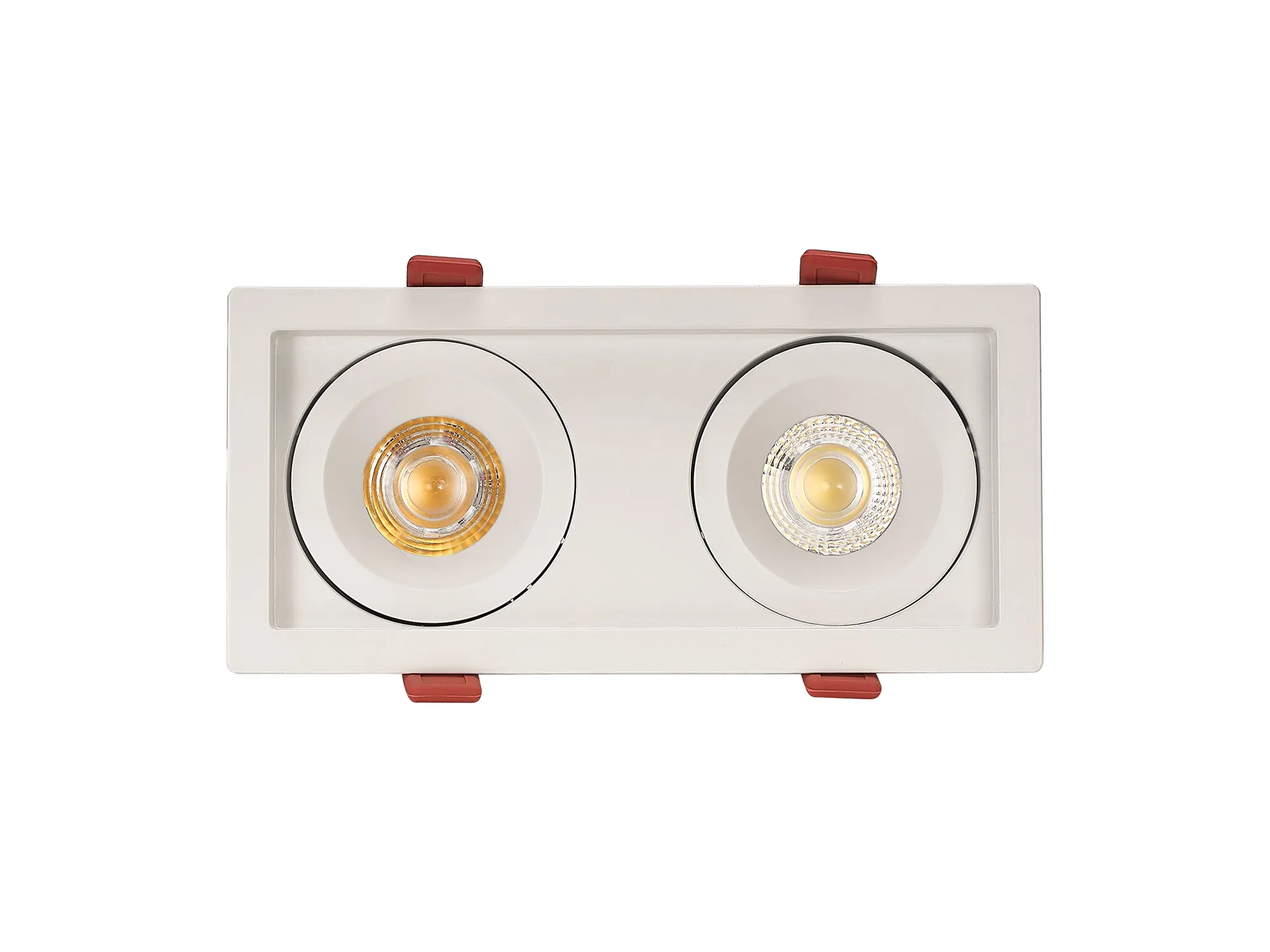

Bezz 9-2 Powered by Tridonic 2x9W 2x770lm 2700K 24° LED Engine,250mA ,  Matt White  Adj. Deep Recess spot light,  IP20.

Bezz 9-2 Powered by Tridonic 2x9W 2x770lm 2700K 24° LED Engine,250mA ,Matt White Adj. Deep Recess spot light, P20, DRIVER NOT INC. 5yrs Warranty

DM201979

Colour Temperature :
Beam Angle :

Qty: Order Item Add to Wishlist

Bezz offers a Single ,double or triple recessed luminaire with an angular recessed designed spotlight mounted on a slightly recessed flat plate, supported by adjustable reflector LED light engines. These multi-head fixtures give optimum lighting solutions from a single location whilst the aluminium structure ensures consistent reliability and performance.
Dlux the industry becomes flooded with inferior quality products that offer poor performance we believe it is crucial that lighting continues to be the essence of the surrounding we work or live in. Every d’lux product is carefully designed and engineered to offer accurate lighting solutions and not just simply provide some light. With the evolution of LED based lighting the synergy of lighting and nature is even closer as we endeavour to save the environment we live in.
We have established Show More...
Design by
Dlux Design Team
When designing and manufacturing long lasting, high quality LED solutions for both domestic and commercial applications, an impressive understanding and education in LED technology and power systems is imperative, which is exactly what the combined experience of Dlux team members’ offers. Each carefully selected specialist contributes their own unique talents and knowledgeability to the stellar products offered by this brand.
Quick Spec
Brief DescriptionBezz 9-2 Powered by Tridonic 2x9W 2x770lm 2700K 24° LED Engine,250mA , Matt White Adj. Deep Recess spot light, IP20.
Colour FinishMatt White

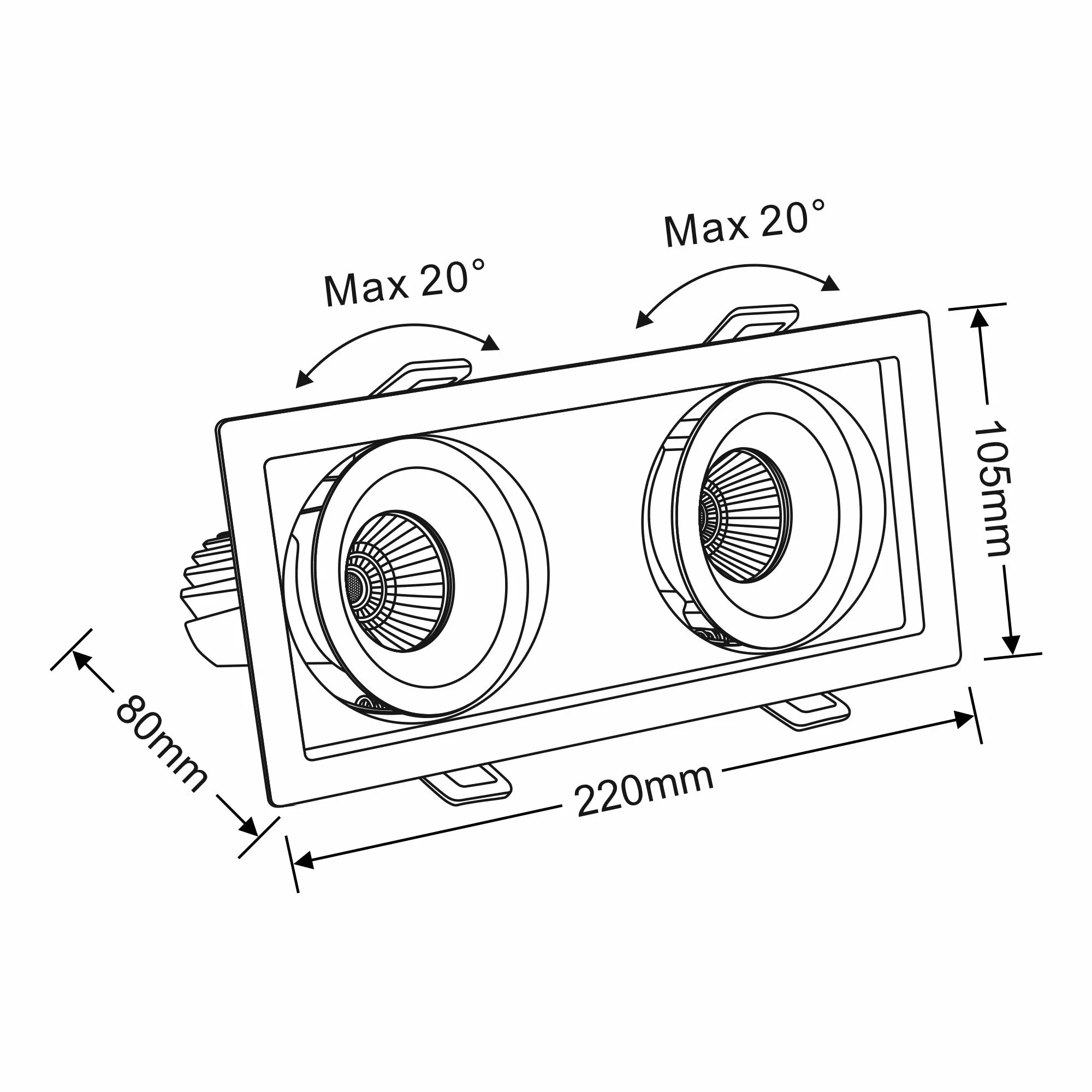

Diameter (mm)220x105mm
Height (mm)80mm
Energy ClassA++
Lamp SocketIntegral LED
Recommended LampIntegral LED
Max Wattage Lamp (W)2 x 9W
Lamp IncludedYes - Integrated
Type of Lamp IncludedIntegrated LED
Colour Temperature (K)2700K Warm White (±5%)
LED Voltage (V)2x(30-40V) DC (±5%)
Beam Angle (°)24°
System Flux (lm)2x770lm (±5%)
CRI>90
UGR<=19
Driver IncludedNo
Type of Driver RequiredConstant Current
Protection ClassClass 3 - Low Voltage
DimmableYes - Suitable Driver Required
Dimmer IncludedNo
IP RatingIP20
Average Life (hrs)50000hrs
Warranty (yrs)5yrs
Features
Features, Will be added soon
Full Specifications
Collection GroupBezz 9-2
Barcode5056037159056
Brief DescriptionBezz 9-2 Powered by Tridonic 2x9W 2x770lm 2700K 24° LED Engine,250mA , Matt White Adj. Deep Recess spot light, IP20.
Colour FinishMatt White
Type of FinishPowder Coated
Diameter (mm)220x105mm
Height (mm)80mm
Materials UsedDie-cast Aluminium
Energy ClassA++
Max Energy ClassA++
Min Energy ClassA++
Lamp SocketIntegral LED
Recommended LampIntegral LED
Max Wattage Lamp (W)2 x 9W
Lamp IncludedYes - Integrated
Type of Lamp IncludedIntegrated LED
Colour Temperature (K)2700K Warm White (±5%)
Average Life of LED (hrs)50000hrs
LED Power (W)2 x 9W (±5%)
LED Voltage (V)2x(30-40V) DC (±5%)
LED Current (mA)2 x 250mA (±5%)
Type of LEDCOB
Lumens Per Watt (lm/W)85lm/W (±5%)
Lumen Maintenance (hrs)50000hrs / LM80hrs (±5%)
Beam Angle (°)24°
System Flux (lm)2x770lm (±5%)
CRI>90
MacAdam<3
UGR<=19
Driver IncludedNo
Triac DriversTD-28003344
1-10V DriversLT-AD-10-100-400-G1A,LT-SE-12-100-400-W1A
0-10V DriversLT-AD-10-100-400-G1A,LT-SE-12-100-400-W1A
Dali DriversTD-28000673,LT-SE-12-100-400-W1D
Type of Driver RequiredConstant Current
Fixed Output DriversDA800050, TD-87500628
Protection ClassClass 3 - Low Voltage
Total Power Consumption (W)2 x 9W (±5%)
Input Voltage (V)2x(30-40V) DC
DimmableYes - Suitable Driver Required
Dimmer IncludedNo
IP RatingIP20
F RatingYes
Average Life (hrs)50000hrs
Warranty (yrs)5yrs
UKCA/CEYes
RohsYes
EMV/EMCYes
Cable Information0.3mm, 1 Pc "+" Red Clear Teflon, 1 Pc "-" Black Clear Teflon, Covered By 4.0mm Clear PVC, Total Length:200mm
Fixing Bracket DetailsSpring Type With Black Cover
Heat Sink ColourBlack
Number of Cartons1
Carton Length (cm)23cm
Carton Width (cm)13cm
Carton Height (cm)11cm
UK Commodity Code9405119090
Country of OriginChina
