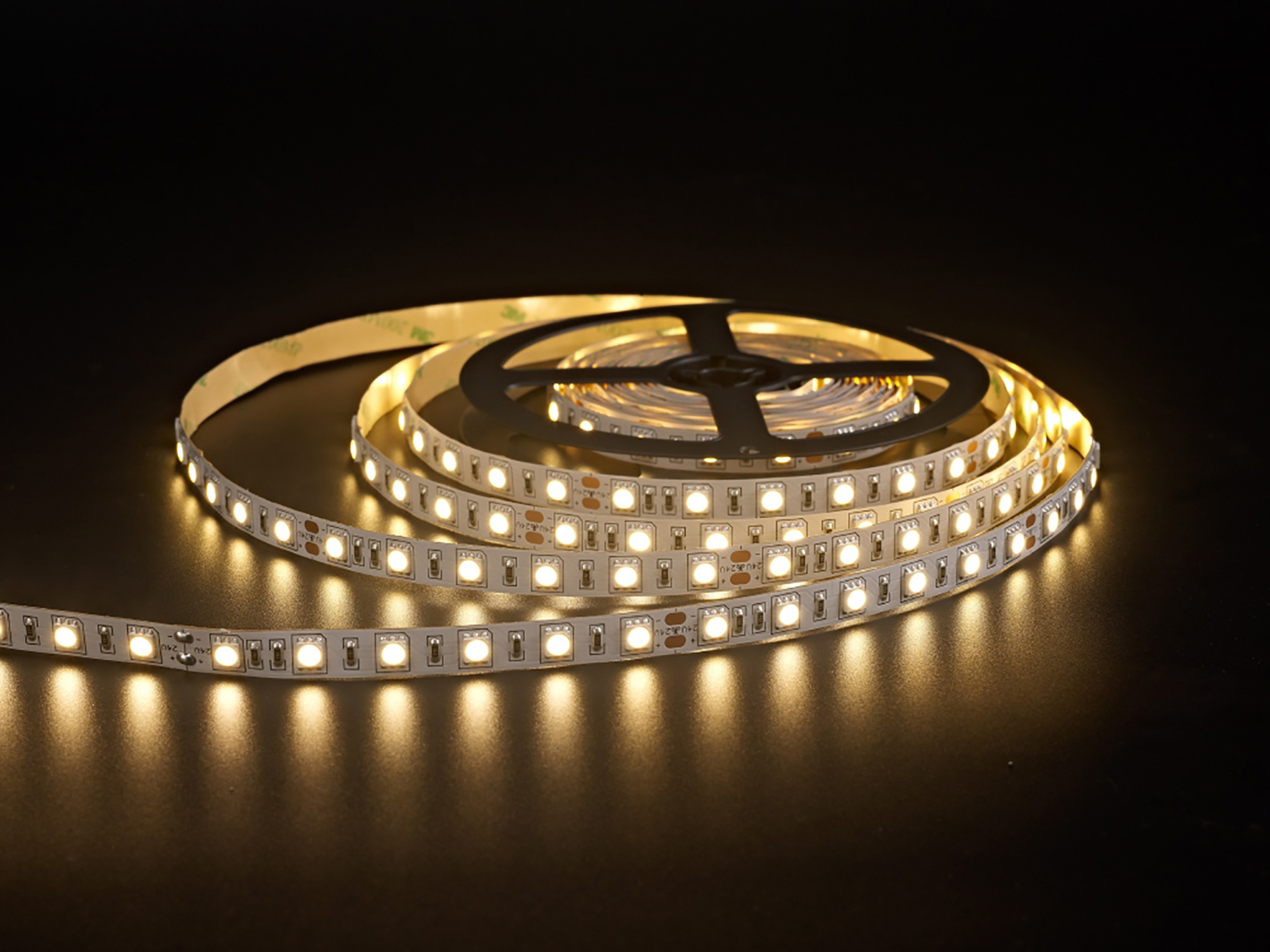

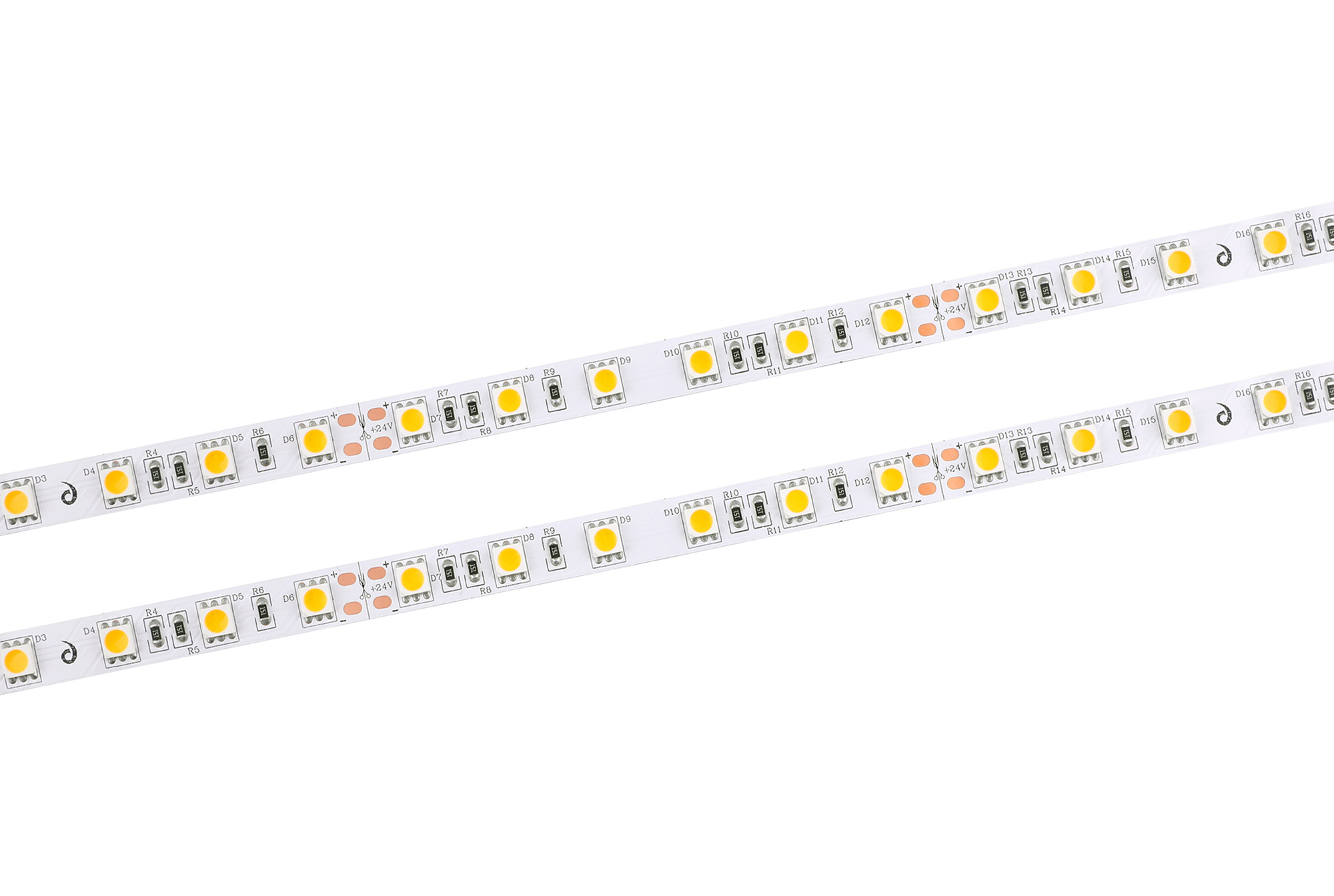

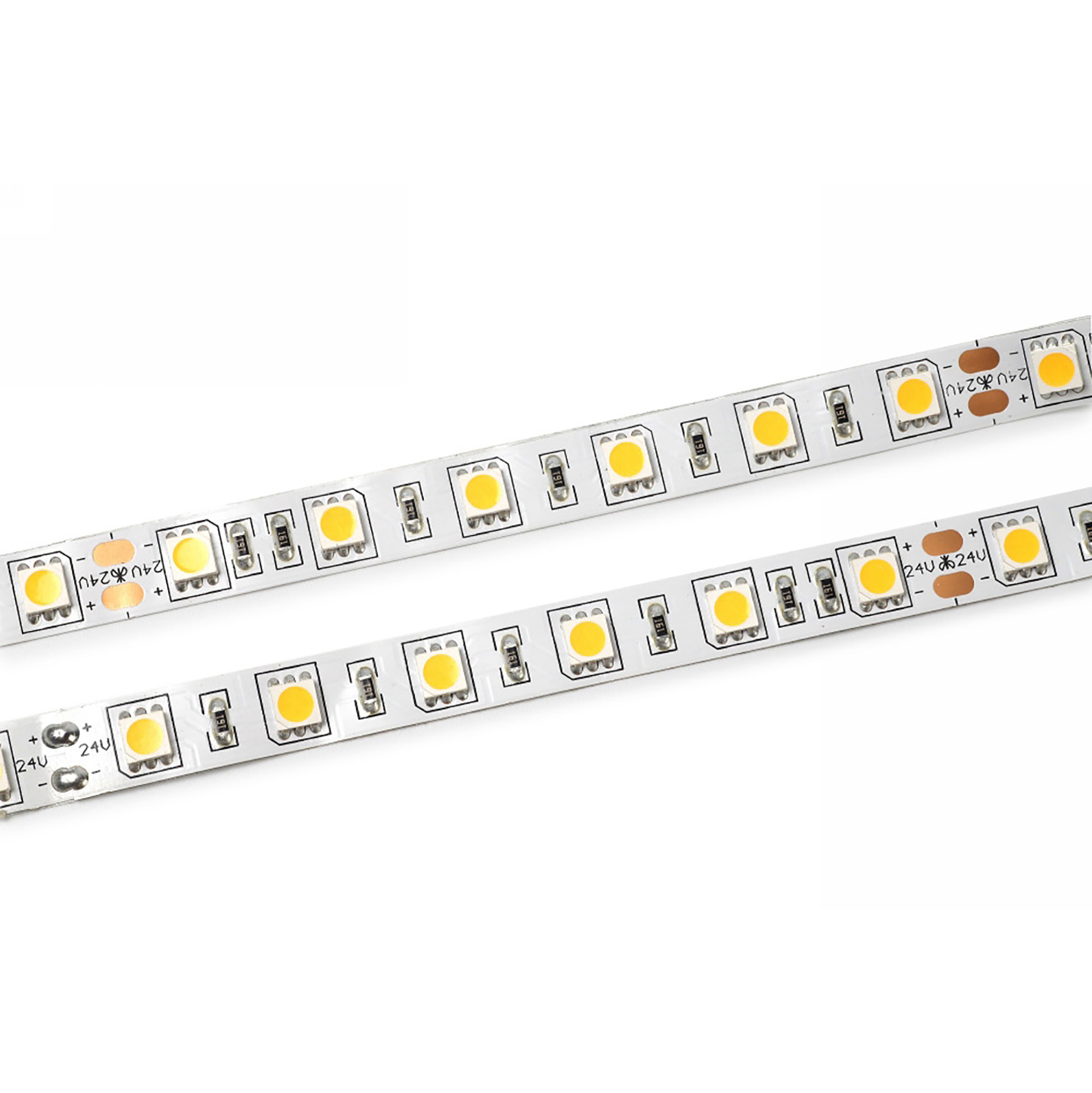

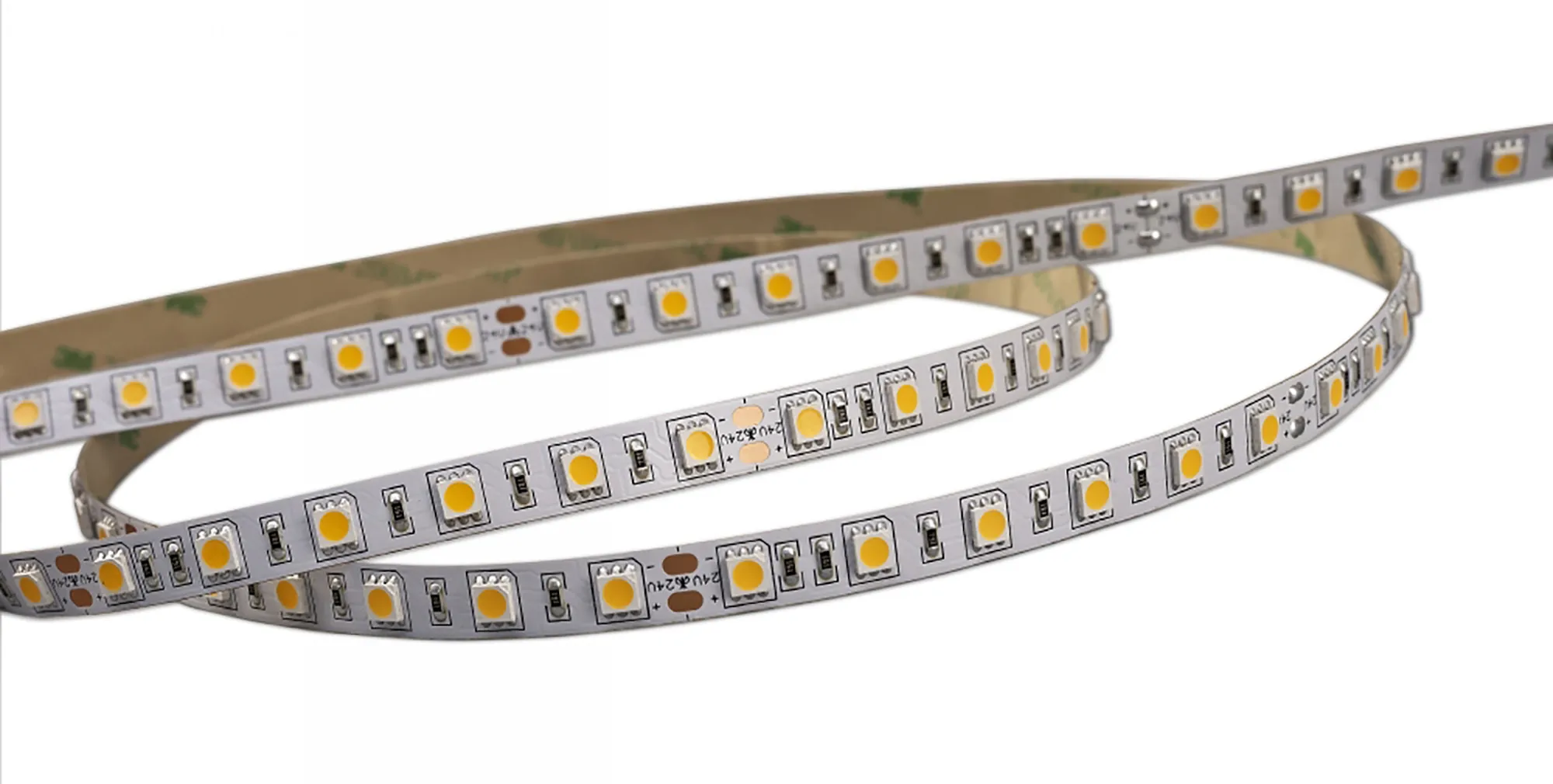

Axios Pro 5mx10mm 24V 72W LED Strip 1300lm/m 3000K IP20

Axios Pro, 5mx10mm, 24V, 72W, LED Strip, Cuttable:100mm, 60LED/m, 1152lm/m, 14.4W/m, 120°, 3000K W. White, IP20, DRIVER EXC, 5yrs Warranty

DX700048

Wattage :
Colour Temperature :

Qty: Order Item Add to Wishlist

Dlux the industry becomes flooded with inferior quality products that offer poor performance we believe it is crucial that lighting continues to be the essence of the surrounding we work or live in. Every d’lux product is carefully designed and engineered to offer accurate lighting solutions and not just simply provide some light. With the evolution of LED based lighting the synergy of lighting and nature is even closer as we endeavour to save the environment we live in.
We have established Show More...
Design by
Dlux Design Team
When designing and manufacturing long lasting, high quality LED solutions for both domestic and commercial applications, an impressive understanding and education in LED technology and power systems is imperative, which is exactly what the combined experience of Dlux team members’ offers. Each carefully selected specialist contributes their own unique talents and knowledgeability to the stellar products offered by this brand.
Quick Spec
Brief DescriptionAxios Pro 5mx10mm 24V 72W LED Strip 1300lm/m 3000K IP20
Colour FinishWhite
Item Nett Weight (kg)0.093kg
Length (m)5m
Width (mm)10mm
Height (mm)2mm
Reel/Roll Length (m)5m
Cuttable Length (mm)100mm
Self Adhesive3M Branded Tape On Reverse
Energy ClassA++
Lamp SocketIntegral LED
Recommended LampIntegral LED
Lamp IncludedYes - Integrated
Type of Lamp IncludedIntegrated LED
Colour Temperature (K)3000K Warm White (±5%) ( ±5%)
LED Per Metre60 LED/m
LED Voltage (V)24V DC (±5%) ( ±5%)
Lumens Per Metre (lm/m)1152lm/m (±5%) ( ±5%)
Beam Angle (°)120°
System Flux (lm)5760lm (±5%) ( ±5%)
CRI>80
Driver IncludedNo
Type of Driver RequiredConstant Voltage
Voltage Required (V)24V
Protection ClassClass 3 - Low Voltage
Power Per Metre (W/m)14.4W/m (±5%) ( ±5%)
DimmableYes - Dimmable Driver Required
Dimmer IncludedNo
IP RatingIP20
Warranty (yrs)5yrs
Features
Features, Will be added soon
Full Specifications
Collection GroupAxios Pro 24V IP20 14.4W/m 5050 60LED/m
Barcode5056037102373
Brief DescriptionAxios Pro 5mx10mm 24V 72W LED Strip 1300lm/m 3000K IP20
Colour FinishWhite
Item Nett Weight (kg)0.093kg
Length (m)5m
Width (mm)10mm
Height (mm)2mm
Reel/Roll Length (m)5m
Cuttable Length (mm)100mm
Self Adhesive3M Branded Tape On Reverse
Materials UsedFPolycarbonate
Energy ClassA++
Lamp SocketIntegral LED
Recommended LampIntegral LED
Lamp IncludedYes - Integrated
Type of Lamp IncludedIntegrated LED
Colour Temperature (K)3000K Warm White (±5%) ( ±5%)
Average Life of LED (hrs)50000hrs
SMD Chipset5050
LED Per Metre60 LED/m
LED Power (W)0.2W (±5%) ( ±5%)
LED Voltage (V)24V DC (±5%) ( ±5%)
LED Current (mA)60mA (±5%) ( ±5%)
Type of LEDSMD
LED Spacing (mm)16.67mm
Lumens Per Watt (lm/W)80lm/W (±5%) ( ±5%)
Lumens Per Metre (lm/m)1152lm/m (±5%) ( ±5%)
Lumen Maintenance (hrs)50000hrs / LM80 (±5%) ( ±5%)
Beam Angle (°)120°
System Flux (lm)5760lm (±5%) ( ±5%)
CRI>80
MacAdam<3
Driver IncludedNo
Type of Driver RequiredConstant Voltage
Dimming Range (%)0-100%
Voltage Required (V)24V
Protection ClassClass 3 - Low Voltage
Total Power Consumption (W)72W (±5%) ( ±5%)
Power Per Metre (W/m)14.4W/m (±5%) ( ±5%)
Max. Continuous Length (m)10m - 1 Driver
Input Voltage (V)24V DC
Input Current (A)3A
DimmableYes - Dimmable Driver Required
Dimmer IncludedNo
IP RatingIP20
F RatingNo
Warranty (yrs)5yrs
UKCA/CEYes
RohsYes
EMV/EMCYes
Cable Information2 x 0.3mm2 Black+Red PVC wire 15cm
Number of Cartons1
Carton Length (cm)24cm
Carton Width (cm)22cm
Carton Height (cm)2.5cm
Carton CBM0.0013
Carton Nett Weight (kg)0.15kg (±5%) ( ±5%)
Carton Gross Weight (kg)0.23kg (±5%) ( ±5%)
Pieces Included1
Additional DetailsLED Strip
UK Commodity Code8539510000
Country of OriginChina
