Axios Select, 5mx10mm, 24V, 48W , LED Strip 700lm/m 2200K IP20,

Axios Select, 5m x 8mm, 24V, 48W , LED Strip, Cuttable: 50mm, 120LED/m 700lm/m 9.6W/m, 120°, 2200K W. White IP20, DRIVER EXC, 3yrs Warranty

DX700114

Colour Temperature :

Qty: Order Item Add to Wishlist

Dlux the industry becomes flooded with inferior quality products that offer poor performance we believe it is crucial that lighting continues to be the essence of the surrounding we work or live in. Every d’lux product is carefully designed and engineered to offer accurate lighting solutions and not just simply provide some light. With the evolution of LED based lighting the synergy of lighting and nature is even closer as we endeavour to save the environment we live in.
We have established Show More...
Design by
Dlux Design Team
When designing and manufacturing long lasting, high quality LED solutions for both domestic and commercial applications, an impressive understanding and education in LED technology and power systems is imperative, which is exactly what the combined experience of Dlux team members’ offers. Each carefully selected specialist contributes their own unique talents and knowledgeability to the stellar products offered by this brand.
Quick Spec
Brief DescriptionAxios Select, 5mx10mm, 24V, 48W , LED Strip 700lm/m 2200K IP20,
Colour FinishWhite

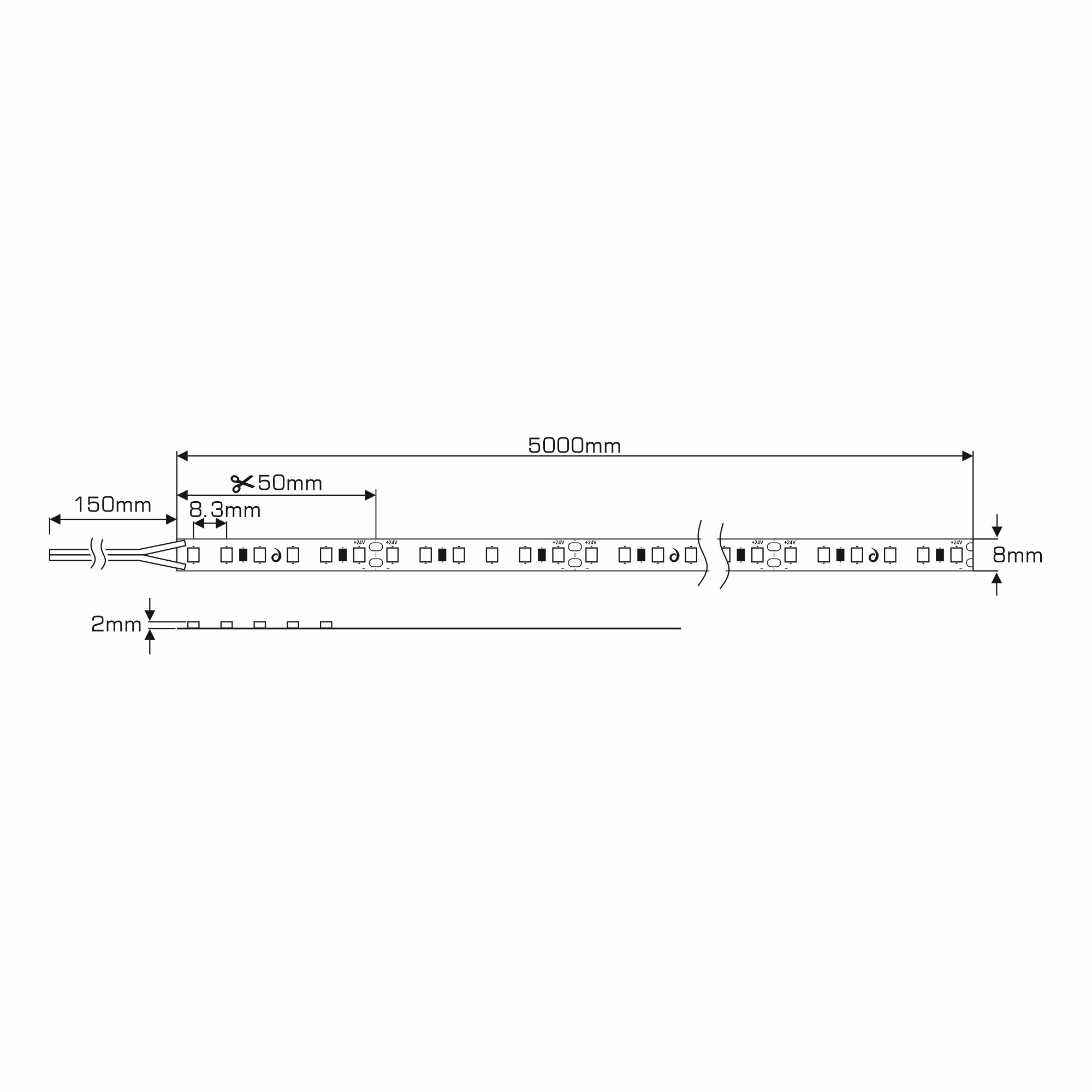

Length (m)5m
Width (mm)10mm
Height (mm)2mm
Reel/Roll Length (m)5m
Cuttable Length (mm)50mm
Energy ClassA++
Lamp SocketIntegral LED
Recommended LampIntegral LED
Lamp IncludedYes - Integrated
Type of Lamp IncludedIntegrated LED
Colour Temperature (K)2200K Extra Warm White (±5%) ( ±5%)
LED Per Metre120LED/m
LED Voltage (V)24V DC (±5%) ( ±5%)
Lumens Per Metre (lm/m)700lm/m (±5%) ( ±5%)
Beam Angle (°)120°
System Flux (lm)3500lm (±5%) ( ±5%)
CRI>80
Driver IncludedNo
Type of Driver RequiredConstant Voltage
Voltage Required (V)24V
Protection ClassClass 3 - Low Voltage
Power Per Metre (W/m)9.6W/m (±5%) ( ±5%)
DimmableYes - Dimmable Driver Required
Dimmer IncludedNo
IP RatingIP20
Warranty (yrs)3yrs
Features
Features, Will be added soon
Full Specifications
Collection GroupAxios Select 24V IP20 9.6W/m 2835 120LED/m
Barcode5056037156888
Brief DescriptionAxios Select, 5mx10mm, 24V, 48W , LED Strip 700lm/m 2200K IP20,
Colour FinishWhite
Length (m)5m
Width (mm)10mm
Height (mm)2mm
Reel/Roll Length (m)5m
Cuttable Length (mm)50mm
Materials UsedFPolycarbonate
Energy ClassA++
Lamp SocketIntegral LED
Recommended LampIntegral LED
Lamp IncludedYes - Integrated
Type of Lamp IncludedIntegrated LED
Colour Temperature (K)2200K Extra Warm White (±5%) ( ±5%)
Average Life of LED (hrs)30000hrs
SMD Chipset2835
LED Per Metre120LED/m
LED Voltage (V)24V DC (±5%) ( ±5%)
Type of LEDSMD
Lumens Per Watt (lm/W)73lm/W (±5%) ( ±5%)
Lumens Per Metre (lm/m)700lm/m (±5%) ( ±5%)
Lumen Maintenance (hrs)30000hrs / LM80hrs (±5%) ( ±5%)
Beam Angle (°)120°
System Flux (lm)3500lm (±5%) ( ±5%)
CRI>80
MacAdam<3
Driver IncludedNo
Type of Driver RequiredConstant Voltage
Dimming Range (%)0-100%
Voltage Required (V)24V
Protection ClassClass 3 - Low Voltage
Total Power Consumption (W)48W (±5%) ( ±5%)
Power Per Metre (W/m)9.6W/m (±5%) ( ±5%)
Input Voltage (V)24V DC
DimmableYes - Dimmable Driver Required
Dimmer IncludedNo
IP RatingIP20
F RatingNo
Warranty (yrs)3yrs
UKCA/CEYes
RohsYes
EMV/EMCYes
Cable Information2 x 0.3mm2 Black+Red PVC wire 15cm
Number of Cartons1
Additional DetailsLED Strip
UK Commodity Code8539510000
Country of OriginChina
