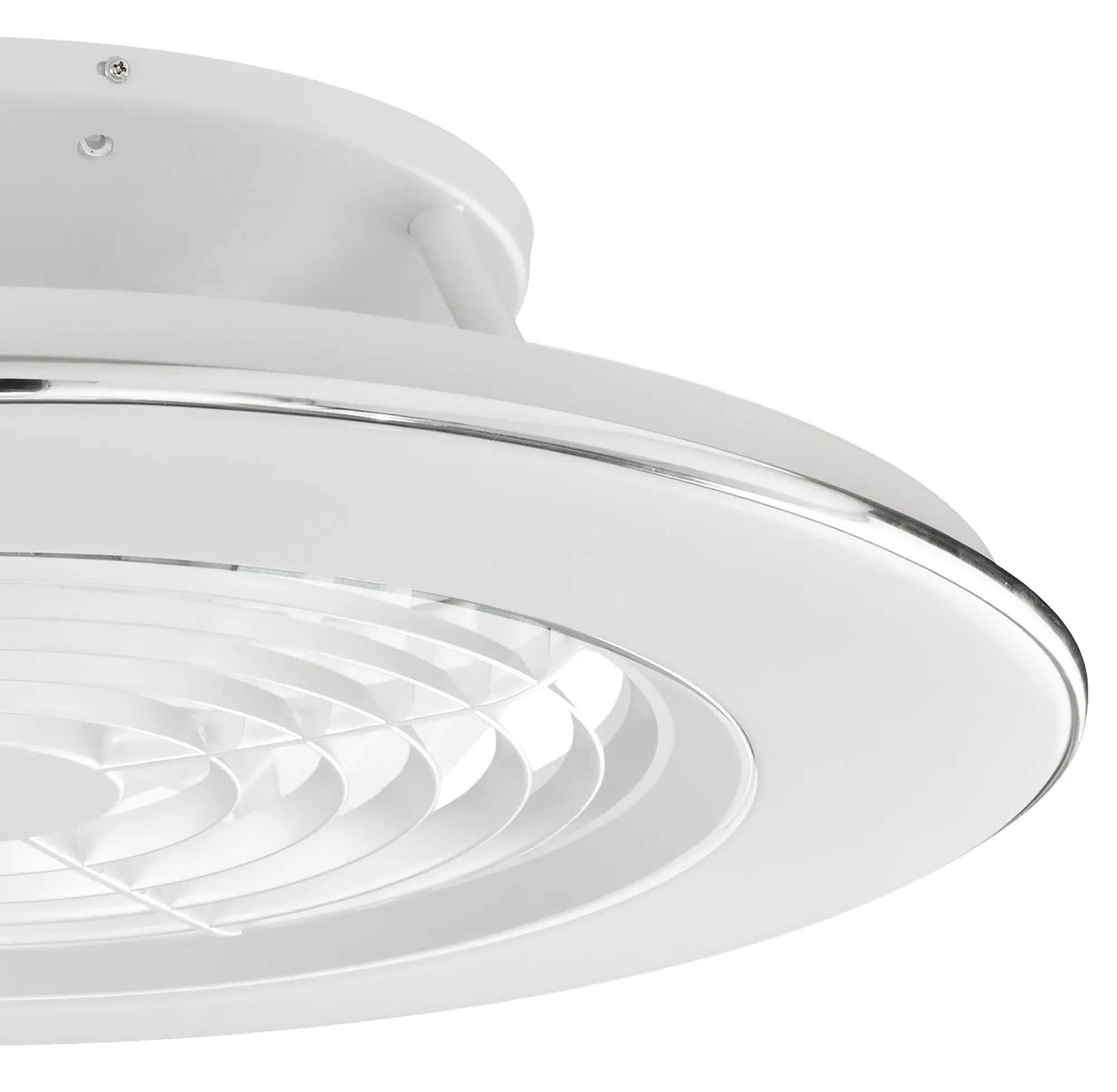

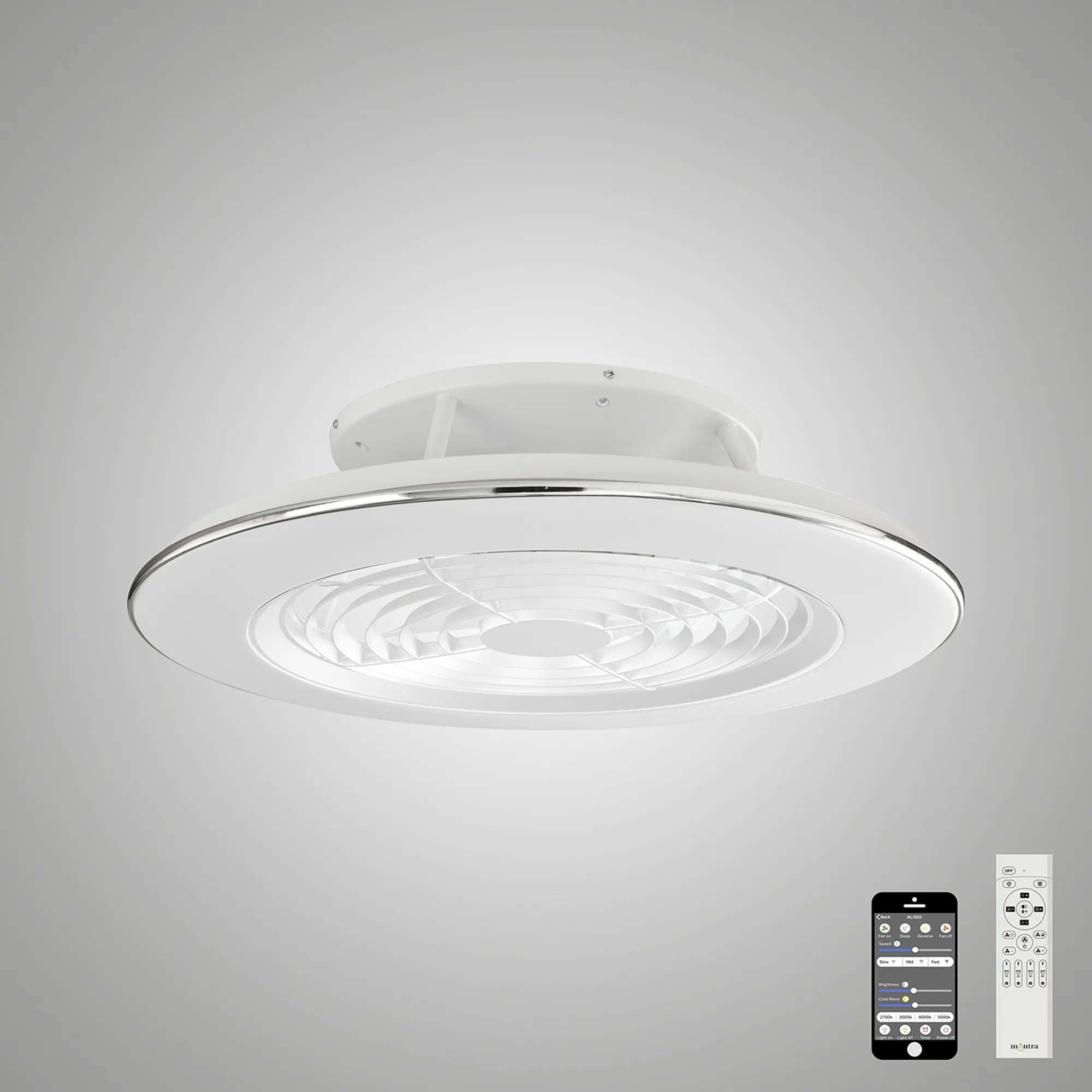

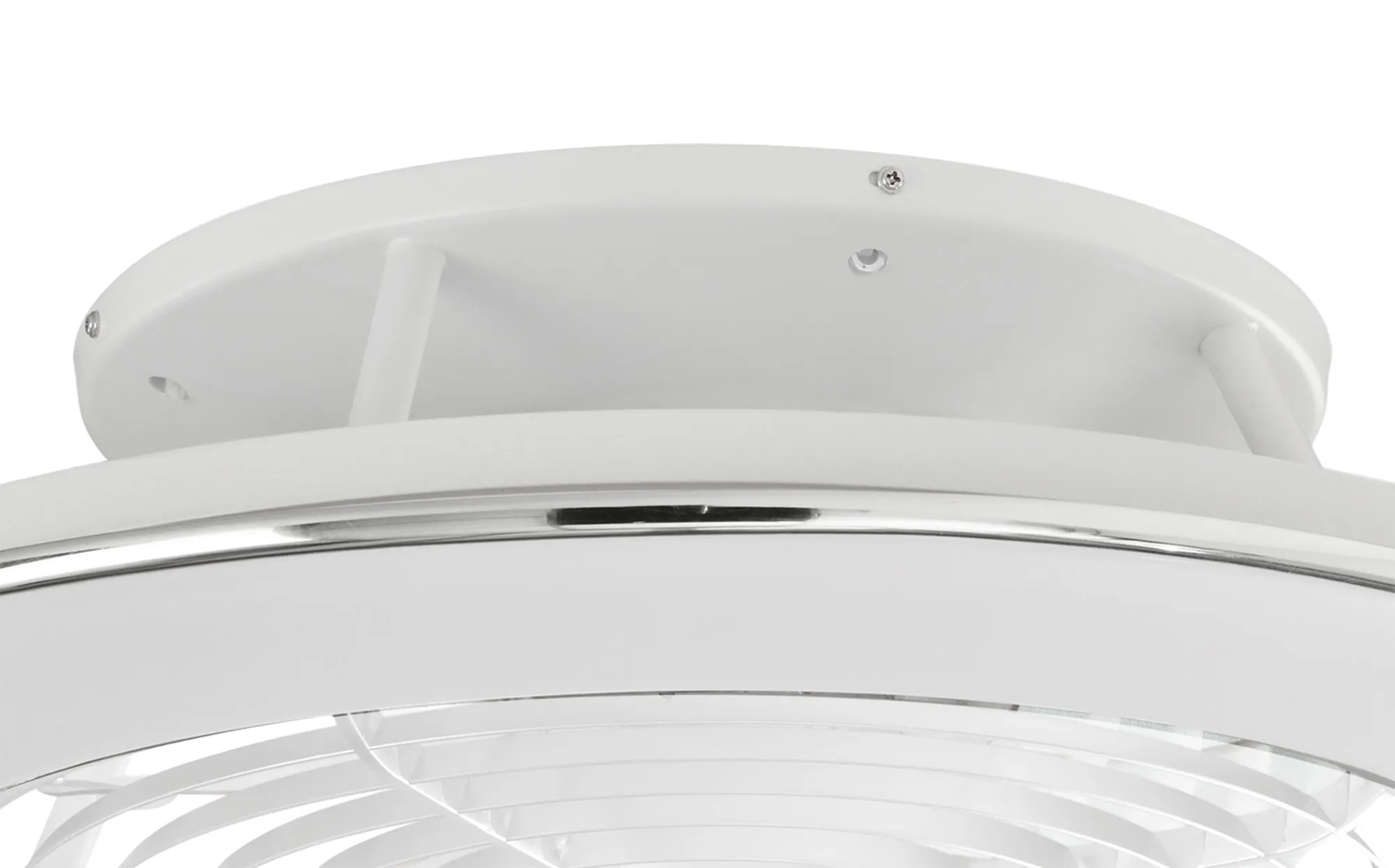

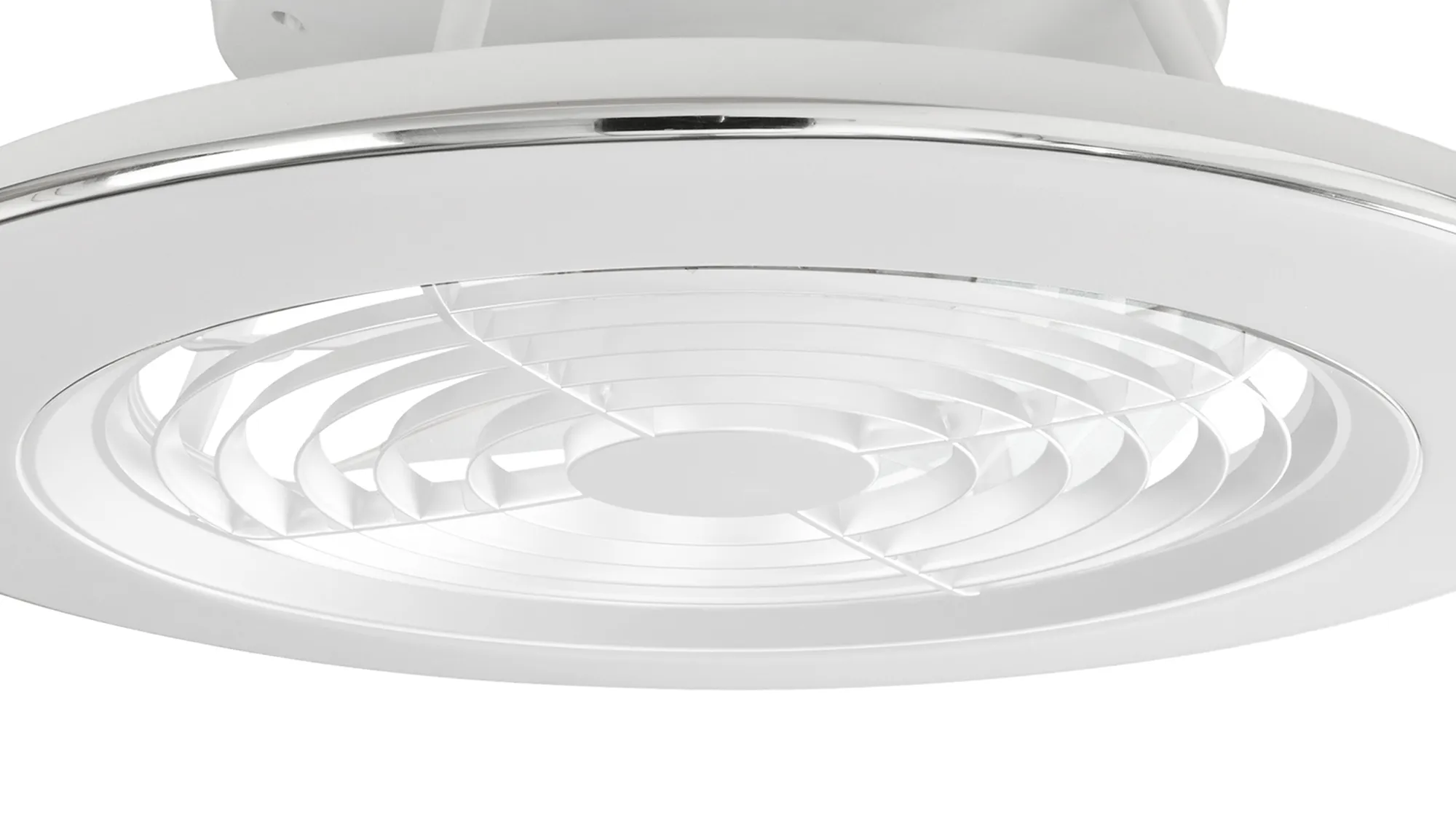

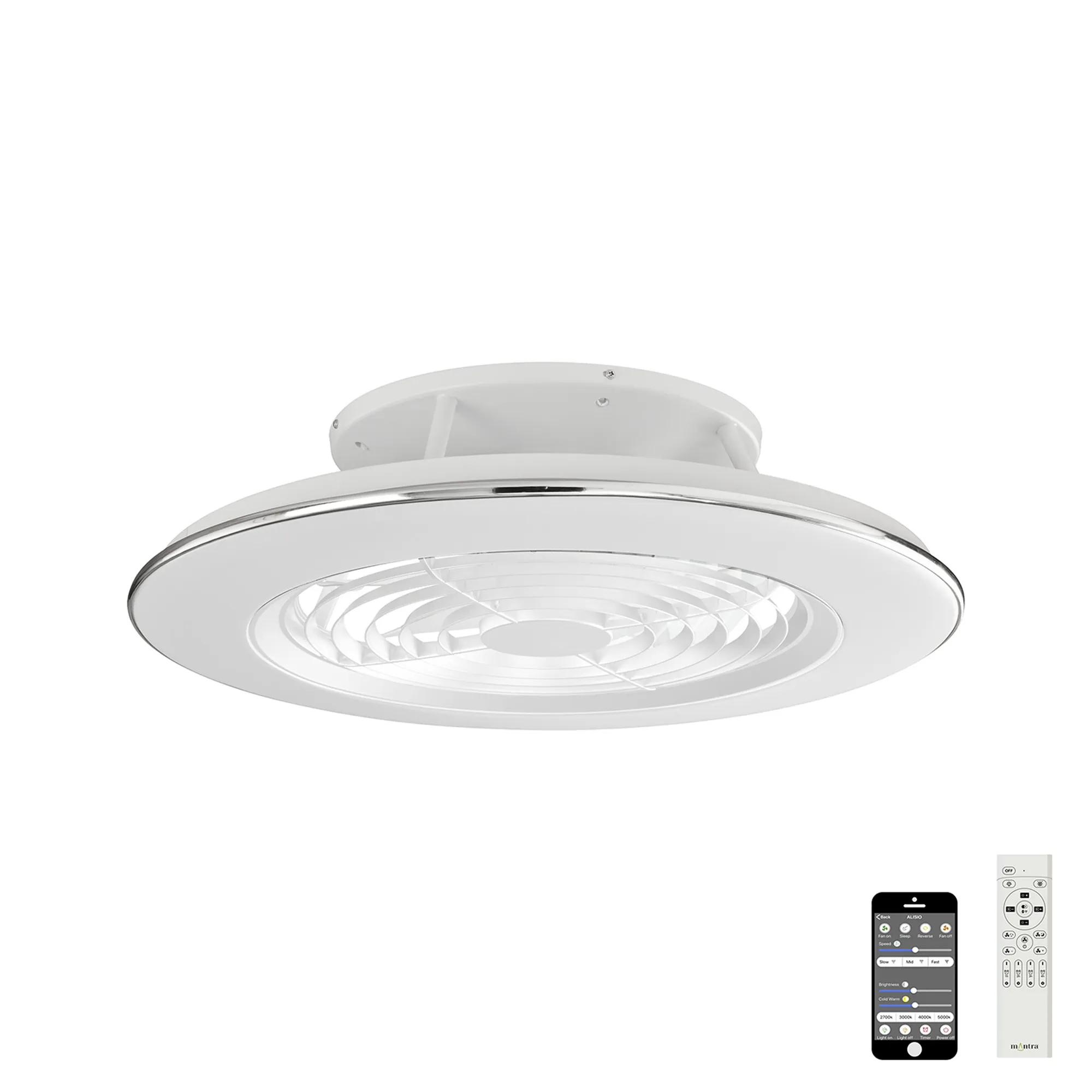

Alisio 70W LED Dimmable Ceiling Light & Fan, Remote / APP Controlled White
Gallery Images (4)

Alisio 63cm 70W LED Dimmable Ceiling Light With Built-In 35W DC Reversible Fan, White Finish c/w Remote Control and APP Control, 4900lm, White

M6705

Colour Finish :
White

Qty: Order Item Add to Wishlist

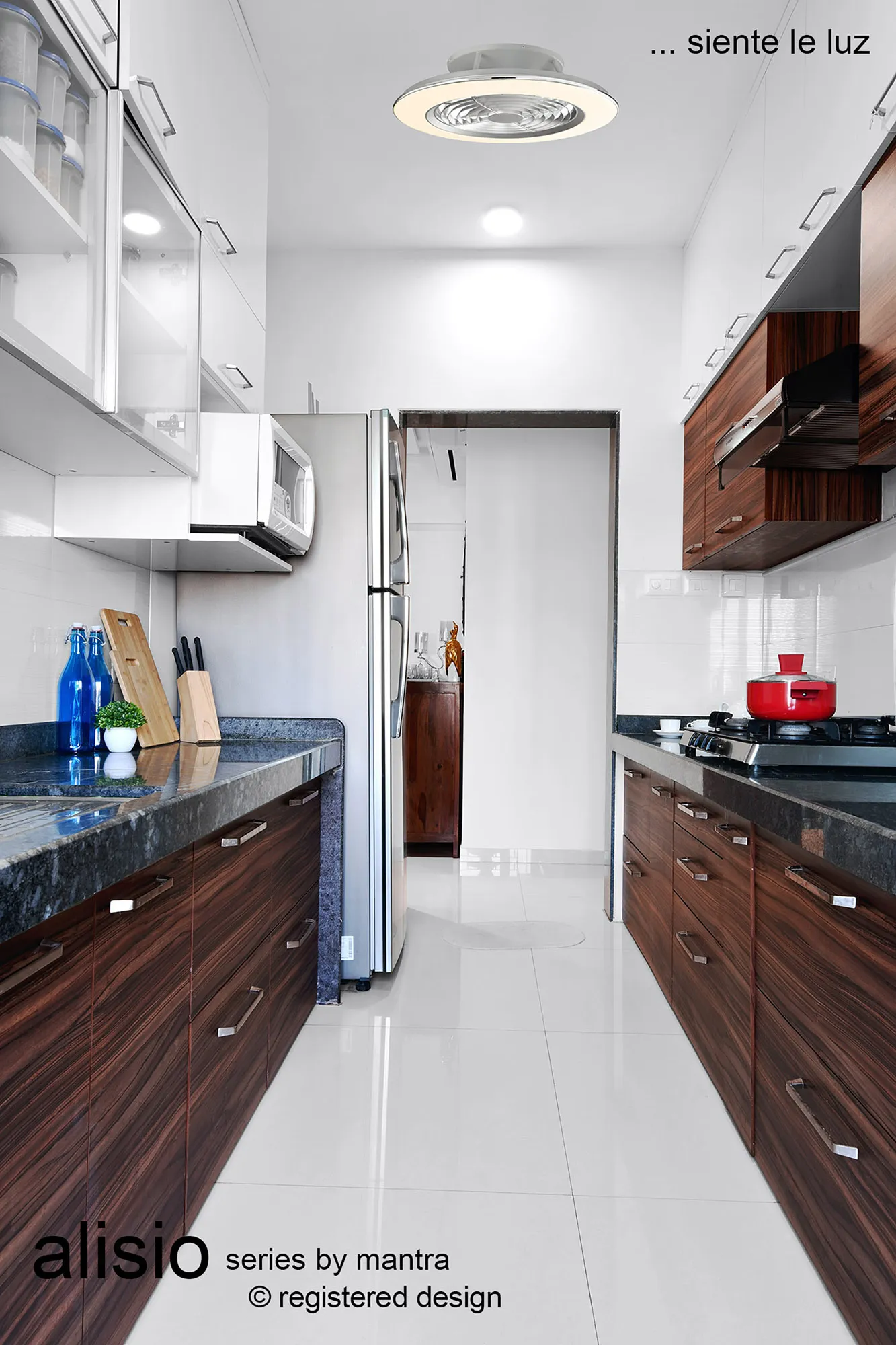

Alisio is a new proposal from Mantra, to break into the sector of ventilation elements providing, as always, an addition of originality and ingenuity with its design. Its minimalist aesthetic harbours the various functions, offering cool ventilation or heat whilst effectively illuminating the room in which it is situated. Ideal for bedrooms and quiet areas due to its tuneable function and its quiet yet efficient DC motor. While the fan is an ideal addition to any property during the summer, the inverter function (in position of counter rotation) allows you to collect the hot air and distribute it homogenously during the colder months. Alisio's ability to set different intensities and speeds, means it can also be installed in larger areas, such as living rooms, kitchens or open offices. Given the compact configuration and design, it provides a reassuring security by hiding its transparent blades, in an aesthetically discreet way, avoiding dangers and involuntary accidents.
Mantra is an internationally recognised manufacturer of designer lighting at affordable prices. With over a 1000 products and every collection having a unique identity, there is never a shortfall of choice. In order to protect our designs and customers alike, all designs are registered throughout the world. Extensive investment in research and development ensures that new designs are as innovative as possible. With the majority of ranges suitable for low energy lamps and also new ranges of LED f Show More...
Design by
Jose Ignacio Ballester
After several years of dedication to fine arts, which he combined with his secondary studies, Jose joined the design teams of several companies in the furniture sector. In 2000 he launched his career in the decorative lighting field where he worked for prestigious companies such as Gotic Decor and AC Design, as head designer.
Quick Spec
Brief DescriptionAlisio 70W LED Dimmable Ceiling Light & Fan, Remote / APP Controlled White
Colour FinishWhite
Item Nett Weight (kg)4.70kg

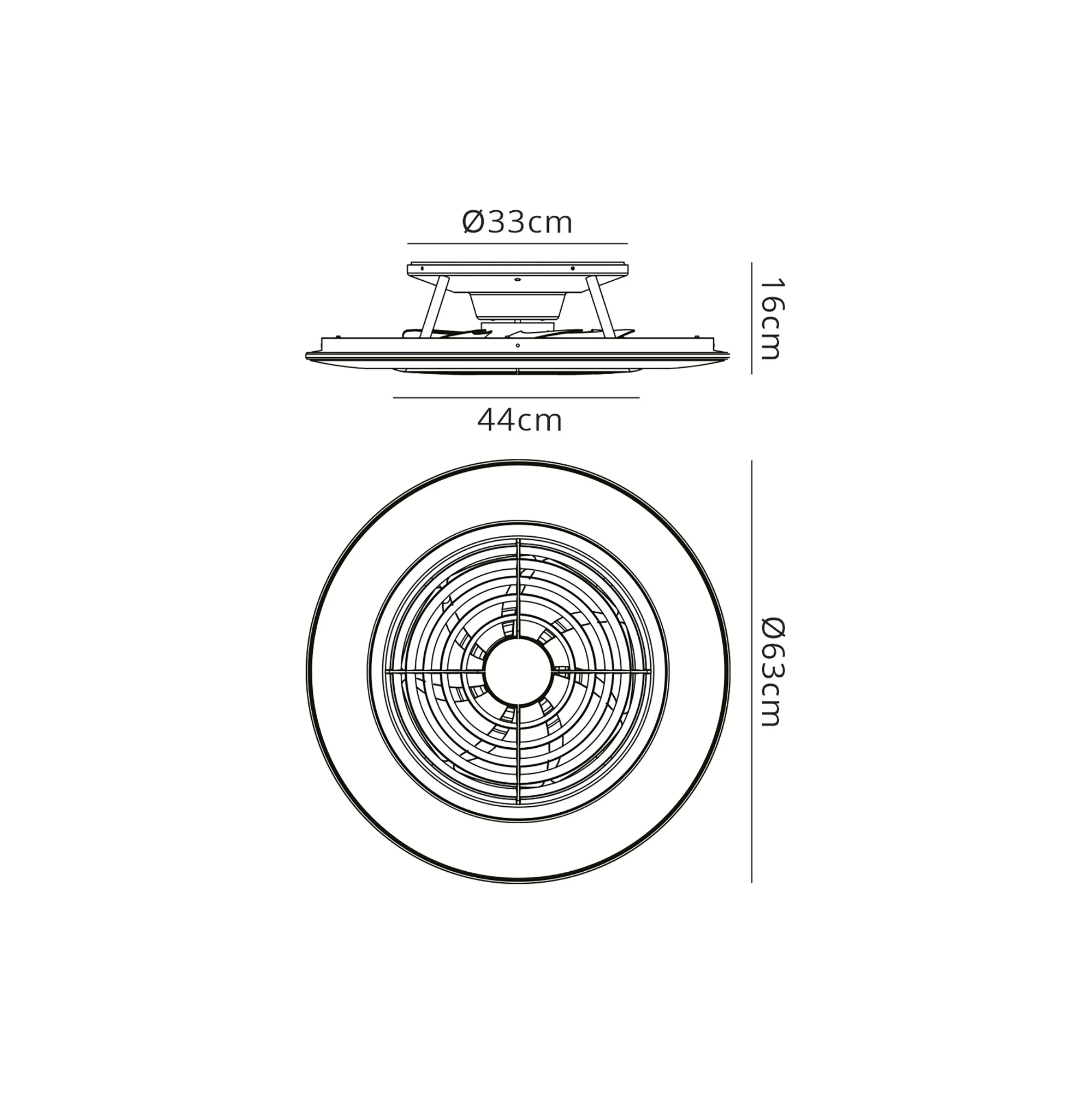

Diameter (mm)630mm
Height (mm)160mm
Energy ClassA++ to A
No: of Lamp1
Lamp SocketIntegral LED
Recommended LampIntegral LED
Max Wattage Lamp (W)70W
Lamp IncludedYes - Integrated
Type of Lamp IncludedIntegrated LED
Colour Temperature (K)2700 - 5500K Tuneable White (±5%)
Beam Angle (°)120°
System Flux (lm)4900lm (±5%)
CRI>80
Driver IncludedYes - Driver On Board
Protection ClassClass 1 - Earth Connection Required

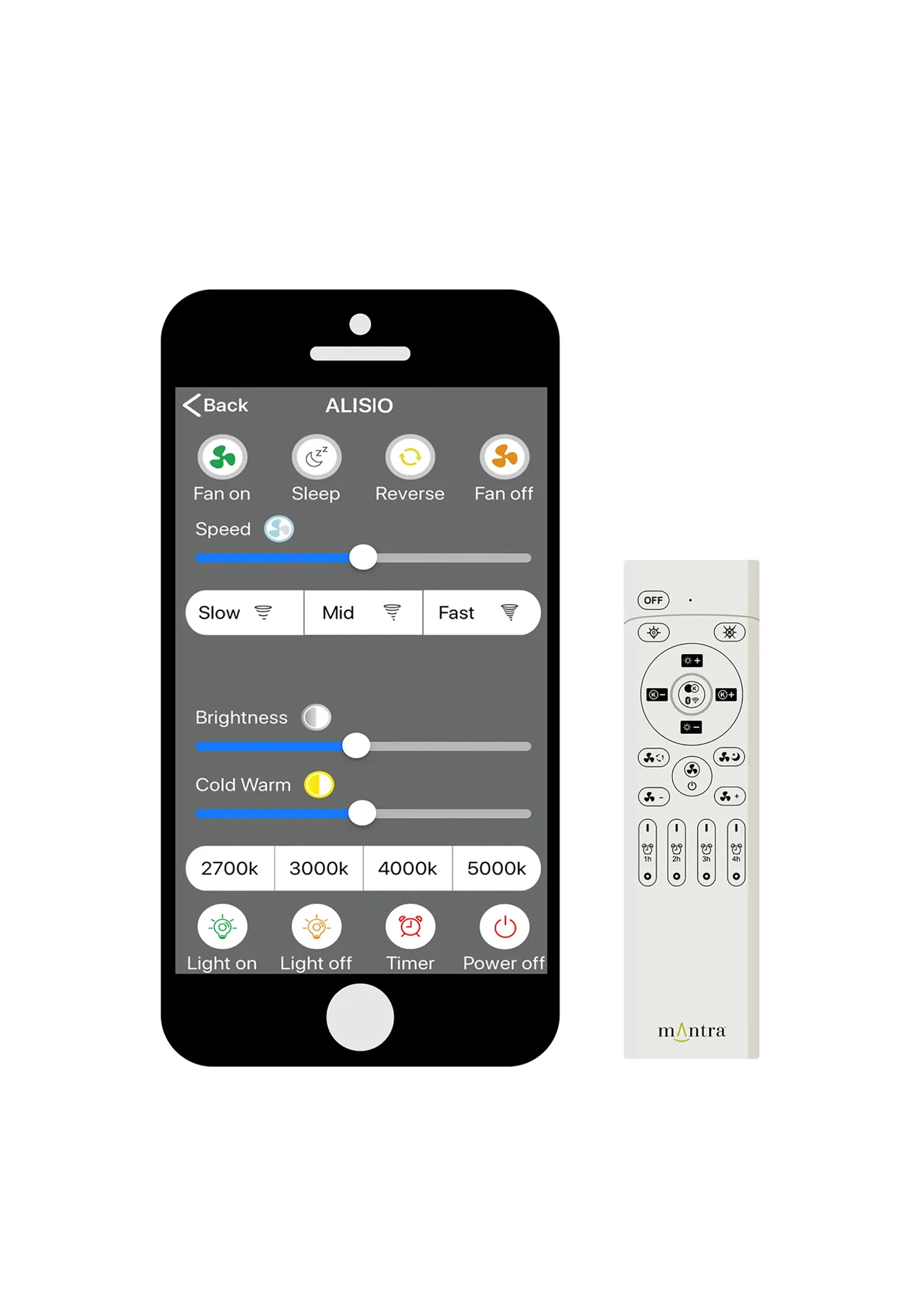

SwitchedYes - Remote Control & APP
DimmableYes - Remote Control & APP
Dimmer IncludedYes - Remote Control & APP
IP RatingIP20
Average Life (hrs)25000hrs
Warranty (yrs)5yrs
Features
Features, Will be added soon
Full Specifications
Collection GroupAlisio
Barcode8435153267055
Brief DescriptionAlisio 70W LED Dimmable Ceiling Light & Fan, Remote / APP Controlled White
Catalogue DescriptionLED Tuneable Ceiling Fan
Colour FinishWhite
Item Nett Weight (kg)4.70kg
Diameter (mm)630mm
Height (mm)160mm
Materials UsedMetal/ABS
Energy ClassA++ to A
Energy Class of LampGroup A
Max Energy ClassA++
Min Energy ClassA
No: of Lamp1
Lamp SocketIntegral LED
Recommended LampIntegral LED
Max Wattage Lamp (W)70W
Lamp IncludedYes - Integrated
Type of Lamp IncludedIntegrated LED
Colour Temperature (K)2700 - 5500K Tuneable White (±5%)
No. of Switching Cycles10000
Average Life of LED (hrs)25000hrs
LED BrandHongli
Qty of SMD80
SMD Chipset2835
LED Power (W)70W (±5%)
Type of LEDSMD
Lumens Per LED120-130lm
Lumens Per Watt (lm/W)70lm (±5%)
Beam Angle (°)120°
System Flux (lm)4900lm (±5%)
CRI>80
Light DistributionAmbient
Driver IncludedYes - Driver On Board
Type of DriverConstant Current
Power Factor (?)>0.9? (±5%)
Constant Current Output (mA)280mA
Min/Max. Voltage Output (V)120-130V
Load Range (W)95-115W
Ta (°C)25°C
Tc (°C)65°C
Dimming Protocol2.4G
Protection ClassClass 1 - Earth Connection Required
Total Power Consumption (W)105W (±5%)
Input Voltage (V)220-240V~50/60Hz
SwitchedYes - Remote Control & APP
DimmableYes - Remote Control & APP
Dimmer IncludedYes - Remote Control & APP
IP RatingIP20
Average Life (hrs)25000hrs
Warranty (yrs)5yrs
UKCA/CEYes
RohsYes
TUVYes
EMV/EMCYes
Base Dimensions (mm)D:330mm
Remote Control InformationR00128
Shade MaterialAcrylic
Shade ShapeRound
Shade IncludedYes
Number of Shades1
Number of Cartons1
Carton Length (cm)68cm
Carton Width (cm)68cm
Carton Height (cm)19.5cm
Carton CBM0.0902
Carton Nett Weight (kg)4.7kg (±5%)
Carton Gross Weight (kg)6.7kg (±5%)
Pieces Included1
Carton DetailsFull Colour Carton
UnassembledYes-Requires Construction
InstallationRequires Installation By Qualified Electrician
Additional DetailsMax RPM 1050, 35W Motor. Spare Remote Code R00128. Min 43.8dB, Max 51.8dB. Max. Motor Load Range 30-33W, Air Circulation 102 metre cubed/min. Control: RF and App
Sloped Ceiling CompatibleYes
Sloped Ceiling Adapter RequiredNo
Product Care(1) Wipe clean with a dry cloth, do not use any cleaning detergents, do not use rough or coarse material to clean. (2) Ensure light is not illuminated when cleaning.
UK Commodity Code8414510090
Country of OriginChina
