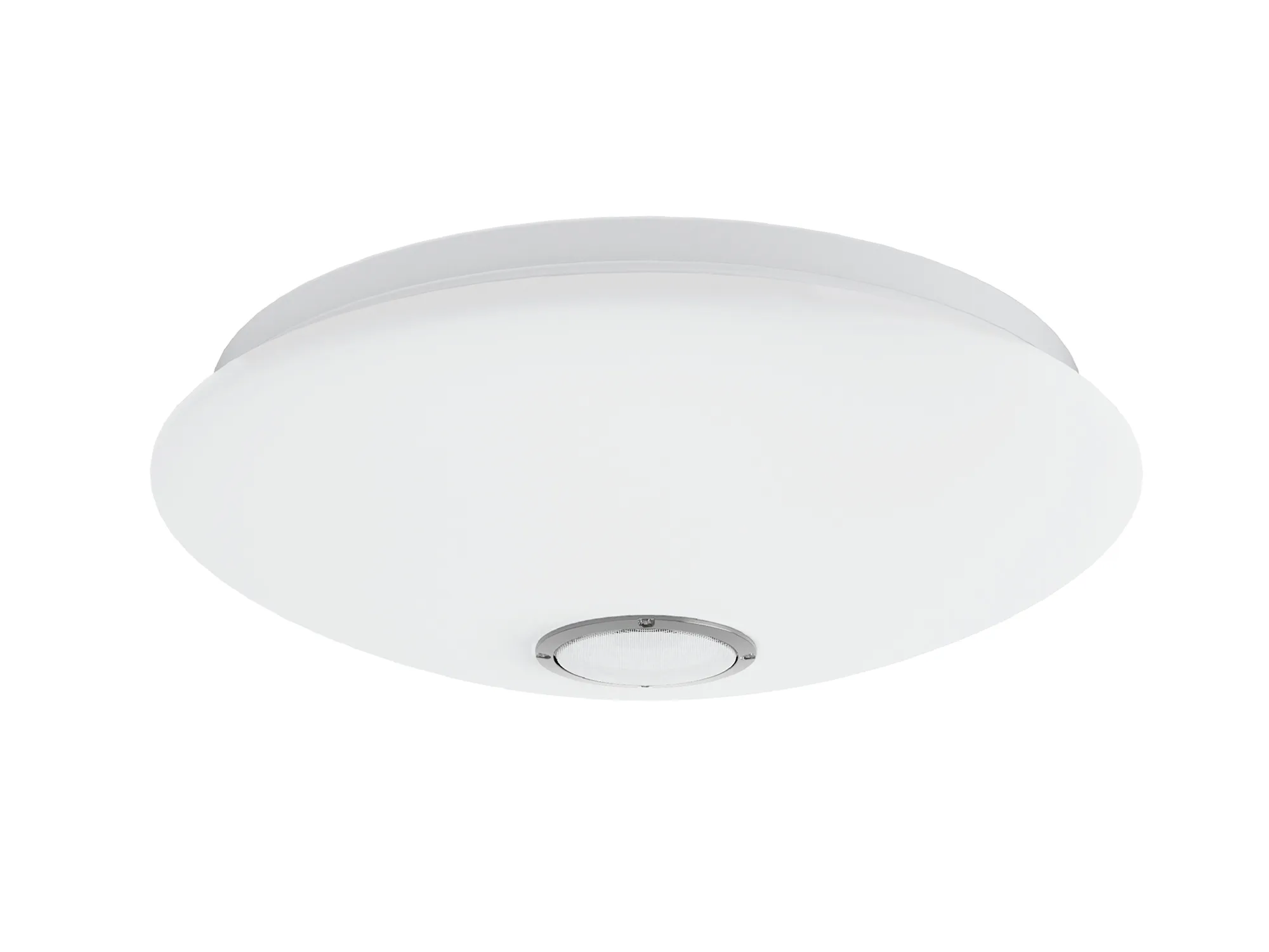

24W Flush Ceiling CCT & Bluetooth Speaker

Surf Music 380mm 24W Bluetooth (no apps) CCT Tuneable White

2052526

Surf music is an unassuming high quality LED ceiling light, with the integral LEDs being CCT tuneable. This sleek design hosts a Bluetooth speaker enabling you to connect your Bluetooth device to the lighting fixture and expel music of your choice.
Techtouch is an extensive, innovative brand of LED products from Luxram. Luxram has been a recognised brand for over 60 years and are a professional company specialising in the production, marketing and distribution of a large variety of lighting sources. Luxram's strict stance for quality products in terms of reliability, stability and safety as been carried over into this new branch of lighting solutions from the Techtouch collection. The diverse variety of products from Techtouch, range from Show More...
Designer
Design by
Techtouch Design Team
As LED technology evolved and started to become a mainstream component in lighting fixtures the Luxram R & D department soon realised the that integrated LED luminaires are in principle the same as a lamp, a light source surrounded by an enclosure. Techtouch was consequently born with a dedicated team of engineers, designers and a vigorous amount of ambition to create a comprehensive range of dedicated LED products.
Quick Spec
Barcode8787020525264
Brief Description24W Flush Ceiling CCT & Bluetooth Speaker
Colour FinishOpal White
Colour Finish 2White
Item Nett Weight (kg)0.72kg

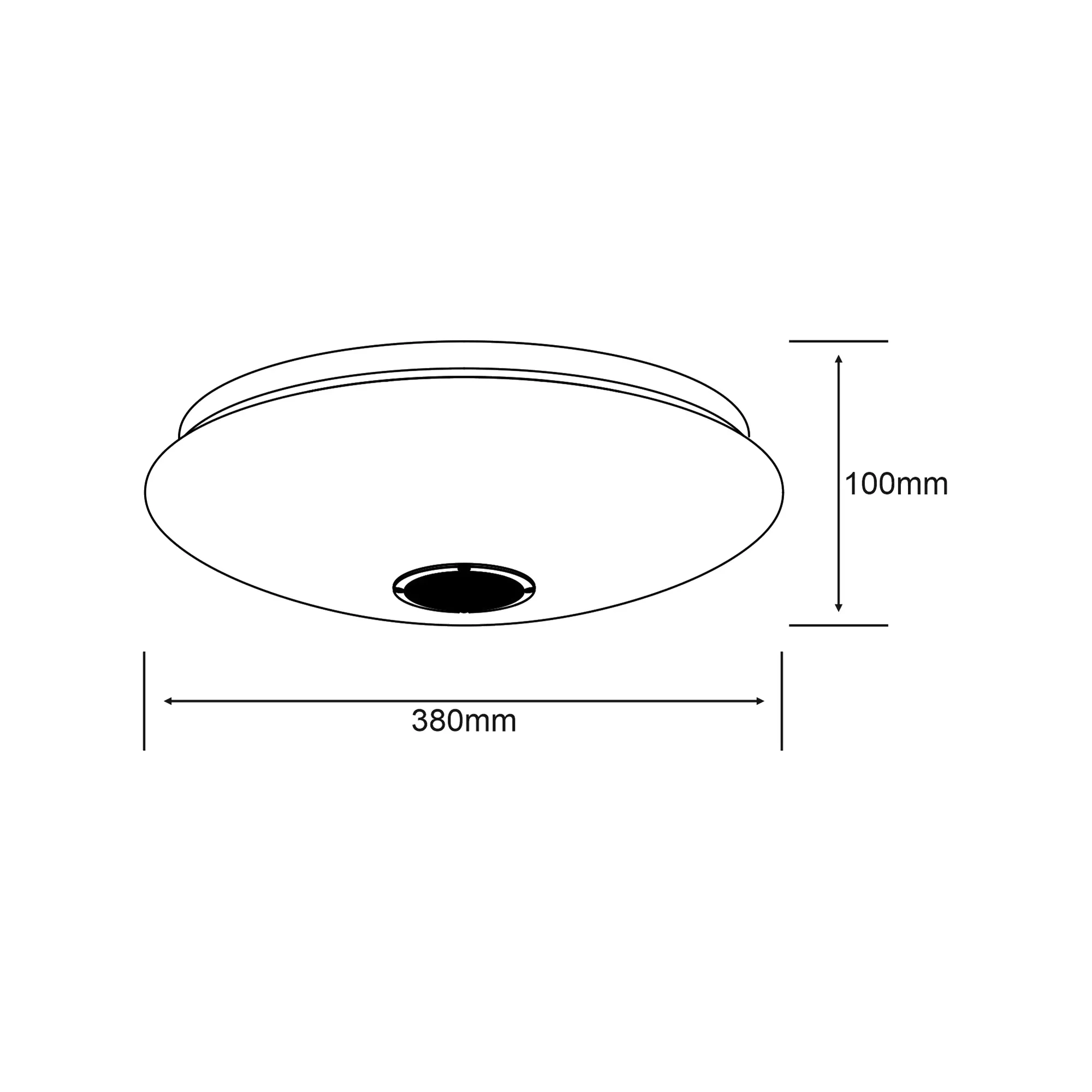

Diameter (mm)380mm
Height (mm)100mm
Materials UsedMetal+PMMA
Energy ClassA+
Lamp SocketIntegral LED
Recommended LampIntegral LED
Max Wattage Lamp (W)24W
Lamp IncludedYes
Type of Lamp IncludedIntegrated LED
Brand of LampLuxram
Colour Temperature (K)3000/4000/6400K Warm/Natural/Cool White ( ±5%)
Average Life of LED (hrs)25000hrs
LED Voltage (V)3.0-3.2V ( ±5%)
Type of LEDSMD 2835
Beam Angle (°)120°
System Flux (lm)1920lm ( ±5%)
CRI>80
Driver IncludedYes
Type of DriverConstant Current
Dimming Range (%)No
Power Factor (?)>0.5? ( ±5%)
Constant Current Output (mA)275mA
Min/Max. Voltage Output (V)30-80V
Ta (°C)40°
Tc (°C)85°
Type of Driver RequiredConstant Current
Protection ClassClass 1 - Earth Connection Required
Total Power Consumption (W)24W ( ±5%)
Input Voltage (V)220-240V~50/60Hz
Input Current (A)0.185 A
SwitchedNot Switched
DimmableNo
Dimmer IncludedNo
IP RatingIP20
Average Life (hrs)25000hrs
Warranty (yrs)5yrs
CEYes
RohsYes
EMV/EMCYes
Shade ColourOpal White
Base Dimensions (mm)D:355mm x H:17mm
Number of Cartons1
Carton Gross Weight (kg)0.92kg ( ±5%)
UK Commodity Code9405104090
Country of OriginChina
Features
Features, Will be added soon
Full Specifications
Barcode8787020525264
Brief Description24W Flush Ceiling CCT & Bluetooth Speaker
Colour FinishOpal White
Colour Finish 2White
Item Nett Weight (kg)0.72kg
Diameter (mm)380mm
Height (mm)100mm
Materials UsedMetal+PMMA
Energy ClassA+
Energy Class of LampA+
Max Energy ClassA+
Min Energy ClassA+
Lamp SocketIntegral LED
Recommended LampIntegral LED
Max Wattage Lamp (W)24W
Lamp IncludedYes
Type of Lamp IncludedIntegrated LED
Brand of LampLuxram
Lumens Per Lamp (lm)1920lm ( ±5%)
Colour Temperature (K)3000/4000/6400K Warm/Natural/Cool White ( ±5%)
Average Life of Lamp (hrs)25000hrs
No. of Switching Cycles15000
Conventional Lamp Equiv. (W)125W ( ±5%)
Average Life of LED (hrs)25000hrs
LED BrandLuxram
Qty of SMD24
SMD Chipset2835
LED Power (W)1W ( ±5%)
LED Voltage (V)3.0-3.2V ( ±5%)
LED Current (mA)300mA ( ±5%)
Type of LEDSMD 2835
Lumens Per Watt (lm/W)80 lm/W ( ±5%)
Beam Angle (°)120°
System Flux (lm)1920lm ( ±5%)
CRI>80
MacAdam<3
Light DistributionAmbient
Driver IncludedYes
Type of DriverConstant Current
Dimming Range (%)No
Power Factor (?)>0.5? ( ±5%)
Constant Current Output (mA)275mA
Min/Max. Voltage Output (V)30-80V
Ta (°C)40°
Tc (°C)85°
Type of Driver RequiredConstant Current
Protection ClassClass 1 - Earth Connection Required
Total Power Consumption (W)24W ( ±5%)
Input Voltage (V)220-240V~50/60Hz
Input Current (A)0.185 A
SwitchedNot Switched
DimmableNo
Dimmer IncludedNo
IP RatingIP20
Average Life (hrs)25000hrs
Warranty (yrs)5yrs
CEYes
RohsYes
EMV/EMCYes
Shade ColourOpal White
Base Dimensions (mm)D:355mm x H:17mm
Shade MaterialPMMA
Shade ShapeCircular
Shade IncludedYes
Number of Shades1
Number of Cartons1
Carton Length (cm)40cm
Carton Width (cm)10cm
Carton Height (cm)40cm
Carton CBM0.016
Carton Nett Weight (kg)0.72kg ( ±5%)
Carton Gross Weight (kg)0.92kg ( ±5%)
InstallationRequires Installation By Qualified Electrician
Product Care(1) Wipe clean with a dry cloth, do not use any cleaning detergents, do not use rough or coarse material to clean. (2) Use white gloves provided when handling crystal and glass. (3) Ensure light is not illuminated when cleaning.
UK Commodity Code9405104090
Country of OriginChina
