STARK-QLE-G3-250-1250-830-CLA

Tridonic STARK-QLE-G3-250-1250-830-CLA, Made In China, 5yrs Warranty.

28000387

Qty: Order Item Add to Wishlist

Ideal for linear and panel lights, High lumen out put, System efficacy LED, High CRI, MacAdam 3, Small luminous flux tolerances, Self cooling, Push terminals for quick and simple wiring, Easy installation , Long working life.
Tridonic is a world-leading supplier of lighting technology, supporting its customers with intelligent hardware and software and offering the highest level of quality, reliability and energy savings. As a global driver of innovation in the field of lighting-based network technology, Tridonic develops scalable, future-oriented solutions that enable new business models for lighting manufacturers, building managers, systems integrators, planners and many other types of customers. Tridonic has been Show More...
To Follow
Quick Spec
Brief DescriptionSTARK-QLE-G3-250-1250-830-CLA
Colour FinishWhite
Item Nett Weight (kg)0.120kg

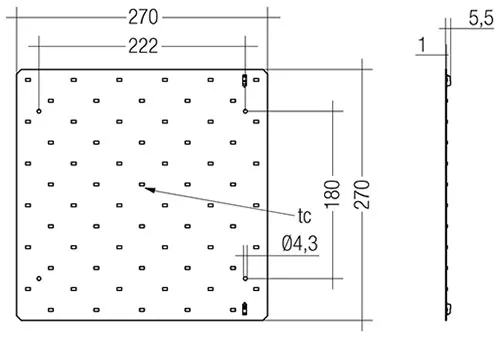

Length (mm)270mm
Width (mm)270mm
Height (mm)5.5mm
Energy ClassA++ to A
Lamp SocketIntegral LED
Recommended LampIntegral LED
Lamp IncludedYes - Integrated
Type of Lamp IncludedIntegrated LED
Brand of LampTridonic
Colour Temperature (K)3000K Warm White (±5%)
System Flux (lm)1780lm (±5%)
CRI>79
Driver IncludedNo
Type of Driver RequiredConstant Current
Protection ClassClass 3 - Low Voltage
DimmableNo
IP RatingIP20
Average Life (hrs)50000hrs
Warranty (yrs)5yrs
Features
Simple installation and wiring, Easy maintenance.
Full Specifications
Collection GroupStark
BarcodeTo Follow
Brief DescriptionSTARK-QLE-G3-250-1250-830-CLA
Colour FinishWhite
Item Nett Weight (kg)0.120kg
Length (mm)270mm
Width (mm)270mm
Height (mm)5.5mm
Energy ClassA++ to A
Max Energy ClassA++
Min Energy ClassA
Lamp SocketIntegral LED
Recommended LampIntegral LED
Lamp IncludedYes - Integrated
Type of Lamp IncludedIntegrated LED
Brand of LampTridonic
Colour Temperature (K)3000K Warm White (±5%)
Type of LEDSMD
Lumens Per Watt (lm/W)169lm/W (±5%)
Lumen Maintenance (hrs)50000hrs / LM80 (±5%)
System Flux (lm)1780lm (±5%)
CRI>79
MacAdam3
Driver IncludedNo
Type of Driver RequiredConstant Current
Ta (°C)-30 to +65°C
Tc (°C)85°C
Casing MaterialMetal Body
Connection TerminalPush-Fit
Protection ClassClass 3 - Low Voltage
Total Power Consumption (W)10W (±5%)
Input Voltage (V)28.3-34V DC
Input Current (A)0.35A
DimmableNo
IP RatingIP20
Average Life (hrs)50000hrs
Warranty (yrs)5yrs
UKCA/CEYes
RohsYes
ENECYes
Number of Cartons1
Carton Length (cm)27.0cm
Carton Width (cm)27.0cm
Carton Height (cm)0.5cm
Carton CBM0.0004
Carton Nett Weight (kg)0.120kg (±5%)
Carton Gross Weight (kg)0.120kg (±5%)
Additional DetailsTridonic Linear LED Panel STARK-QLE-G3-250-1250-830-CLA
UK Commodity Code8539510000
Country of OriginChina
