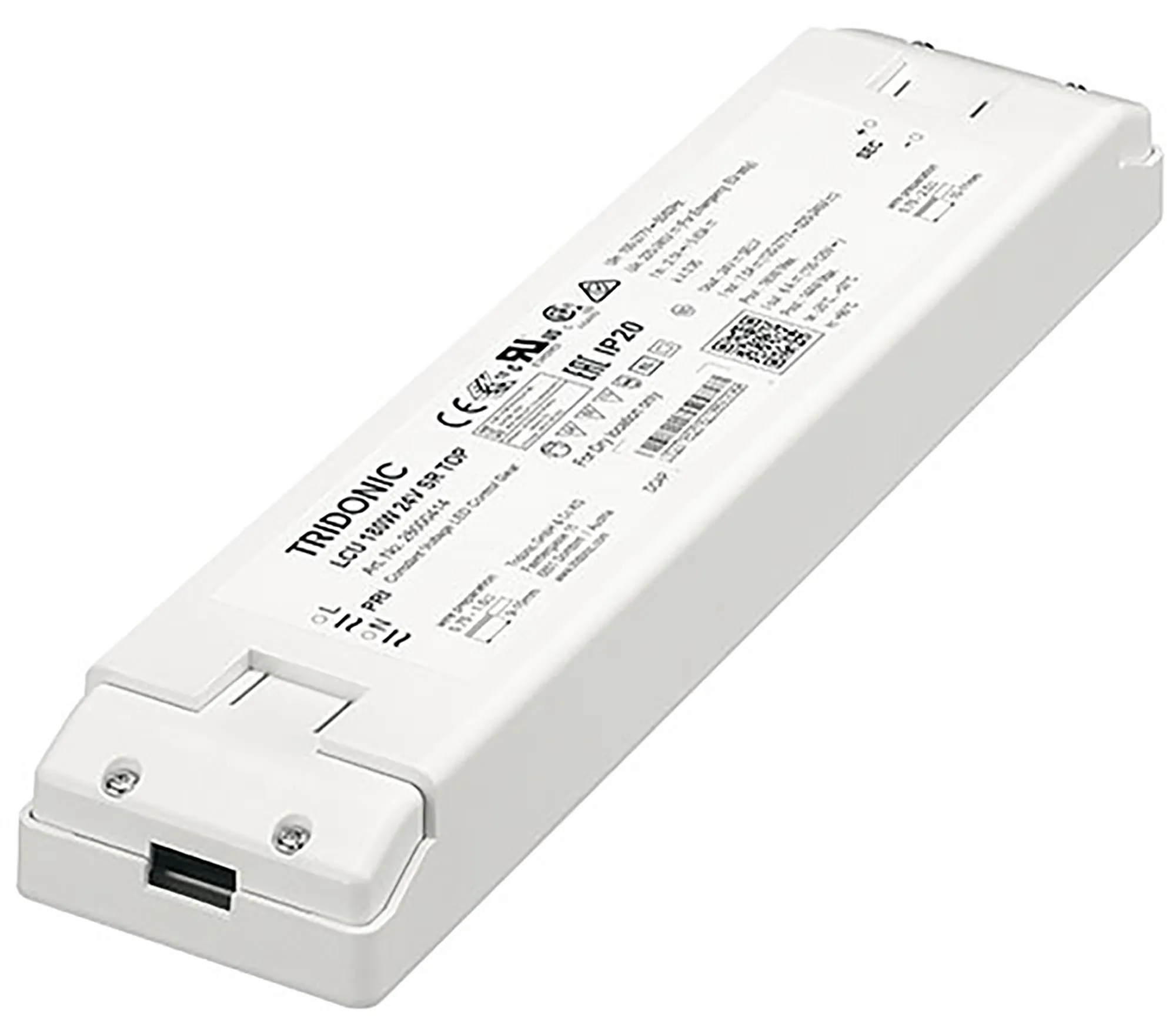

180W 24V SR TOP Constant Voltage LED Driver

Tridonic, LCU 180W 24V SR TOP, LED Driver Indoor Constant Voltage EXCITE, Made In PRC, 5yrs Warranty

28000414

Qty: Order Item Add to Wishlist

Constant voltage LED Driver, Universal input voltage range, Push terminals for simple wiring, Nominal life-time up to 50,000 hr, Suitable for emergency escape lighting systems acc. to EN 50172, Complies with CLASS C from minimum to maximum load range according to EN 61000-3-2.
Tridonic is a world-leading supplier of lighting technology, supporting its customers with intelligent hardware and software and offering the highest level of quality, reliability and energy savings. As a global driver of innovation in the field of lighting-based network technology, Tridonic develops scalable, future-oriented solutions that enable new business models for lighting manufacturers, building managers, systems integrators, planners and many other types of customers. Tridonic has been Show More...
To Follow
Quick Spec
Brief Description180W 24V SR TOP Constant Voltage LED Driver
Colour FinishWhite
Item Nett Weight (kg)0.85kg

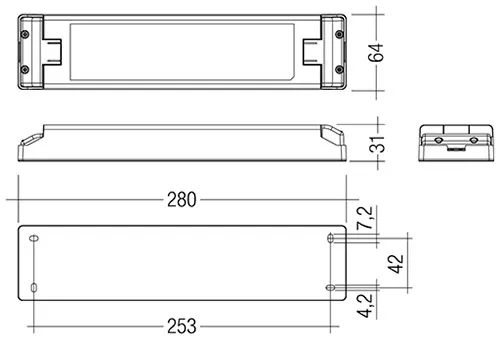

Length (mm)280mm
Width (mm)64mm
Height (mm)31mm
Energy ClassA++ to A
Protection ClassClass 2 - Double Insulated
DimmableNo
IP RatingIP20
Average Life (hrs)50000hrs
Warranty (yrs)5yrs
Features
Compact Design, High efficiency, Low loss, Over temperature and overload protection, Short-circuit shutdown feature with automatic restart.Protection class II, SELV.
Full Specifications
Collection GroupLCU
BarcodeTo Follow
Brief Description180W 24V SR TOP Constant Voltage LED Driver
Colour FinishWhite
Item Nett Weight (kg)0.85kg
Length (mm)280mm
Width (mm)64mm
Height (mm)31mm
Energy ClassA++ to A
Max Energy ClassA++
Min Energy ClassA
Lumen Maintenance (hrs)50000hrs / LM80 (±5%)
Type of DriverConstant Voltage
Dimming Range (%)Non Dimmable
Power Factor (?)>0.96 (±5%)
Constant Voltage Output (V)24V DC
Max. Current Output (A)7.5A
Maximum Output Distance (m)2m
Ta (°C)-25° to +45°C
Tc (°C)90°C
Casing MaterialPolycarbonate
Connection TerminalPush-Fit
Dimming ProtocolON/OFF
Efficiency0.95
Protection ClassClass 2 - Double Insulated
Total Power Consumption (W)180W (±5%)
Input Voltage (V)120-277V~50/60Hz
Input Current (A)0.92
DimmableNo
IP RatingIP20
Average Life (hrs)50000hrs
Warranty (yrs)5yrs
UKCA/CEYes
RohsYes
ENECYes
SELVYes
Number of Cartons1
Carton Length (cm)28.0cm
Carton Width (cm)6.4cm
Carton Height (cm)3.1cm
Carton CBM0.0006
Carton Nett Weight (kg)0.85kg (±5%)
Carton Gross Weight (kg)0.85kg (±5%)
Additional DetailsTridonic LED Driver LCU 180W 24V SR TOP
UK Commodity Code85044090
Country of OriginChina
