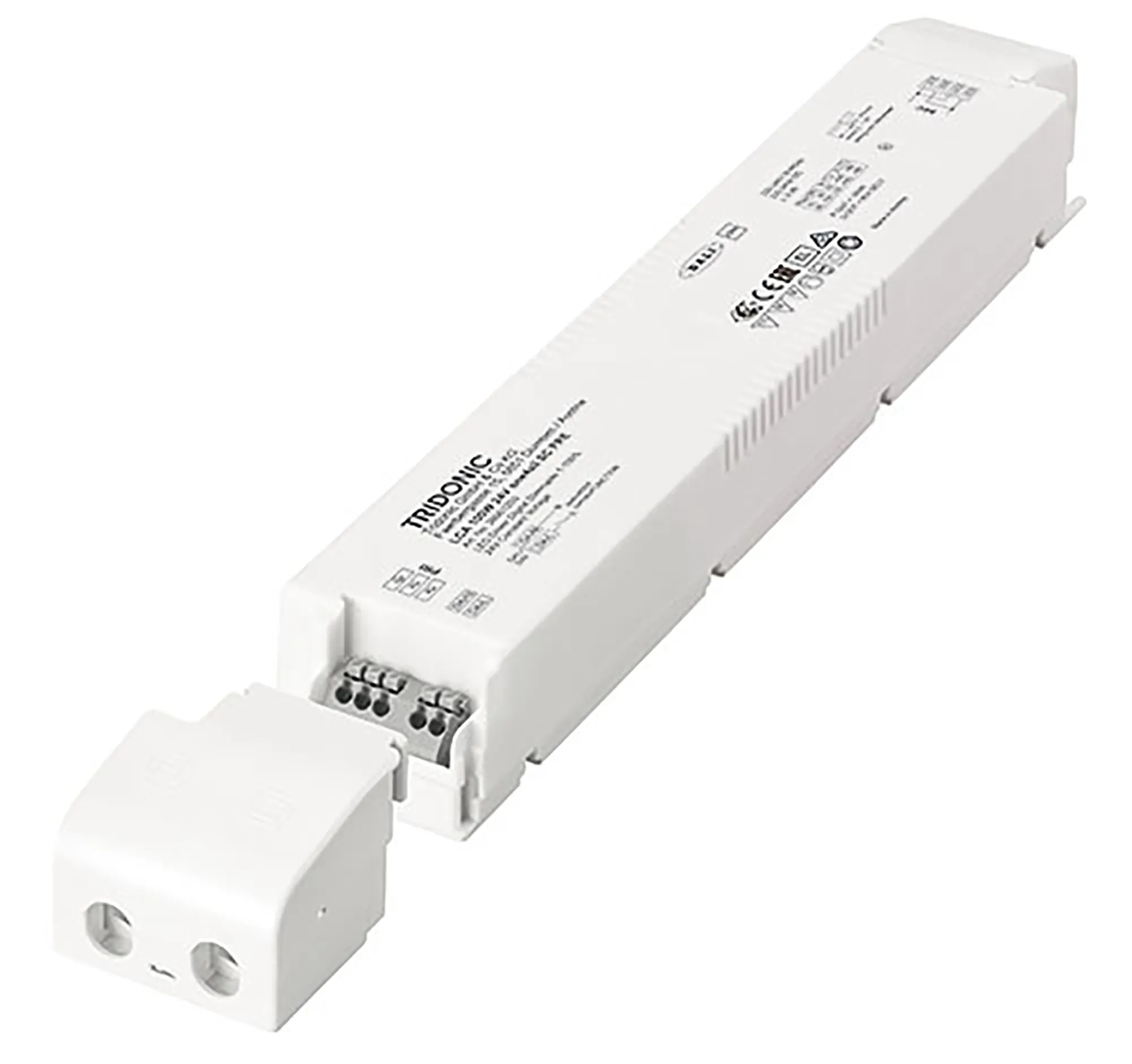

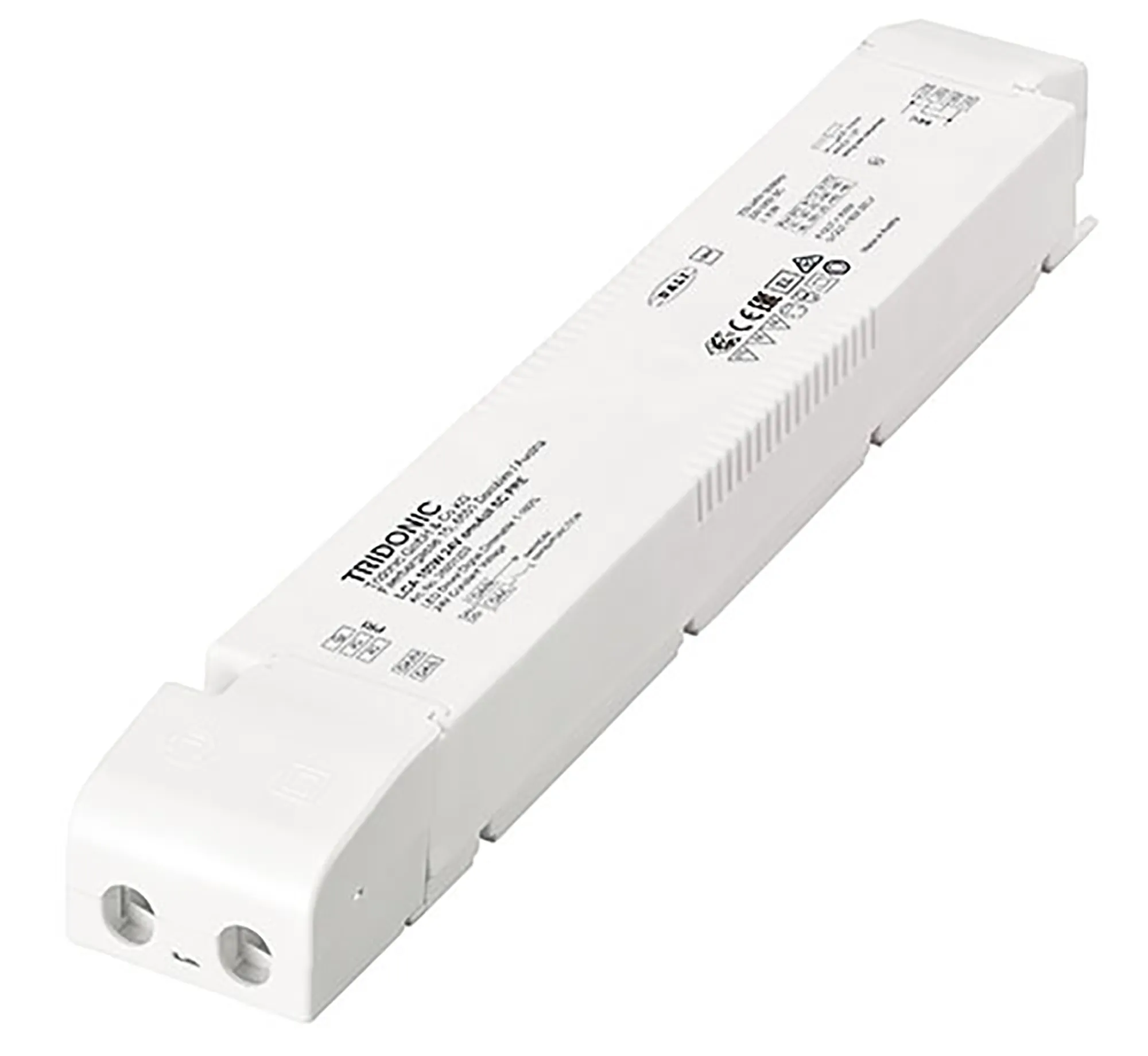

100W 24V one4all SC Dimmable SC PRE Constant Voltage LED Driver

Tridonic, LCA 100W 24V one4all SC PRE, LED Constant Voltage Converter, Made In Austria, 5yrs Warranty

28001253

Qty: Order Item Add to Wishlist

Dimmable constant voltage LED Driver, One4all interface and ready2mains enable different dimming options, Wide Dimming Range, Higher working life time.Compact in size and easy installation.
Tridonic is a world-leading supplier of lighting technology, supporting its customers with intelligent hardware and software and offering the highest level of quality, reliability and energy savings. As a global driver of innovation in the field of lighting-based network technology, Tridonic develops scalable, future-oriented solutions that enable new business models for lighting manufacturers, building managers, systems integrators, planners and many other types of customers. Tridonic has been Show More...
To Follow
Quick Spec
Brief Description100W 24V one4all SC Dimmable SC PRE Constant Voltage LED Driver
Colour FinishWhite
Item Nett Weight (kg)0.254kg

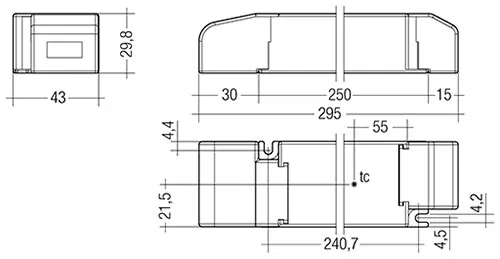

Length (mm)295mm
Width (mm)43mm
Height (mm)30mm
Energy ClassA++ to A
Protection ClassClass 2 - Double Insulated
DimmableYes - Suitable Dimmer Required
Dimmer IncludedNo
IP RatingIP20
Average Life (hrs)50000hrs
Warranty (yrs)5yrs
Features
No additional external dimmer is needed, Suitable for emergency escape lighting systems acc. to EN 50172, Push terminals for simple wiring.
Full Specifications
Collection GroupLCA
BarcodeTo Follow
Brief Description100W 24V one4all SC Dimmable SC PRE Constant Voltage LED Driver
Colour FinishWhite
Item Nett Weight (kg)0.254kg
Length (mm)295mm
Width (mm)43mm
Height (mm)30mm
Energy ClassA++ to A
Max Energy ClassA++
Min Energy ClassA
Lumen Maintenance (hrs)50000hrs / LM80 (±5%)
Type of DriverConstant Voltage
Dimming Range (%)1-100%
Power Factor (?)>0.99 (±5%)
Constant Voltage Output (V)24V DC
Max. Current Output (A)4.167A
Load Range (W)1-100W
Maximum Output Distance (m)2m
Ta (°C)-25° to +45°C
Tc (°C)80°C
Casing MaterialPolycarbonate
Connection TerminalPush-Fit
Dimming ProtocolDALI DT 6, DSI, switchDIM, corridor FUNCTION, ready2mains
Efficiency0.93
Protection ClassClass 2 - Double Insulated
Total Power Consumption (W)100W (±5%)
Input Voltage (V)220-240V~50/60Hz
Input Current (A)0.468A
DimmableYes - Suitable Dimmer Required
Dimmer IncludedNo
IP RatingIP20
Average Life (hrs)50000hrs
Warranty (yrs)5yrs
UKCA/CEYes
RohsYes
ENECYes
SELVYes
Number of Cartons1
Carton Length (cm)29.5cm
Carton Width (cm)4.3cm
Carton Height (cm)2.98cm
Carton CBM0.0004
Carton Nett Weight (kg)0.254kg (±5%)
Carton Gross Weight (kg)0.254kg (±5%)
Additional DetailsTridonic, LCA 100W 24V one4all SC PRE
UK Commodity Code85044090
Country of OriginAustria
