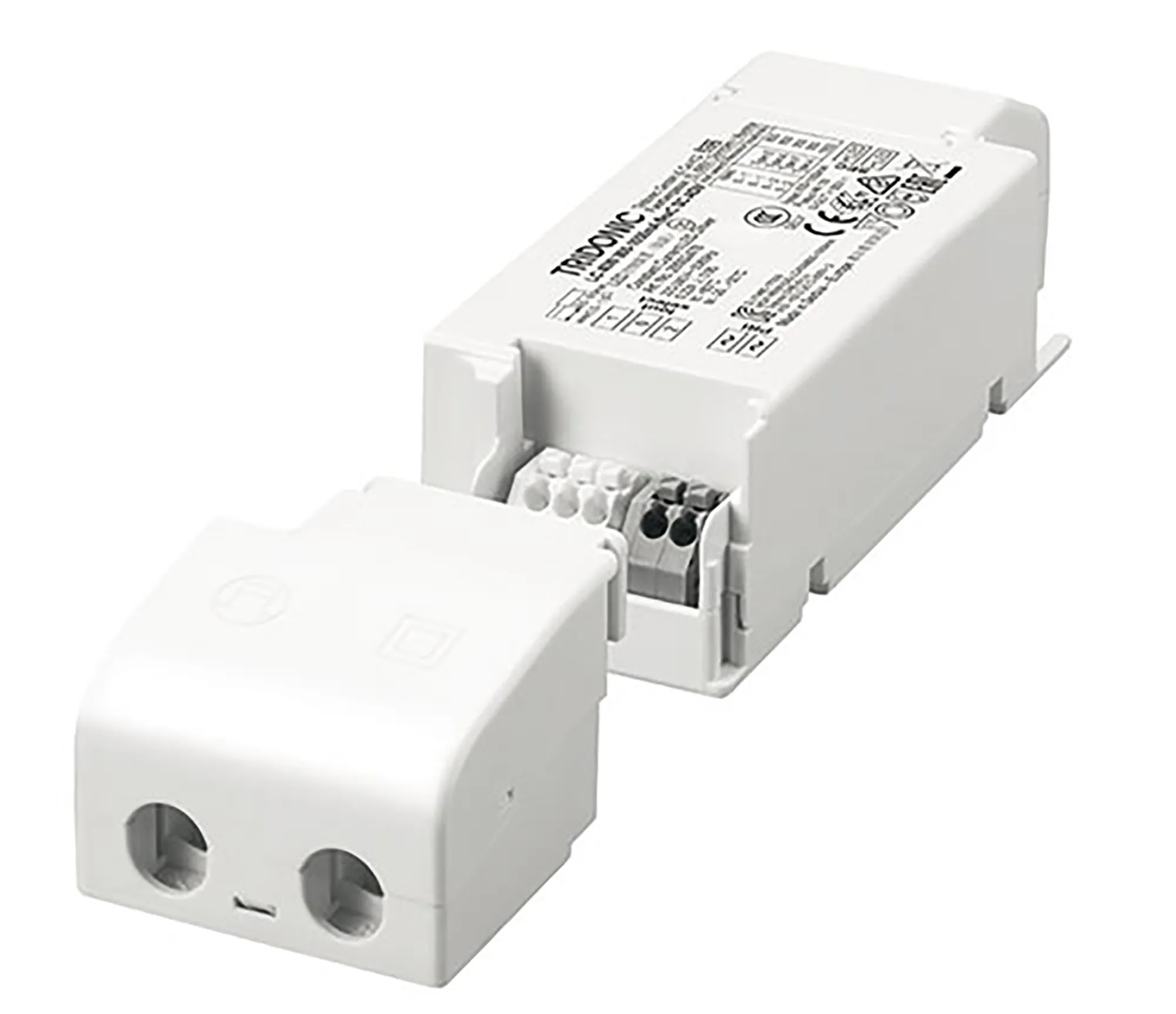

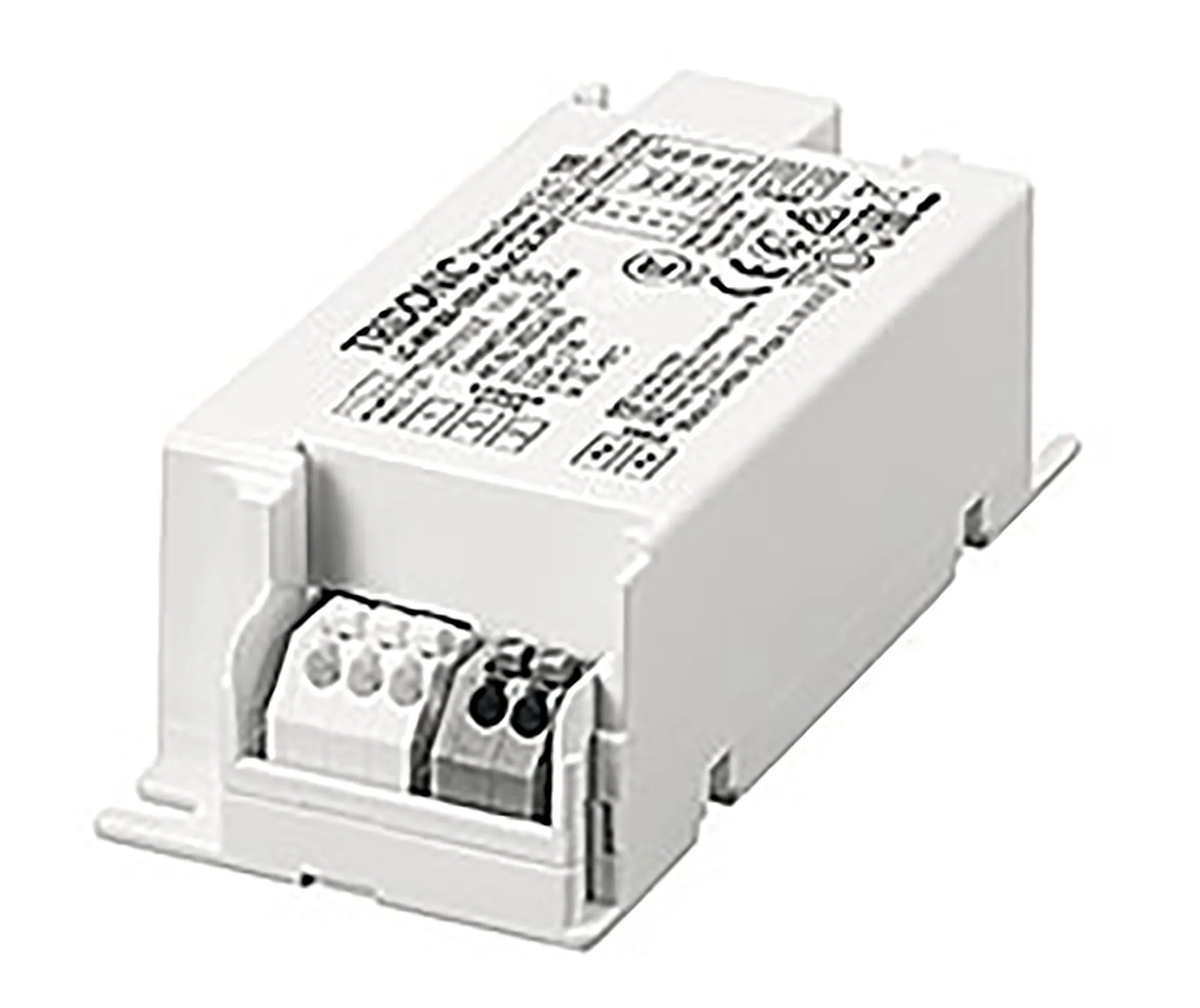

Compact fixed output Constant current LC 40W 800-1050mA flexC SC ADV

Tridonic, LC 40W 800/850/900/950/1050mA fixC SC ADV, LED Converter Compact, Made In PRC, 5yrs Warranty ( Use TD-28001771 Conv. To 900mA-1050mA)

28002478

Colour Finish :
White

Qty: Order Item Add to Wishlist

Constant current LED Driver, Adjustable output current , High efficency and life time, Suitable for luminaires of protection class I and protection class II. Plastic cover, Push terminal for easy installation. Compact size .
Tridonic is a world-leading supplier of lighting technology, supporting its customers with intelligent hardware and software and offering the highest level of quality, reliability and energy savings. As a global driver of innovation in the field of lighting-based network technology, Tridonic develops scalable, future-oriented solutions that enable new business models for lighting manufacturers, building managers, systems integrators, planners and many other types of customers. Tridonic has been Show More...
To Follow
Quick Spec
Brief DescriptionCompact fixed output Constant current LC 40W 800-1050mA flexC SC ADV
Colour FinishWhite
Item Nett Weight (kg)0.105kg

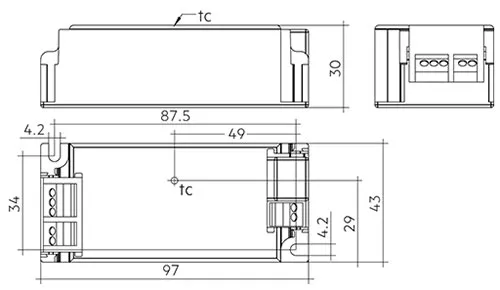

Length (mm)97mm
Width (mm)43mm
Height (mm)30mm
Energy ClassA++ to A
Protection ClassClass 2 - Double Insulated
DimmableNo
Dimmer IncludedNo
IP RatingIP20
Average Life (hrs)100000 hrs
Warranty (yrs)5yrs
Features
Adjustable output current using I-SELECT , Over temperature, Short-circuit, Overload, Noload, Input voltage range.Surge protection voltage 1 kV (L to N). Burst protection voltage 1 kV, Surge protection voltage 2 kV (L/N to earth).
Full Specifications
Collection GroupLC
Barcode5056037204862
Brief DescriptionCompact fixed output Constant current LC 40W 800-1050mA flexC SC ADV
Colour FinishWhite
Item Nett Weight (kg)0.105kg
Length (mm)97mm
Width (mm)43mm
Height (mm)30mm
Energy ClassA++ to A
Max Energy ClassA++
Min Energy ClassA
Lumen Maintenance (hrs)50000hrs / LM80hrs (±5%)
Type of DriverConstant Current
Dimming Range (%)Non Dimmable
Power Factor (?)>0.95 (±5%)
Constant Current Output (mA)800-1050mA
Min/Max. Voltage Output (V)25-42V
Load Range (W)32-44W
Typical Current Ripple (%)±7.5%
Maximum Output Distance (m)2m
Ta (°C)-20°C to 50°C
Tc (°C)80°C
Casing MaterialPolycarbonate
Connection TerminalPush Terminal
Average Life Of Driver (hrs)50000hrs
Dimming ProtocolON/OFF
Efficiency>0.88
Protection ClassClass 2 - Double Insulated
Total Power Consumption (W)42W (±5%)
DimmableNo
Dimmer IncludedNo
IP RatingIP20
Average Life (hrs)100000 hrs
Warranty (yrs)5yrs
UKCA/CEYes
RohsYes
TUVNo
ENECYes
SELVYes
EMV/EMCNo
Number of Cartons1
Carton Length (cm)9.7cm
Carton Width (cm)4.3cm
Carton Height (cm)3.0cm
Carton CBM0.00012
Carton Nett Weight (kg)0.105kg (±5%)
Carton Gross Weight (kg)0.105kg (±5%)
Additional DetailsTridonic Constant current Driver LC 40W 800-1050mA flexC SC ADV
UK Commodity Code8504318050
Country of OriginRepublic Of Serbia
