Tridonic 20x560mm 1250lm 840 HV SNC3, LED Linear Module, Long life-time, IP00, 5yrs Warranty.

Tridonic, LLE 20x280mm 1250lm 830 HV SNC3, LED Linear Modules, MacAdam 3, Efficacy up to 179 lm/W, Made In PRC, 5yrs Warranty

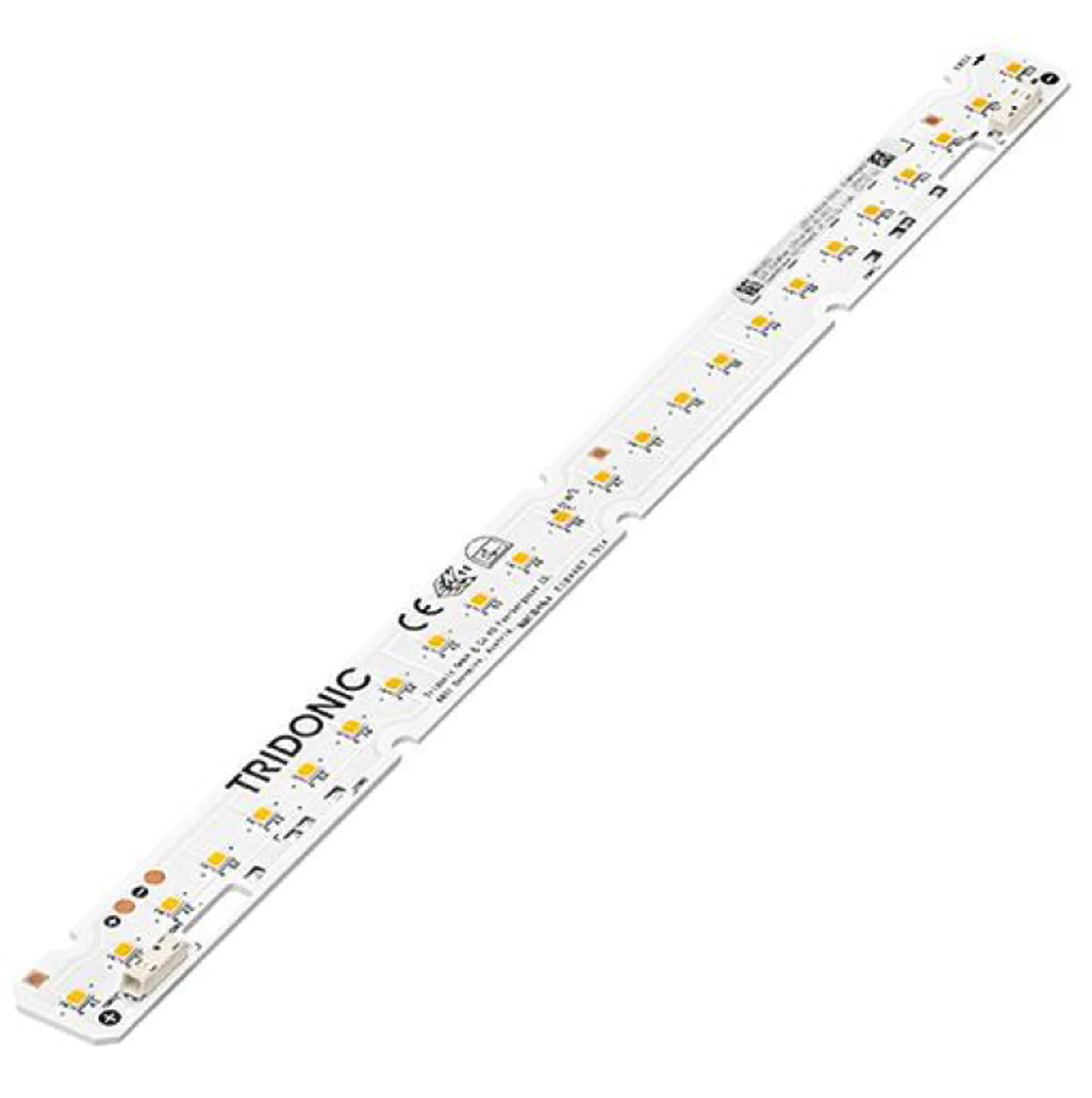

28002919

Colour Temperature :

Qty: Order Item Back to Results Add to Wishlist

Ideal for compact linear luminaires designs, Homogenous illumination thanks to small package distance, SELV module, High efficency, long life time, Compact size.High CRI and Mecadam 3.
Tridonic is a world-leading supplier of lighting technology, supporting its customers with intelligent hardware and software and offering the highest level of quality, reliability and energy savings. As a global driver of innovation in the field of lighting-based network technology, Tridonic develops scalable, future-oriented solutions that enable new business models for lighting manufacturers, building managers, systems integrators, planners and many other types of customers. Tridonic has been Show More...
To Follow
Quick Spec
Brief DescriptionTridonic 20x560mm 1250lm 840 HV SNC3, LED Linear Module, Long life-time, IP00, 5yrs Warranty.
Colour FinishWhite
Item Nett Weight (kg)0.018kg

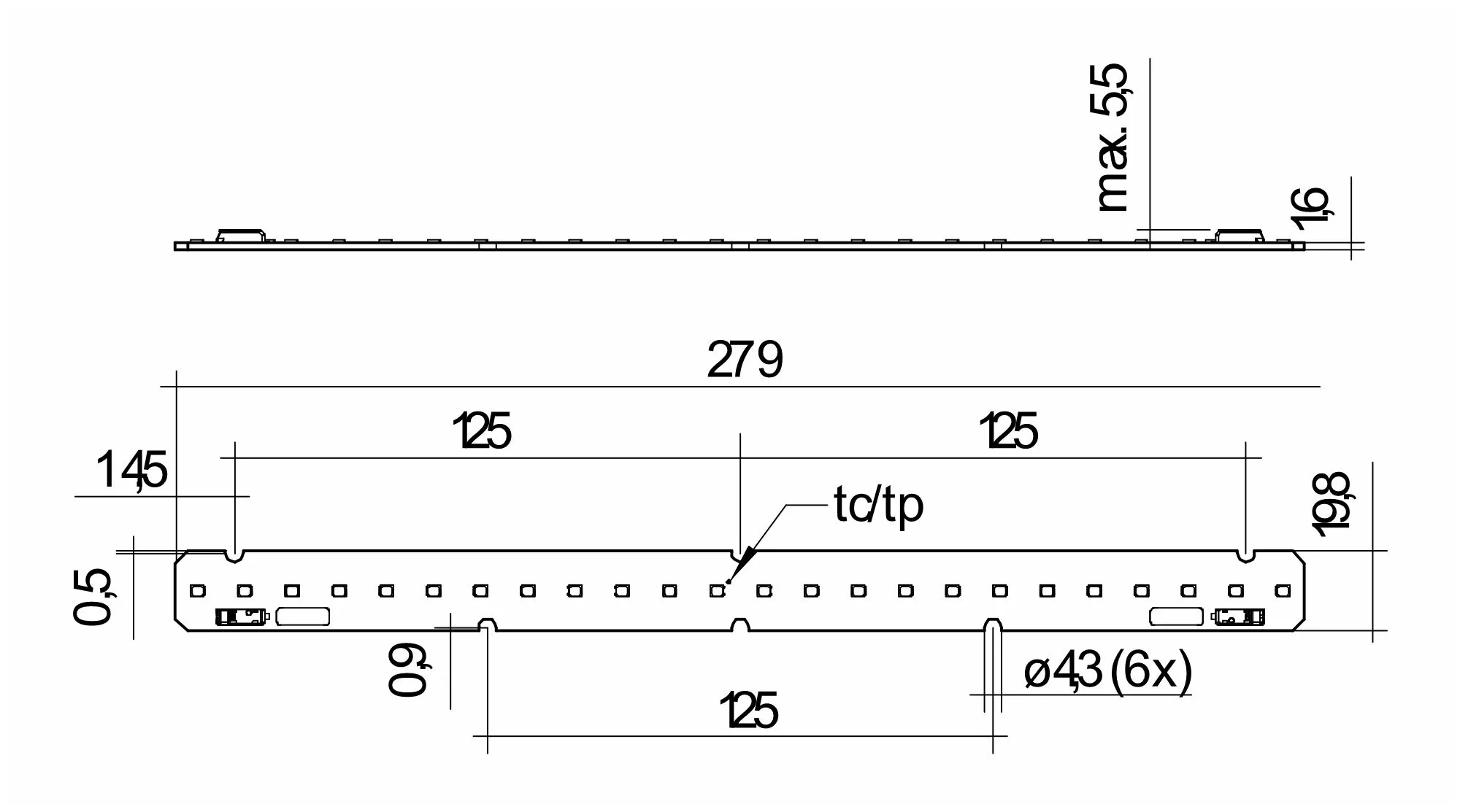

Length (mm)280mm
Width (mm)20mm
Height (mm)5.5mm
Self AdhesiveNo
Energy ClassA++ to A
Lamp SocketIntegral LED
Recommended LampIntegral LED
Lamp IncludedYes - Integrated
Type of Lamp IncludedIntegrated LED
Brand of LampTridonic
Colour Temperature (K)4000K Cool White (±5%)
Beam Angle (°)120°
System Flux (lm)1250lm (±5%)
CRI>80
Driver IncludedNo
Type of Driver RequiredConstant Current
Protection ClassClass 3 - Low Voltage
DimmableYes - Dimmable Driver Required
Dimmer IncludedNo
Average Life (hrs)72000hrs
Warranty (yrs)5yrs
Features
Push terminals for quick and simple wiring of LED module to LED module.Perfectly uniform light even if several LED modules are used together in a line. Colour temperatures 2700-6500K. Small luminous flux tolerances.Broad portfolio from extruded lenses and covers vailable. Simple installation via clips or screws.
Full Specifications
Collection GroupLLE
Brief DescriptionTridonic 20x560mm 1250lm 840 HV SNC3, LED Linear Module, Long life-time, IP00, 5yrs Warranty.
Colour FinishWhite
Item Nett Weight (kg)0.018kg
Length (mm)280mm
Width (mm)20mm
Height (mm)5.5mm
Self AdhesiveNo
Materials UsedPolycarbonateB
Energy ClassA++ to A
Max Energy ClassA++
Min Energy ClassA
Lamp SocketIntegral LED
Recommended LampIntegral LED
Lamp IncludedYes - Integrated
Type of Lamp IncludedIntegrated LED
Brand of LampTridonic
Colour Temperature (K)4000K Cool White (±5%)
LED BrandTridonic
Type of LEDSMD
Lumens Per Watt (lm/W)179lm/W (±5%)
Lumen Maintenance (hrs)50000hrs / LM80hrs (±5%)
Beam Angle (°)120°
System Flux (lm)1250lm (±5%)
CRI>80
MacAdam3
Driver IncludedNo
Type of Driver RequiredConstant Current
Dimming Range (%)0-100%
Load Range (W)4.4-10.5W
Ta (°C)-40° to +65°C
Tc (°C)90°C
Connection TerminalPush-Fit
Dimming ProtocolDepends on Driver
Protection ClassClass 3 - Low Voltage
Total Power Consumption (W)10.5W (±5%)
Input Voltage (V)20.2-24.6V DC
Input Current (A)0.2-0.45A
DimmableYes - Dimmable Driver Required
Dimmer IncludedNo
Average Life (hrs)72000hrs
Warranty (yrs)5yrs
UKCA/CEYes
RohsYes
ENECYes
Number of Cartons1
Carton Length (cm)28cm
Carton Width (cm)2cm
Carton Height (cm)0.55cm
Carton CBM0
Carton Nett Weight (kg)0.018kg (±5%)
Carton Gross Weight (kg)0.020kg (±5%)
Additional DetailsModule LLE 20x280mm 840 1250lm HV SNC3
UK Commodity Code8539510000
Country of OriginChina
