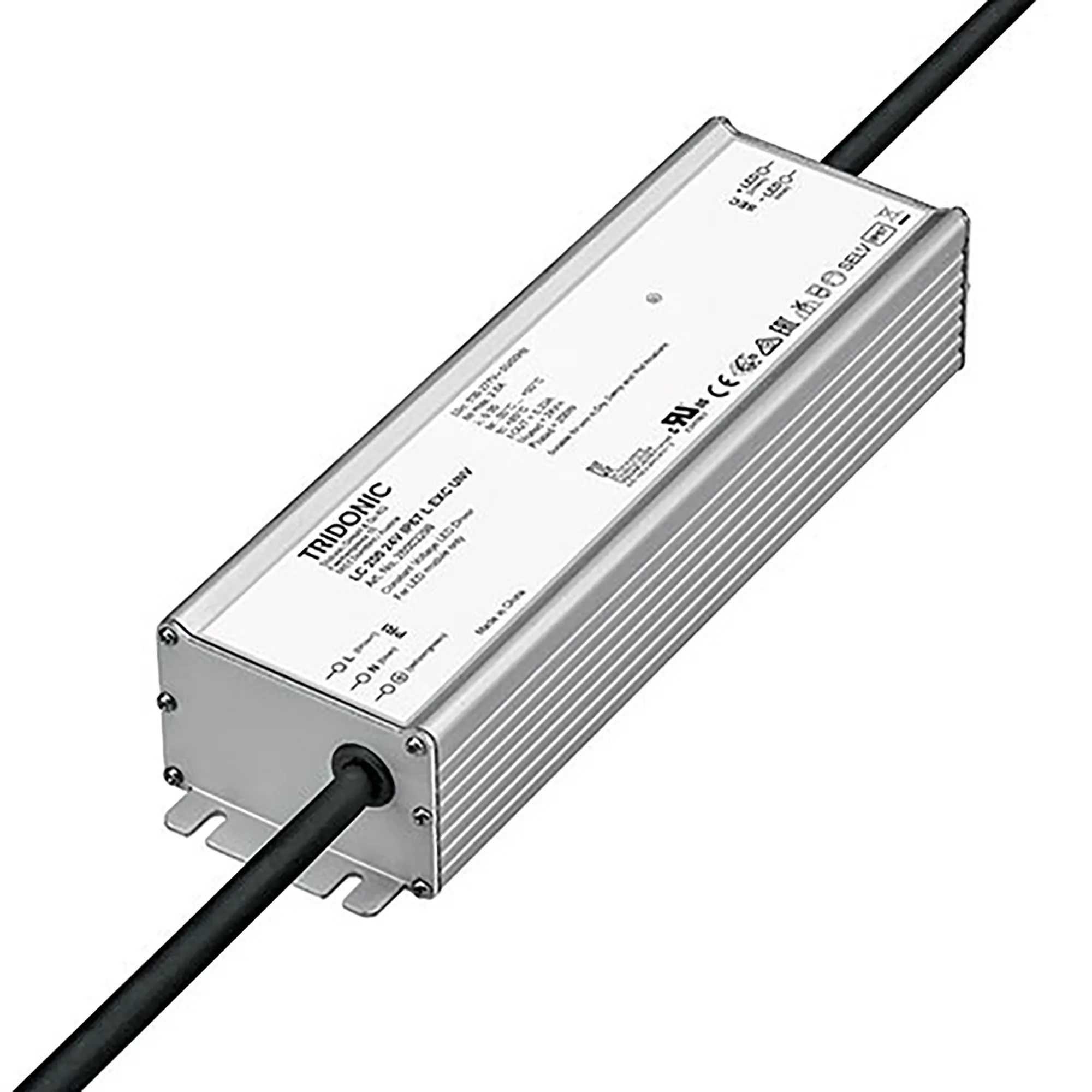

LC 200W 24V IP67 L EXC UNV Constant Voltage LED Driver IP67 Dry, damp and wet location.

Tridonic, LC 200W 24V IP67 L EXC UNV, Constant voltage excite series Oudoor application, Made In PRC, 5yrs Warranty

28003298

Colour Finish :
Grey

Qty: Order Item Add to Wishlist

Constant voltage IP67 LED Driver, Dry, damp and wet location, Higher protection against corrosion, Nominal life-time up to 50000 hrs.Compact size and easy installation.
Tridonic is a world-leading supplier of lighting technology, supporting its customers with intelligent hardware and software and offering the highest level of quality, reliability and energy savings. As a global driver of innovation in the field of lighting-based network technology, Tridonic develops scalable, future-oriented solutions that enable new business models for lighting manufacturers, building managers, systems integrators, planners and many other types of customers. Tridonic has been Show More...
To Follow
Quick Spec
Brief DescriptionLC 200W 24V IP67 L EXC UNV Constant Voltage LED Driver IP67 Dry, damp and wet location.
Colour FinishGrey
Item Nett Weight (kg)1.4kg

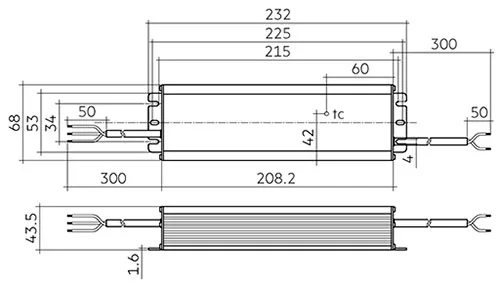

Length (mm)232mm
Width (mm)68mm
Height (mm)43.5mm
Energy ClassA++ to A
Protection ClassClass 2 - Double Insulated
DimmableNo
IP RatingIP67
Average Life (hrs)50000hrs
Warranty (yrs)5yrs
Features
Overtemperature protection, Overload protection, Short-circuit protection abd No-load protection. Potted version: higher protection against corrosion, Dry, damp and wet location.
Full Specifications
Collection GroupLC
Barcode5056037204688
Brief DescriptionLC 200W 24V IP67 L EXC UNV Constant Voltage LED Driver IP67 Dry, damp and wet location.
Colour FinishGrey
Item Nett Weight (kg)1.4kg
Length (mm)232mm
Width (mm)68mm
Height (mm)43.5mm
Energy ClassA++ to A
Max Energy ClassA++
Min Energy ClassA
Lumen Maintenance (hrs)50000hrs / LM80hrs (±5%)
Type of DriverConstant Voltage
Dimming Range (%)Non Dimmable
Power Factor (?)>0.95 (±5%)
Constant Voltage Output (V)24V DC
Max. Current Output (A)8.33A
Load Range (W)20-200.6W
Maximum Output Distance (m)2m
Ta (°C)-40° to +50°C
Tc (°C)85°
Casing MaterialAluminium
Connection TerminalWire
Dimming ProtocolON/OFF
Efficiency0.90
Protection ClassClass 2 - Double Insulated
Total Power Consumption (W)200W (±5%)
Input Voltage (V)100-277V~50/60Hz
Input Current (A)2.8A
DimmableNo
IP RatingIP67
Average Life (hrs)50000hrs
Warranty (yrs)5yrs
UKCA/CEYes
RohsYes
ENECYes
SELVYes
Number of Cartons1
Carton Length (cm)23.2cm
Carton Width (cm)6.9cm
Carton Height (cm)4.35cm
Carton CBM0.00069
Carton Nett Weight (kg)1.4kg (±5%)
Carton Gross Weight (kg)1.4kg (±5%)
Additional DetailsLC 200W 24V IP67 L EXC UNV
UK Commodity Code8504318050
Country of OriginChina
