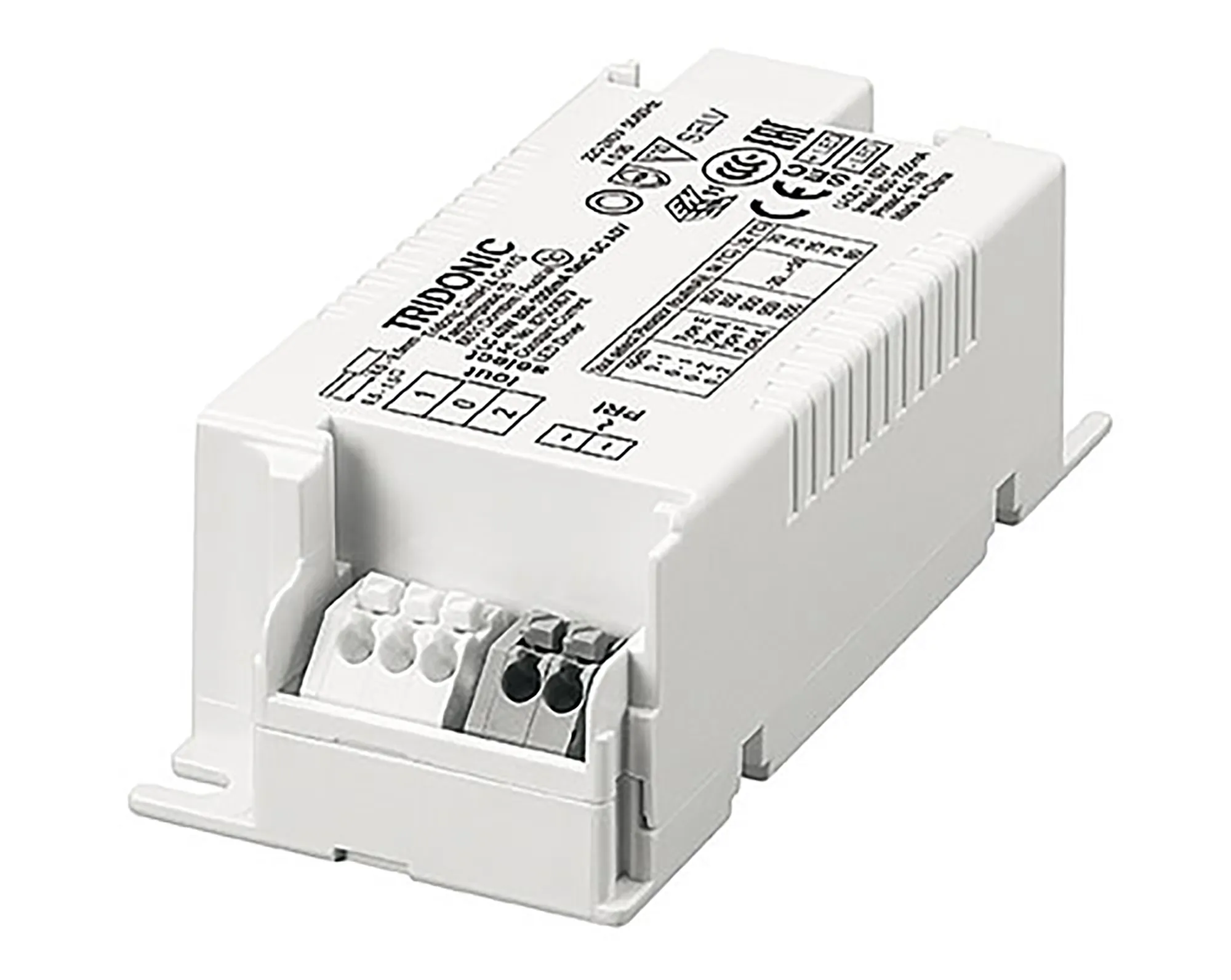

40W 800-1050mA flexC SC ADV Constant Current LED Driver

Tridonic, LC 40W 800-1050mA flexC SC ADV, LED Converter Compact ADVANCE, Made In PRC, 5yrs Warranty

87500679

Colour Finish :
White

Qty: Order Item Add to Wishlist

Constant current LED Driver, Adjustable output current between 800 and 1,050 mA, in 5 steps with ADV plug technology, For luminaires of protection class I and protection class II, Temperature protection as per EN 61347-2-13 C5e, Compact design.
Tridonic is a world-leading supplier of lighting technology, supporting its customers with intelligent hardware and software and offering the highest level of quality, reliability and energy savings. As a global driver of innovation in the field of lighting-based network technology, Tridonic develops scalable, future-oriented solutions that enable new business models for lighting manufacturers, building managers, systems integrators, planners and many other types of customers. Tridonic has been Show More...
To Follow
Quick Spec
Brief Description40W 800-1050mA flexC SC ADV Constant Current LED Driver
Colour FinishWhite
Item Nett Weight (kg)0.105kg

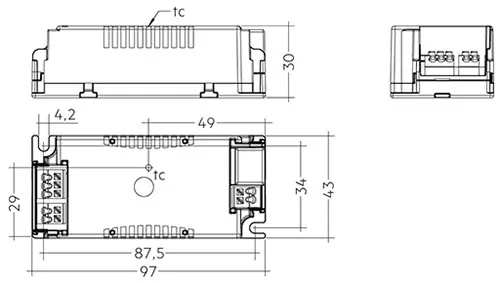

Length (mm)97mm
Width (mm)43mm
Height (mm)30mm
Energy ClassA++ to A
Protection ClassClass 2 - Double Insulated
DimmableNo
IP RatingIP20
Average Life (hrs)50000hrs
Warranty (yrs)5yrs
Features
Over temperature protection, Overload protection, Short-circuit protection, No-load protection, Burst protection voltage 1 kV, Surge protection voltage 1 kV (L to N), Surge protection voltage 2 kV (L/N to earth).
Full Specifications
Collection GroupLC
BarcodeTo Follow
Brief Description40W 800-1050mA flexC SC ADV Constant Current LED Driver
Colour FinishWhite
Item Nett Weight (kg)0.105kg
Length (mm)97mm
Width (mm)43mm
Height (mm)30mm
Energy ClassA++ to A
Max Energy ClassA++
Min Energy ClassA
Lumen Maintenance (hrs)50000hrs / LM80 (±5%)
Type of DriverConstant Current
Dimming Range (%)Non Dimmable
Power Factor (?)>0.95 (±5%)
Constant Current Output (mA)800-1050mA
Min/Max. Voltage Output (V)25-42V
Maximum Output Distance (m)2m
Ta (°C)-20° to +50°C
Tc (°C)80°C
Casing MaterialPolycarbonate
Connection TerminalPush-Fit
Dimming ProtocolON/OFF
Efficiency0.88
Protection ClassClass 2 - Double Insulated
Total Power Consumption (W)40W (±5%)
Input Voltage (V)220-240V~50/60Hz
Input Current (A)0.22A
DimmableNo
IP RatingIP20
Average Life (hrs)50000hrs
Warranty (yrs)5yrs
UKCA/CEYes
RohsYes
ENECYes
SELVYes
Number of Cartons1
Carton Length (cm)9.7cm
Carton Width (cm)4.3cm
Carton Height (cm)3.0cm
Carton CBM0.0001
Carton Nett Weight (kg)0.105kg (±5%)
Carton Gross Weight (kg)0.105kg (±5%)
Additional DetailsTridonic, LC 40W 800-1050mA flexC SC ADV
UK Commodity Code8504318050
Country of OriginChina
