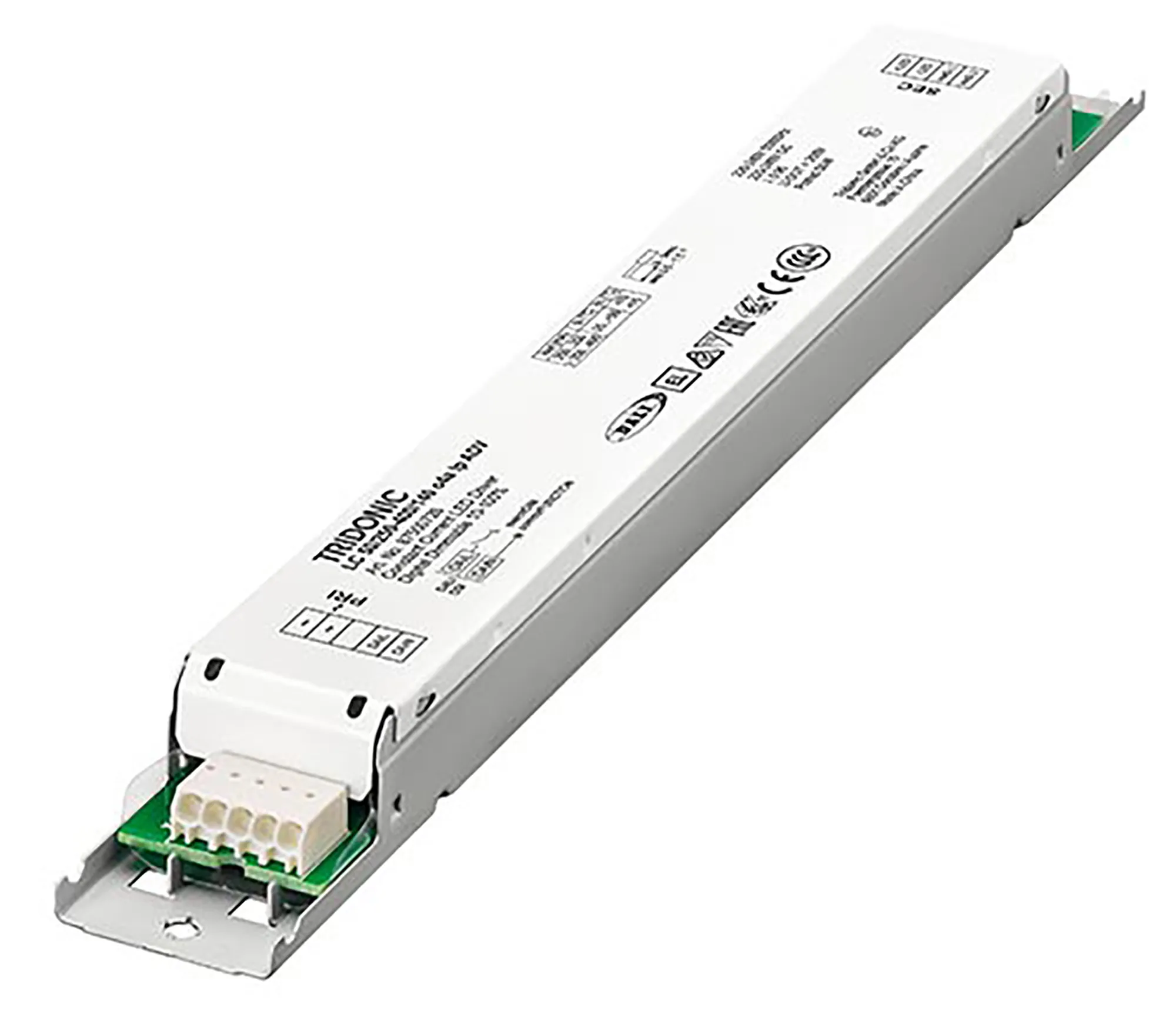

50W 250-400mA One4 all Dimmable Constant current LED driver, metal casing with white cover, IP20.

Tridonic, LC 50W 250/275/300/325/350/375/400mA 140V o4a lp ADV, LED Converter Linear non-SELV 50W Constant Current DALI dimming, IP20, 5yrs Warranty

87500726

Qty: Order Item Add to Wishlist

DALI Dimmable built-in constant current LED Driver, Up to 93 % efficiency.Dimming range 10 – 100 % (min. 25 mA) , Higher ife-time.Can be used with luminaires of protection class I and protection class II.Overtemperature, Short-circuit, Overload, No load, Input voltage range.
Tridonic is a world-leading supplier of lighting technology, supporting its customers with intelligent hardware and software and offering the highest level of quality, reliability and energy savings. As a global driver of innovation in the field of lighting-based network technology, Tridonic develops scalable, future-oriented solutions that enable new business models for lighting manufacturers, building managers, systems integrators, planners and many other types of customers. Tridonic has been Show More...
To Follow
Quick Spec
Brief Description50W 250-400mA One4 all Dimmable Constant current LED driver, metal casing with white cover, IP20.
Colour FinishWhite
Item Nett Weight (kg)0.202kg

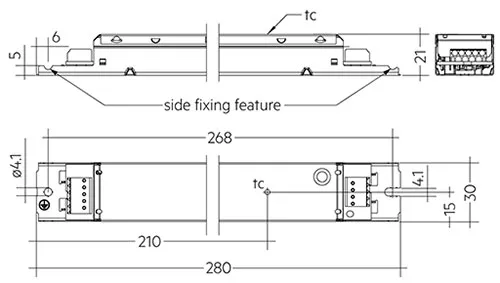

Length (mm)280mm
Width (mm)30mm
Height (mm)21mm
Energy ClassA++ to A
Protection ClassClass 2 - Double Insulated
DimmableYes - Suitable Dimmer Required
Dimmer IncludedNo
IP RatingIP20
Average Life (hrs)100000hrs
Warranty (yrs)5yrs
Features
Over temperature, Short-circuit, Oerload, Noload, Input voltage range, Suitable for emergency escape lighting systems acc. to EN 50172, Flexible configuration via DALI and I-SELECT 2.
Full Specifications
Collection GroupLC
Barcode5056037205401
Brief Description50W 250-400mA One4 all Dimmable Constant current LED driver, metal casing with white cover, IP20.
Colour FinishWhite
Item Nett Weight (kg)0.202kg
Length (mm)280mm
Width (mm)30mm
Height (mm)21mm
Energy ClassA++ to A
Max Energy ClassA++
Min Energy ClassA
Lumen Maintenance (hrs)50000hrs / LM80hrs (±5%)
Type of DriverConstant Current
Dimming Range (%)10-100%
Power Factor (?)>0.95 (±5%)
Constant Current Output (mA)250-400mA
Min/Max. Voltage Output (V)50-140V
Typical Current Ripple (%)±5%
Maximum Output Distance (m)2m
Ta (°C)-25° to +50°C
Tc (°C)70°C
Casing MaterialMetal Body
Connection TerminalTerminal Block
Dimming ProtocolDALI-2 DT 6, DSI, switchDIM, corridor FUNCTION V2
Efficiency0.92
Protection ClassClass 2 - Double Insulated
Total Power Consumption (W)50W (±5%)
Input Voltage (V)220-240V~50/60Hz
Input Current (A)<0.25A
DimmableYes - Suitable Dimmer Required
Dimmer IncludedNo
IP RatingIP20
Average Life (hrs)100000hrs
Warranty (yrs)5yrs
UKCA/CEYes
RohsYes
ENECYes
Number of Cartons1
Carton Length (cm)28.0cm
Carton Width (cm)3.0cm
Carton Height (cm)2.1cm
Carton CBM0.0002
Carton Nett Weight (kg)0.202kg (±5%)
Carton Gross Weight (kg)0.222kg (±5%)
Additional DetailsTridonic, LC 50W 250-400mA 140V o4a lp ADV, DALI Dimmable CC Driver Metal Case, IP20
UK Commodity Code85044090
Country of OriginChina
