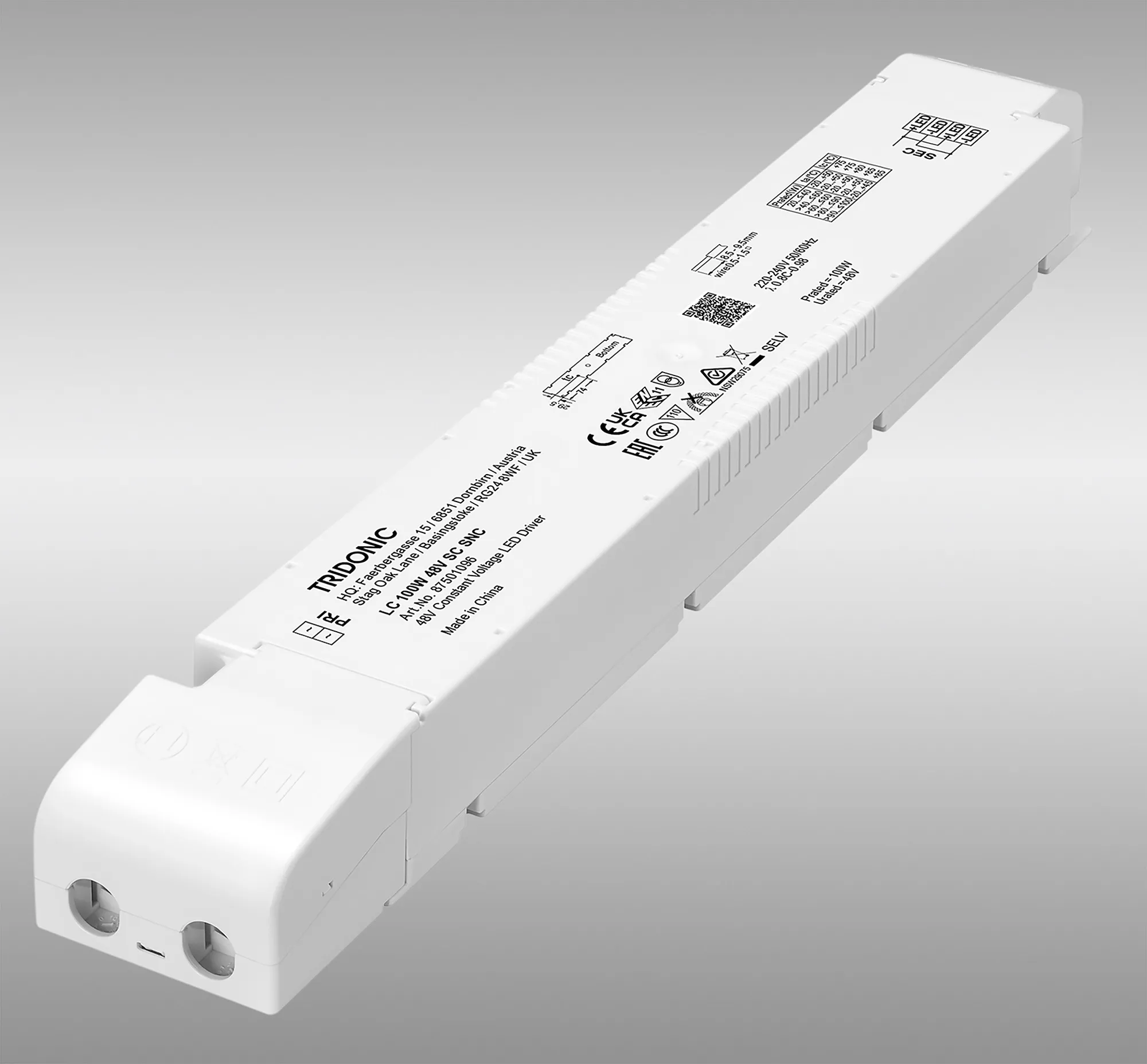

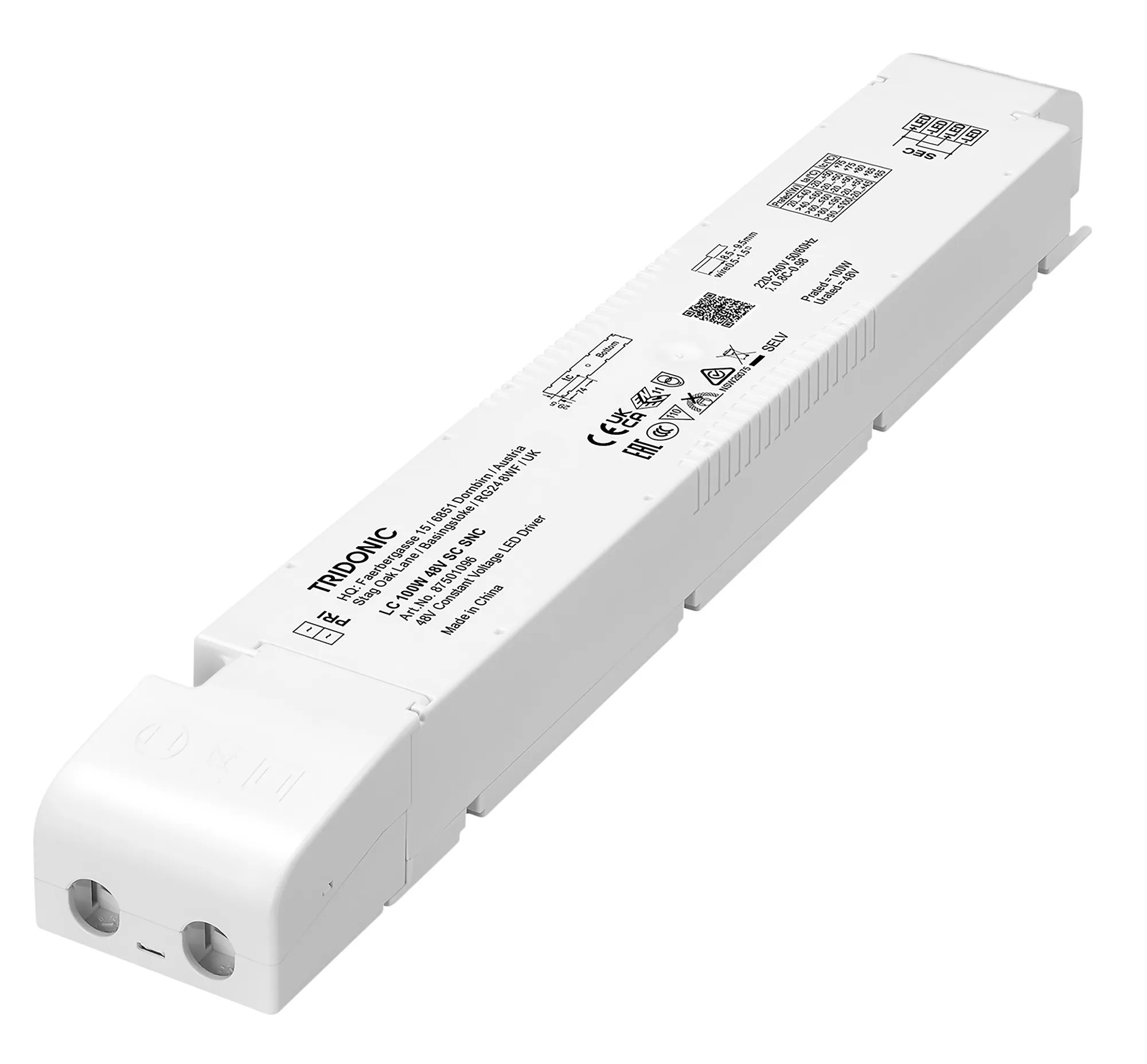

Tridonic, LC 100W 48V SC SNC, LED Driver Indoor Constant Voltage ESSENCE, Made In PRC, 5yrs Warranty
87501096
Favourite
| Brief Description | 100W 48V SC SNC ESSENCE Constant Voltage LED Driver |
| Colour Finish | White |
| Item Nett Weight (kg) | 0.24kg |

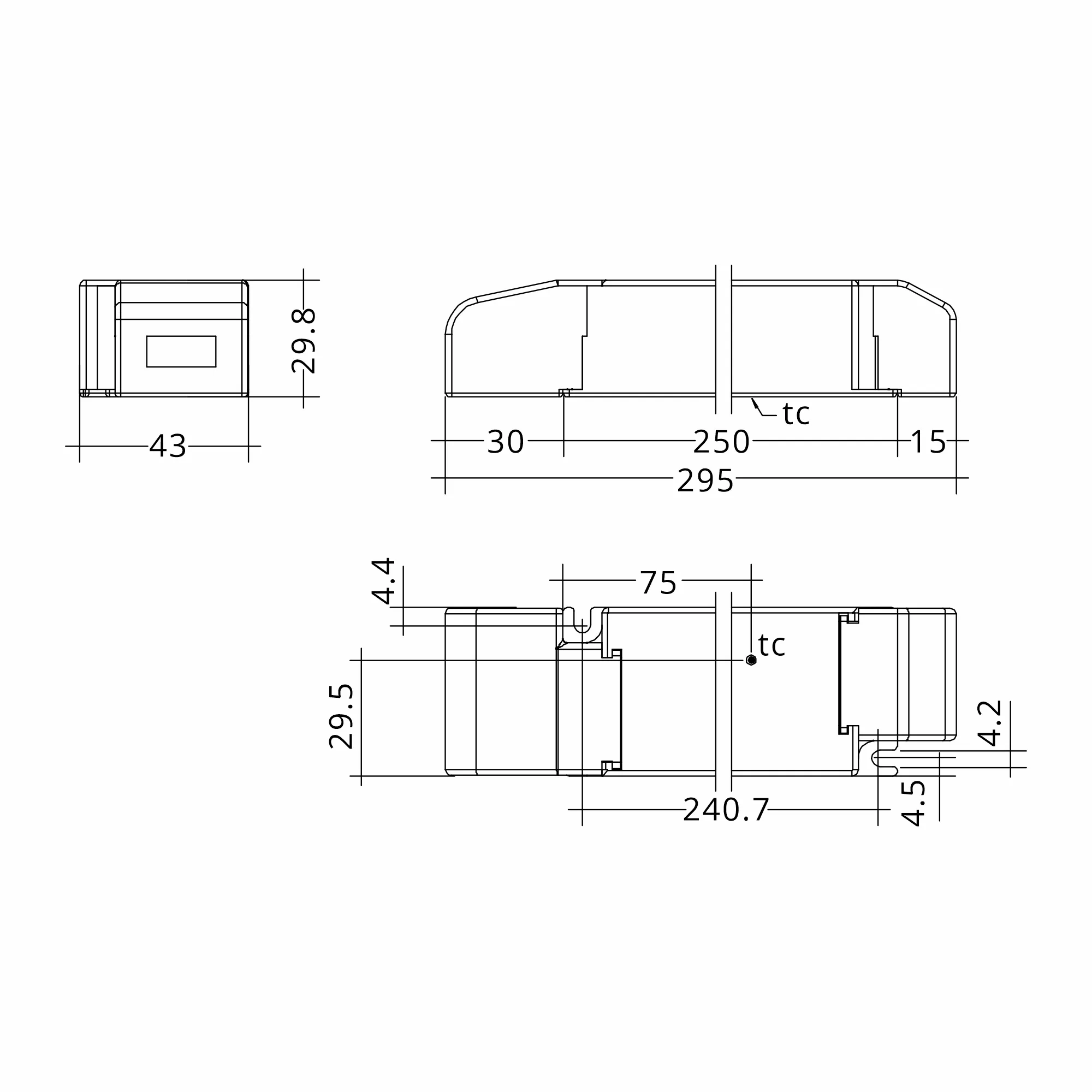

| Length (mm) | 295mm |
| Width (mm) | 43mm |
| Height (mm) | 30mm |
| Energy Class | A++ to A |
| Protection Class | Class 2 - Double Insulated |
| Dimmable | No |
| Dimmer Included | No |
| IP Rating | IP20 |
| Average Life (hrs) | 50000hrs |
| Warranty (yrs) | 5yrs |
| Features, Will be added soon |
| Collection Group | LC |
| Brief Description | 100W 48V SC SNC ESSENCE Constant Voltage LED Driver |
| Colour Finish | White |
| Item Nett Weight (kg) | 0.24kg |
| Length (mm) | 295mm |
| Width (mm) | 43mm |
| Height (mm) | 30mm |
| Energy Class | A++ to A |
| Max Energy Class | A++ |
| Min Energy Class | A |
| Lumen Maintenance (hrs) | 50000hrs / LM80hrs (±5%) |
| Type of Driver | Constant Voltage |
| Dimming Range (%) | Non Dimmable |
| Power Factor (?) | >0.98? (±5%) |
| Constant Voltage Output (V) | 48V |
| Load Range (W) | 0-100W |
| Maximum Output Distance (m) | 2m |
| Ta (°C) | -20° to +50°C |
| Casing Material | Polycarbonate |
| Connection Terminal | Push-Fit |
| Dimming Protocol | ON/OFF |
| Protection Class | Class 2 - Double Insulated |
| Total Power Consumption (W) | 100W (±5%) |
| Input Voltage (V) | 220-240V~50/60Hz |
| Input Current (A) | 0.476A |
| Dimmable | No |
| Dimmer Included | No |
| IP Rating | IP20 |
| Average Life (hrs) | 50000hrs |
| Warranty (yrs) | 5yrs |
| UKCA/CE | Yes |
| Rohs | Yes |
| ENEC | Yes |
| SELV | Yes |
| Number of Cartons | 1 |
| Additional Details | Tridonic, LC 100W 48V SC SNC |
| UK Commodity Code | 8504318050 |
| Country of Origin | China |
