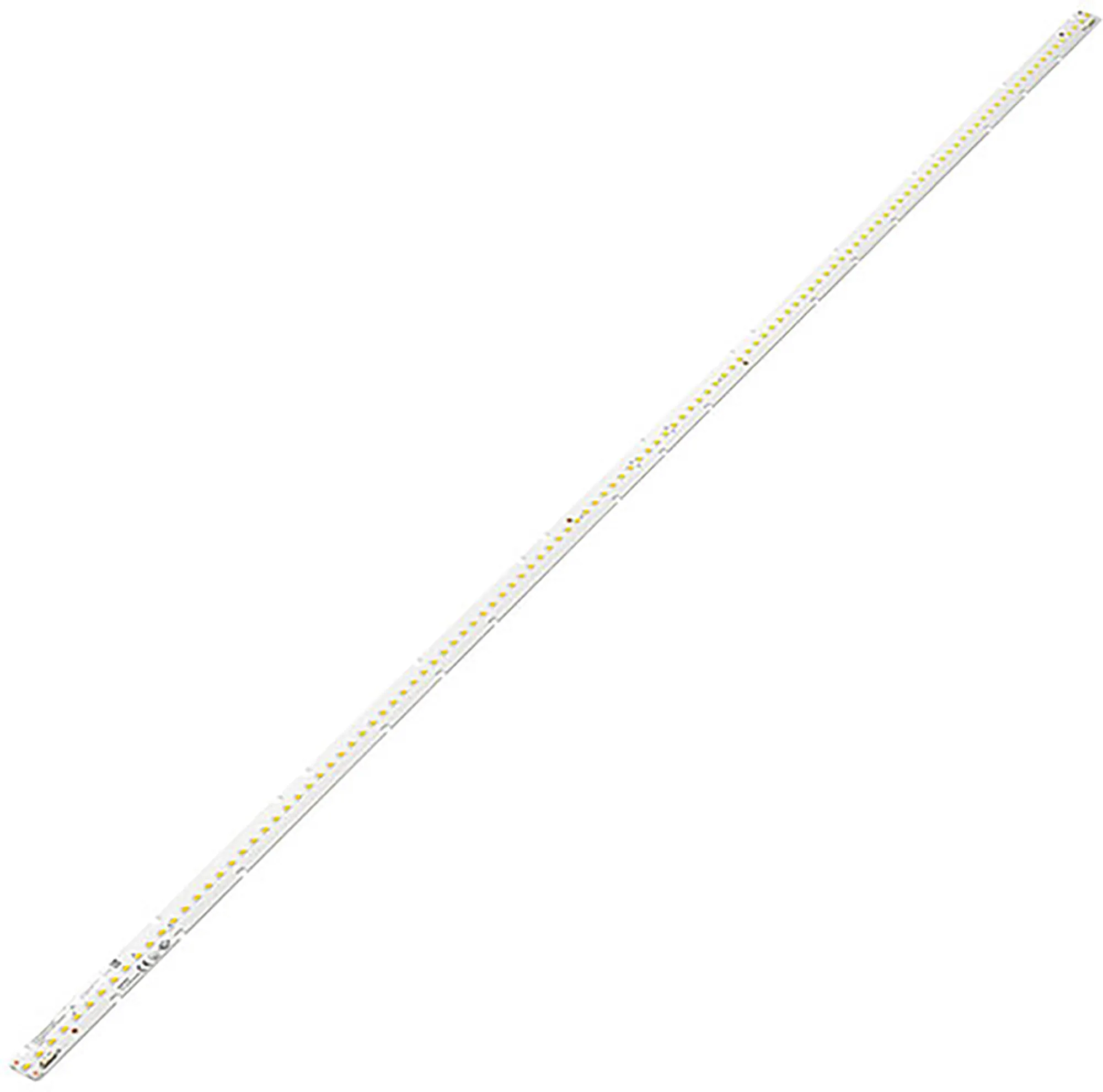

24x1400mm 6000lm 830 ADV, LED Linear Modules, 3000K, CRI>80, 6000lm, IP20.

Tridonic, LLE G4 24x1400mm 6000lm 830 ADV, LED Linear Modules, Made In Poland, 5yrs Warranty

Item Has a LARGE CARTON With Dimensions of: 140x24x0.55cm.

89602974

Colour Temperature :
Colour Finish :
White

Qty: Order Item Add to Wishlist

Ideal for linear lights 4 and 5 feet, Significant saving in production time due to little wiring effort, Long life-time, High colour rendering index, High colour consistency (MacAdam 3), Small luminous flux tolerances.
Tridonic is a world-leading supplier of lighting technology, supporting its customers with intelligent hardware and software and offering the highest level of quality, reliability and energy savings. As a global driver of innovation in the field of lighting-based network technology, Tridonic develops scalable, future-oriented solutions that enable new business models for lighting manufacturers, building managers, systems integrators, planners and many other types of customers. Tridonic has been Show More...
To Follow
Quick Spec
Brief Description24x1400mm 6000lm 830 ADV, LED Linear Modules, 3000K, CRI>80, 6000lm, IP20.
Colour FinishWhite
Item Nett Weight (kg)0.114kg
Length (mm)1400mm
Width (mm)23.6mm
Height (mm)5.5mm
Self AdhesiveNo
Energy ClassA++ to A
Lamp SocketIntegral LED
Recommended LampIntegral LED
Lamp IncludedYes - Integrated
Type of Lamp IncludedIntegrated LED
Brand of LampTridonic
Colour Temperature (K)3000K Warm White (±5%)
Beam Angle (°)120°
System Flux (lm)6000lm (±5%)
CRI>80
Driver IncludedNo
Type of Driver RequiredConstant Current
Protection ClassClass 3 - Low Voltage
DimmableYes - Dimmable Driver Required
IP RatingIP20
Average Life (hrs)50000hrs
Warranty (yrs)5yrs
Features
Push terminals for quick and simple wiring of LED module to LED module.Perfectly uniform light, even if several LED modules are used together in a line.
Full Specifications
Collection GroupLLE
Barcode5056037204879
Brief Description24x1400mm 6000lm 830 ADV, LED Linear Modules, 3000K, CRI>80, 6000lm, IP20.
Colour FinishWhite
Item Nett Weight (kg)0.114kg
Length (mm)1400mm
Width (mm)23.6mm
Height (mm)5.5mm
Self AdhesiveNo
Materials UsedPolycarbonateB
Energy ClassA++ to A
Max Energy ClassA++
Min Energy ClassA
Lamp SocketIntegral LED
Recommended LampIntegral LED
Lamp IncludedYes - Integrated
Type of Lamp IncludedIntegrated LED
Brand of LampTridonic
Colour Temperature (K)3000K Warm White (±5%)
LED Power (W)59.1W (±5%)
Type of LEDSMD
Lumens Per Watt (lm/W)181lm/W (±5%)
Lumen Maintenance (hrs)50000hrs / LM80hrs (±5%)
Beam Angle (°)120°
System Flux (lm)6000lm (±5%)
CRI>80
MacAdam3
Driver IncludedNo
Type of Driver RequiredConstant Current
Dimming Range (%)0-100%
Load Range (W)25-59.1W
Ta (°C)-40° to +65°C
Tc (°C)85°C
Connection TerminalPush-Fit
Dimming ProtocolDepends on Driver
Protection ClassClass 3 - Low Voltage
Total Power Consumption (W)59.1W (±5%)
Input Voltage (V)106.2-128.2V DC
Input Current (A)0.225-0.500A
DimmableYes - Dimmable Driver Required
IP RatingIP20
Average Life (hrs)50000hrs
Warranty (yrs)5yrs
UKCA/CEYes
RohsYes
ENECYes
Number of Cartons1
Carton Length (cm)140cm
Carton Width (cm)24.0cm
Carton Height (cm)0.55cm
Carton CBM0.00186
Carton Nett Weight (kg)0.114kg (±5%)
Carton Gross Weight (kg)0.114kg (±5%)
Additional DetailsTridonic, LLE G4 24x1400mm 6000lm 830 ADV
UK Commodity Code8539510000
Country of OriginPoland
