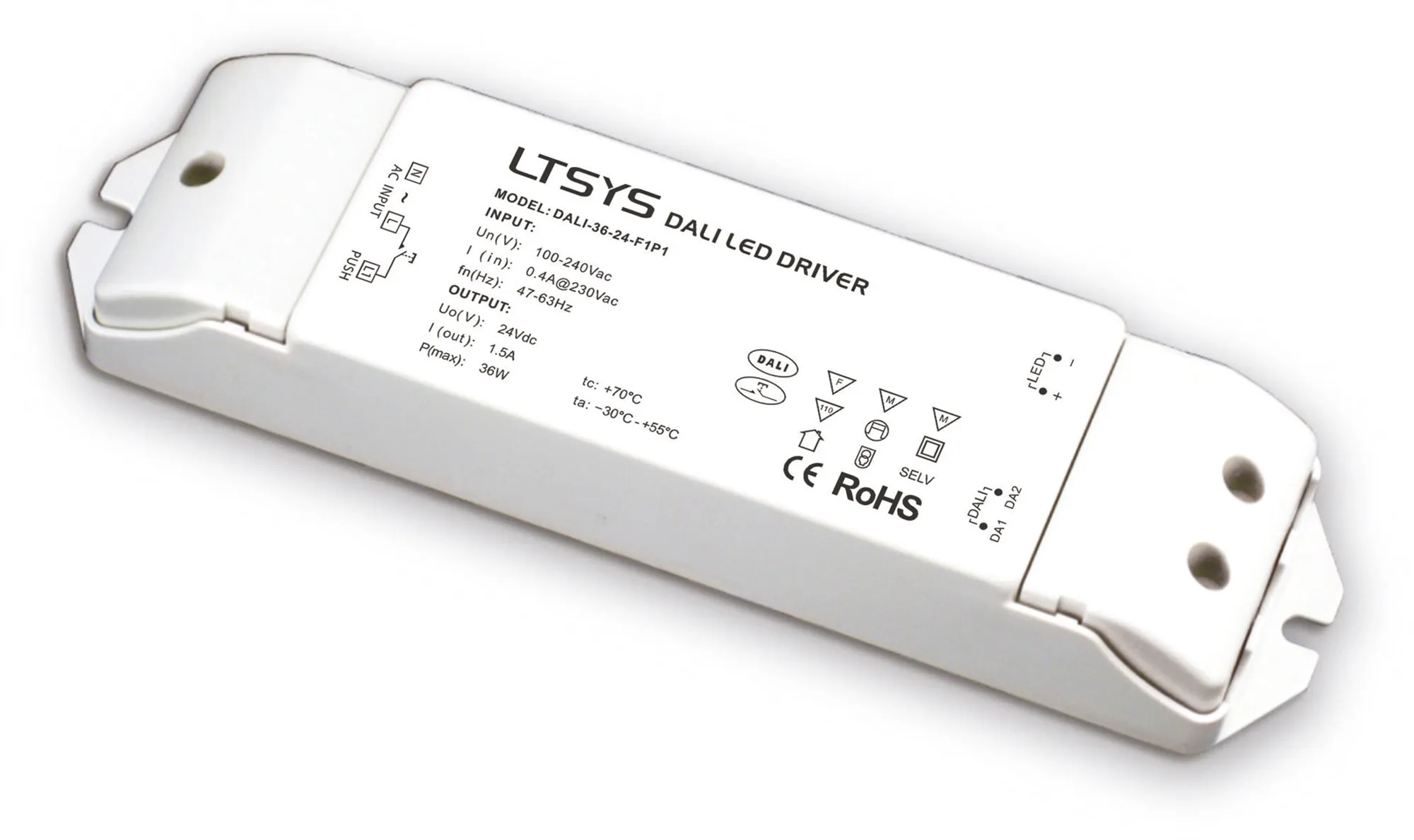

DALI Push Dim PWM 36W Voltage Dimmable Driver 24V

DALI, Push Dim, PWM, 36W, C. Voltage Dimmable Driver, 24V, Max Current Output:1.5A, EFF>86%, 3yrs Warranty

DALI-36-24-F1P1

Qty: Order Item Add to Wishlist

LTECH is a front-runner in the field of LED lighting controller. As the first high-end manufacturer in China and one of the leading suppliers in the world, they have engaged in R&D of LED lighting control technology since 2001. As an intelligent lighting technology enabler, LTECH has developed hundreds of intelligent LED controlling technologies, which creates a more efficient, energy-saving, healthy and comfortable lighting life. Widely applied to the global lighting industry, innovative produc Show More...
To Follow
Quick Spec
Brief DescriptionDALI Push Dim PWM 36W Voltage Dimmable Driver 24V
Colour FinishWhite
Item Nett Weight (kg)0.18kg

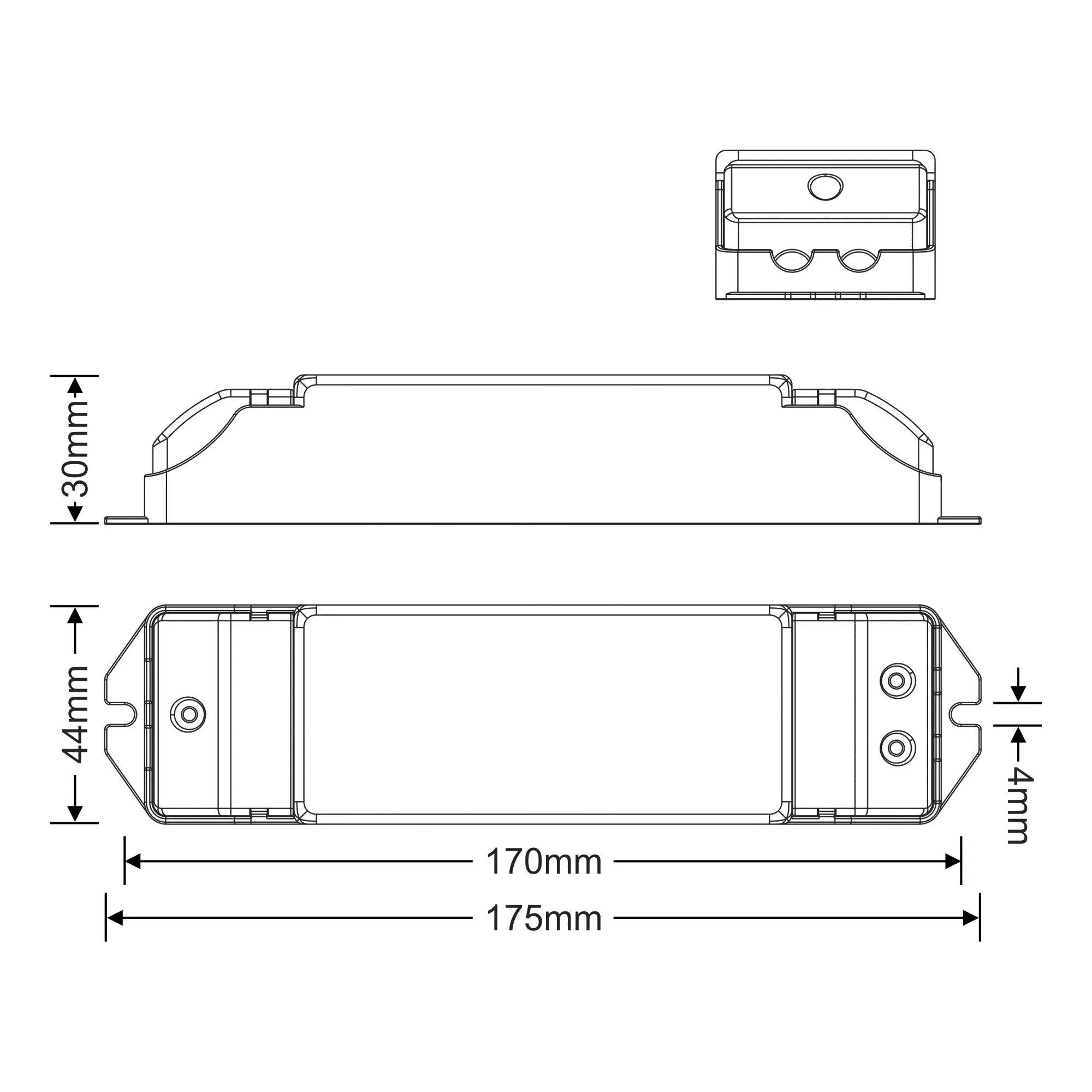

Length (mm)175mm
Width (mm)44mm
Height (mm)30mm
Protection ClassClass 2 - Double Insulated
DimmableYes - Suitable Dimmer Required
Dimmer IncludedNo
IP RatingIP20
Warranty (yrs)3yrs
Features
Features, Will be added soon
Full Specifications
Collection GroupDali Constant Voltage
Barcode5056037131540
Brief DescriptionDALI Push Dim PWM 36W Voltage Dimmable Driver 24V
Colour FinishWhite
Item Nett Weight (kg)0.18kg
Length (mm)175mm
Width (mm)44mm
Height (mm)30mm
Type of DriverConstant Voltage
Dimming Range (%)0-100%
Power Factor (?)N/A (±5%)
Constant Voltage Output (V)24V DC
Max. Current Output (A)1.5A
Load Range (W)0-36W
Connection TerminalPush Terminal

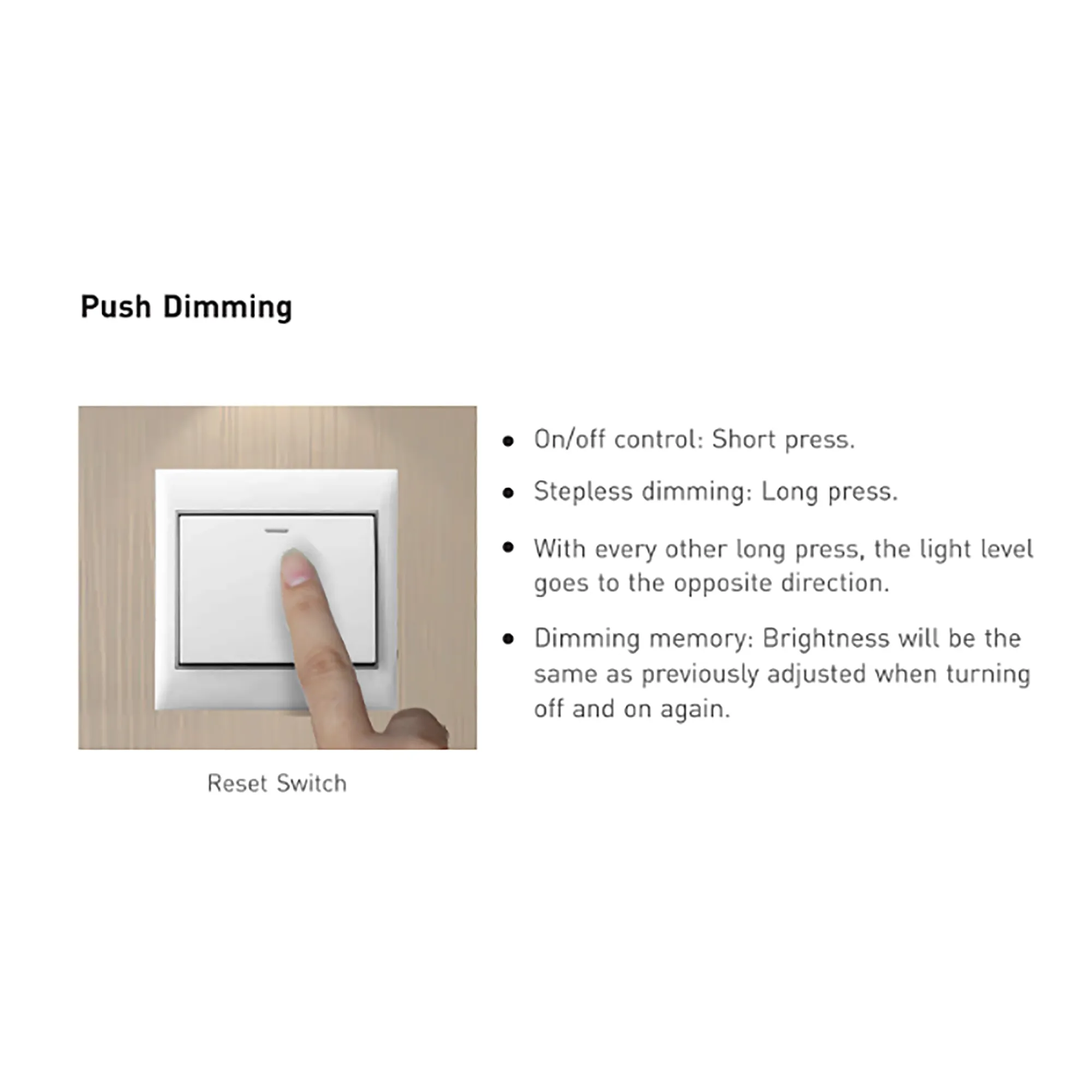

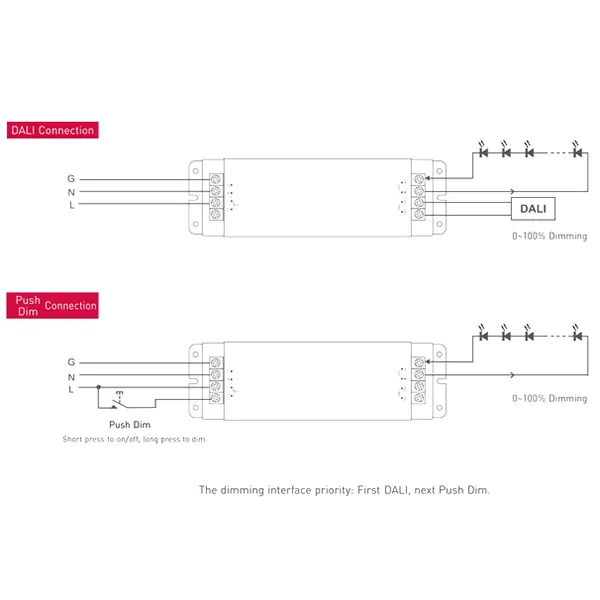

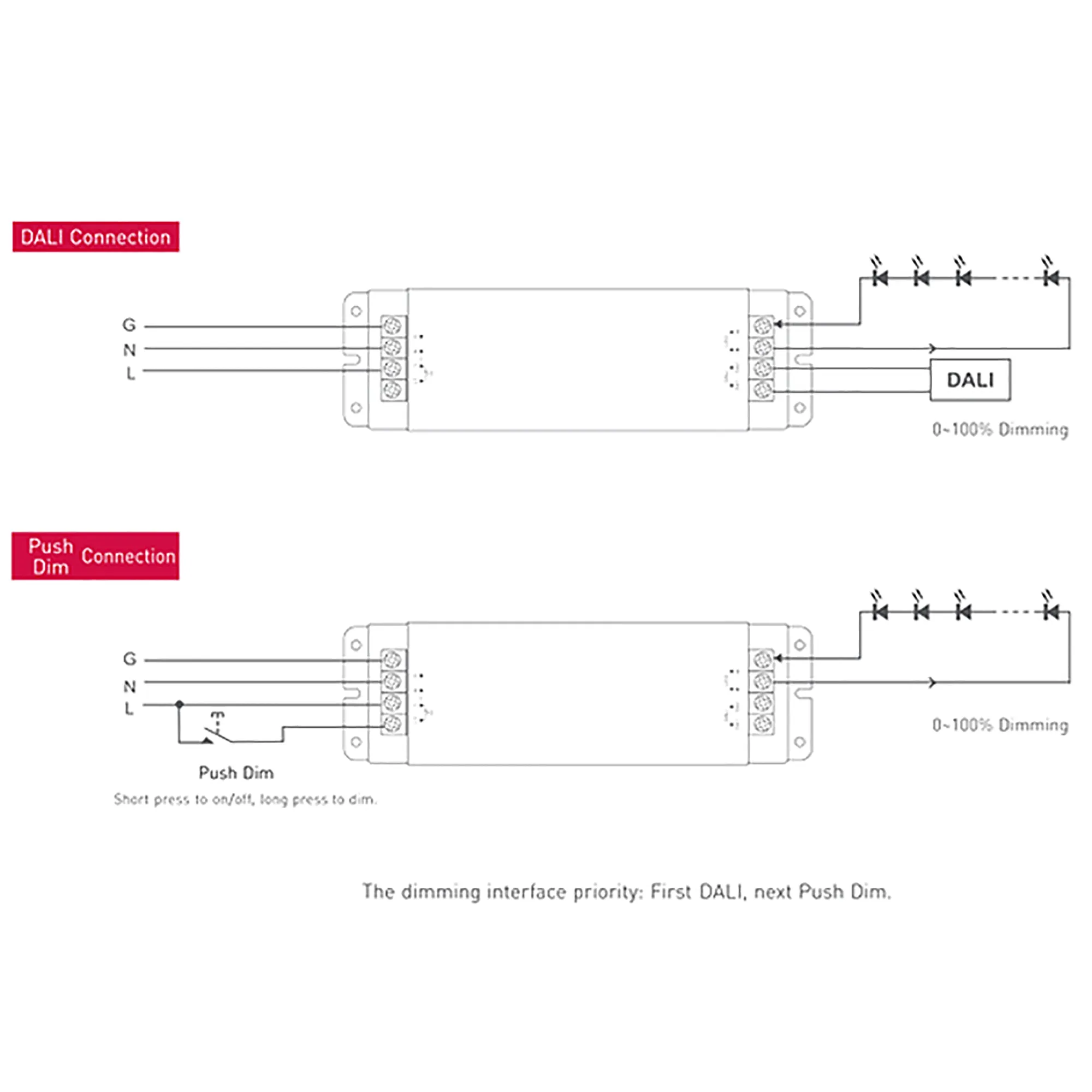

Dimming ProtocolDALI, Push Dim, PWM
Efficiency>86%
Protection ClassClass 2 - Double Insulated
Total Power Consumption (W)36W (±5%)
Input Voltage (V)100-240V~50/60Hz
DimmableYes - Suitable Dimmer Required
Dimmer IncludedNo
IP RatingIP20
Warranty (yrs)3yrs
UKCA/CEYes
RohsYes
SELVYes
EMV/EMCYes
Number of Cartons1
Carton Length (cm)17.8cm
Carton Width (cm)4.8cm
Carton Height (cm)3.3cm
Carton CBM0.0002
Carton Nett Weight (kg)0.18kg (±5%)
Carton Gross Weight (kg)0.190kg (±5%)
UK Commodity Code8504401400
Country of OriginChina
