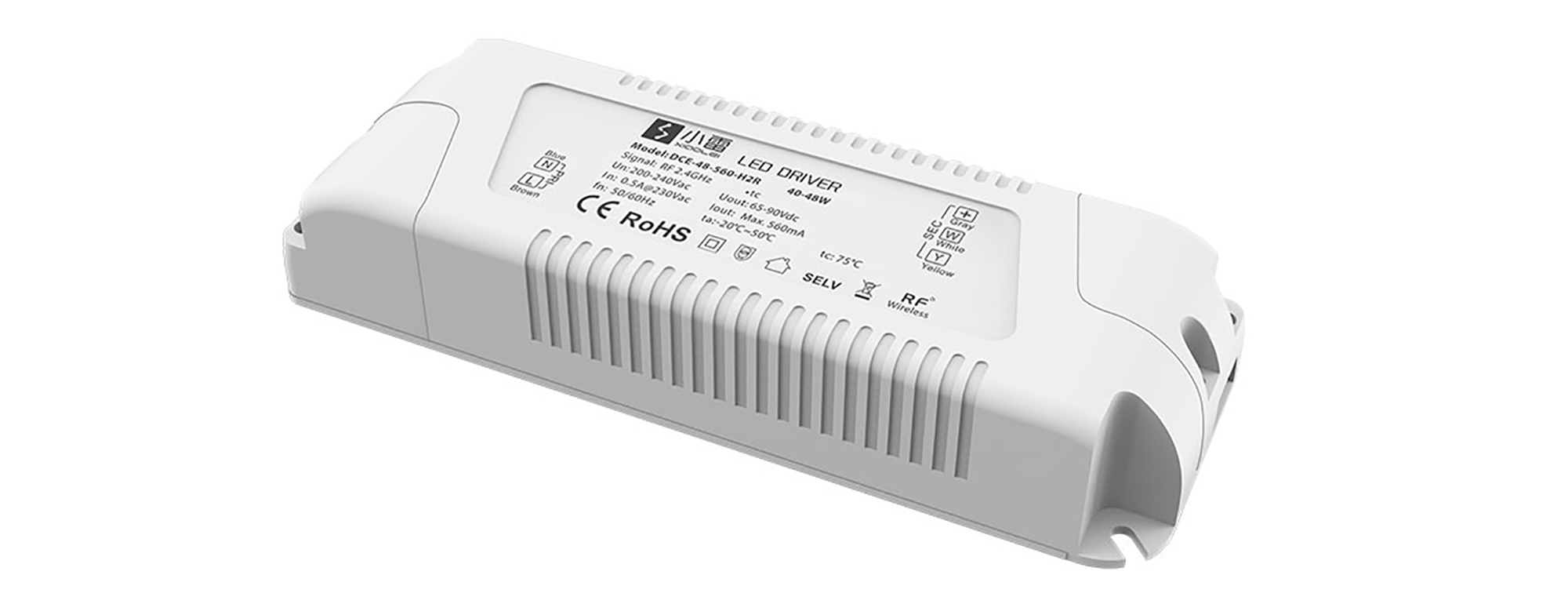

Ltech Smart home Wireless Dimmablre LED Driver 48W 60-90Vdc /560mA.0-100% PWM dimming,Over voltage, over load and Short circuit protection, IP20.

Intelligent LED driver, RF2.4GHz interface 48W 90Vdc/560mA output,PWM Dimming, High PF & Efficency, Wide operating temperature,Hicup mode, IP20.

DCE-48-560-H2R

Qty: Order Item Add to Wishlist

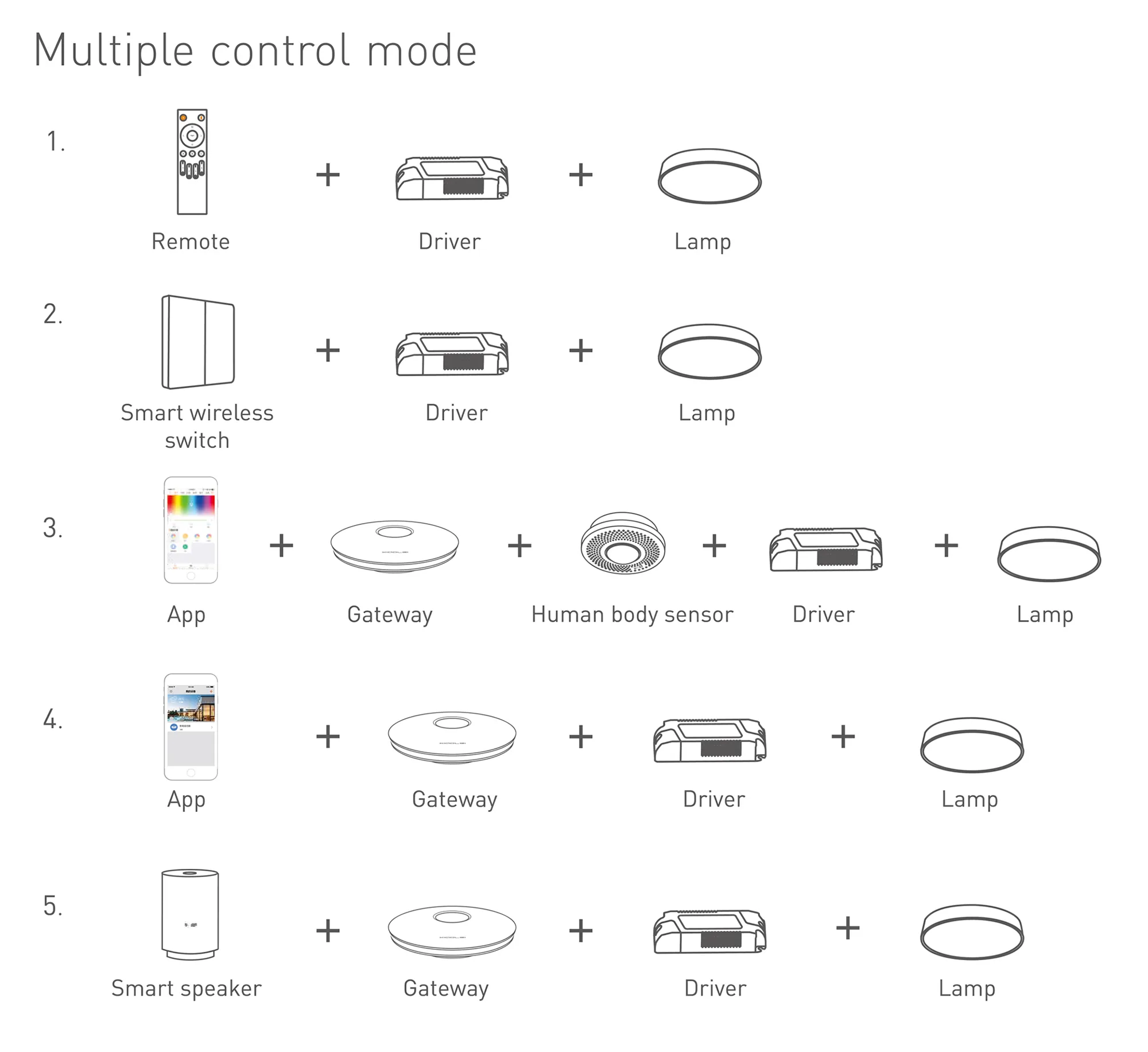

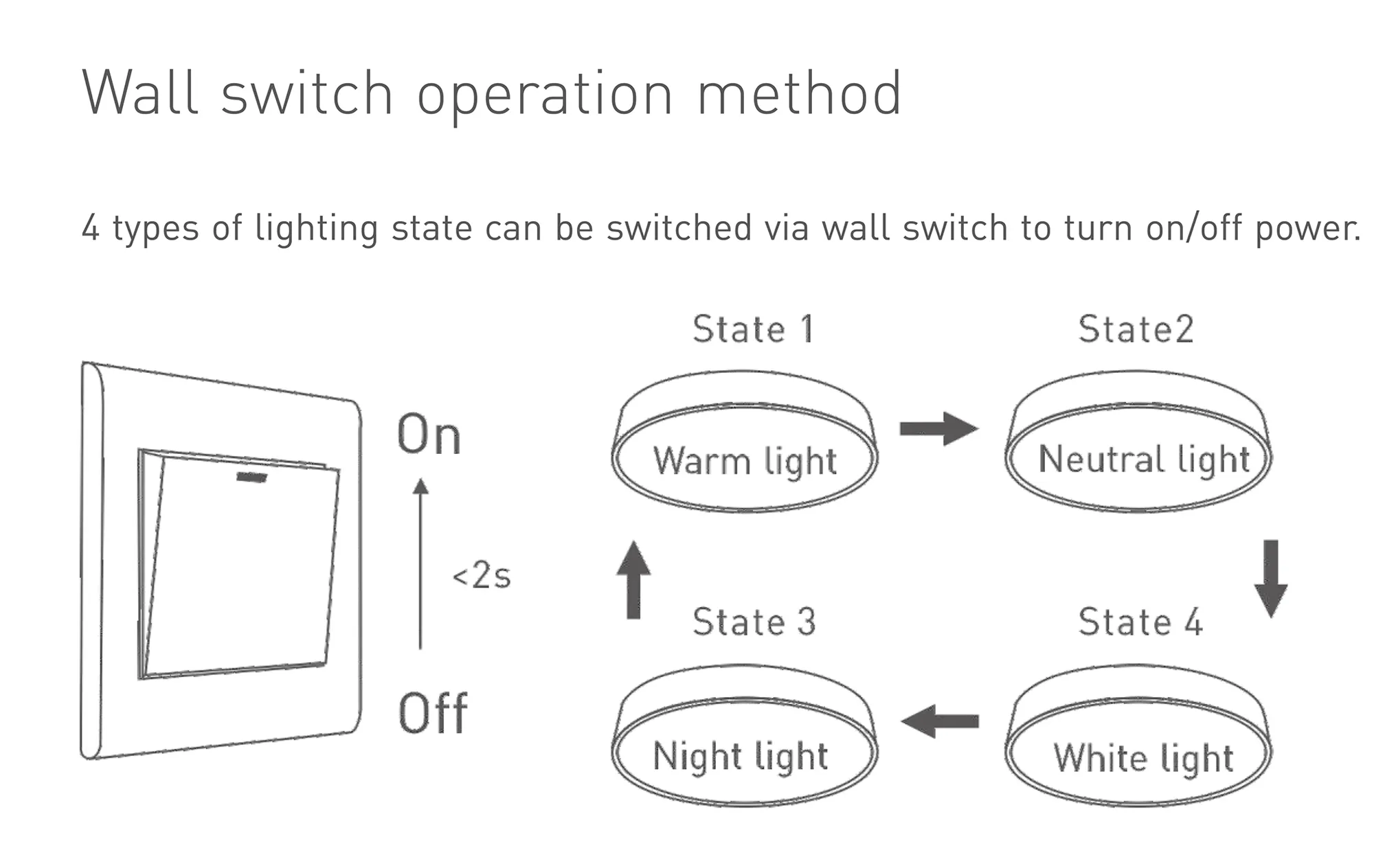

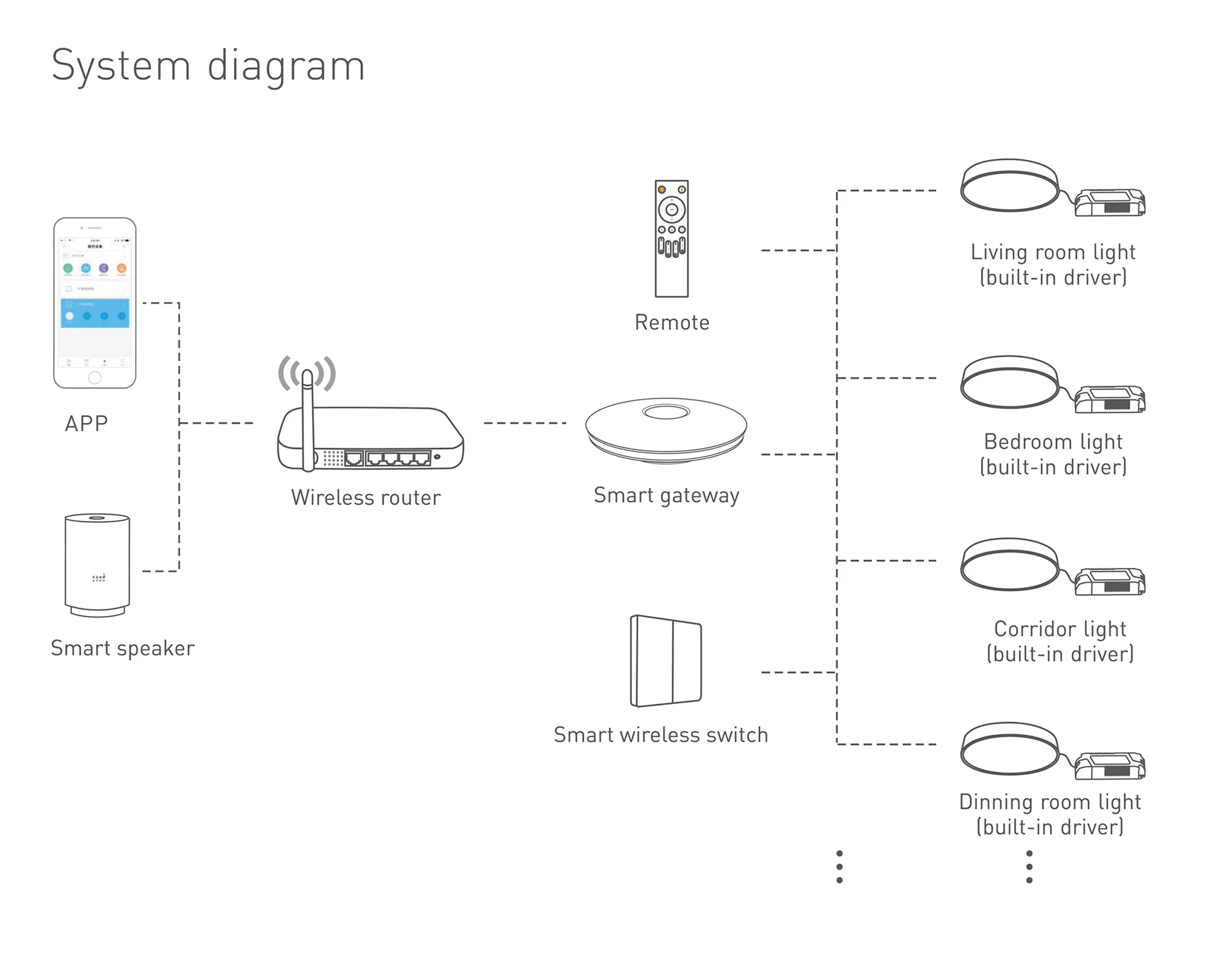

Intelligent Smart home solution with RF 2.4Ghz technology.Stepless dimming, flicker free and achieve high frequency exemption assessment level.Support APP control, smart voice control, scene control and timing control along with Gateway.it can be use with remote, wall switch and wireless dimming panel .Overload and over voltage protection.EMC complience product.High working humidity and ambient temperature.
LTECH is a front-runner in the field of LED lighting controller. As the first high-end manufacturer in China and one of the leading suppliers in the world, they have engaged in R&D of LED lighting control technology since 2001. As an intelligent lighting technology enabler, LTECH has developed hundreds of intelligent LED controlling technologies, which creates a more efficient, energy-saving, healthy and comfortable lighting life. Widely applied to the global lighting industry, innovative produc Show More...
To Follow
Quick Spec
Brief DescriptionLtech Smart home Wireless Dimmablre LED Driver 48W 60-90Vdc /560mA.0-100% PWM dimming,Over voltage, over load and Short circuit protection, IP20.
Colour FinishWhite
Item Nett Weight (kg)0.11kg

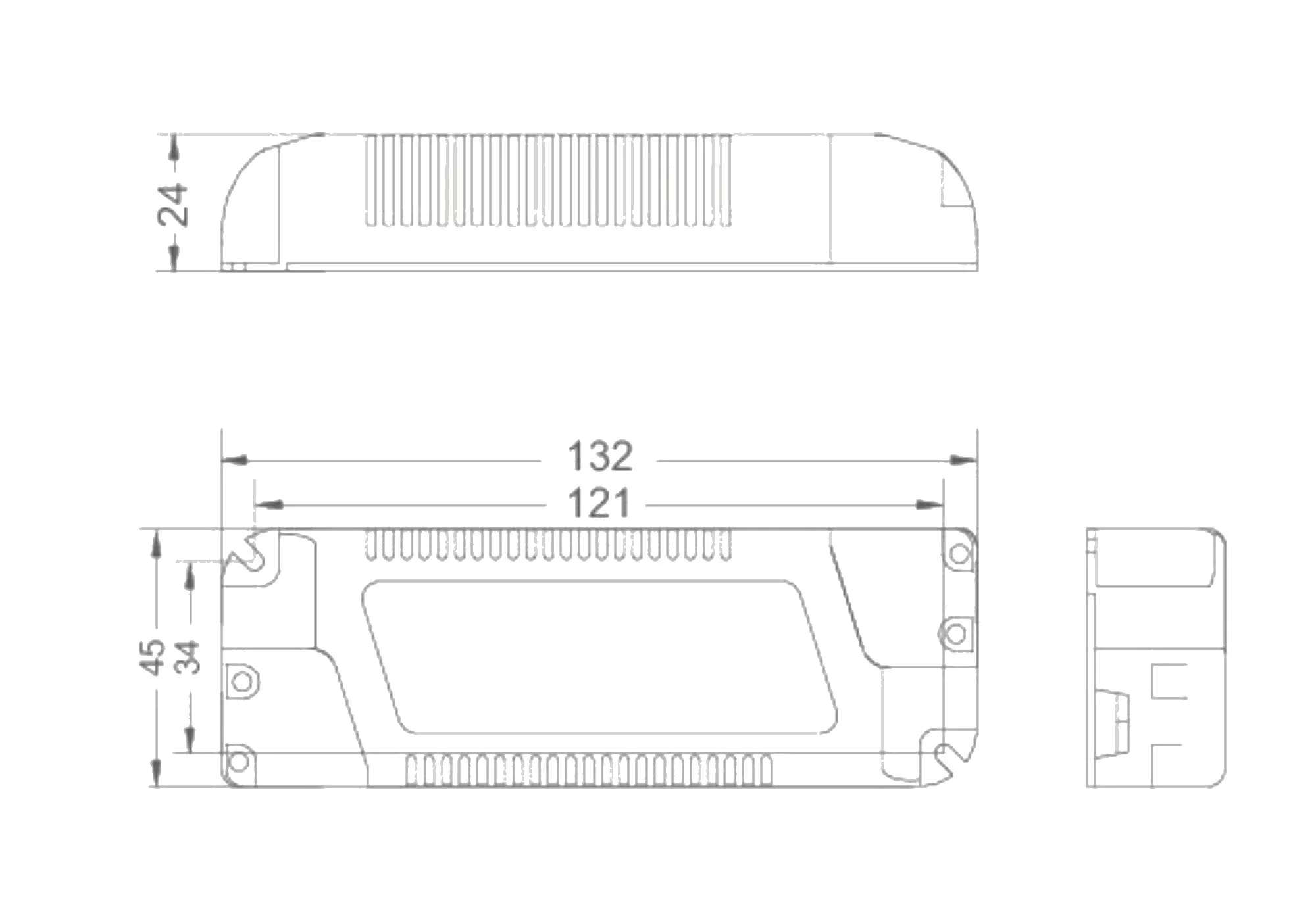

Length (mm)132mm
Width (mm)47mm
Height (mm)26mm
Type of Driver RequiredConstant Current
Protection ClassClass 2 - Double Insulated
DimmableYes - Item Is a Dimmable Driver
Dimmer IncludedNo
IP RatingIP20
Detection Distance (m)20m
Working Humidity (%RH)20~95%RH
Average Life (hrs)50000hrs
Warranty (yrs)2yrs
Features
Features, Will be added soon
Full Specifications
Collection GroupSmart Home
Brief DescriptionLtech Smart home Wireless Dimmablre LED Driver 48W 60-90Vdc /560mA.0-100% PWM dimming,Over voltage, over load and Short circuit protection, IP20.
Colour FinishWhite
Item Nett Weight (kg)0.11kg
Length (mm)132mm
Width (mm)47mm
Height (mm)26mm
Type of Driver RequiredConstant Current
Type of DriverConstant Current
Dimming Range (%)0-100%
Power Factor (?)>0.90 (±5%)
Max. Current Output (A)0.56A
Constant Current Output (mA)560mA
Min/Max. Voltage Output (V)60-90V
Load Range (W)40-48W
Typical Current Ripple (%)±5%
Maximum Output Distance (m)2m
Ta (°C)-20° to +50°C
Tc (°C)75°C
Casing MaterialPolycarbonate
Average Life Of Driver (hrs)50000hrs
Dimming Protocol2.4GHz RF, PWM
Protection ClassClass 2 - Double Insulated
Input Voltage (V)200-240V~50/60Hz
Input Current (A)<0.50A
DimmableYes - Item Is a Dimmable Driver
Dimmer IncludedNo
IP RatingIP20
Detection Distance (m)20m
Working Humidity (%RH)20~95%RH
Average Life (hrs)50000hrs
Warranty (yrs)2yrs
UKCA/CEYes
RohsYes
SELVNo
EMV/EMCYes
Additional CertificationIEEE-PAR 1789
IEC CompliantIEC/EN61347-1, IEC/EN61347-2-13
Number of Cartons1
Carton Length (cm)13.4cm
Carton Width (cm)4.7cm
Carton Height (cm)2.6cm
Carton CBM0.0002
Carton Nett Weight (kg)0.11kg (±5%)
Carton Gross Weight (kg)0.11kg (±5%)
UK Commodity Code8543709990
Country of OriginChina
