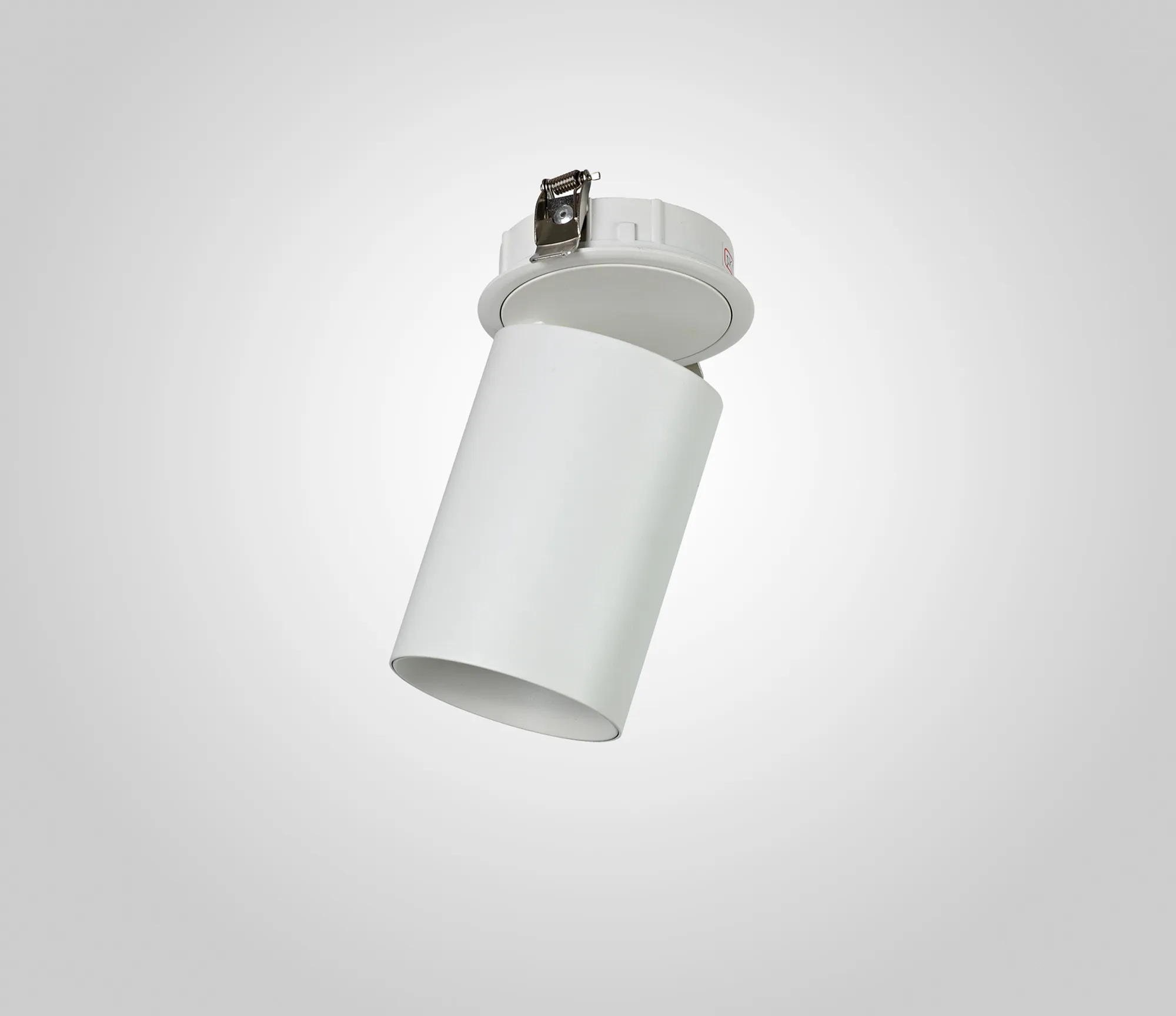

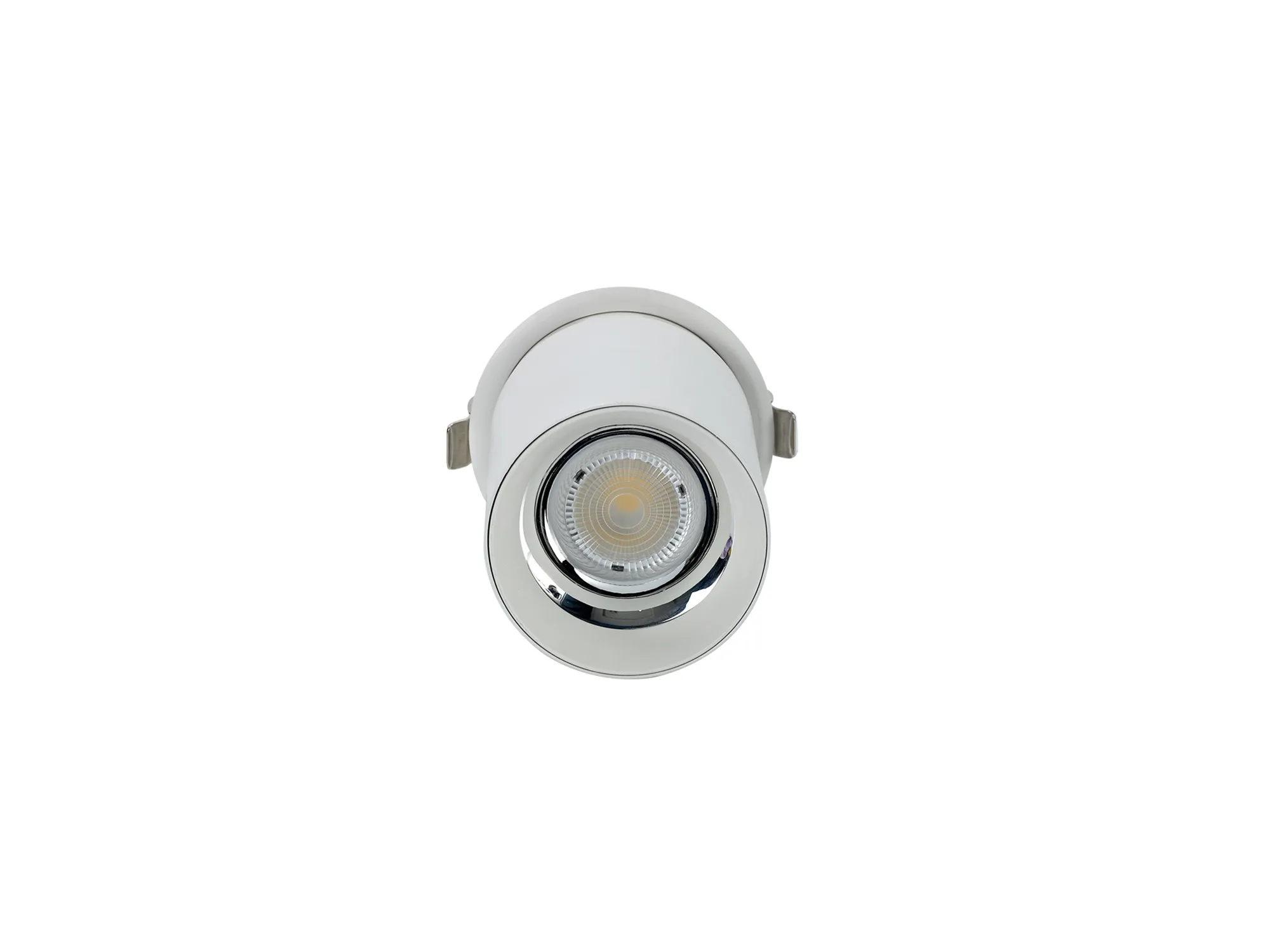

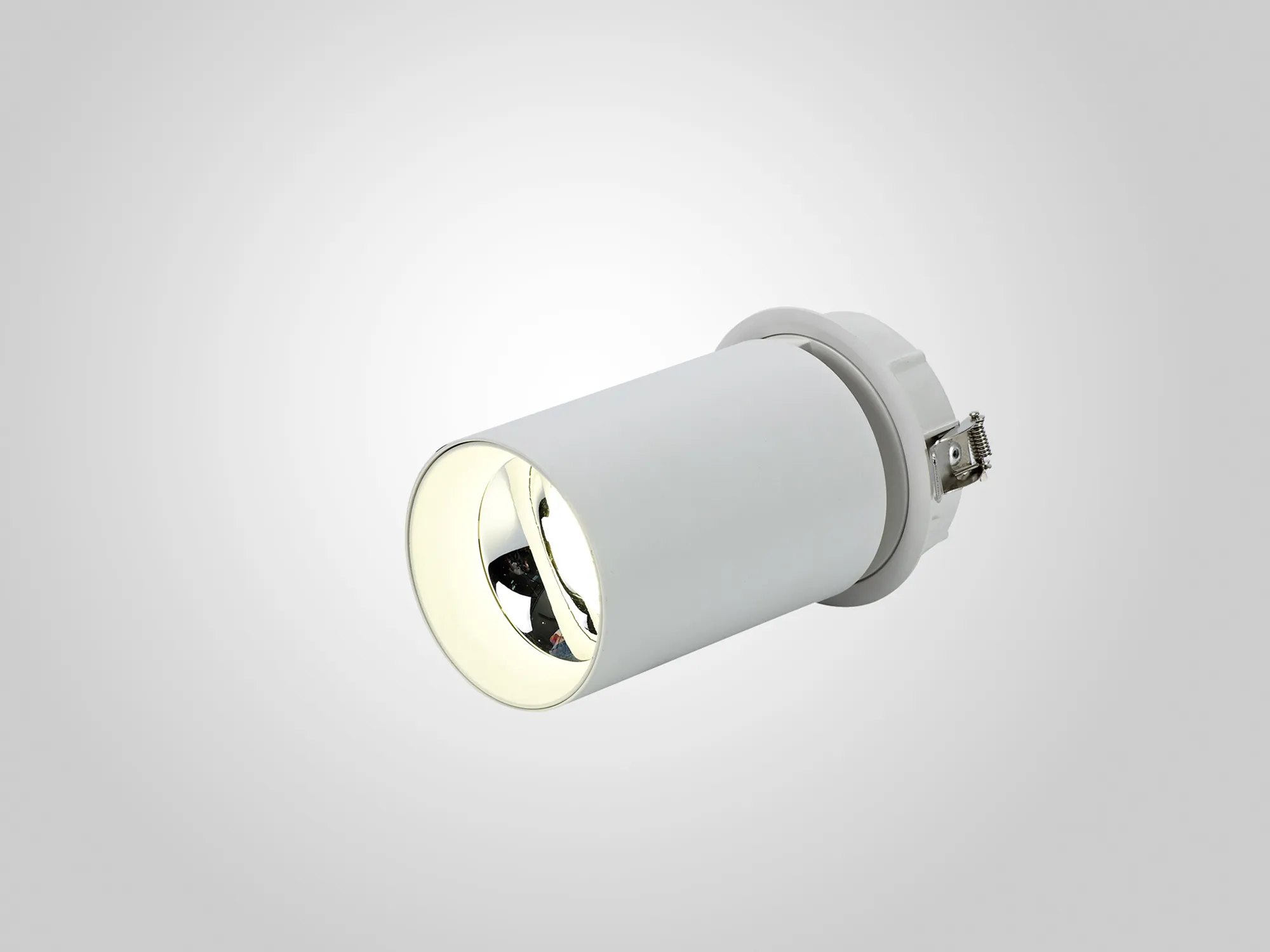

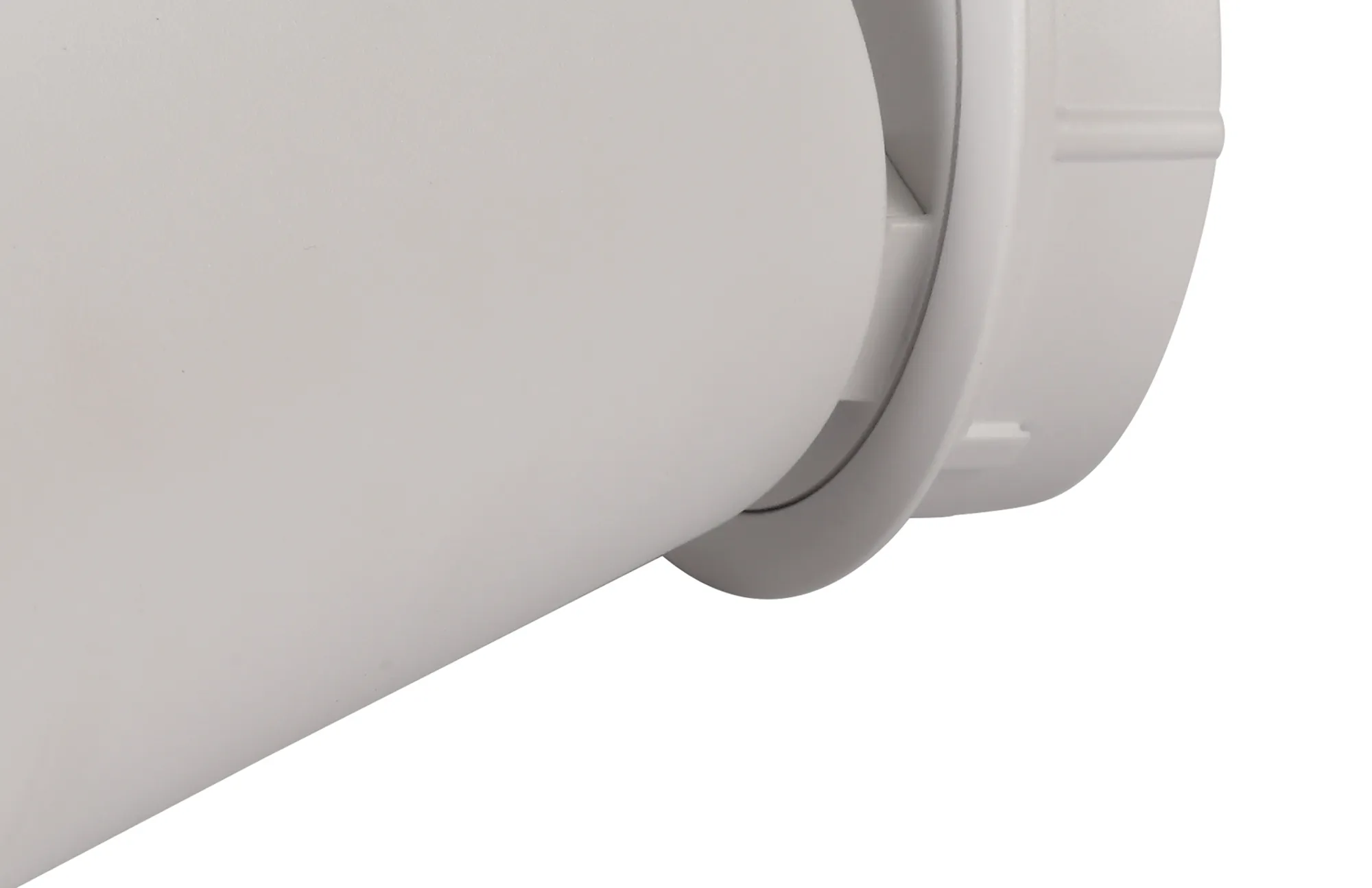

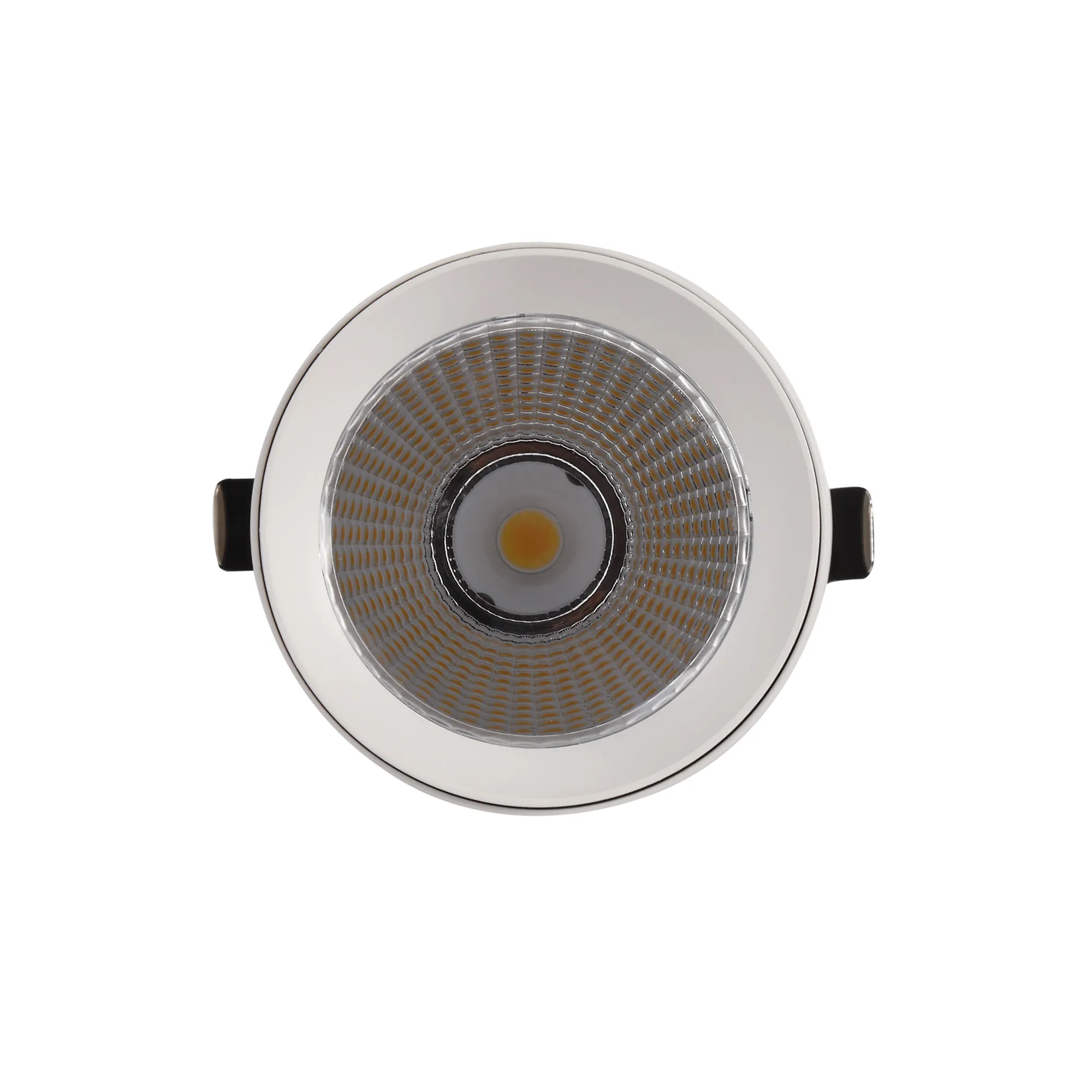

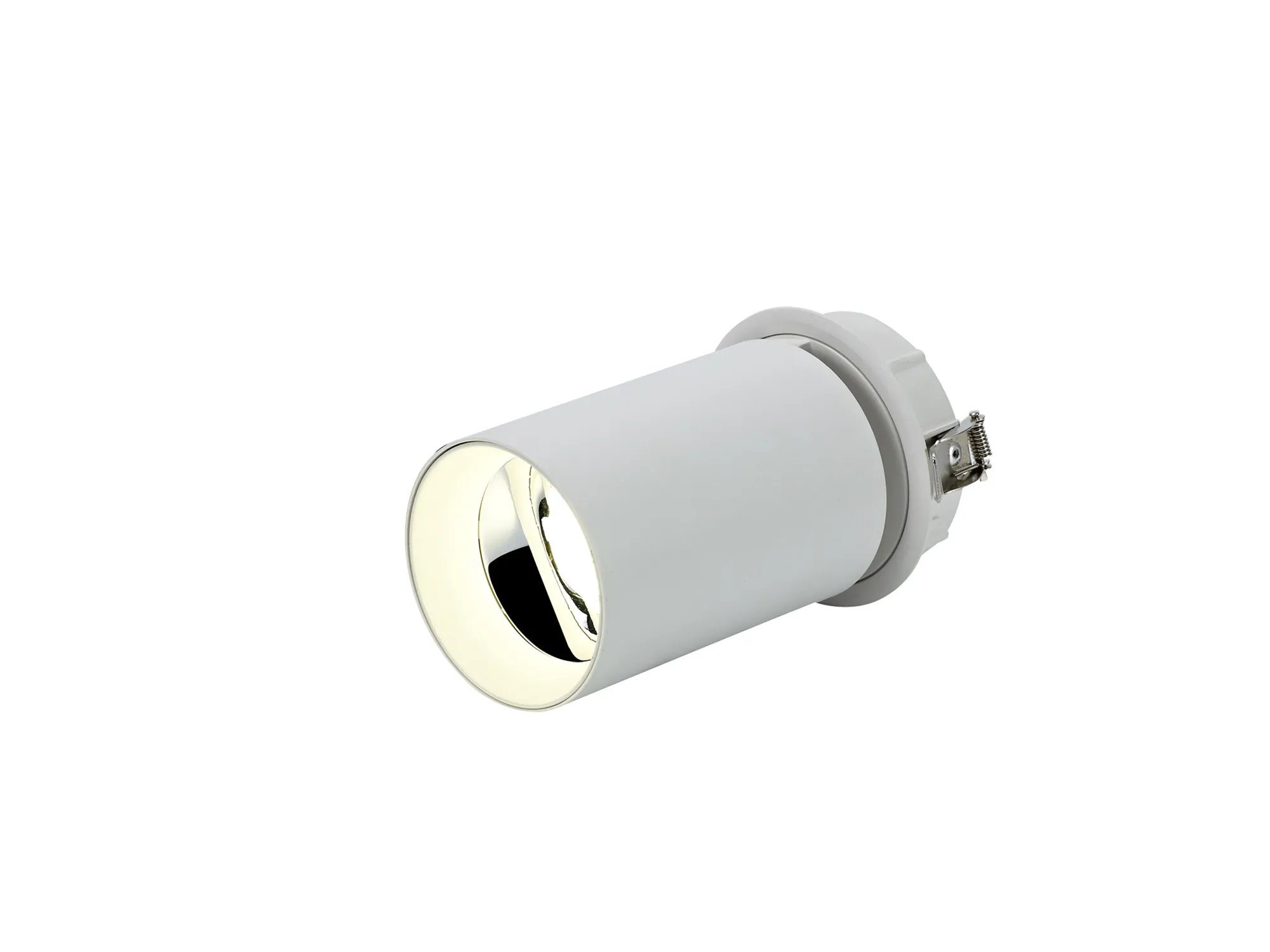

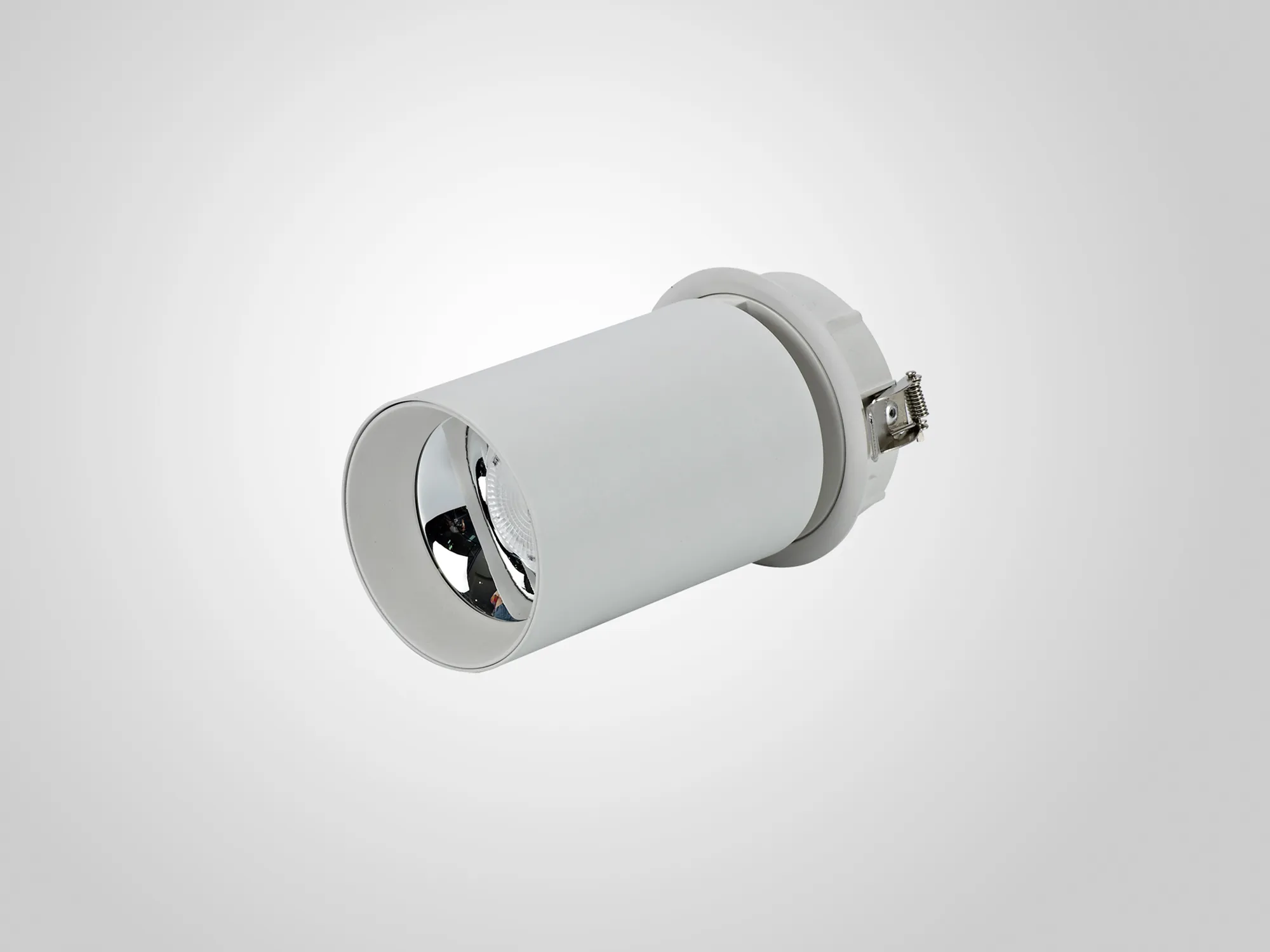

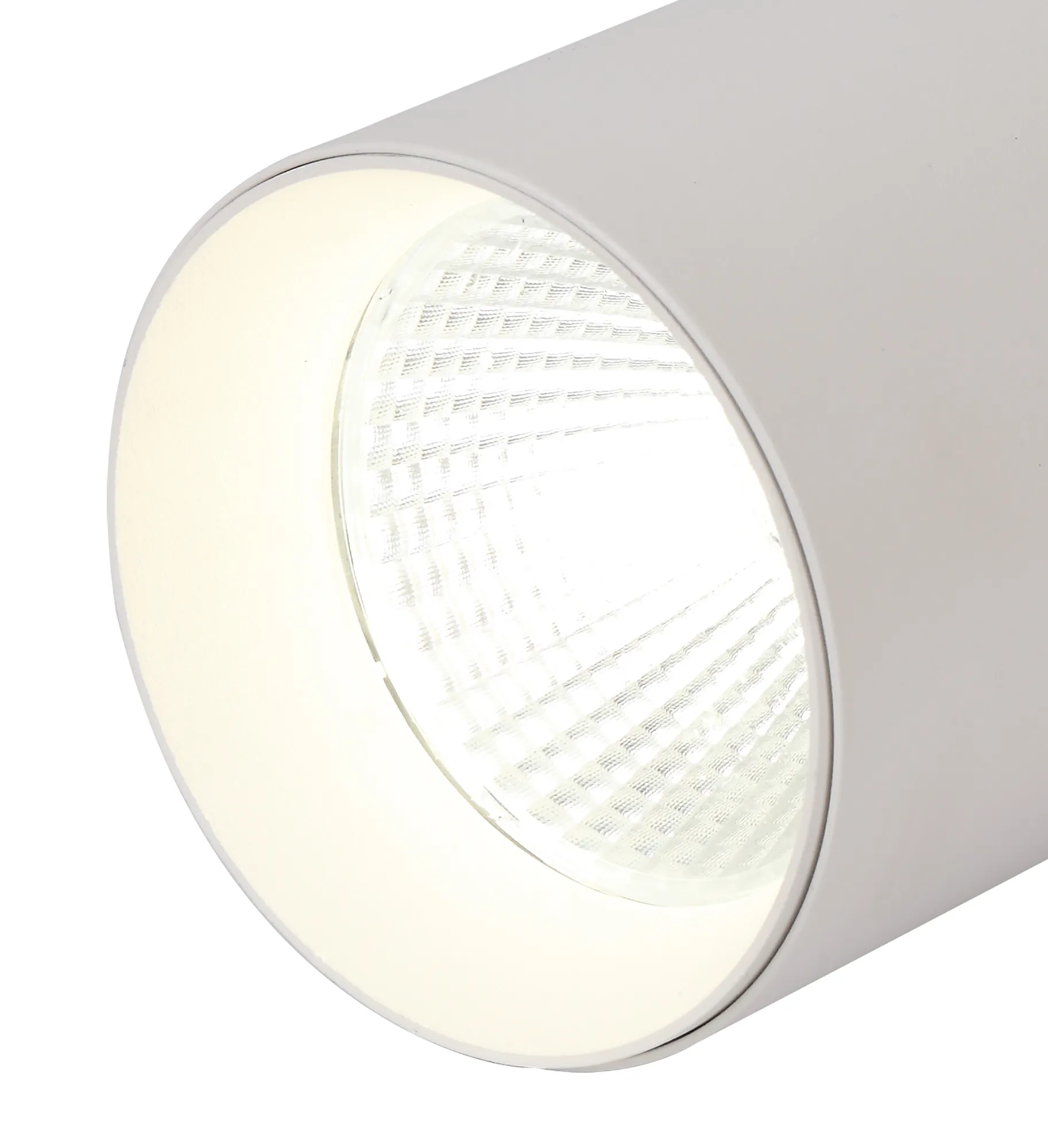

Eos A 20, Powered by EOS 20W 2700K 1480lm 10° Engine, White & White Adjustable Recessed Spotlight, IP20, 5yrs Warranty.

Eos A 20, Powered by EOS 20W 2700K 1480lm 10° Engine, White & White Adjustable Recessed Spotlight, IP20, 5yrs Warranty.

DL350245

Colour Temperature :
Beam Angle :
Colour Finish :
Matt White

Qty: Order Item Add to Wishlist

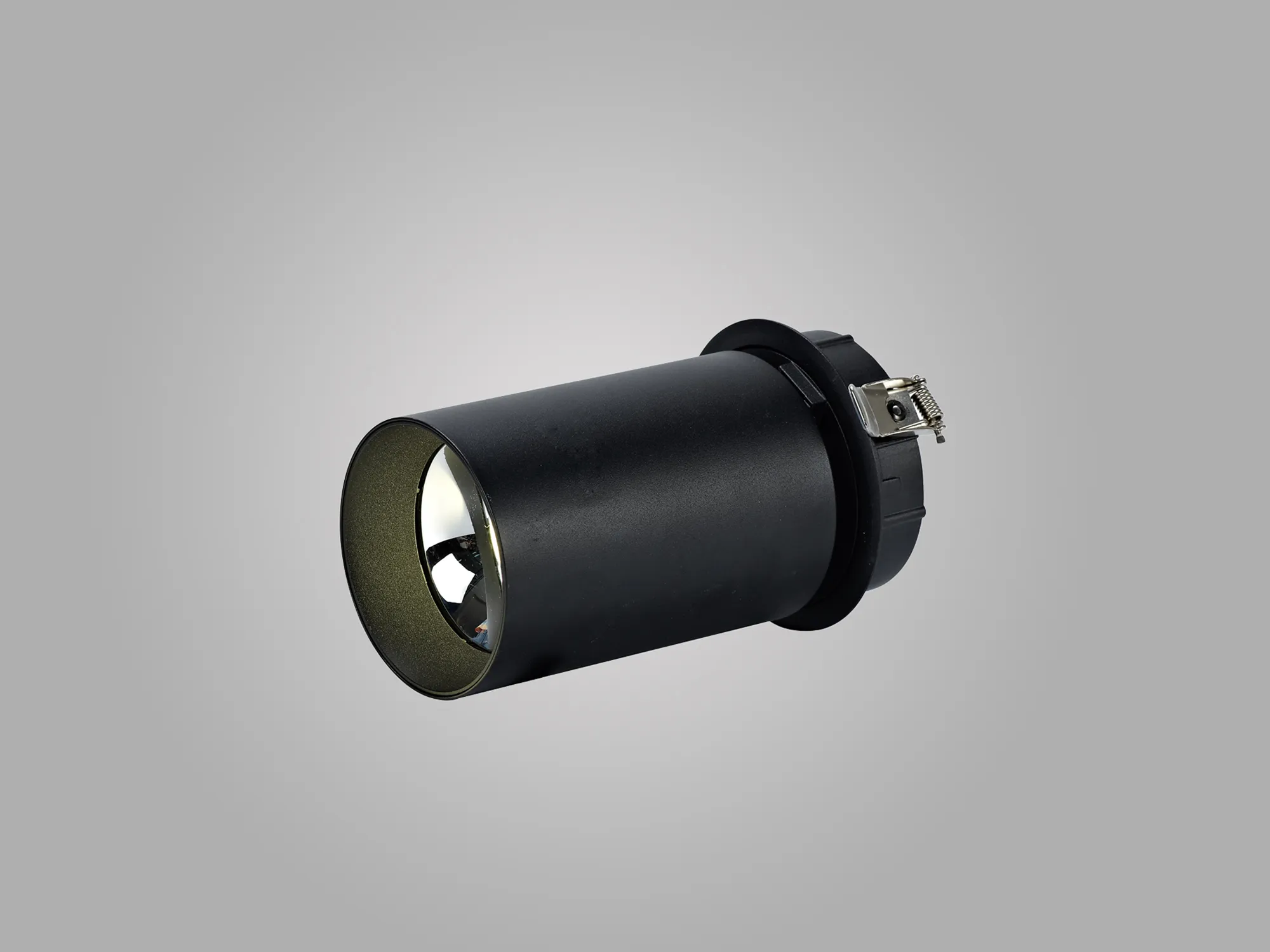

Comprensive range of Recessed adjustable spot available in Matt Black/Matt White , Powered by Eos 20 engine. 4 colour temperatures, 4 beam angles, ON/OFF & Phase cut dimmable options, High colour consistency and CRI.Small Colour tolerence.
Dlux the industry becomes flooded with inferior quality products that offer poor performance we believe it is crucial that lighting continues to be the essence of the surrounding we work or live in. Every d’lux product is carefully designed and engineered to offer accurate lighting solutions and not just simply provide some light. With the evolution of LED based lighting the synergy of lighting and nature is even closer as we endeavour to save the environment we live in.
We have established Show More...
Design by
Dlux Design Team
When designing and manufacturing long lasting, high quality LED solutions for both domestic and commercial applications, an impressive understanding and education in LED technology and power systems is imperative, which is exactly what the combined experience of Dlux team members’ offers. Each carefully selected specialist contributes their own unique talents and knowledgeability to the stellar products offered by this brand.
Quick Spec
Colour FinishMatt White
Item Nett Weight (kg)0.66kg
Length (mm)124mm
Width (mm)85mm
Diameter (mm)85mm
Height (mm)170mm
Horizontal Adjustment (°)350°
Vertical Adjustment (°)50°
Cut Out (mm)92mm
Energy ClassA++
No: of Lamp1
Lamp SocketIntegral LED
Recommended LampIntegral LED
Max Wattage Lamp (W)20W
Lamp IncludedYes
Type of Lamp IncludedIntegrated LED
Colour Temperature (K)2700K Warm White (±5%)
LED Voltage (V)20-39V DC (±5%)
Beam Angle (°)10°
System Flux (lm)1480lm (±5%)
CRI>90
UGR<19
Driver IncludedYes
Protection ClassClass 2 - Double Insulated
DimmableNo
Dimmer IncludedNo
IP RatingIP20
Warranty (yrs)5yrs
Features
Easy Replacement and Maintenance, High reliability and Color Consistency.
Full Specifications
Collection GroupEos A 20
Barcode5056037148784
Colour FinishMatt White
Type of FinishPowder Coated
Item Nett Weight (kg)0.66kg
Length (mm)124mm
Width (mm)85mm
Diameter (mm)85mm
Height (mm)170mm
Horizontal Adjustment (°)350°
Vertical Adjustment (°)50°
Cut Out (mm)92mm
Materials UsedDie-cast Aluminium
Adjustable HeightYes
Energy ClassA++
Max Energy ClassA++
No: of Lamp1
Lamp SocketIntegral LED
Recommended LampIntegral LED
Max Wattage Lamp (W)20W
Lamp IncludedYes
Type of Lamp IncludedIntegrated LED
Colour Temperature (K)2700K Warm White (±5%)
Average Life of Lamp (hrs)50000hrs
Average Life of LED (hrs)50000hrs
LED BrandCREE
LED Power (W)20W (±5%)
LED Voltage (V)20-39V DC (±5%)
LED Current (mA)450mA (±5%)
Type of LEDCOB
Lumens Per Watt (lm/W)74lm/W (±5%)
Lumen Maintenance (hrs)50000hrs / LM80hrs (±5%)
Beam Angle (°)10°
System Flux (lm)1480lm (±5%)
CRI>90
MacAdam3
UGR<19
Driver IncludedYes
Type of DriverConstant Current
Dimming Range (%)N/A
Power Factor (?)>0.90 (±5%)
Max. Current Output (A)0.45A
Constant Current Output (mA)450mA
Min/Max. Voltage Output (V)20-40V
Load Range (W)10-20W
Ta (°C)45°C
Tc (°C)75°C
Casing MaterialDie-casting Aluminum
Connection TerminalWire
Average Life Of Driver (hrs)50000hrs
Dimming ProtocolON-OFF
Protection ClassClass 2 - Double Insulated
Total Power Consumption (W)20W (±5%)
Input Voltage (V)220-240V~50/60Hz
Protective Glass CoverNo
DimmableNo
Dimmer IncludedNo
IP RatingIP20
F RatingNo
Warranty (yrs)5yrs
UKCA/CEYes
RohsYes
TUVYes
EMV/EMCYes
Additional CertificationYes
Cable Information400mm Red and black ,2 x 20 AGW
Heat Sink ColourWhite
Number of Cartons1
Carton Length (cm)19.5cm
Carton Width (cm)12.5cm
Carton Height (cm)12.5cm
Carton CBM0.00304
Carton Nett Weight (kg)0.66kg (±5%)
Carton Gross Weight (kg)0.68kg (±5%)
Pieces Included1
InstallationRequires Installation By Qualified Electrician
Product Care(1) Wipe clean with a dry cloth, do not use any cleaning detergents, do not use rough or coarse material to clean.
UK Commodity Code9405990090
Country of OriginChina
