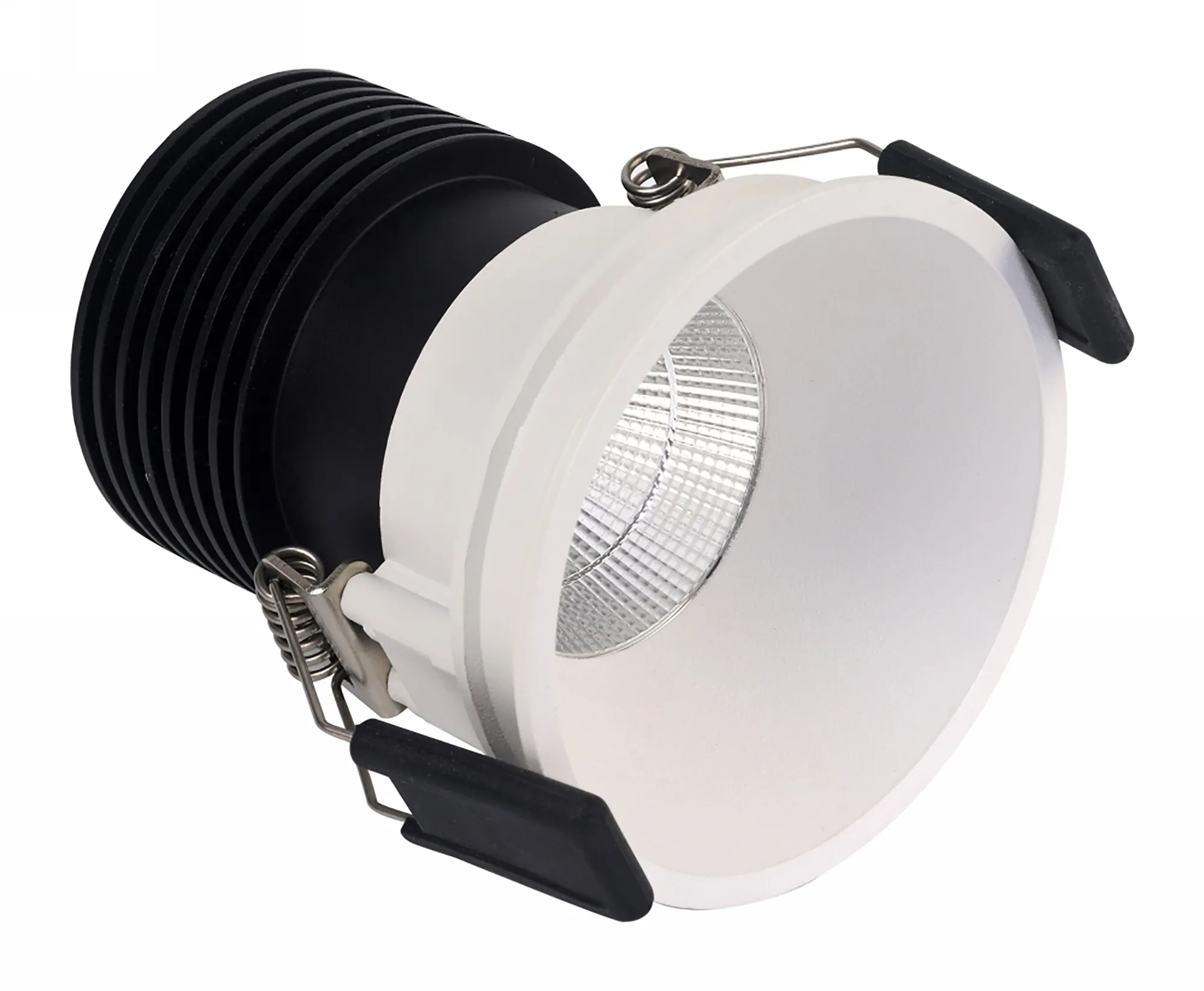

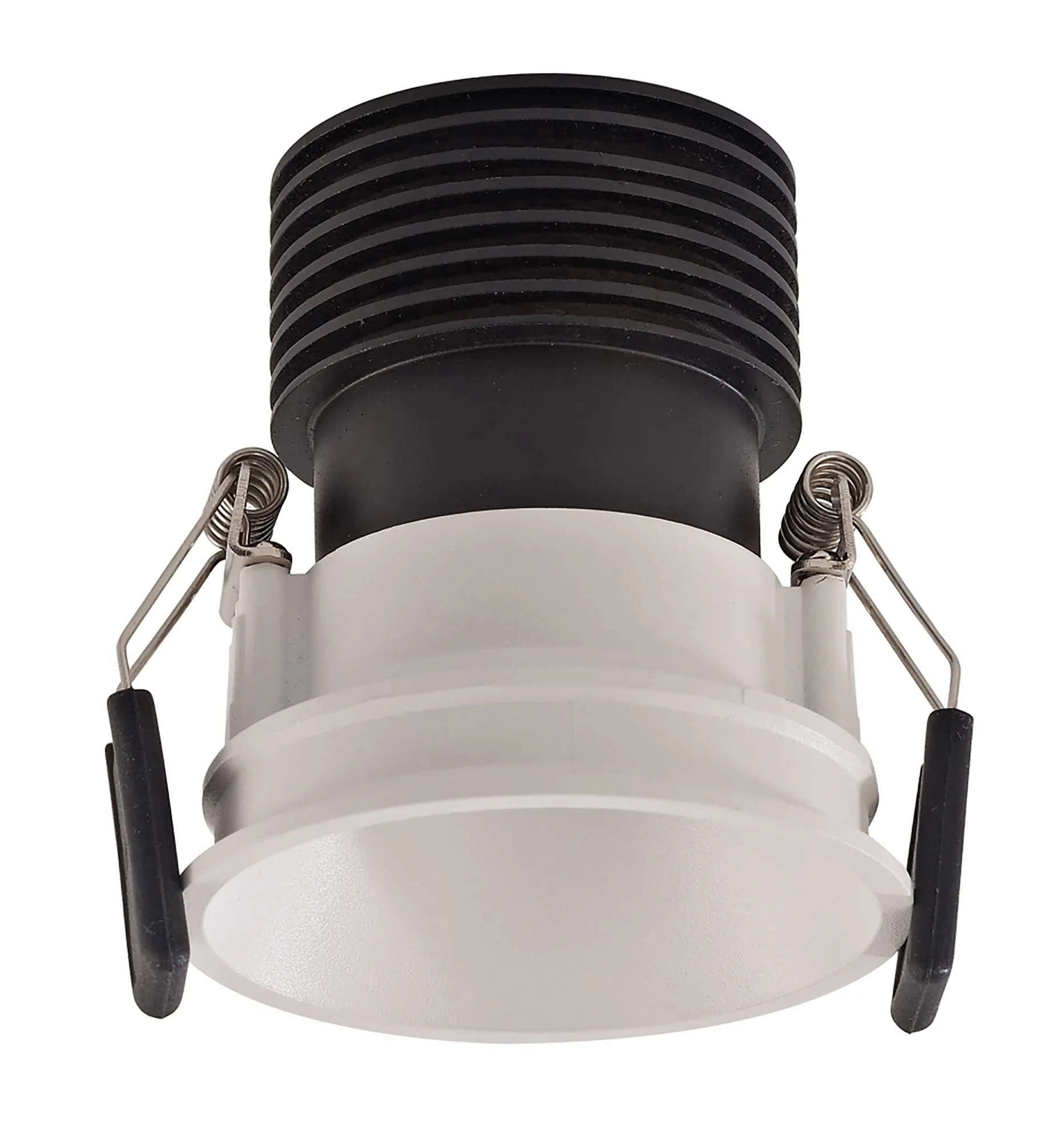

Bania 11, 11W LED Downlight 760lm 25° 3000K IP20

Bania 11, 11W, 500mA, White LED Downlight, Cut Out 76mm, 760lm, 25° Deg, 3000K, IP20, DRIVER NOT INC., 5yrs Warranty

DM200048

Colour Temperature :
Beam Angle :
Colour Finish :
White

Qty: Order Item Add to Wishlist

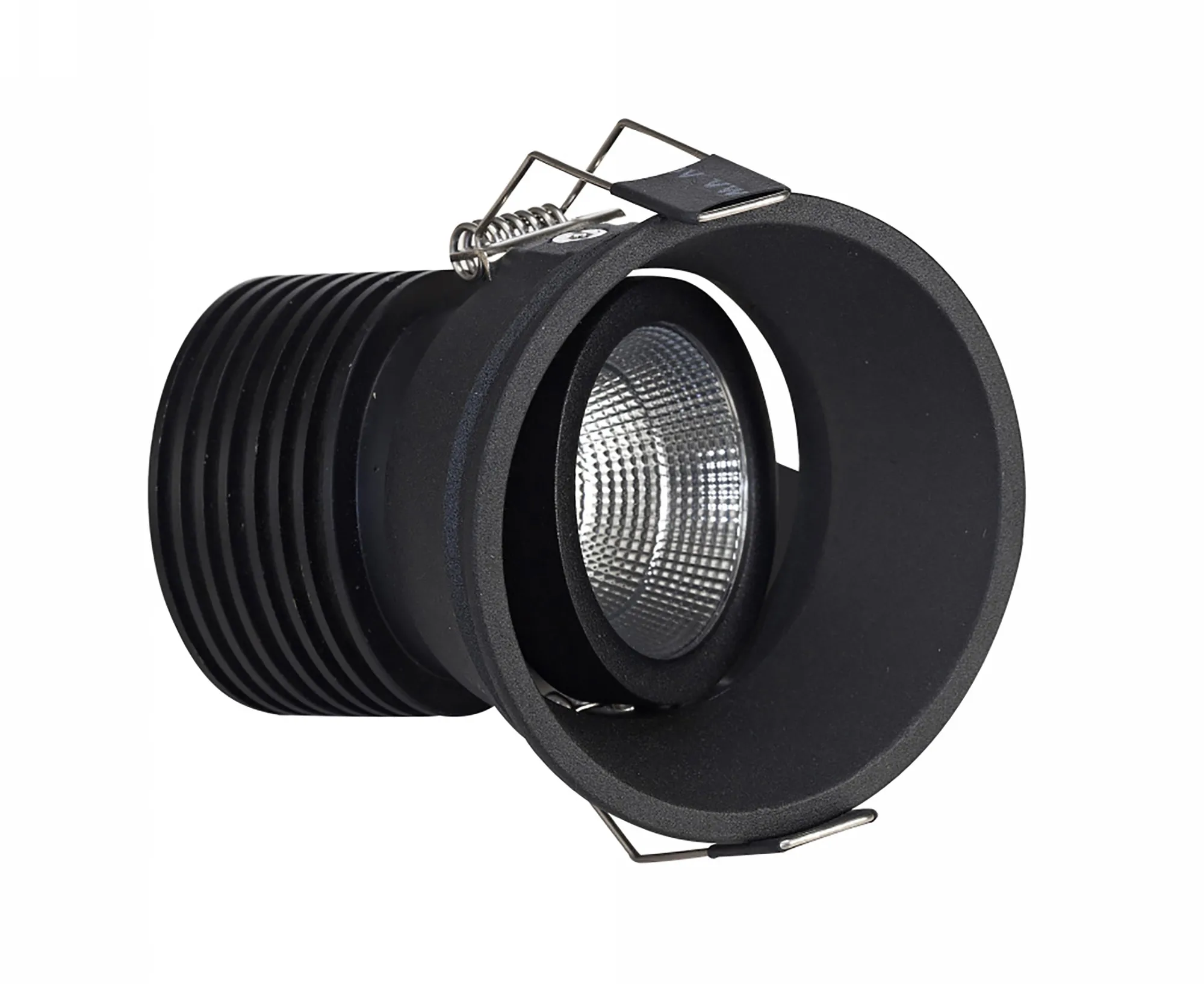

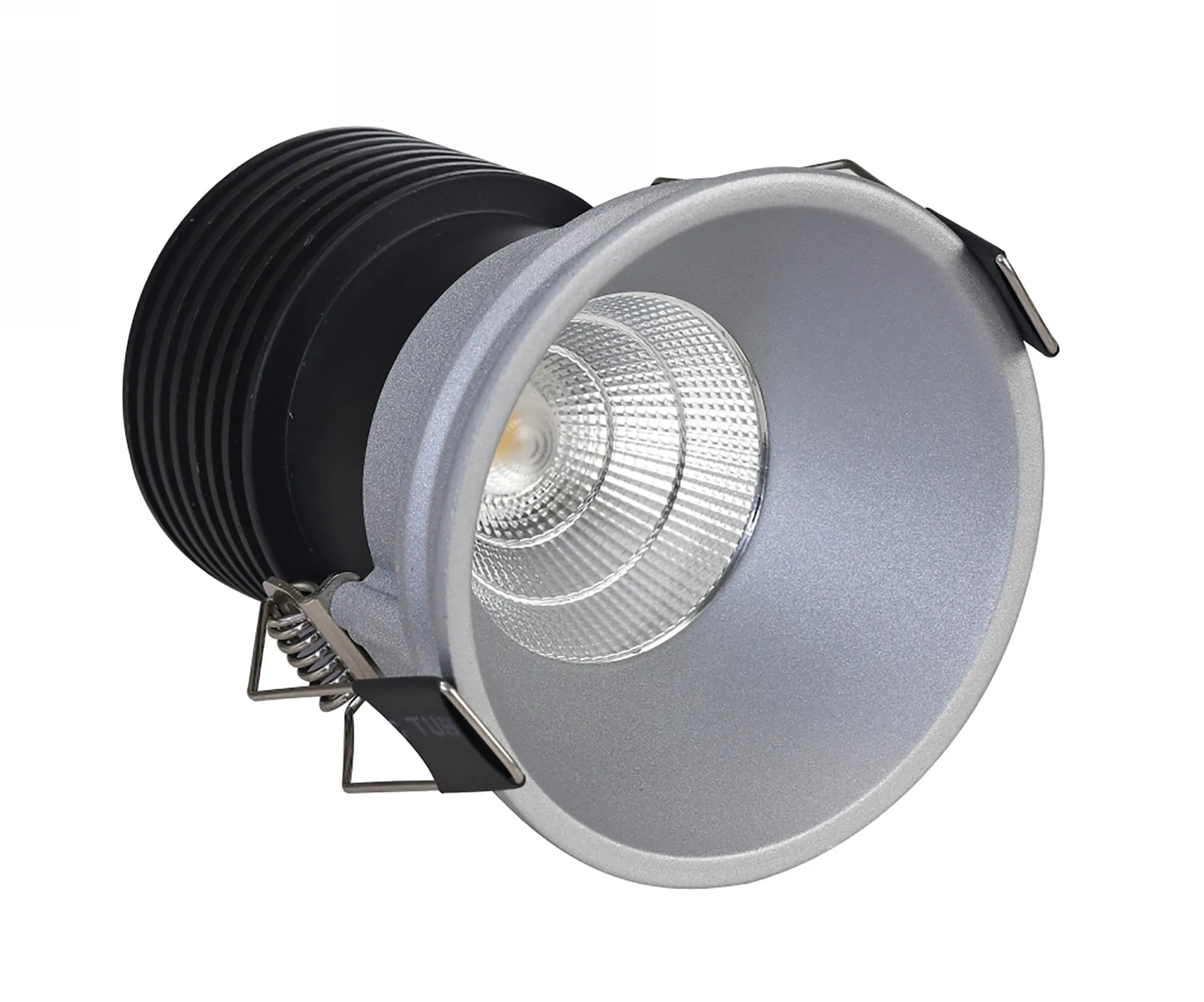

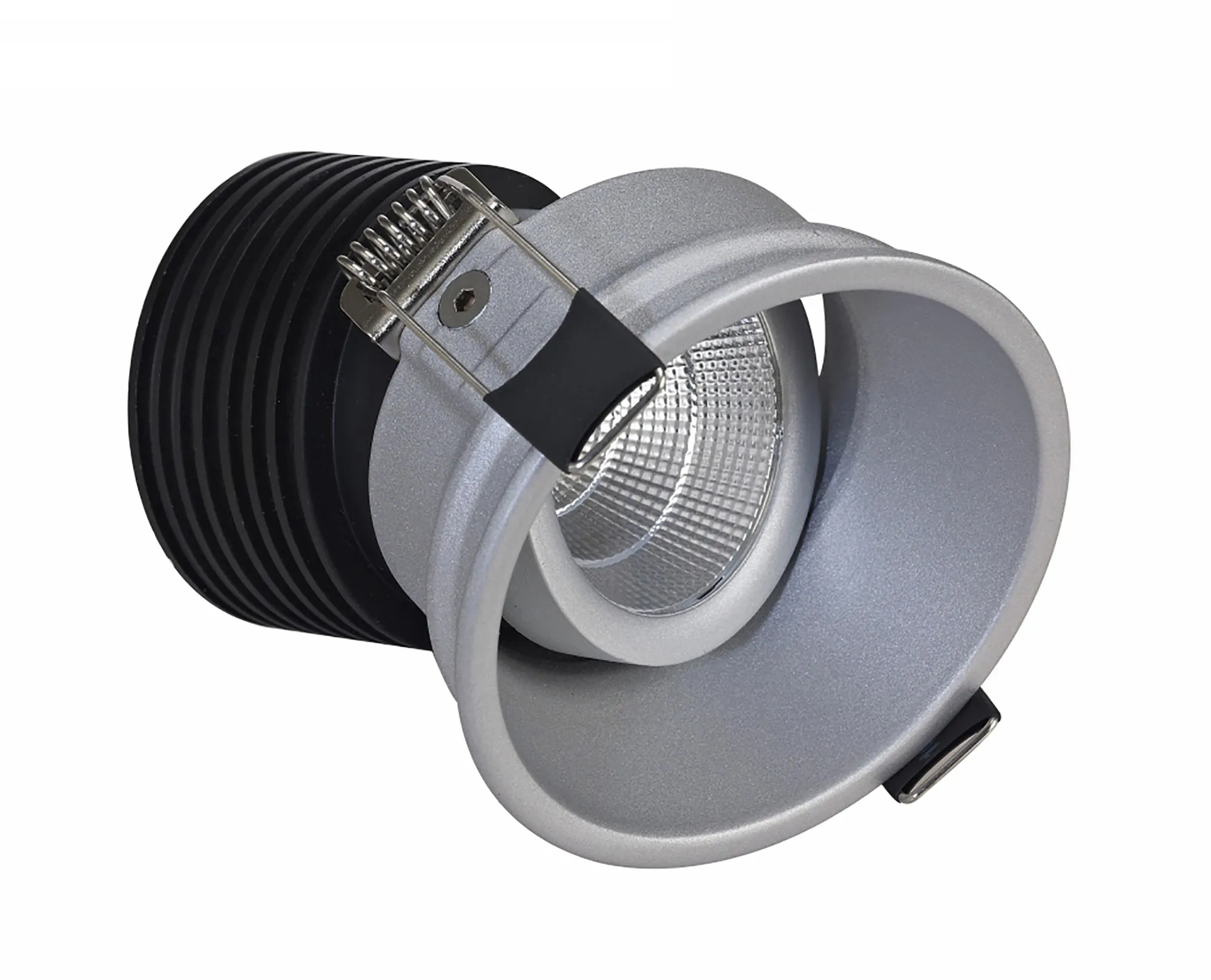

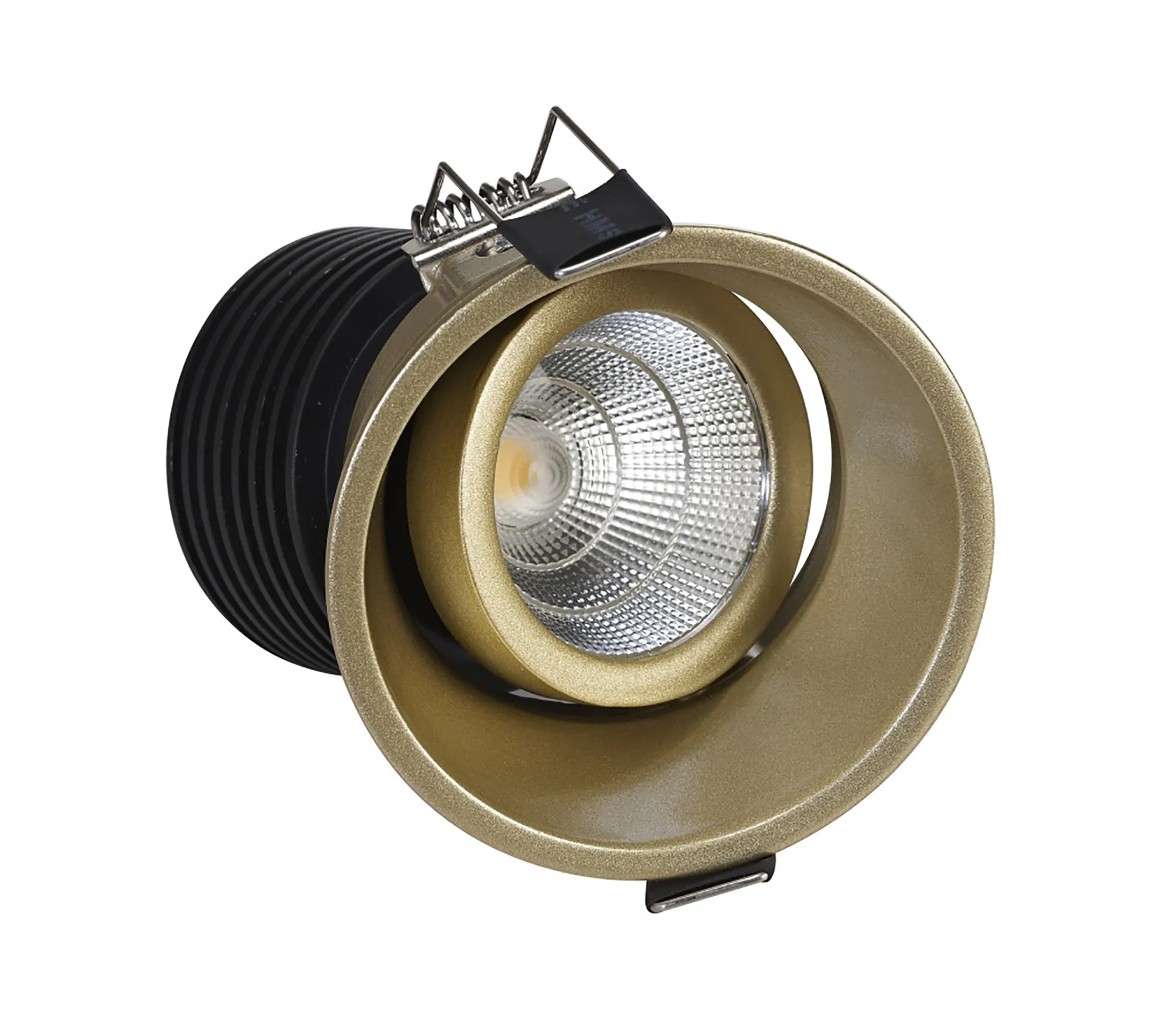

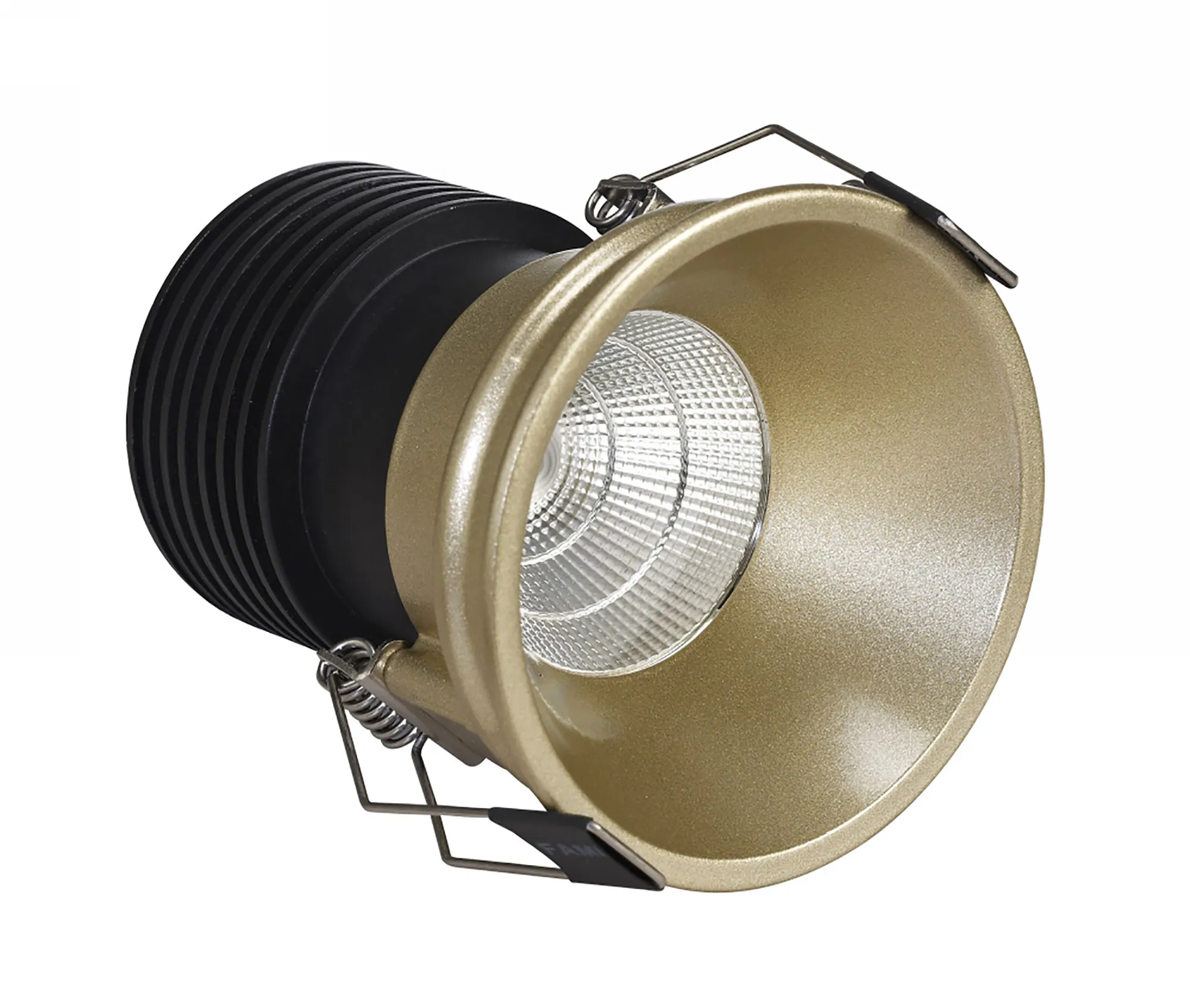

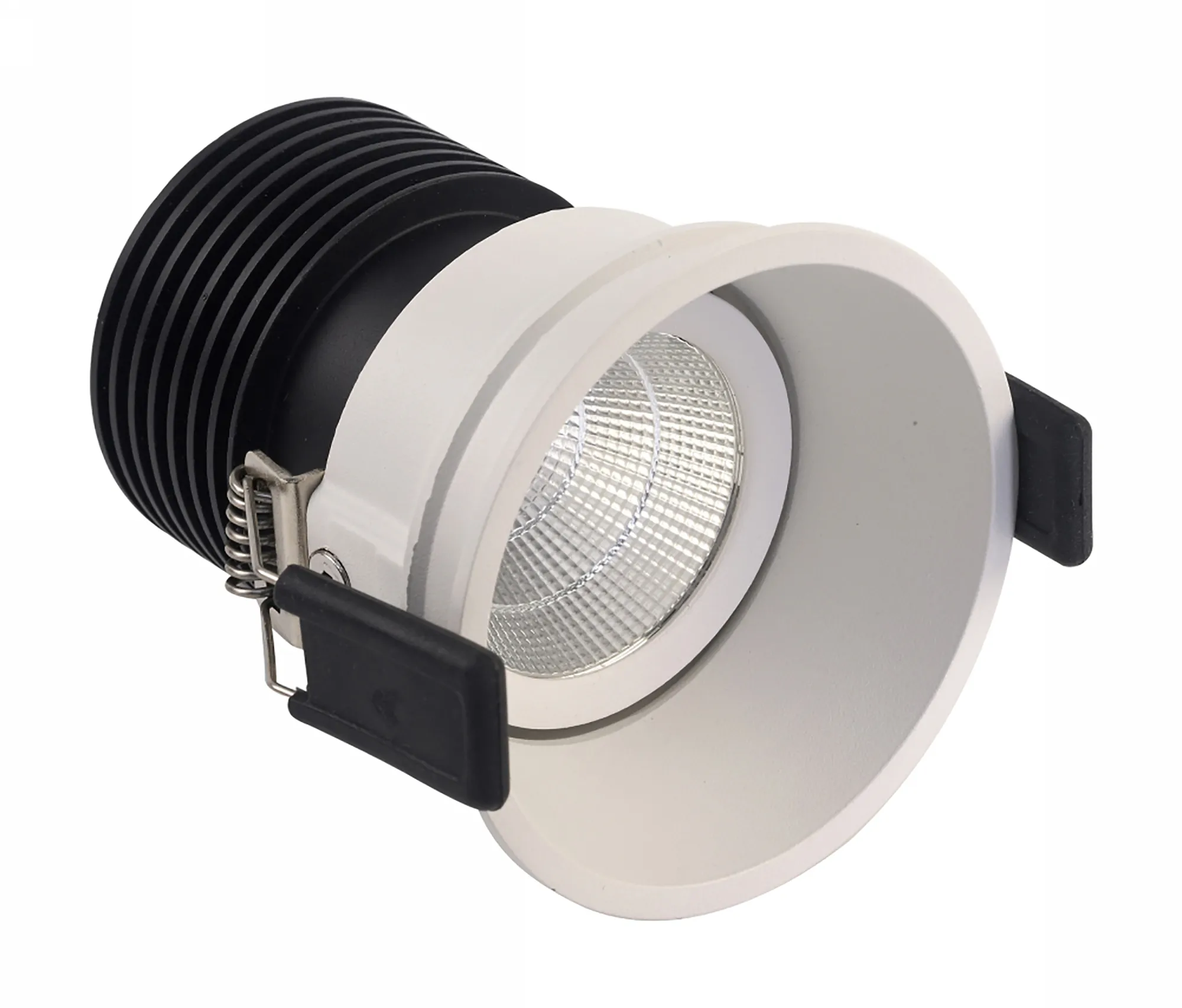

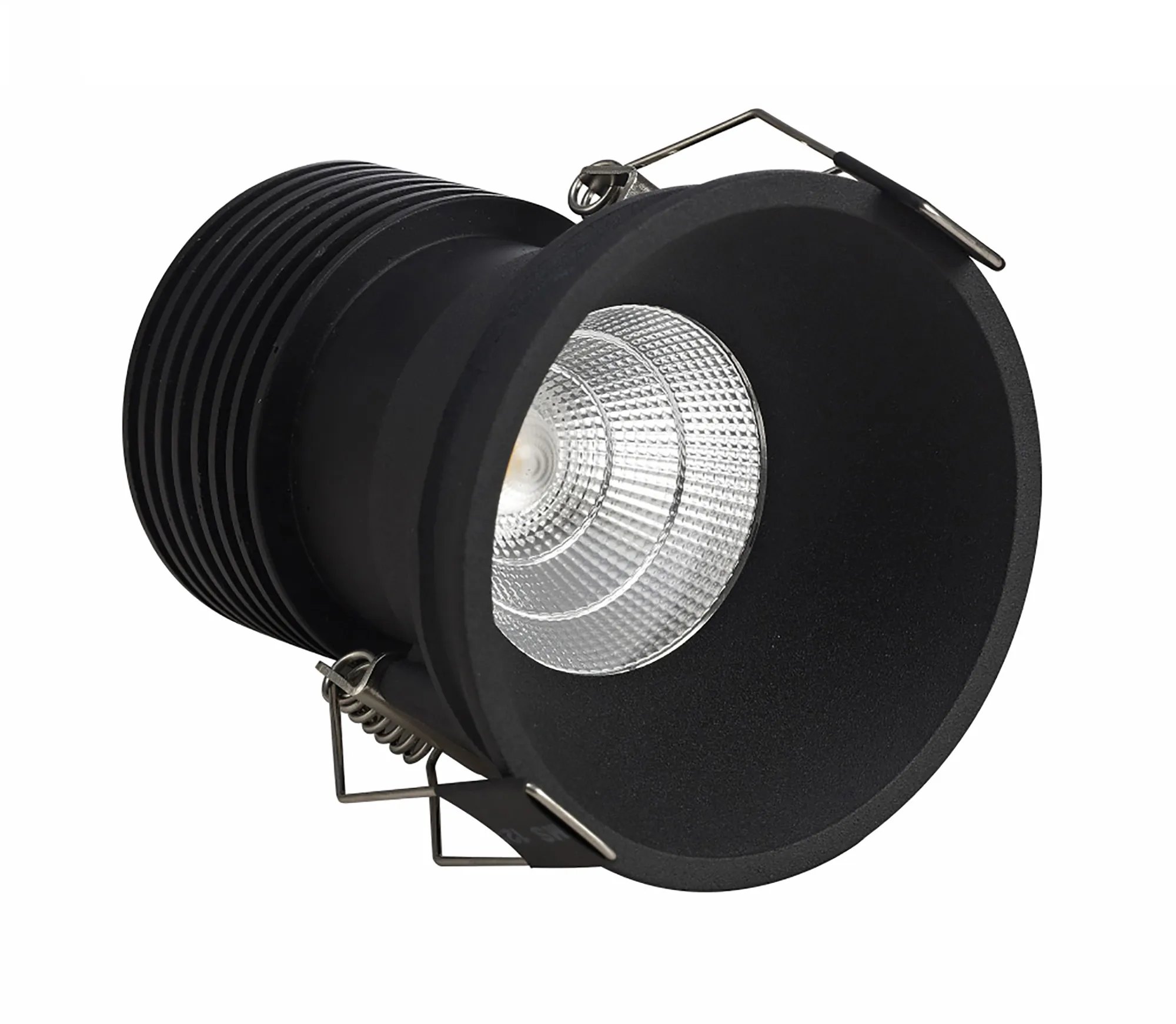

Bania with only a 6mm trim and four different deep recessed reflector colour options is the ultimate Spotlight for lighting solutions integrated in to Architecture. Whether you use the 25° version for a focused light or the 60° option for a more smooth general illumination, the CRI 90+ integrated LED light engine will give you light that illuminates but you cannot see the source.
Dlux the industry becomes flooded with inferior quality products that offer poor performance we believe it is crucial that lighting continues to be the essence of the surrounding we work or live in. Every d’lux product is carefully designed and engineered to offer accurate lighting solutions and not just simply provide some light. With the evolution of LED based lighting the synergy of lighting and nature is even closer as we endeavour to save the environment we live in.
We have established Show More...
Design by
Dlux Design Team
When designing and manufacturing long lasting, high quality LED solutions for both domestic and commercial applications, an impressive understanding and education in LED technology and power systems is imperative, which is exactly what the combined experience of Dlux team members’ offers. Each carefully selected specialist contributes their own unique talents and knowledgeability to the stellar products offered by this brand.
Quick Spec
Brief DescriptionBania 11, 11W LED Downlight 760lm 25° 3000K IP20
Colour FinishWhite
Item Nett Weight (kg)0.23kg
Diameter (mm)82mm
Height (mm)90mm
Cut Out (mm)76mm
Energy ClassA++
Lamp SocketIntegral LED
Recommended LampIntegral LED
Max Wattage Lamp (W)11W
Lamp IncludedYes - Integrated
Type of Lamp IncludedIntegrated LED
Colour Temperature (K)3000K Warm White (±5%)
LED Voltage (V)12-21V DC (±5%)
Beam Angle (°)25°
System Flux (lm)760lm (±5%)
CRI>90
UGR<=19
Driver IncludedNo
Type of Driver RequiredConstant Current
Protection ClassClass 3 - Low Voltage
DimmableYes - Dimmable Driver Required
IP RatingIP20
Average Life (hrs)45000hrs
Warranty (yrs)5yrs
Features
Features, Will be added soon
Full Specifications
Collection GroupBania
Barcode5056037103646
Catalogue Page NoEdition 12 Pg:661
Brief DescriptionBania 11, 11W LED Downlight 760lm 25° 3000K IP20
Catalogue DescriptionFixed LED Downlight
Colour FinishWhite
Type of FinishPowder Coated
Item Nett Weight (kg)0.23kg
Diameter (mm)82mm
Height (mm)90mm
Cut Out (mm)76mm
Materials UsedDie-cast Aluminium
Energy ClassA++
Max Energy ClassA++
Min Energy ClassA++
Lamp SocketIntegral LED
Recommended LampIntegral LED
Max Wattage Lamp (W)11W
Lamp IncludedYes - Integrated
Type of Lamp IncludedIntegrated LED
Colour Temperature (K)3000K Warm White (±5%)
Average Life of LED (hrs)45000hrs
LED BrandBridgelux
LES Category (mm)8.1mm
LED Power (W)11W (±5%)
LED Voltage (V)12-21V DC (±5%)
LED Current (mA)500mA (±5%)
Type of LEDCOB
Lumens Per Watt (lm/W)69lm/W (±5%)
Lumen Maintenance (hrs)50000hrs / LM80 (±5%)
Beam Angle (°)25°
System Flux (lm)760lm (±5%)
CRI>90
MacAdam<3
UGR<=19
Driver IncludedNo
Triac DriversLT-SE-15-350-700-G1T
1-10V DriversLT-SE-12-350-700-W1A
0-10V DriversLT-SE-12-350-700-W1A
Dali DriversTD-28000674,LT-SE-12-350-700-W1D
Type of Driver RequiredConstant Current
Fixed Output DriversDA800049
Protection ClassClass 3 - Low Voltage
Total Power Consumption (W)11W (±5%)
Input Voltage (V)12-21V DC
Input Current (A)500mA
DimmableYes - Dimmable Driver Required
IP RatingIP20
F RatingYes
Average Life (hrs)45000hrs
Warranty (yrs)5yrs
UKCA/CEYes
RohsYes
EMV/EMCYes
Cable Information0.3mm, 1 Pc "+" Red Clear Teflon, 1 Pc "-" Black Clear Teflon, Covered By 4.0mm Clear PVC, Total Length:200mm
Fixing Bracket Details Spring Type With Black Cover
Heat Sink ColourBlack
Number of Cartons1
Carton Length (cm)12cm
Carton Width (cm)11cm
Carton Height (cm)12cm
Carton CBM0.0016
Carton Nett Weight (kg)0.23kg (±5%)
Carton Gross Weight (kg)0.33kg (±5%)
Additional DetailsLED Downlight
UK Commodity Code9405119090
Country of OriginChina
