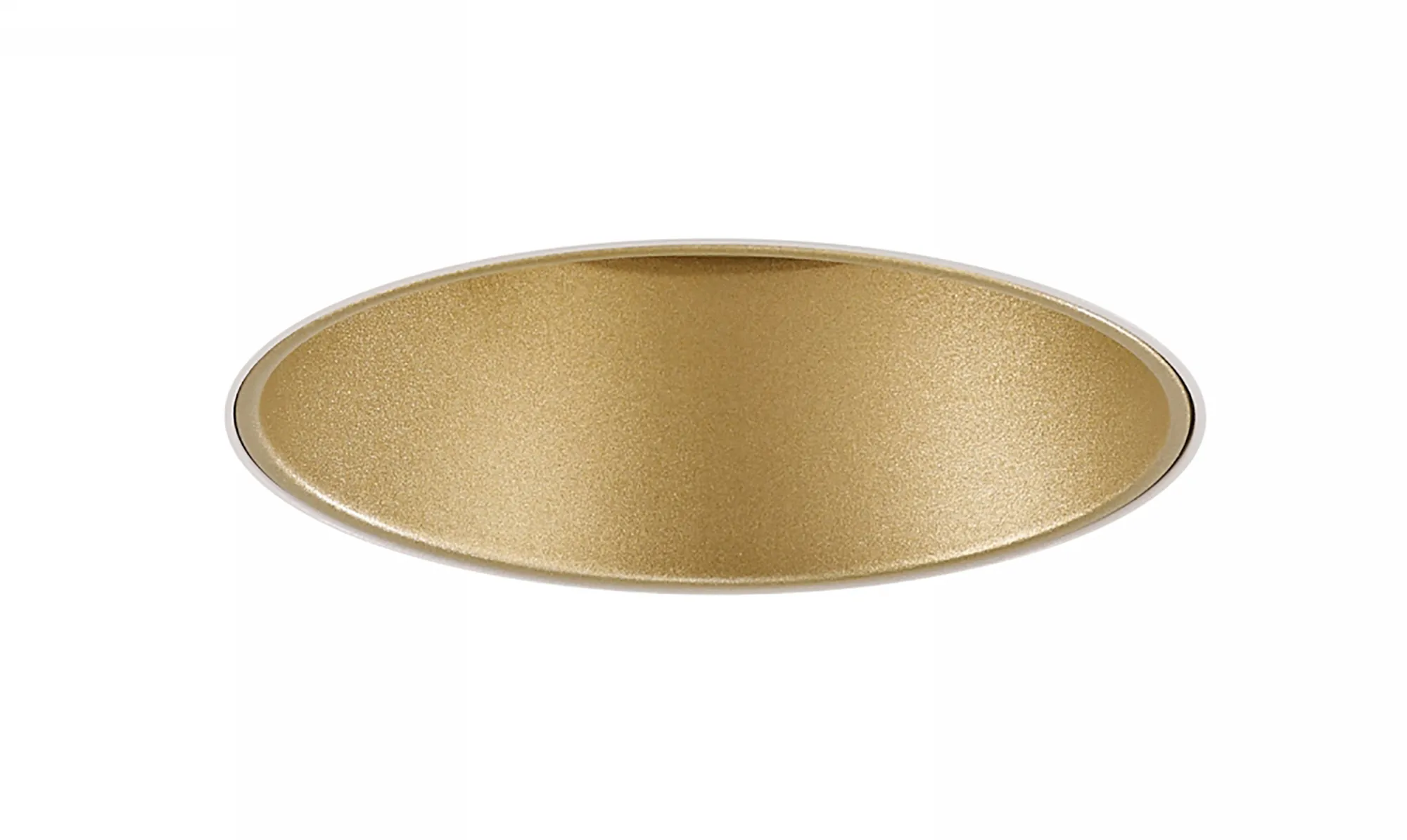

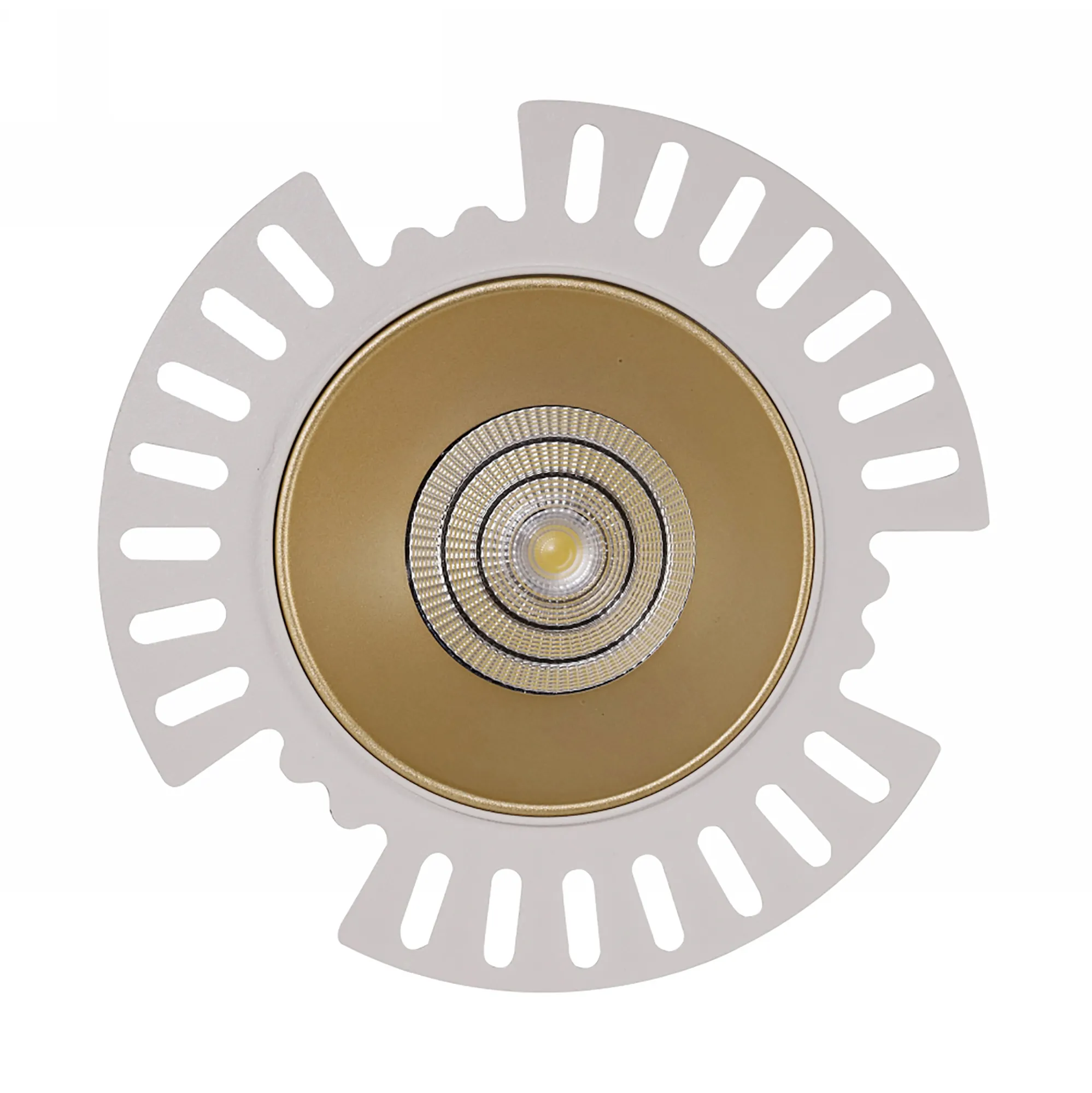

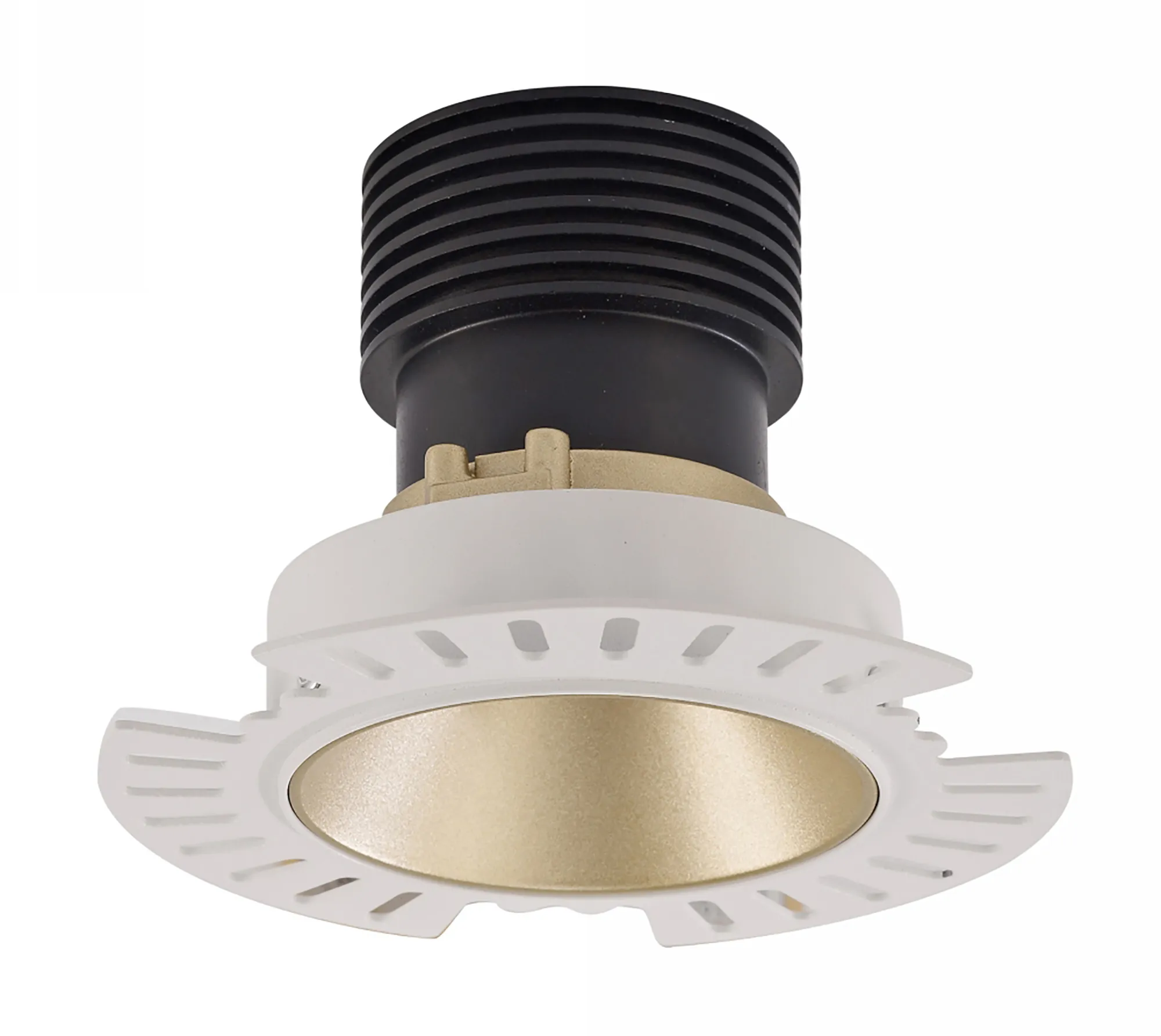

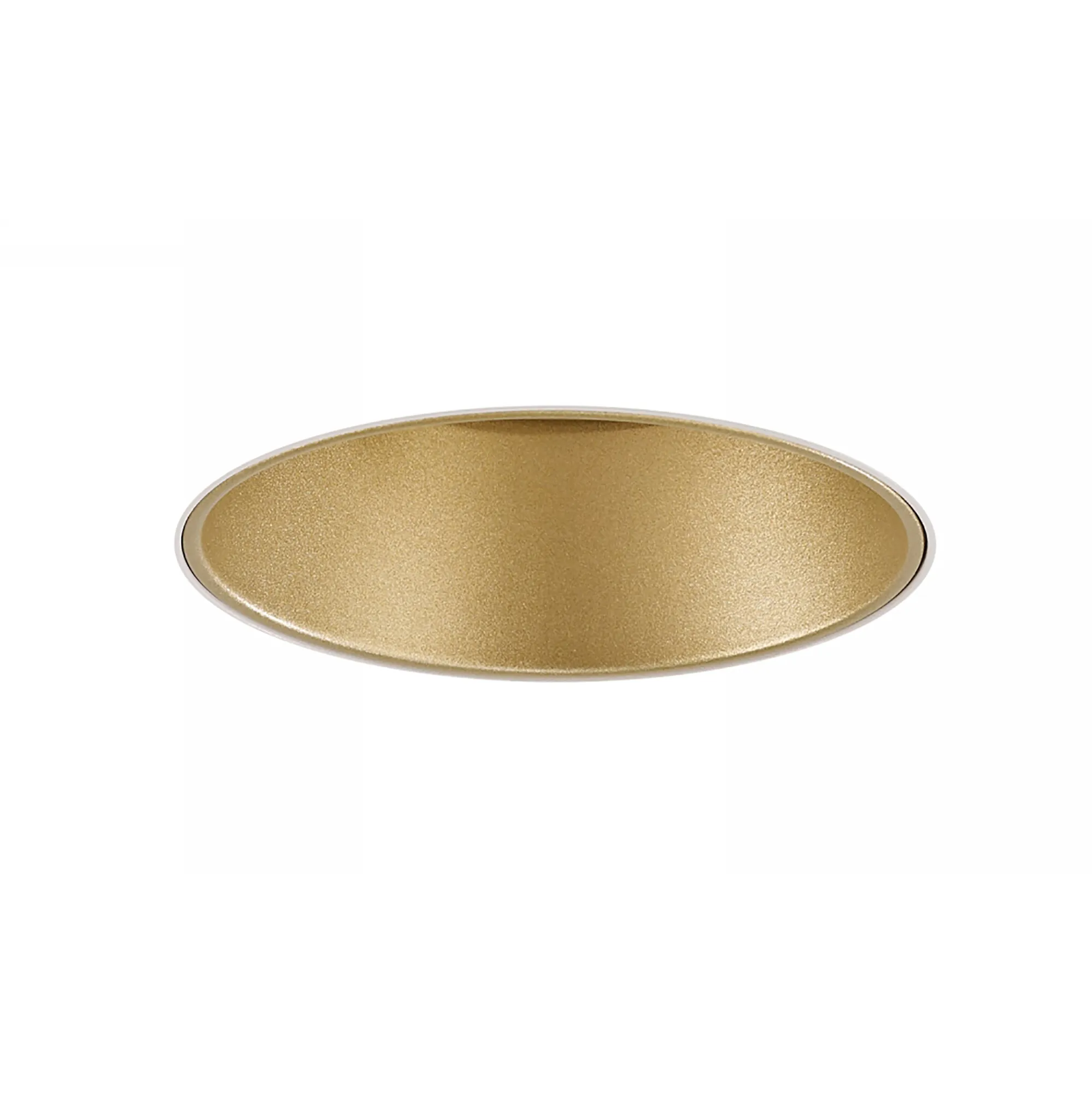

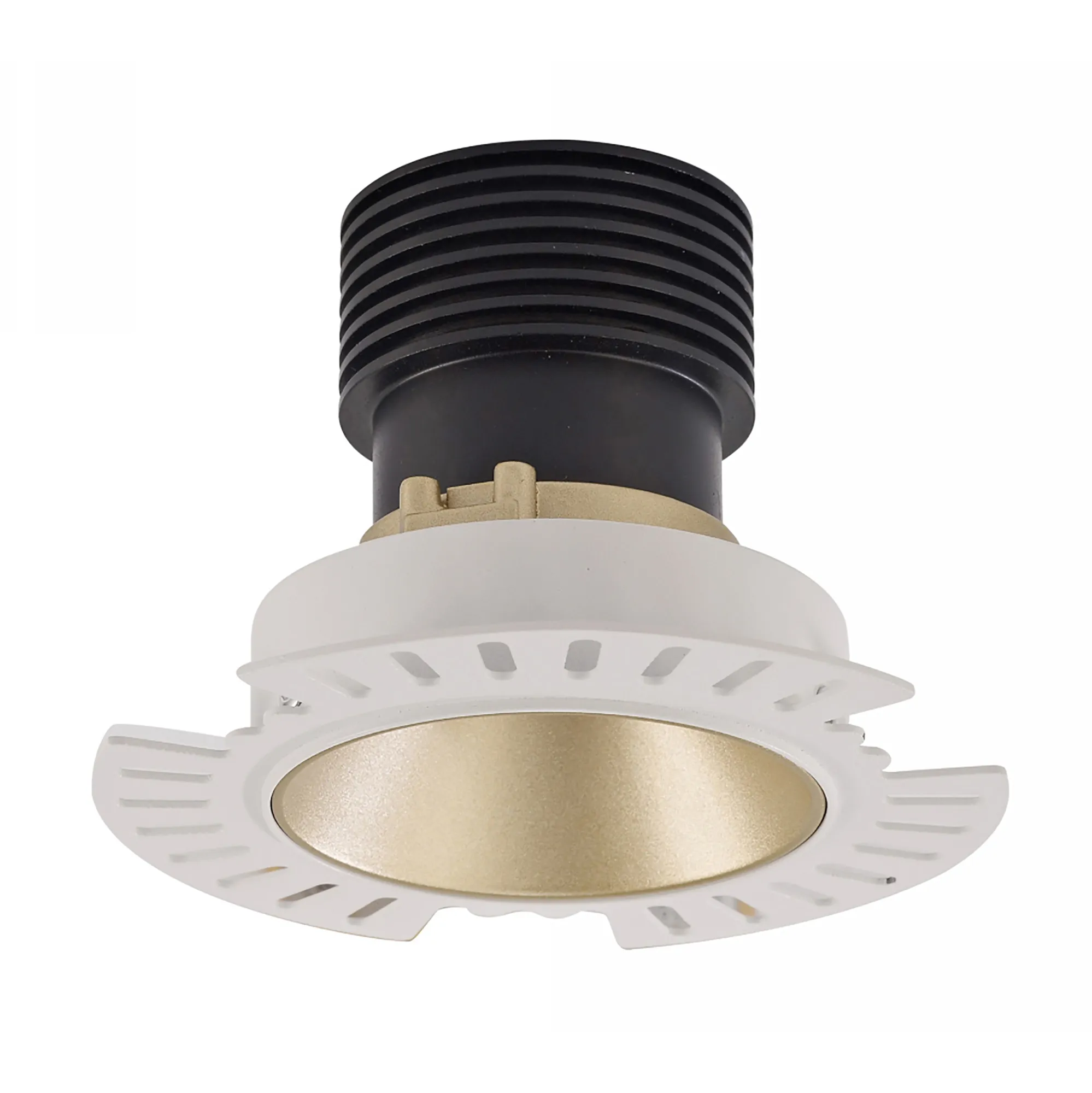

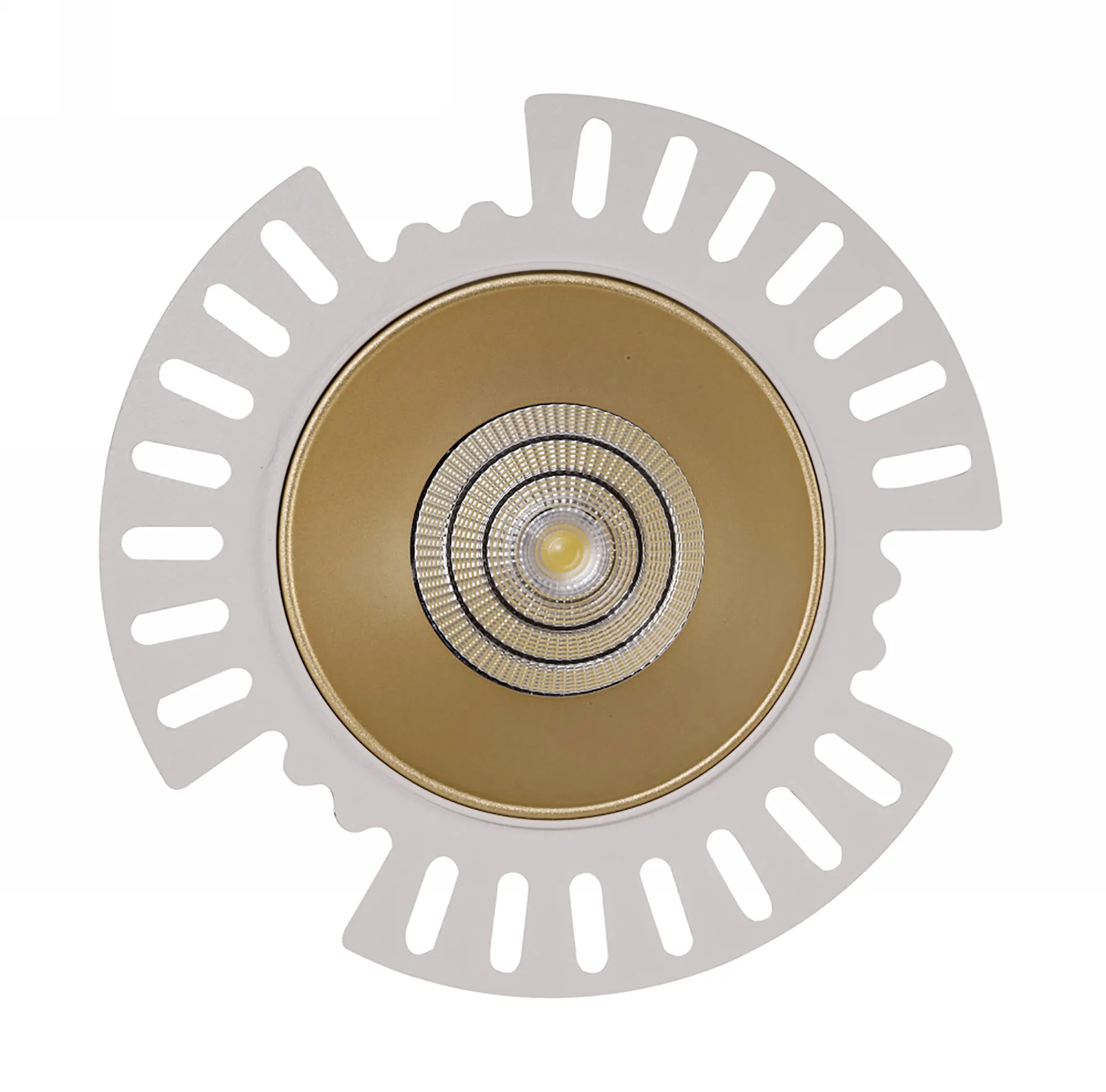

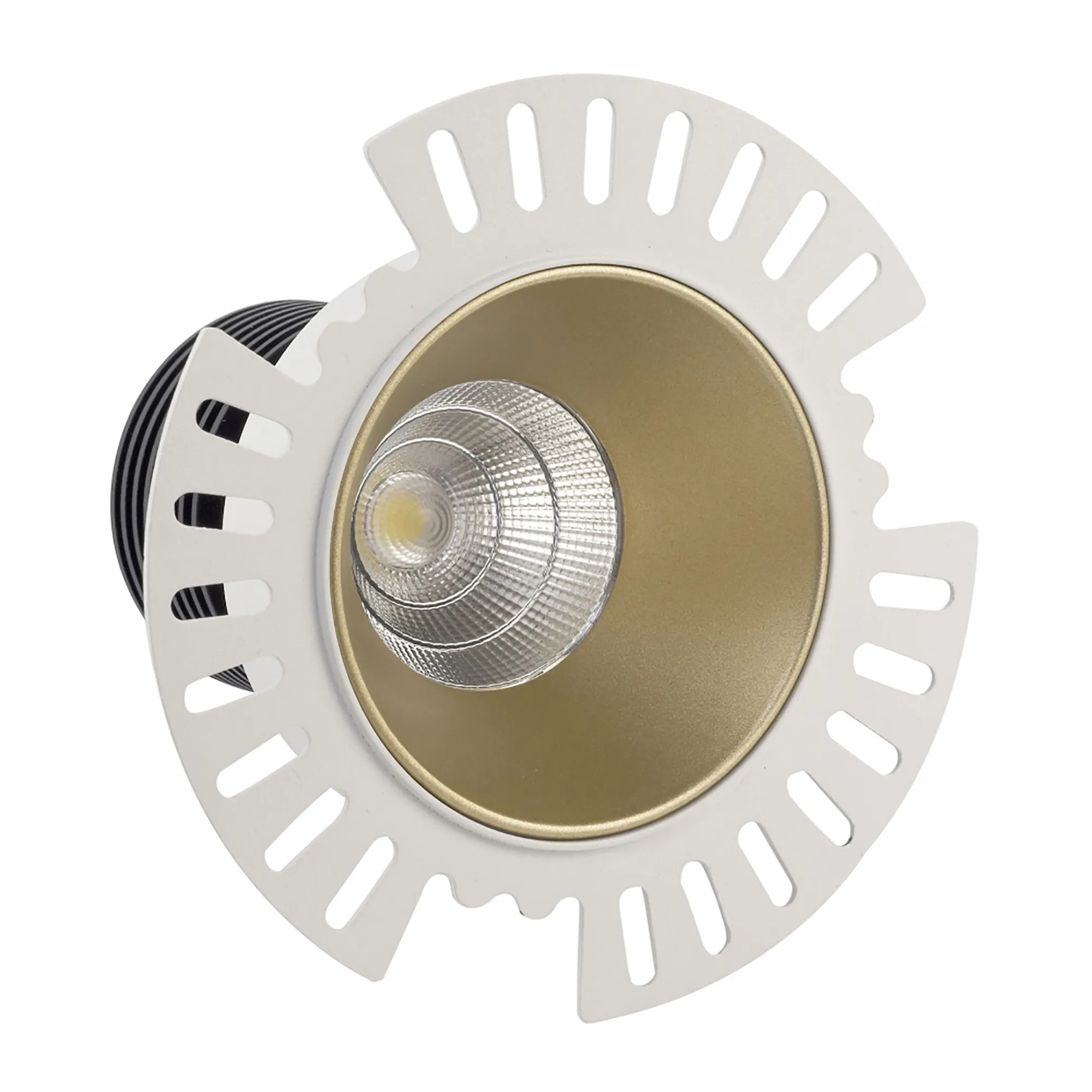

Basy 11, 11W Trimless Type LED Downlight 840lm 40° 5000K IP20

Basy 11, 11W, 500mA, Gold Trimless Type LED Downlight, Cut Out 88mm, 840lm, 40° Deg, 5000K, IP20, DRIVER NOT INC., 5yrs Warranty

DM200094

Colour Temperature :
Beam Angle :
Colour Finish :
Gold

Qty: Order Item Add to Wishlist

Basy is an easy to install trimless spotlight with four different deep recessed reflector colour options. An effective 2 part system allows initial installation of the frame followed by a simply click in of the light engine at completion stage. A perfect solution when complete discreet high performance illumination is required with an added touch of elegance.
Dlux the industry becomes flooded with inferior quality products that offer poor performance we believe it is crucial that lighting continues to be the essence of the surrounding we work or live in. Every d’lux product is carefully designed and engineered to offer accurate lighting solutions and not just simply provide some light. With the evolution of LED based lighting the synergy of lighting and nature is even closer as we endeavour to save the environment we live in.
We have established Show More...
Design by
Dlux Design Team
When designing and manufacturing long lasting, high quality LED solutions for both domestic and commercial applications, an impressive understanding and education in LED technology and power systems is imperative, which is exactly what the combined experience of Dlux team members’ offers. Each carefully selected specialist contributes their own unique talents and knowledgeability to the stellar products offered by this brand.
Quick Spec
Brief DescriptionBasy 11, 11W Trimless Type LED Downlight 840lm 40° 5000K IP20
Colour FinishGold
Item Nett Weight (kg)0.35kg
Diameter (mm)80mm
Height (mm)90mm
Cut Out (mm)88mm
Energy ClassA++
Lamp SocketIntegral LED
Recommended LampIntegral LED
Max Wattage Lamp (W)11W
Lamp IncludedYes - Integrated
Type of Lamp IncludedIntegrated LED
Colour Temperature (K)5000K Natural White (±5%)
LED Voltage (V)12-21V DC (±5%)
Beam Angle (°)40°
System Flux (lm)840lm (±5%)
CRI>90
UGR<=19
Driver IncludedNo
Type of Driver RequiredConstant Current
Protection ClassClass 3 - Low Voltage
DimmableYes - Dimmable Driver Required
IP RatingIP20
Average Life (hrs)45000hrs
Warranty (yrs)5yrs
Features
Features, Will be added soon
Full Specifications
Collection GroupBasy 11
Barcode5056037104506
Catalogue Page NoEdition 12 Pg:663
Brief DescriptionBasy 11, 11W Trimless Type LED Downlight 840lm 40° 5000K IP20
Catalogue DescriptionTrimless Fixed LED Downlight
Colour FinishGold
Type of FinishPowder Coated
Item Nett Weight (kg)0.35kg
Diameter (mm)80mm
Height (mm)90mm
Cut Out (mm)88mm
Materials UsedDie-cast Aluminium
Energy ClassA++
Max Energy ClassA++
Min Energy ClassA++
Lamp SocketIntegral LED
Recommended LampIntegral LED
Max Wattage Lamp (W)11W
Lamp IncludedYes - Integrated
Type of Lamp IncludedIntegrated LED
Colour Temperature (K)5000K Natural White (±5%)
Average Life of LED (hrs)45000hrs
LED BrandBridgelux
LES Category (mm)8.1mm
LED Power (W)11W (±5%)
LED Voltage (V)12-21V DC (±5%)
LED Current (mA)500mA (±5%)
Type of LEDCOB
Lumens Per Watt (lm/W)76lm/W (±5%)
Lumen Maintenance (hrs)50000hrs / LM80 (±5%)
Beam Angle (°)40°
System Flux (lm)840lm (±5%)
CRI>90
MacAdam<3
UGR<=19
Driver IncludedNo
Triac DriversLT-SE-15-350-700-G1T
1-10V DriversLT-SE-12-350-700-W1A
0-10V DriversLT-SE-12-350-700-W1A
Dali DriversTD-28000674,LT-SE-12-350-700-W1D
Type of Driver RequiredConstant Current
Fixed Output DriversIL-DA800049
Protection ClassClass 3 - Low Voltage
Total Power Consumption (W)11W (±5%)
Input Voltage (V)12-21V DC
Input Current (A)500mA
DimmableYes - Dimmable Driver Required
IP RatingIP20
F RatingYes
Average Life (hrs)45000hrs
Warranty (yrs)5yrs
UKCA/CEYes
RohsYes
EMV/EMCYes
Cable Information0.3mm, 1 Pc "+" Red Clear Teflon, 1 Pc "-" Black Clear Teflon, Covered By 4.0mm Clear PVC, Total Length:200mm
Fixing Bracket DetailsTrimless Type
Heat Sink ColourBlack
Number of Cartons1
Carton Length (cm)14cm
Carton Width (cm)14cm
Carton Height (cm)11cm
Carton CBM0.0022
Carton Nett Weight (kg)0.27kg (±5%)
Carton Gross Weight (kg)0.36kg (±5%)
InstallationRequires Installation By Qualified Electrician, Requires Installation Before Plastering
Additional DetailsLED Downlight
UK Commodity Code9405119090
Country of OriginChina
