Biox 11, 11W LED Downlight 760lm 40° 3000K IP20

Biox 11, 11W, 250mA, White LED Square Downlight, Cut Out 70x70mm, 760lm, 40° Deg, 3000K, IP20, DRIVER NOT INC., 5yrs Warranty

DM200433

Colour Temperature :
Beam Angle :
Colour Finish :
White

Qty: Order Item Add to Wishlist

Dlux the industry becomes flooded with inferior quality products that offer poor performance we believe it is crucial that lighting continues to be the essence of the surrounding we work or live in. Every d’lux product is carefully designed and engineered to offer accurate lighting solutions and not just simply provide some light. With the evolution of LED based lighting the synergy of lighting and nature is even closer as we endeavour to save the environment we live in.
We have established Show More...
Design by
Dlux Design Team
When designing and manufacturing long lasting, high quality LED solutions for both domestic and commercial applications, an impressive understanding and education in LED technology and power systems is imperative, which is exactly what the combined experience of Dlux team members’ offers. Each carefully selected specialist contributes their own unique talents and knowledgeability to the stellar products offered by this brand.
Quick Spec
Brief DescriptionBiox 11, 11W LED Downlight 760lm 40° 3000K IP20
Colour FinishWhite
Item Nett Weight (kg)0.23kg

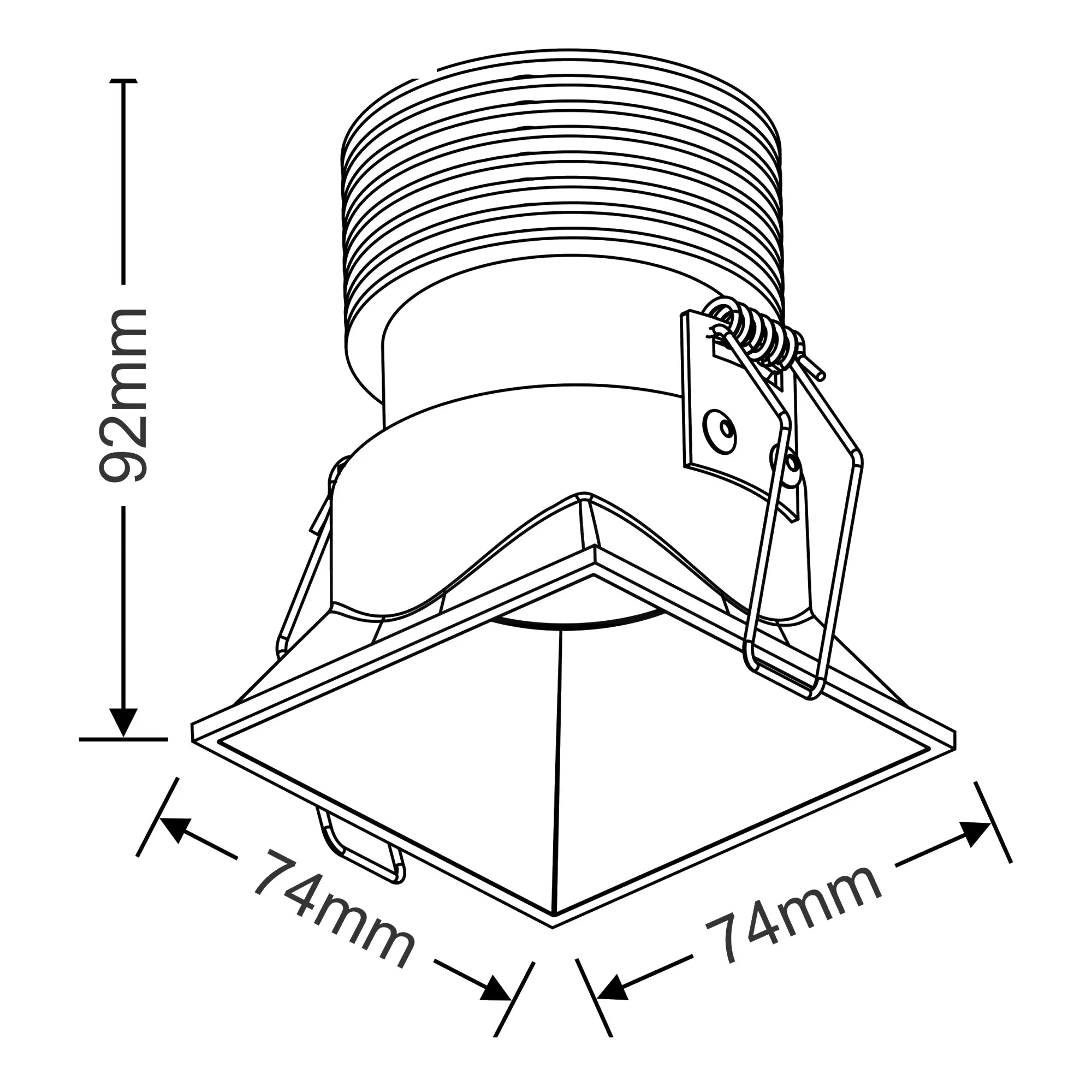

Length (mm)74mm
Width (mm)74mm
Height (mm)92mm
Cut Out (mm)70x70mm
Energy ClassA++
Lamp SocketIntegral LED
Recommended LampIntegral LED
Lamp IncludedYes - Integrated
Type of Lamp IncludedIntegrated LED
Colour Temperature (K)3000K Warm White (±5%)
LED Voltage (V)12-21V DC (±5%)
Beam Angle (°)40°
System Flux (lm)760lm (±5%)
CRI>90
UGR<=19
Driver IncludedNo
Type of Driver RequiredConstant Current
Protection ClassClass 3 - Low Voltage
DimmableYes - Dimmable Driver Required
IP RatingIP20
Warranty (yrs)5yrs
Features
Features, Will be added soon
Full Specifications
Collection GroupBiox 11
Barcode5056037123958
Brief DescriptionBiox 11, 11W LED Downlight 760lm 40° 3000K IP20
Colour FinishWhite
Type of FinishPowder Coated
Item Nett Weight (kg)0.23kg
Length (mm)74mm
Width (mm)74mm
Height (mm)92mm
Cut Out (mm)70x70mm
Materials UsedDie-cast Aluminium
Energy ClassA++
Lamp SocketIntegral LED
Recommended LampIntegral LED
Lamp IncludedYes - Integrated
Type of Lamp IncludedIntegrated LED
Colour Temperature (K)3000K Warm White (±5%)
Average Life of LED (hrs)50000hrs
LED BrandBridgelux
LES Category (mm)8.1mm
LED Power (W)11W (±5%)
LED Voltage (V)12-21V DC (±5%)
LED Current (mA)250mA (±5%)
Type of LEDCOB
Lumens Per Watt (lm/W)69lm/W (±5%)
Lumen Maintenance (hrs)50000hrs / LM80 (±5%)
Beam Angle (°)40°
System Flux (lm)760lm (±5%)
CRI>90
MacAdam<3
UGR<=19
Driver IncludedNo
Triac DriversDA810013,TD-87500627
1-10V DriversLT-SE-12-100-400-W1A
0-10V DriversLT-SE-12-100-400-W1A
Dali DriversTD-28000674,LT-SE-12-100-400-W1D
Type of Driver RequiredConstant Current
Fixed Output DriversDA800050,TD-28000705
Protection ClassClass 3 - Low Voltage
Total Power Consumption (W)11W (±5%)
Input Voltage (V)12-21V DC
Input Current (A)250mA
DimmableYes - Dimmable Driver Required
IP RatingIP20
F RatingYes
Warranty (yrs)5yrs
UKCA/CEYes
RohsYes
EMV/EMCYes
Cable Information0.3mm, 1 Pc "+" Red Clear Teflon, 1 Pc "-" Black Clear Teflon, Covered By 4.0mm Clear PVC, Total Length:200mm
Heat Sink ColourWhite
Number of Cartons1
Carton Length (cm)12cm
Carton Width (cm)11cm
Carton Height (cm)12cm
Carton CBM0.0016
Carton Nett Weight (kg)0.23kg (±5%)
Carton Gross Weight (kg)0.33kg (±5%)
Additional DetailsLED Square Downlight
UK Commodity Code9405119090
Country of OriginChina
