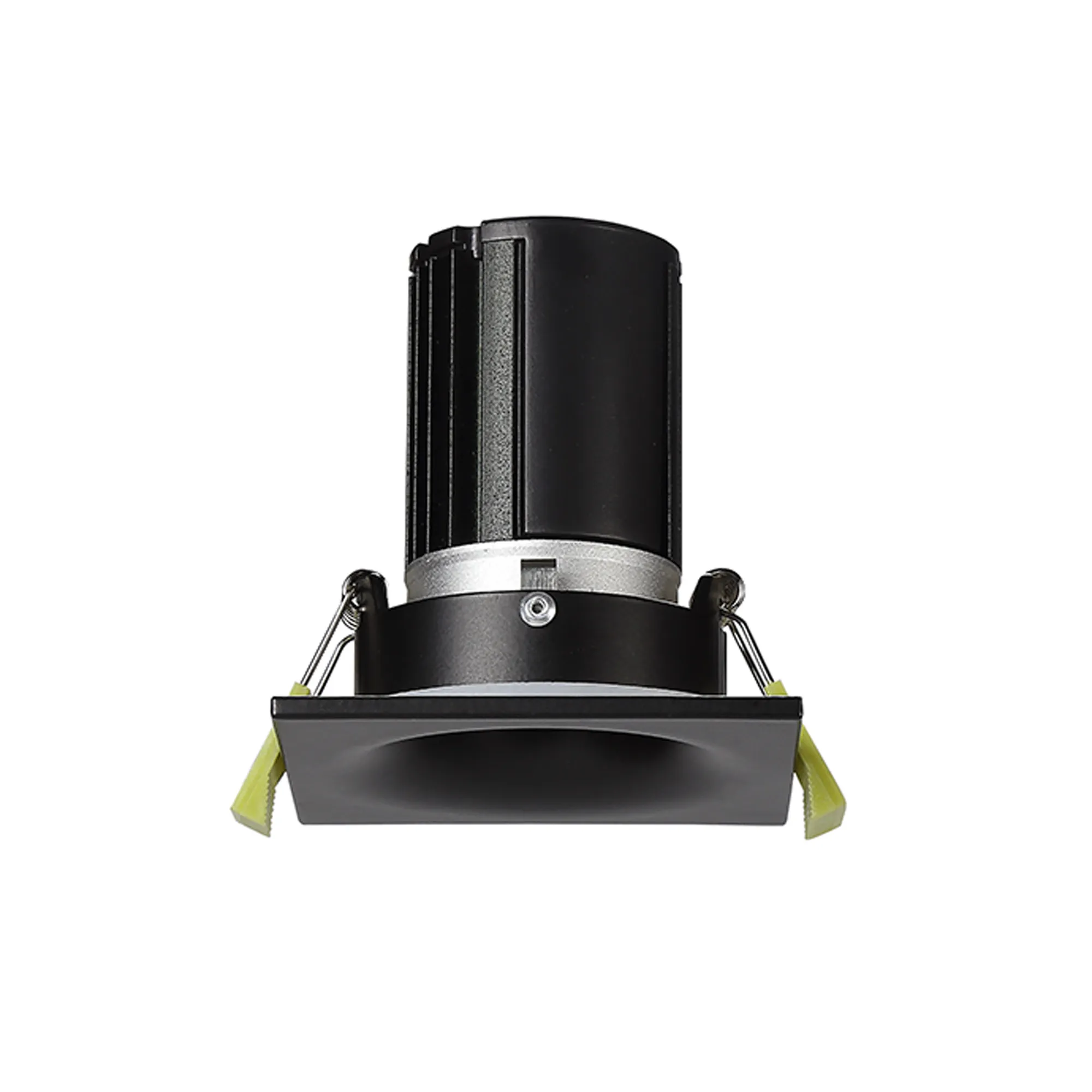

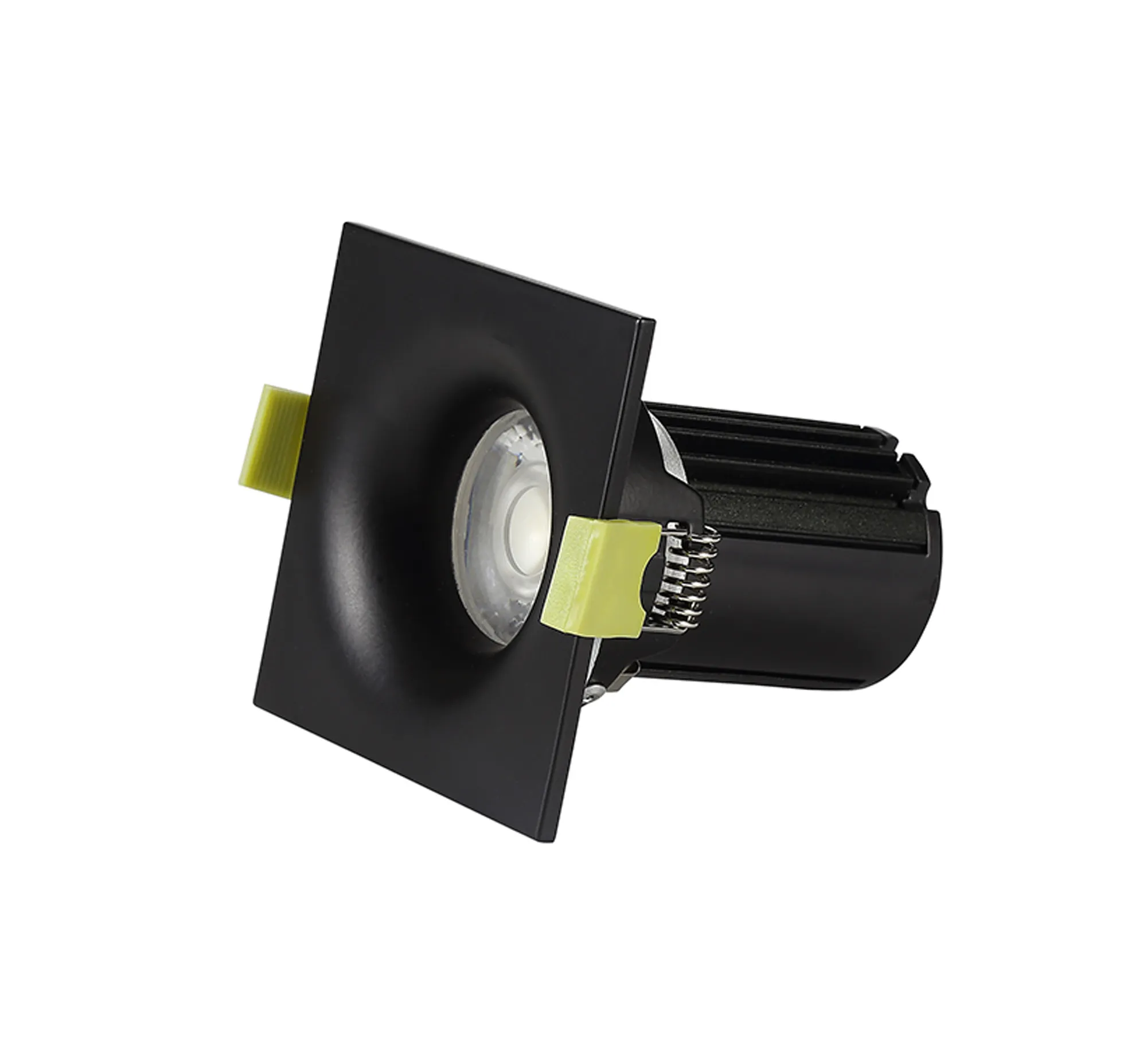

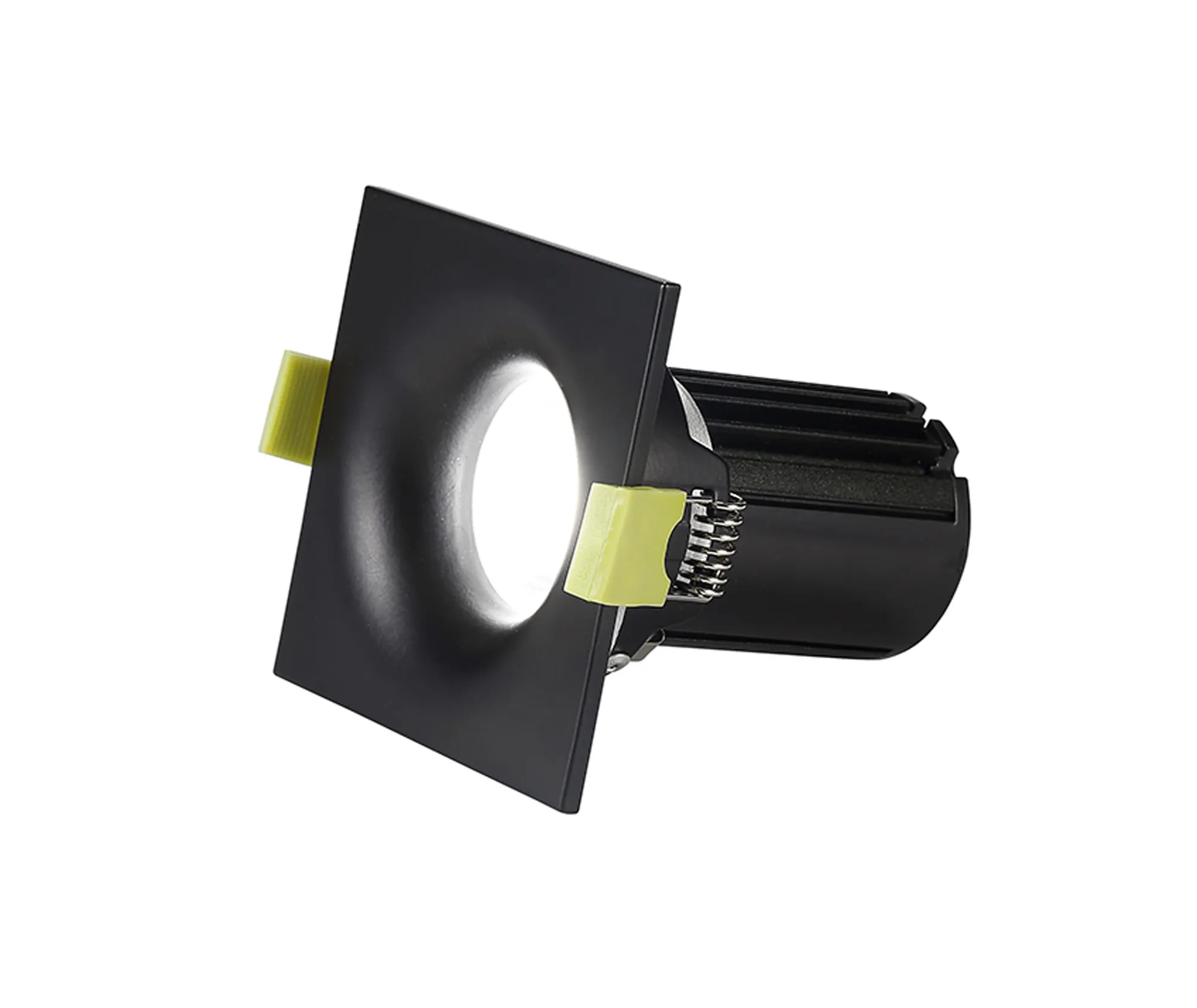

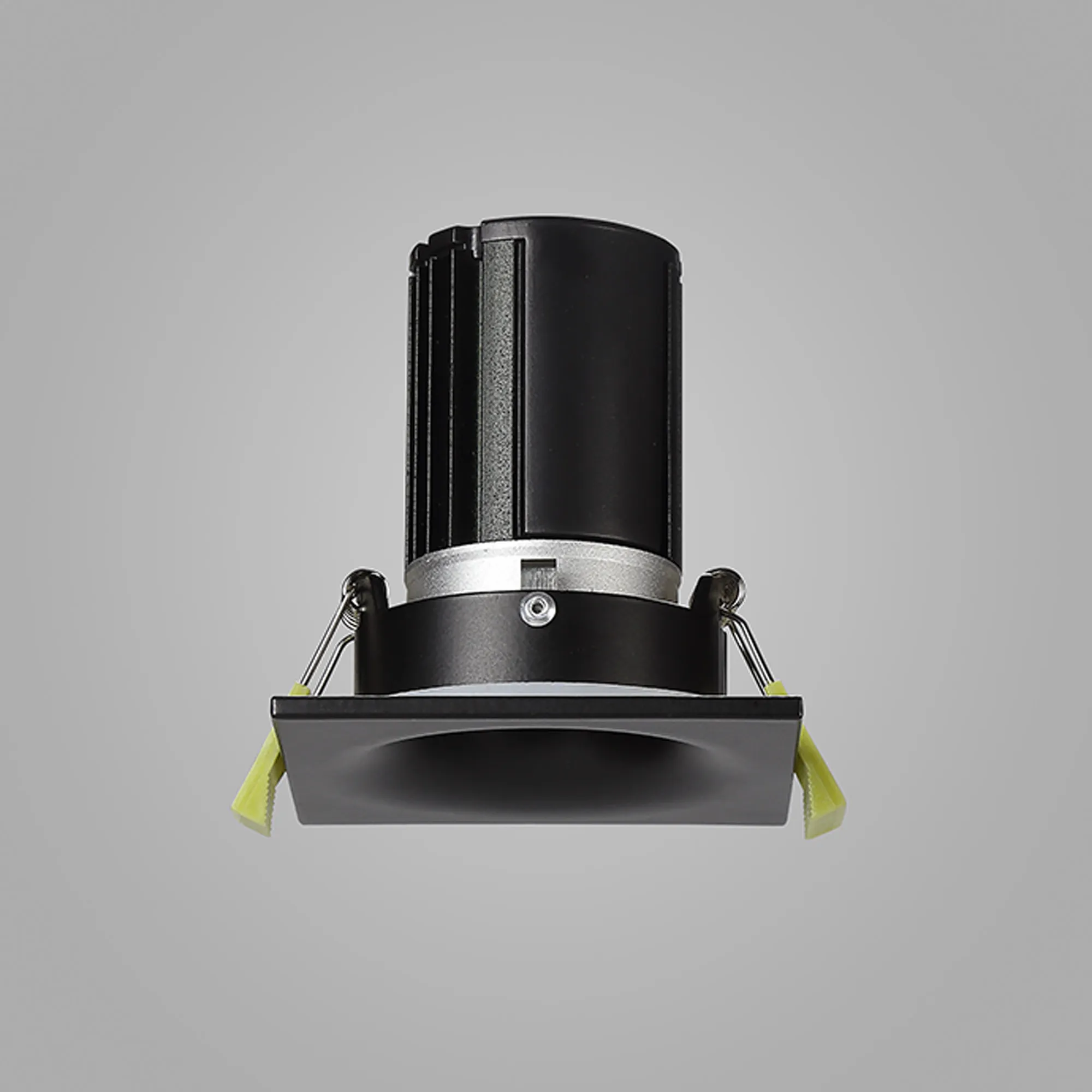

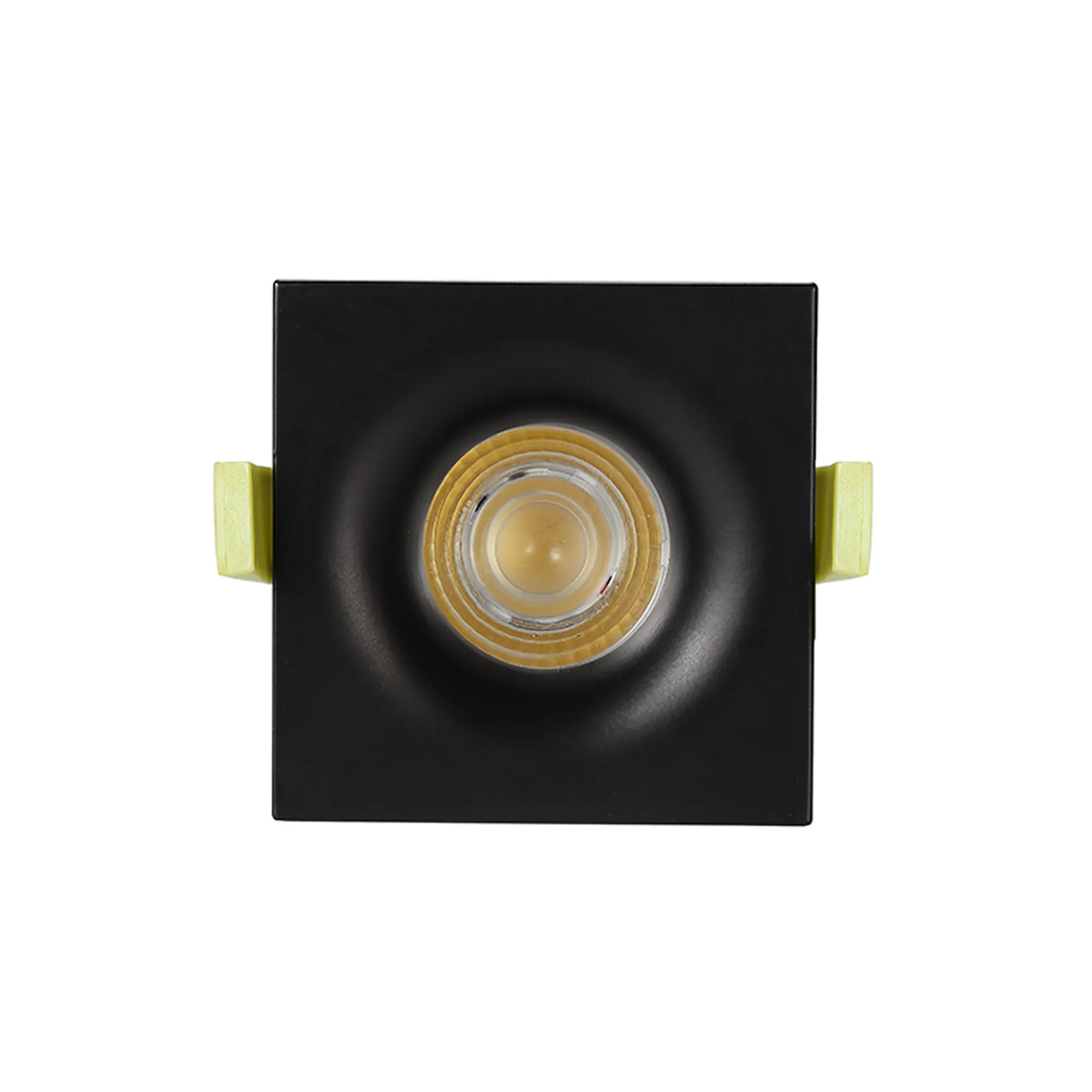

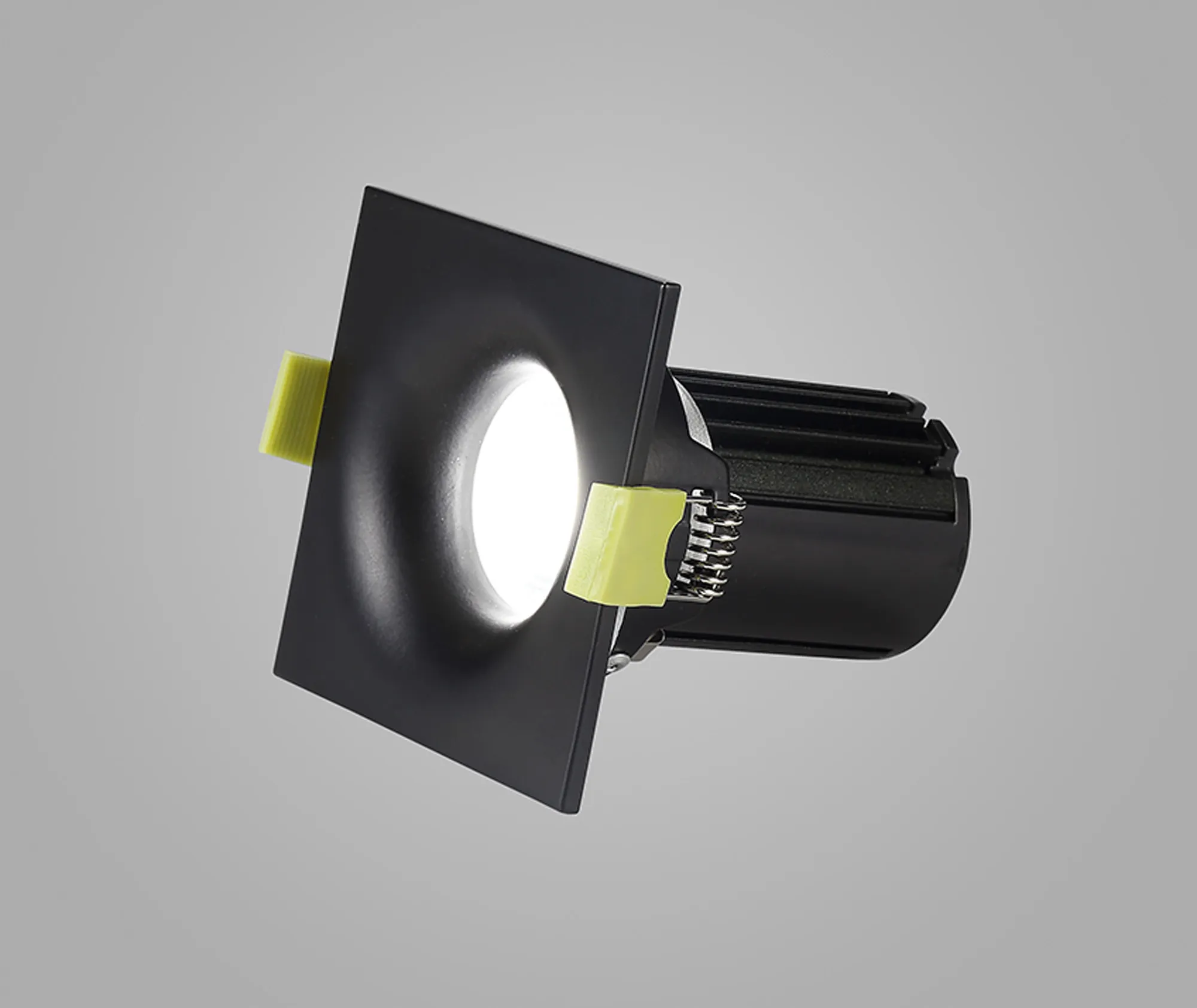

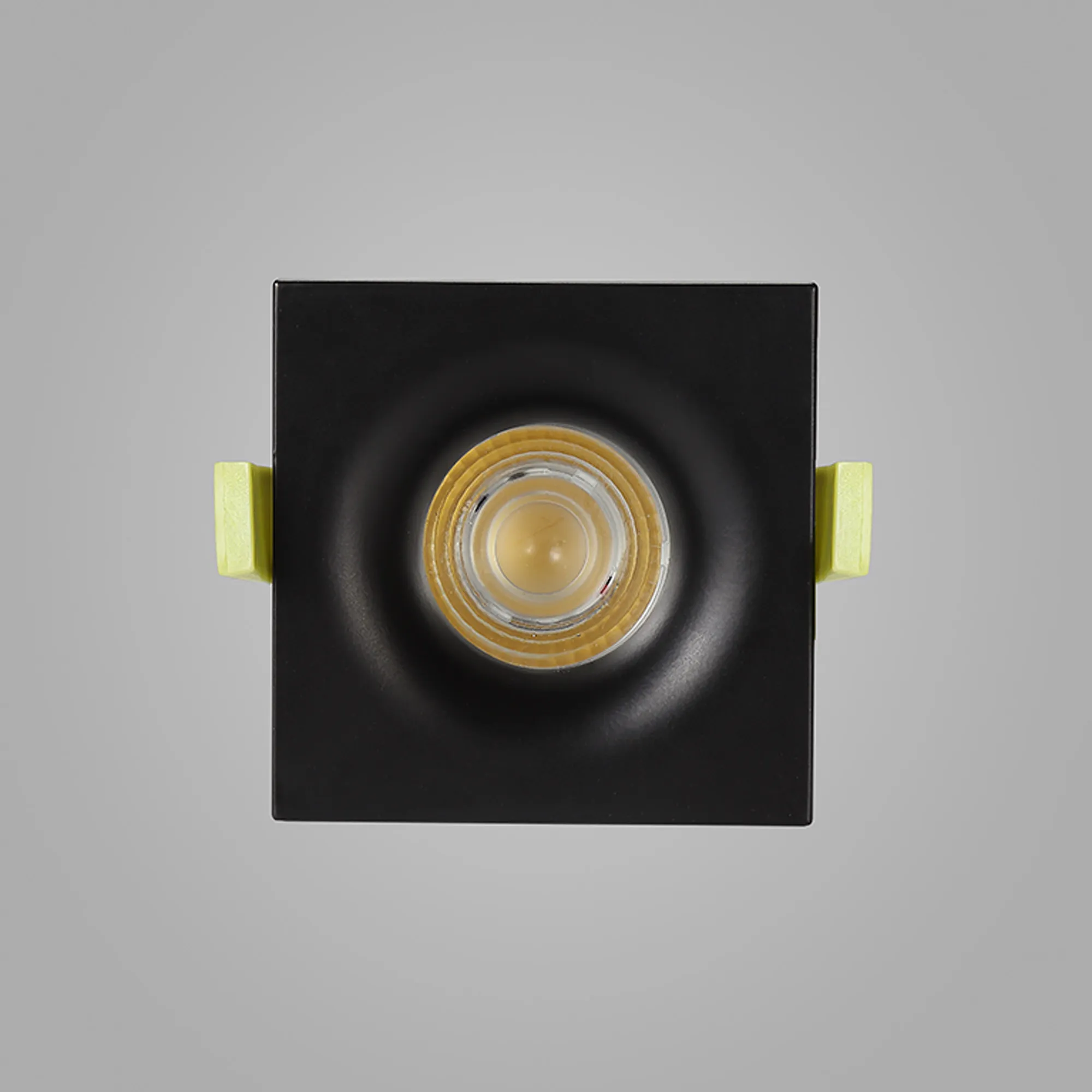

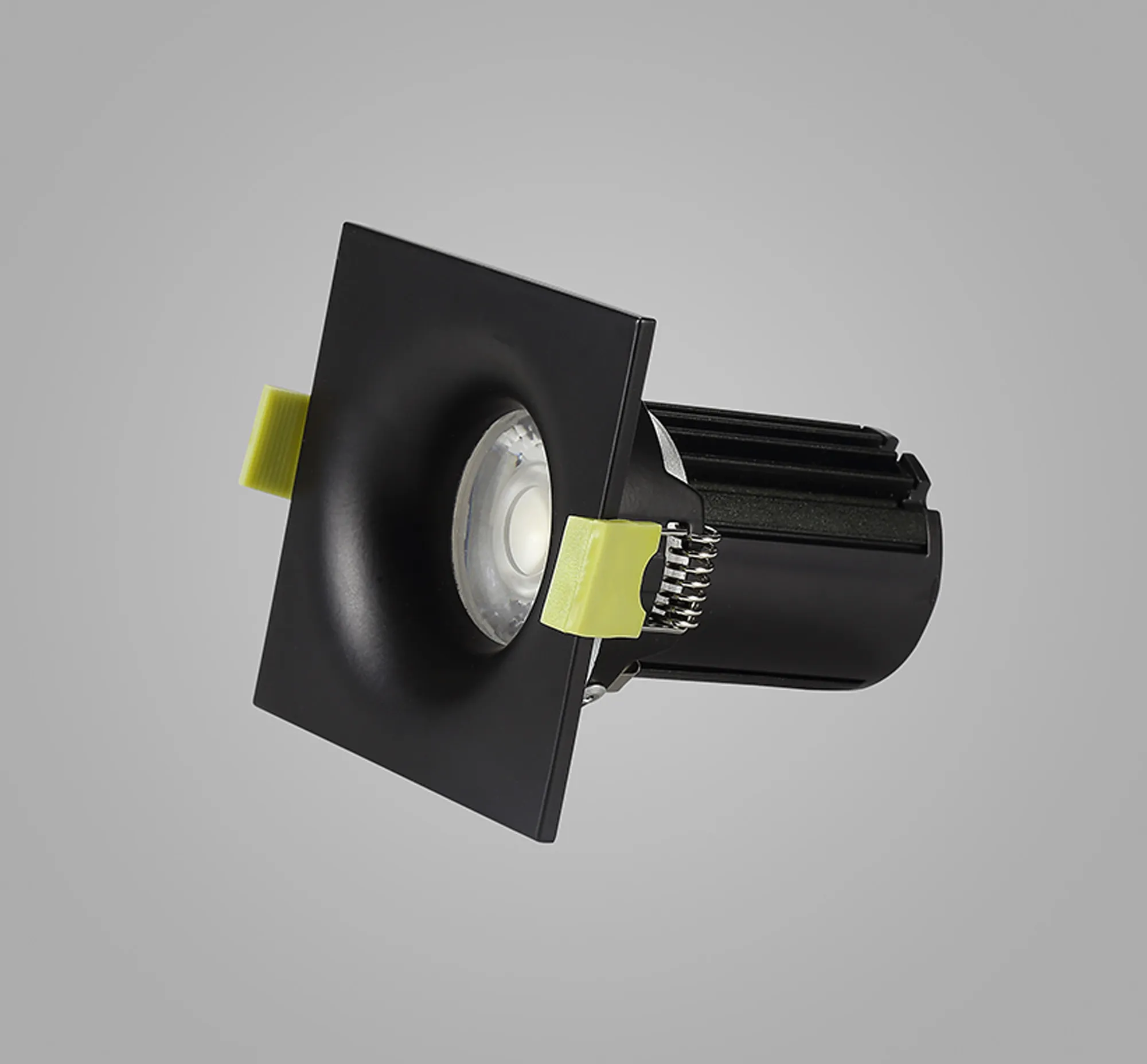

Bruve 9 Tridonic powered 9W 2700K 700lm 36° LED Engine,250mA , CRI>90 LED Engine Matt Black Fixed Square Recessed Downlight, Inner Glass cover, IP65

Bruve 9 Powered by Tridonic 9W 700lm 2700K 36° LED Engine,250mA,Matt Black IP65 Fixed Recessed Square Downlight,DRIVER NOT INCLUDED,5yrs Warranty

DM201505

Colour Temperature :
Beam Angle :

Qty: Order Item Add to Wishlist

Comprensive range of Square Downlight recessed mount IP65 available in Matt Black, Powered by Tridonic engine. 3 colour temperatures, 2 beam angles, dimmable, Small colour tolerance.
Dlux the industry becomes flooded with inferior quality products that offer poor performance we believe it is crucial that lighting continues to be the essence of the surrounding we work or live in. Every d’lux product is carefully designed and engineered to offer accurate lighting solutions and not just simply provide some light. With the evolution of LED based lighting the synergy of lighting and nature is even closer as we endeavour to save the environment we live in.
We have established Show More...
Design by
Dlux Design Team
When designing and manufacturing long lasting, high quality LED solutions for both domestic and commercial applications, an impressive understanding and education in LED technology and power systems is imperative, which is exactly what the combined experience of Dlux team members’ offers. Each carefully selected specialist contributes their own unique talents and knowledgeability to the stellar products offered by this brand.
Quick Spec
Brief DescriptionBruve 9 Tridonic powered 9W 2700K 700lm 36° LED Engine,250mA , CRI>90 LED Engine Matt Black Fixed Square Recessed Downlight, Inner Glass cover, IP65
Colour FinishMatt Black
RecessableYes
Item Nett Weight (kg)0.210kg
Diameter (mm)85mm
Height (mm)110mm
Cut Out (mm)68mm
Energy ClassA++
No: of Lamp1
Lamp SocketIntegral LED
Recommended LampIntegral LED
Max Wattage Lamp (W)9W
Lamp IncludedYes
Type of Lamp IncludedIntegrated LED
Colour Temperature (K)2700K Warm White (±5%)
Beam Angle (°)36°
System Flux (lm)700lm (±5%)
CRI>90
UGR<=19
Driver IncludedNo
Type of Driver RequiredConstant Current
Protection ClassClass 2 - Double Insulated
DimmableYes - Dimmable Driver Required
Dimmer IncludedNo
IP RatingIP65
Average Life (hrs)50000hrs
Warranty (yrs)5yrs
Features
Easy Installation and maintenance
Full Specifications
Collection GroupBruve
Brief DescriptionBruve 9 Tridonic powered 9W 2700K 700lm 36° LED Engine,250mA , CRI>90 LED Engine Matt Black Fixed Square Recessed Downlight, Inner Glass cover, IP65
Colour FinishMatt Black
Type of FinishPowder Coated
RecessableYes
Item Nett Weight (kg)0.210kg
Diameter (mm)85mm
Height (mm)110mm
Cut Out (mm)68mm
Materials UsedDie-cast Aluminium
Energy ClassA++
Max Energy ClassA++
Min Energy ClassA++
No: of Lamp1
Lamp SocketIntegral LED
Recommended LampIntegral LED
Max Wattage Lamp (W)9W
Lamp IncludedYes
Type of Lamp IncludedIntegrated LED
Colour Temperature (K)2700K Warm White (±5%)
Average Life of LED (hrs)50000hrs
LED BrandTridonic
Type of LEDCOB
Lumens Per Watt (lm/W)77lm/W (±5%)
Lumen Maintenance (hrs)50000hrs / LM80hrs (±5%)
Beam Angle (°)36°
System Flux (lm)700lm (±5%)
CRI>90
MacAdam<3
UGR<=19
Driver IncludedNo
Triac DriversTD-28003344
1-10V DriversLT-AD-10-100-400-G1A,LT-SE-12-100-400-W1A
0-10V DriversLT-AD-10-100-400-G1A,LT-SE-12-100-400-W1A
Dali DriversTD-28000673,LT-SE-12-100-400-W1D
Type of Driver RequiredConstant Current
Ta (°C)-20° to 40°C
Tc (°C)90°
Casing MaterialAluminum
Connection TerminalPre-wired
Dimming ProtocolYes - Suitable Driver Required
Fixed Output DriversDA800050, TD-87500628
Protection ClassClass 2 - Double Insulated
Total Power Consumption (W)9W (±5%)
Input Voltage (V)220-240V~50/60Hz
DimmableYes - Dimmable Driver Required
Dimmer IncludedNo
IP RatingIP65
F RatingNo
Average Life (hrs)50000hrs
Warranty (yrs)5yrs
UKCA/CEYes
RohsYes
Fixing Bracket DetailsSpring Type With Green Cover
Heat Sink ColourBlack
Number of Cartons2
Pieces Included1
InstallationRequires Installation By Qualified Electrician
Additional DetailsLED fixed Downlighter with high color rendering.
Product Care(1) Wipe clean with a dry cloth, do not use any cleaning detergents, do not use rough or coarse material to clean.
UK Commodity Code9405119090
Country of OriginChina
