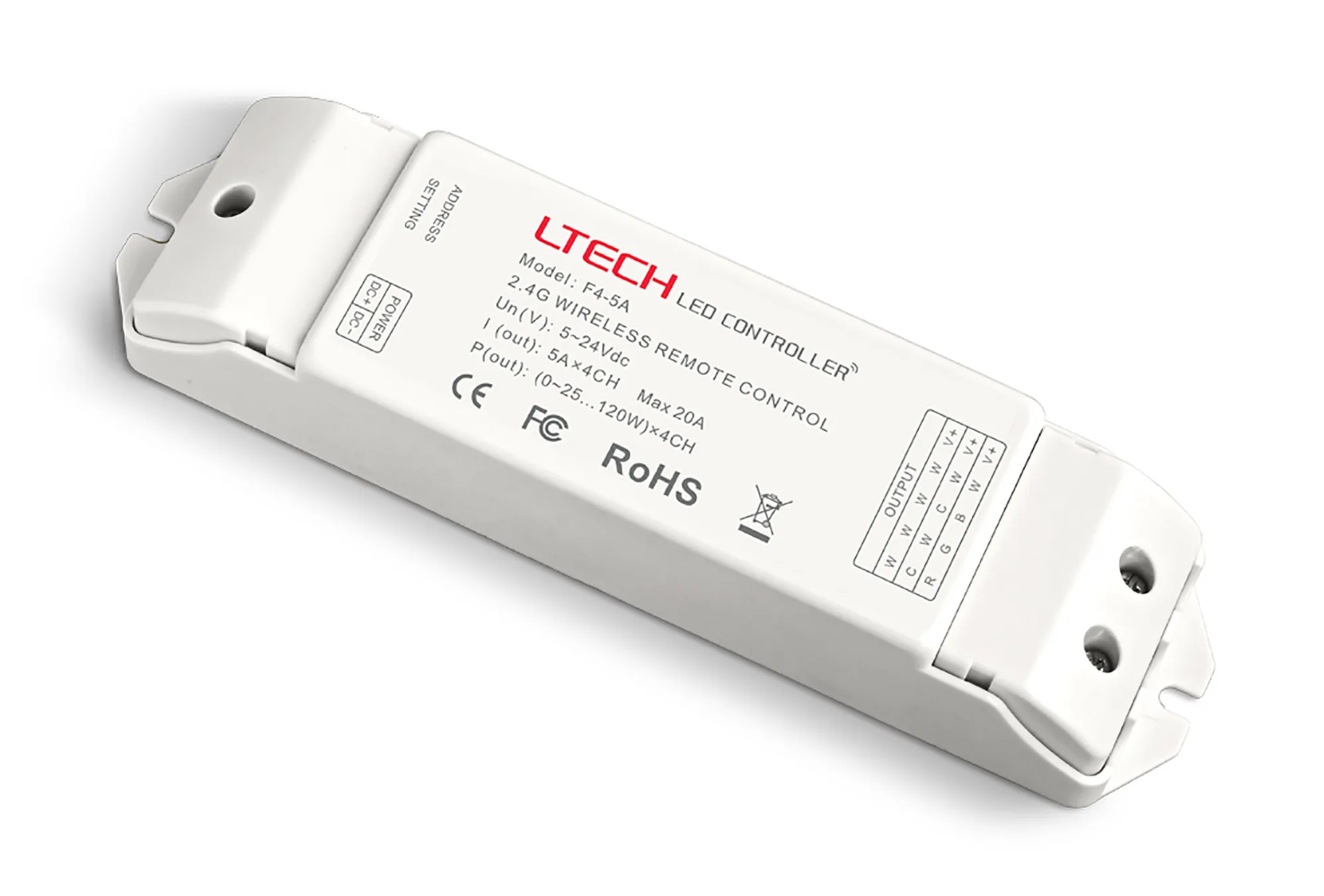

CV Wireless Receiver 5/12/24V DC, Compatible With EX Series Touch Panels & F Series Remotes

CV 2.4GHz Wireless Receiver, 5/12/24V DC, 100/240/480W, 20A (5A x 4CH), Compatible With EX Series Touch Panels & F Series Remotes, IP20, 3yrs Warranty

F4-5A

Qty: Order Item Add to Wishlist

2.4GHz Working Frequency, Remote Distance 50m (line of sight) Wide working temperature , Easy installation and configuration. Compact in size. Connectors for easy wiring.
LTECH is a front-runner in the field of LED lighting controller. As the first high-end manufacturer in China and one of the leading suppliers in the world, they have engaged in R&D of LED lighting control technology since 2001. As an intelligent lighting technology enabler, LTECH has developed hundreds of intelligent LED controlling technologies, which creates a more efficient, energy-saving, healthy and comfortable lighting life. Widely applied to the global lighting industry, innovative produc Show More...
To Follow
Quick Spec
Brief DescriptionCV Wireless Receiver 5/12/24V DC, Compatible With EX Series Touch Panels & F Series Remotes
Colour FinishWhite
Item Nett Weight (kg)0.150kg

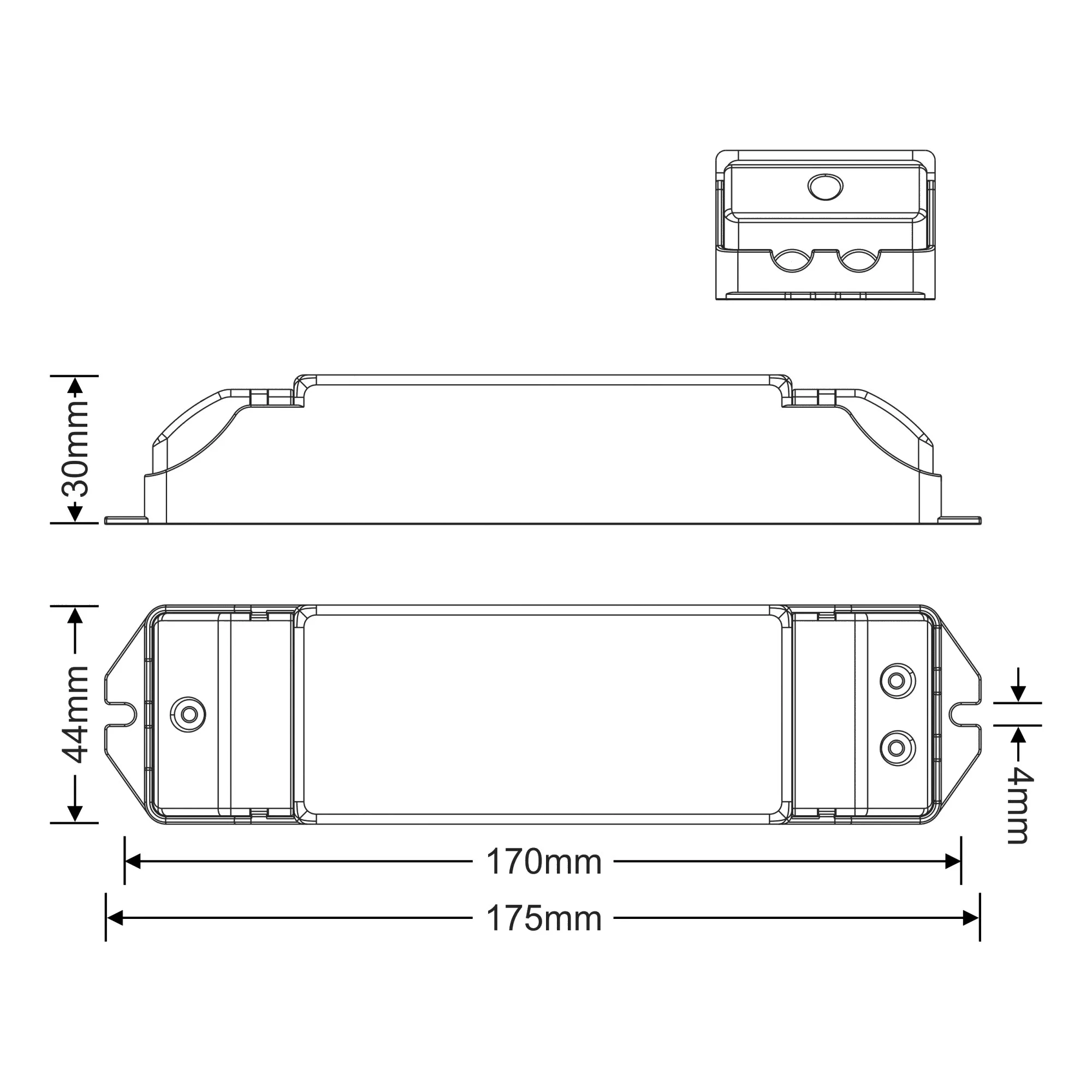

Length (mm)175mm
Width (mm)44mm
Height (mm)30mm
IP RatingIP44
Detection Distance (m)30m
Working Humidity (%RH)20 - 95%RH
Average Life (hrs)50000hrs
Warranty (yrs)5yrs
Features
Features, Will be added soon
Full Specifications
Collection GroupConstant Voltage
Barcode5056037130987
Brief DescriptionCV Wireless Receiver 5/12/24V DC, Compatible With EX Series Touch Panels & F Series Remotes
Colour FinishWhite
Item Nett Weight (kg)0.150kg
Length (mm)175mm
Width (mm)44mm
Height (mm)30mm
Type of DriverConstant Voltage
Dimming Range (%)0-100%
Power Factor (?)>0.80 (±5%)
Constant Voltage Output (V)5V/12V/24V
Max. Current Output (A)20A(5A x 4CH)
Load Range (W)0-480W
Ta (°C)-30°C to 55°C
Tc (°C)+75°C
Casing MaterialPolycarbonate
Connection TerminalGreen Terminal
Average Life Of Driver (hrs)50000hrs
Dimming Protocol2.4GHz RF,CV
Efficiency>0.85
Input Voltage (V)220-240V~50/60Hz
IP RatingIP44
Detection Distance (m)30m
Working Humidity (%RH)20 - 95%RH
Average Life (hrs)50000hrs
Warranty (yrs)5yrs
UKCA/CEYes
RohsYes
Additional CertificationFCC
Number of Cartons1
Carton Length (cm)17.5cm
Carton Width (cm)4.4cm
Carton Height (cm)3.0cm
Carton CBM0.000231
Carton Nett Weight (kg)0.150kg (±5%)
Carton Gross Weight (kg)0.160kg (±5%)
Additional DetailsEasy installation and configuration. Wide operating voltage and dimming range.
UK Commodity Code8537109090
Country of OriginChina
