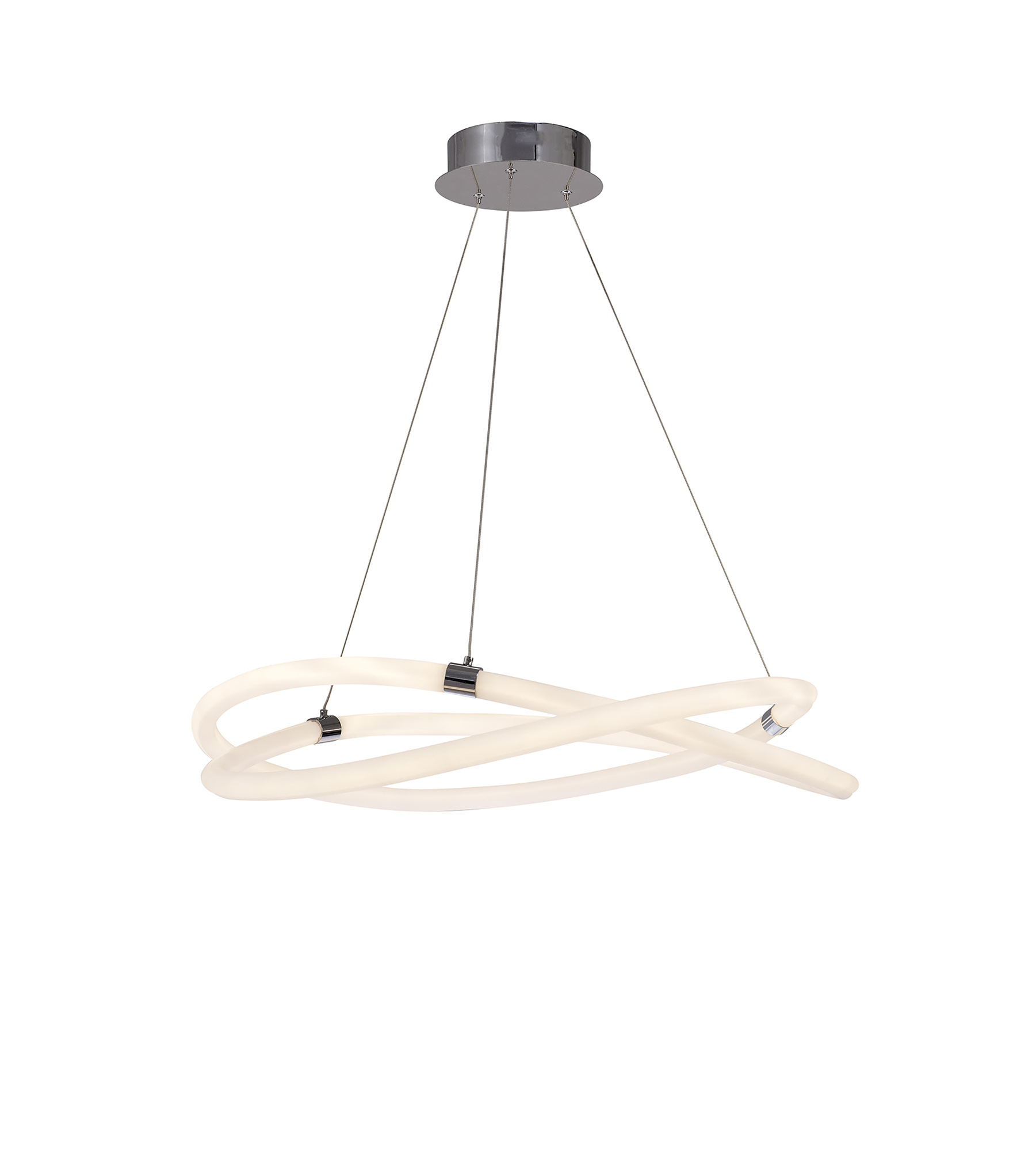

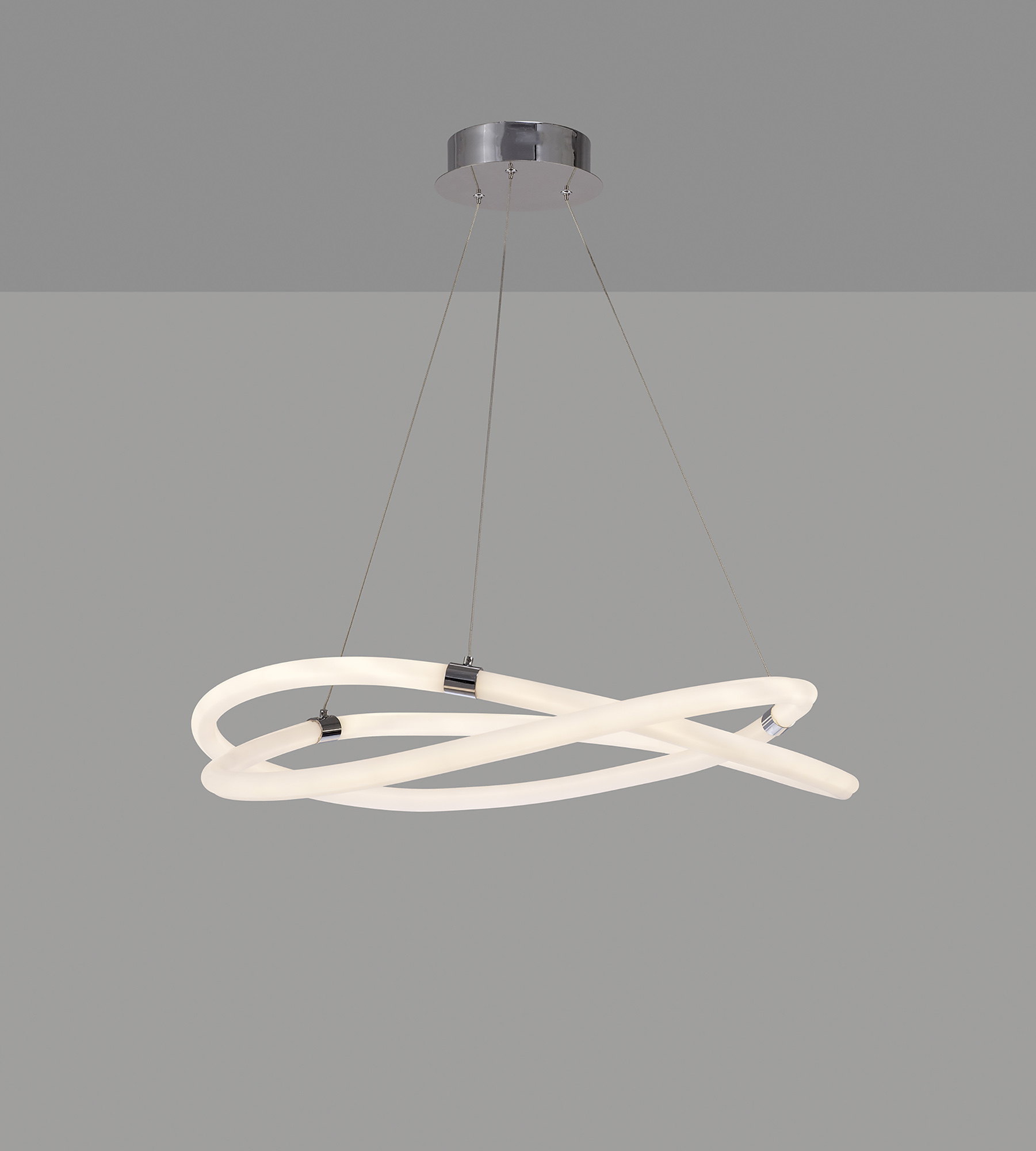

Infinity II Ceiling 60W LED

Infinity II 73cm Ceiling, 60W LED, 3000K, 4500lm, IP20, Chrome, 3yrs Warranty

Item Has a LARGE CARTON (PF 24 OK) With Dimensions of: 74x74x14.5cm.

M6607

Qty: Order Item Add to Wishlist

Mantra have always prided themselves in being at the forefront of inventive and innovative design, this second generation of the Infinity collection is no exception. The first of its kind in the lighting industry, Infinity II offers an astounding 360 degree illumination giving a completely ambient array of light dispersion. The clover shaped moulding of the acrylic tubes dispels the 3000K LEDs evenly for optimum lighting output.
Mantra is an internationally recognised manufacturer of designer lighting at affordable prices. With over a 1000 products and every collection having a unique identity, there is never a shortfall of choice. In order to protect our designs and customers alike, all designs are registered throughout the world. Extensive investment in research and development ensures that new designs are as innovative as possible. With the majority of ranges suitable for low energy lamps and also new ranges of LED f Show More...
Design by
Jose Ignacio Ballester
After several years of dedication to fine arts, which he combined with his secondary studies, Jose joined the design teams of several companies in the furniture sector. In 2000 he launched his career in the decorative lighting field where he worked for prestigious companies such as Gotic Decor and AC Design, as head designer.
Quick Spec
Brief DescriptionInfinity II Ceiling 60W LED
Colour FinishPolished Chrome
Colour Finish 2Opal White
Ceiling MountableYes
Item Nett Weight (kg)3.2kg

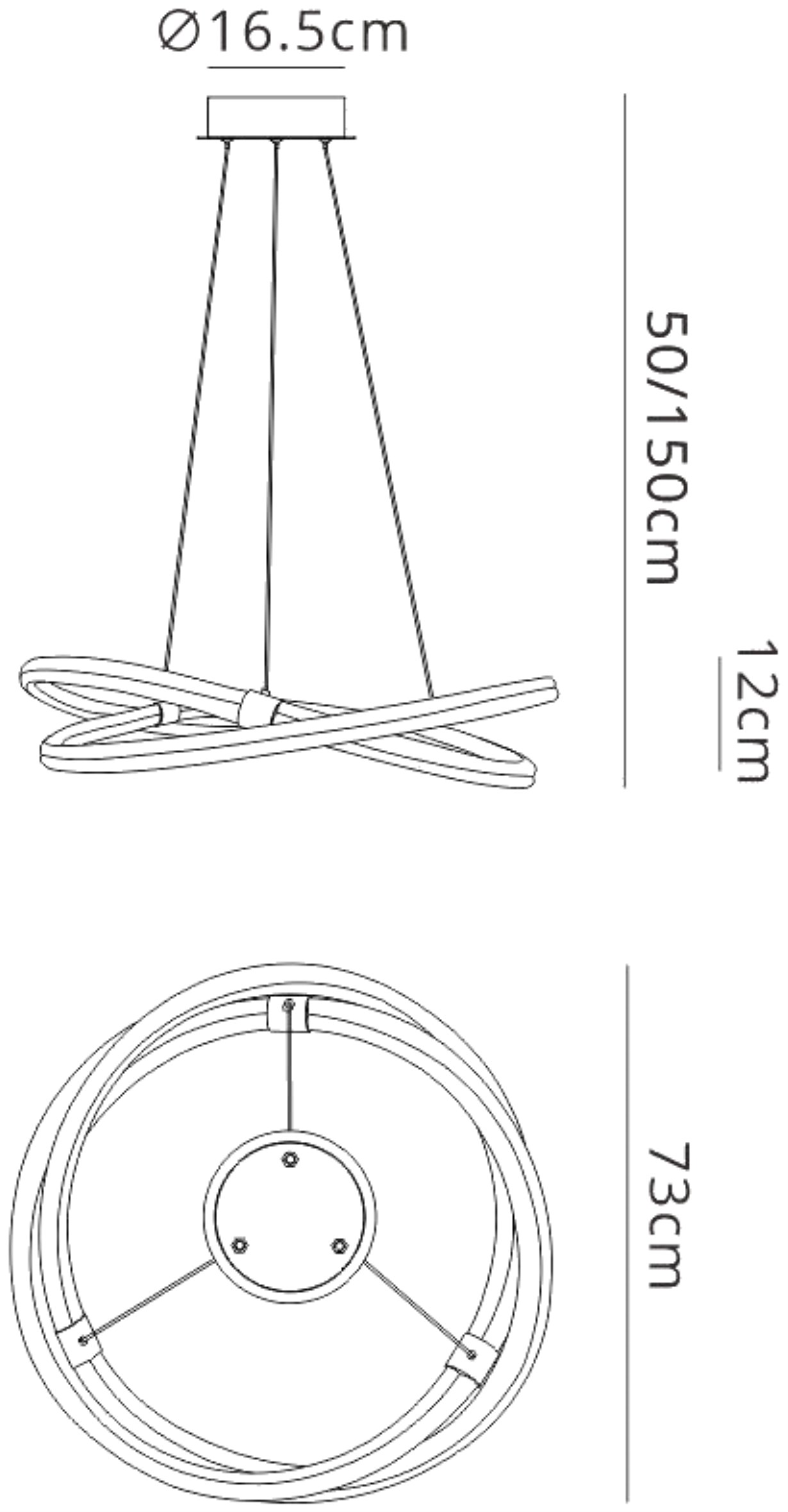

Diameter (mm)730mm
Minimum Drop (mm)500mm
Maximum Drop (mm)1500mm
Body Height (mm)120mm
Energy ClassG
No: of Lamp1
Lamp SocketIntegral LED
Recommended LampIntegral LED
Max Wattage Lamp (W)60W
Lamp IncludedYes - Integrated
Type of Lamp IncludedIntegrated LED
Colour Temperature (K)3000K Warm White (±5%) ( ±5%)
Beam Angle (°)120°
System Flux (lm)4500lm (±5%) ( ±5%)
CRI>80
Delivery RequirementsItem Has a LARGE CARTON (PF 24 OK) With Dimensions of: 74x74x14.5cm.
Driver IncludedYes
Protection ClassClass 1 - Earth Connection Required
DimmableNo
IP RatingIP20
Average Life (hrs)30000hrs
Warranty (yrs)3yrs
Features
Features, Will be added soon
Full Specifications
Collection GroupInfinity II
Barcode8435153266072
Catalogue Page NoNot In Current Catalogue, Edition 12 Supplement Pg:
Brief DescriptionInfinity II Ceiling 60W LED
Catalogue DescriptionLED Pendant Large
Colour FinishPolished Chrome
Colour Finish 2Opal White
Ceiling MountableYes
Item Nett Weight (kg)3.2kg
Diameter (mm)730mm
Minimum Drop (mm)500mm
Maximum Drop (mm)1500mm
Body Height (mm)120mm
Materials UsedSteel, Acrylic
Adjustable HeightYes
Hanging MethodCable
Energy ClassG
Energy Class of LampGroup A
Max Energy ClassG
Min Energy ClassG
No: of Lamp1
Lamp SocketIntegral LED
Recommended LampIntegral LED
Max Wattage Lamp (W)60W
Lamp IncludedYes - Integrated
Type of Lamp IncludedIntegrated LED
Colour Temperature (K)3000K Warm White (±5%) ( ±5%)
No. of Switching Cycles30000
Average Life of LED (hrs)20000hrs
LED BrandEdison
Qty of SMD300
SMD Chipset2835
LED Power (W)0.2W (±5%) ( ±5%)
Type of LEDSMD
Delivery RequirementsItem Has a LARGE CARTON (PF 24 OK) With Dimensions of: 74x74x14.5cm.
Lumens Per Watt (lm/W)75lm/W (±5%) ( ±5%)
Beam Angle (°)120°
System Flux (lm)4500lm (±5%) ( ±5%)
CRI>80
Light DistributionAmbient
Driver IncludedYes
Type of DriverConstant Current
Constant Current Output (mA)1000mA
Min/Max. Voltage Output (V)30-60V
Load Range (W)60W
Ta (°C)-10° to +45°C
Protection ClassClass 1 - Earth Connection Required
Total Power Consumption (W)60W (±5%) ( ±5%)
Input Voltage (V)220-240V~50/60Hz
DimmableNo
IP RatingIP20
Average Life (hrs)30000hrs
Warranty (yrs)3yrs
UKCA/CEYes
RohsYes
Bracket Dimensions (mm)L:165mm
Cable InformationTransparente/1.5m
Number of Cartons1
Carton Length (cm)74cm
Carton Width (cm)74cm
Carton Height (cm)14.5cm
Carton CBM0.0794
Carton Nett Weight (kg)3.2kg (±5%) ( ±5%)
Carton Gross Weight (kg)5.44kg (±5%) ( ±5%)
Pieces Included1
Carton DetailsFull Colour Carton
InstallationRequires Installation By Qualified Electrician
Sloped Ceiling CompatibleYes
Sloped Ceiling Adapter RequiredNo
Product Care(1) Wipe clean with a dry cloth, do not use any cleaning detergents, do not use rough or coarse material to clean. (2) Ensure light is not illuminated when cleaning.
UK Commodity Code9405119090
Country of OriginChina
