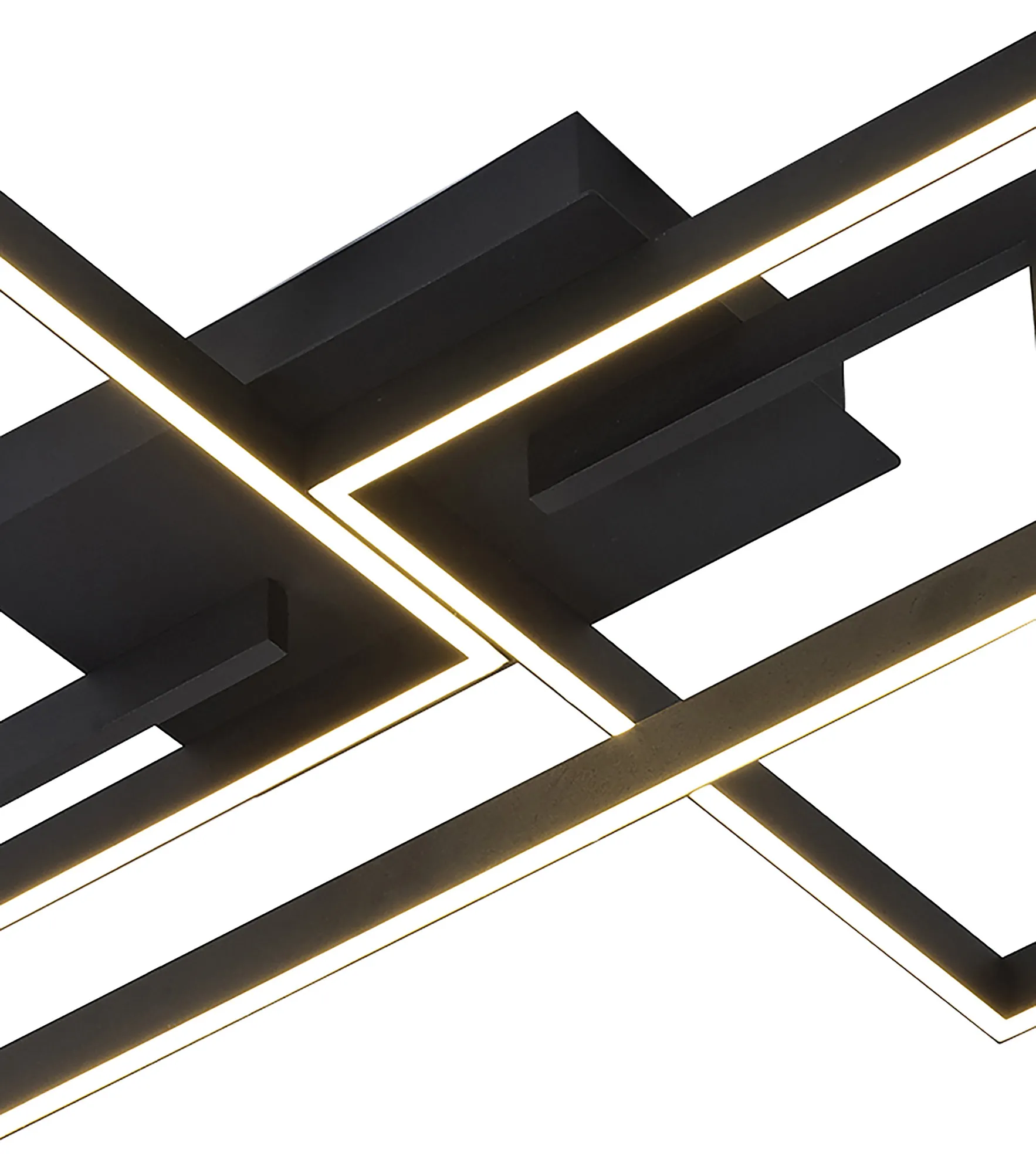

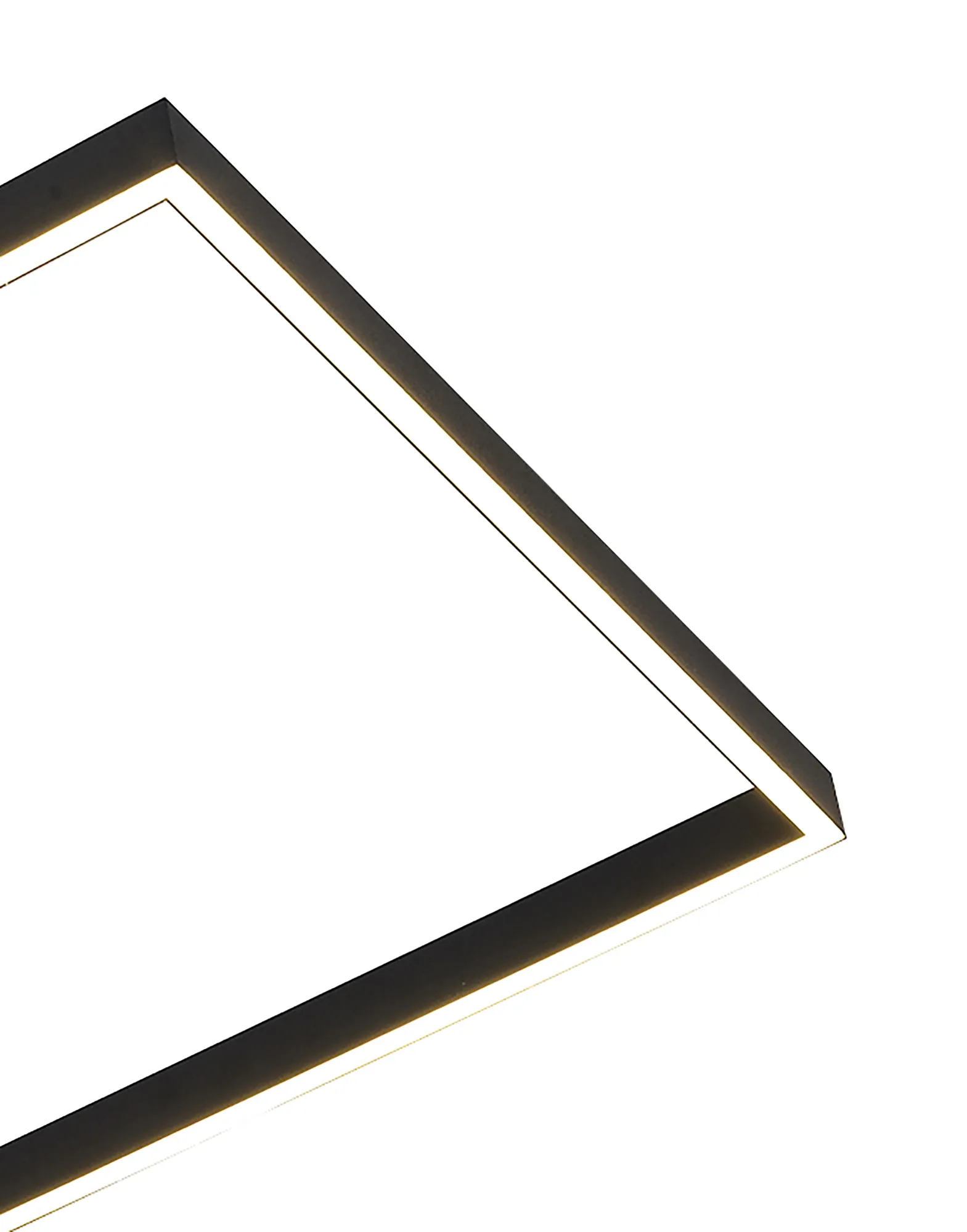

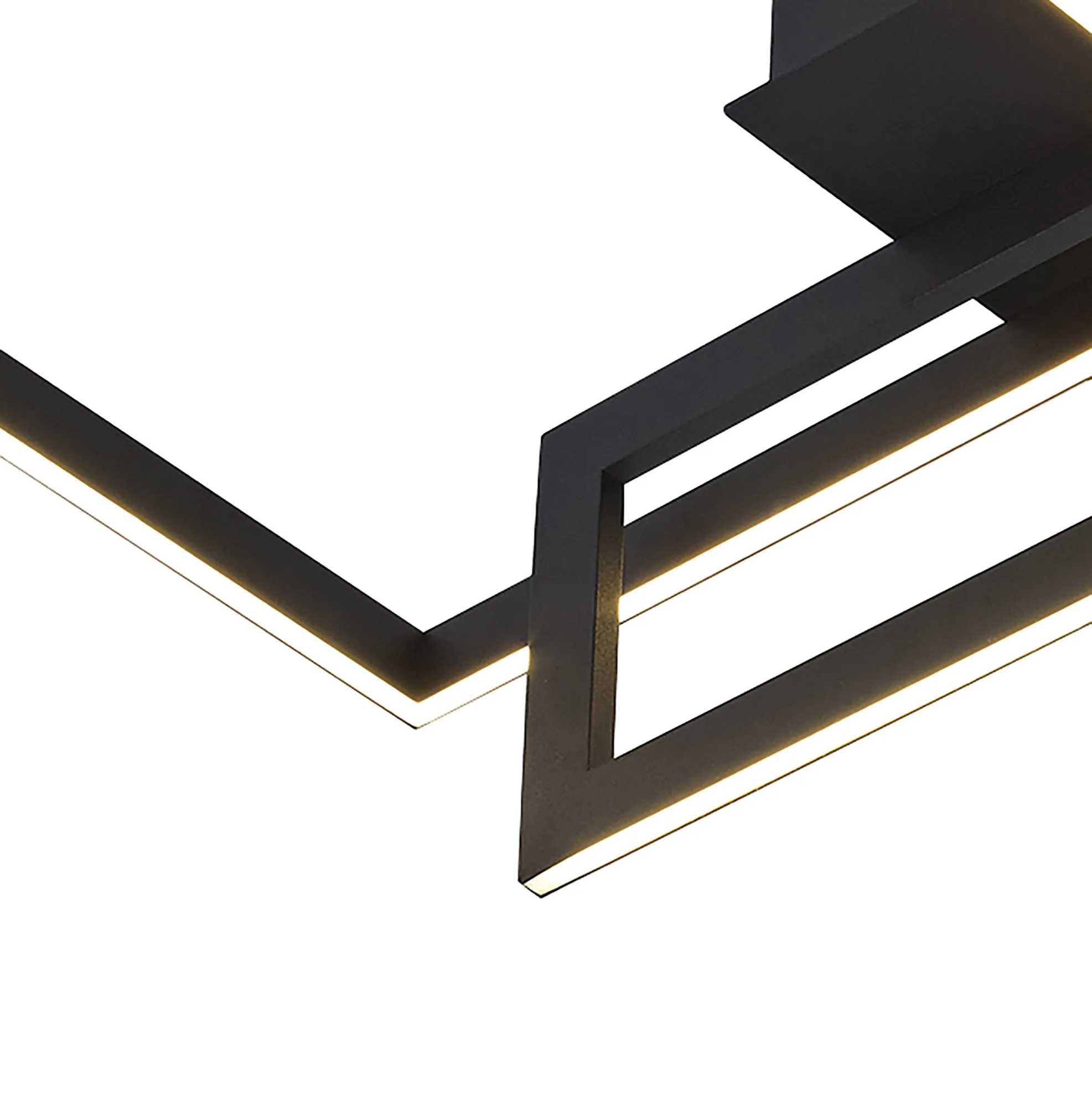

Mural Rectangular Flush Ceiling 48W LED Dimmable Matt Black
Gallery Images (13)

Mural Rectangular Ceiling, Dimmable, 48W LED, 3000K, 3840lm, IP20, Matt Black, 3yrs Warranty

Item Has a LARGE CARTON With Dimensions of: 80x70x25cm.

M7463

Colour Finish :
Matt Black

Qty: Order Item Add to Wishlist

Mural is an original and inventive concept from the Mantra Team. Within this comprehensive collection featuring ceiling, table, floor and wall lights; the ceiling and larger wall fixtures both offer a dimmable option. The wall lights are composed of two shapes which are linked together by the central plate, shaped to correspond with the design. The integral 3000K warm white LED's, emit light from the front of the central plate and from the back of the shapes themselves producing an amazing halo effect on the wall behind the fixture. The two shapes on each wall lamp are intentionally projected at different widths, to enable the possibility of over-lapping multiple. Along with this incredible feature, an ability to fix these lights at any flush angle and the open sections within the shapes, Mural is the ultimate choice to explore unique, illuminated wall art creations. The imaginative possibilities are endless!
The Mantra Fusion brand is an expansion of the amazing products, already gracing the lighting industry, by Mantra Lighting. Mantra have used their internationally established brand, famous for high quality and unique design, to launch this brand new collection. Mantra Fusion was developed with the vision to provide a more affordable, efficient range of lighting solutions for home design or commercial projects, without compromising the high standards of quality and attention to detail Mantra are Show More...
Design by
Jose Ignacio Ballester
After several years of dedication to fine arts, which he combined with his secondary studies, Jose joined the design teams of several companies in the furniture sector. In 2000 he launched his career in the decorative lighting field where he worked for prestigious companies such as Gotic Decor and AC Design, as head designer.
Quick Spec
Brief DescriptionMural Rectangular Flush Ceiling 48W LED Dimmable Matt Black
Colour FinishMatt Black
Ceiling MountableYes
Item Nett Weight (kg)2.2kg

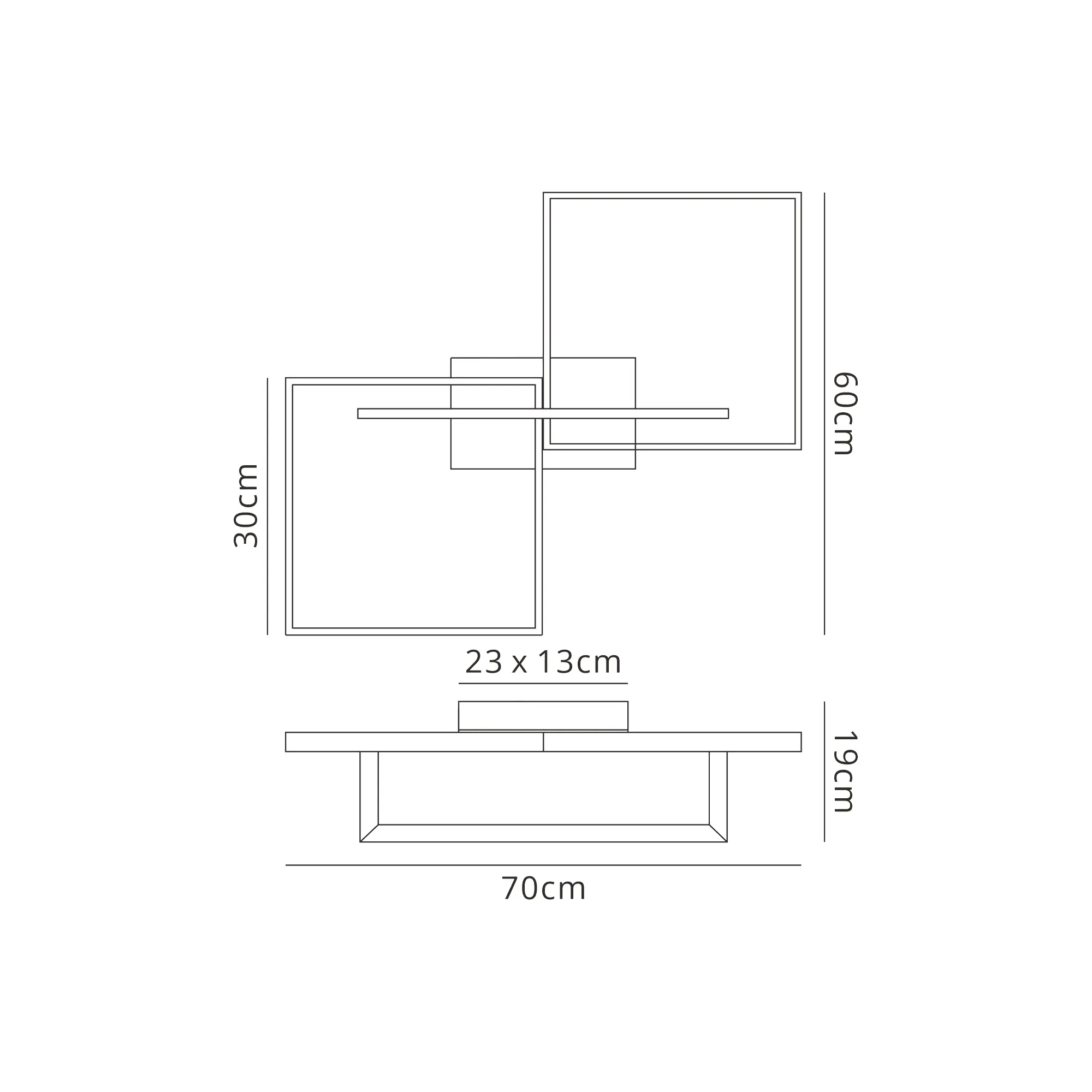

Length (mm)700mm
Width (mm)600mm
Height (mm)190mm
Energy ClassG
No: of Lamp3
Lamp SocketIntegral LED
Recommended LampIntegral LED
Max Wattage Lamp (W)48W
Lamp IncludedYes - Integrated
Type of Lamp IncludedIntegrated LED
Colour Temperature (K)3000K Warm White (±5%)
Beam Angle (°)60°
System Flux (lm)3840lm (±5%)
CRI>80
Driver IncludedYes
Protection ClassClass 1 - Earth Connection Required
DimmableYes - Suitable Dimmer Required
Dimmer IncludedNo
IP RatingIP20
Average Life (hrs)30000hrs
Warranty (yrs)3yrs
Features
Features, Will be added soon
Full Specifications
Collection GroupMural
Barcode8435153274633
Brief DescriptionMural Rectangular Flush Ceiling 48W LED Dimmable Matt Black
Catalogue DescriptionMural Rectangular Flush Ceiling 48W LED Dimmable
Colour FinishMatt Black
Ceiling MountableYes
Item Nett Weight (kg)2.2kg
Length (mm)700mm
Width (mm)600mm
Height (mm)190mm
Materials UsedDie-cast Aluminium
Energy ClassG
Energy Class of LampGroup A
Max Energy ClassG
Min Energy ClassG
No: of Lamp3
Lamp SocketIntegral LED
Recommended LampIntegral LED
Max Wattage Lamp (W)48W
Lamp IncludedYes - Integrated
Type of Lamp IncludedIntegrated LED
Colour Temperature (K)3000K Warm White (±5%)
No. of Switching Cycles30000
Average Life of LED (hrs)20000hrs
LED BrandEpistar
Qty of SMD240
SMD Chipset2835/0.2W
LED Power (W)0.2W (±5%)
Type of LEDSMD
Lumens Per LED16lm
Lumens Per Watt (lm/W)80lm/W (±5%)
Beam Angle (°)60°
System Flux (lm)3840lm (±5%)
CRI>80
Light DistributionAmbient
Driver IncludedYes
Type of DriverConstant Current
Power Factor (?)>0.90? (±5%)
Constant Current Output (mA)700mA
Min/Max. Voltage Output (V)48-72V
Load Range (W)48W
Ta (°C)-10° to +45°C
Casing MaterialAluminium, Iron
Dimming ProtocolTriac
Protection ClassClass 1 - Earth Connection Required
Total Power Consumption (W)48W (±5%)
Input Voltage (V)220-240V~50/60Hz
DimmableYes - Suitable Dimmer Required
Dimmer IncludedNo
IP RatingIP20
Average Life (hrs)30000hrs
Warranty (yrs)3yrs
UKCA/CEYes
RohsYes
TUVYes
Additional CertificationSAA
Bracket Dimensions (mm)L:230mm x W:130mm
Number of Cartons1
Carton Length (cm)80cm
Carton Width (cm)70cm
Carton Height (cm)25cm
Carton CBM0.1400
Carton Nett Weight (kg)2.2kg (±5%)
Carton Gross Weight (kg)3.5kg (±5%)
Pieces Included1
Carton DetailsFull Colour Carton
InstallationRequires Installation By Qualified Electrician
Sloped Ceiling CompatibleYes
Sloped Ceiling Adapter RequiredNo
Product Care(1) Wipe clean with a dry cloth, do not use any cleaning detergents, do not use rough or coarse material to clean. (2) Ensure light is not illuminated when cleaning.
UK Commodity Code9405119090
Country of OriginChina
