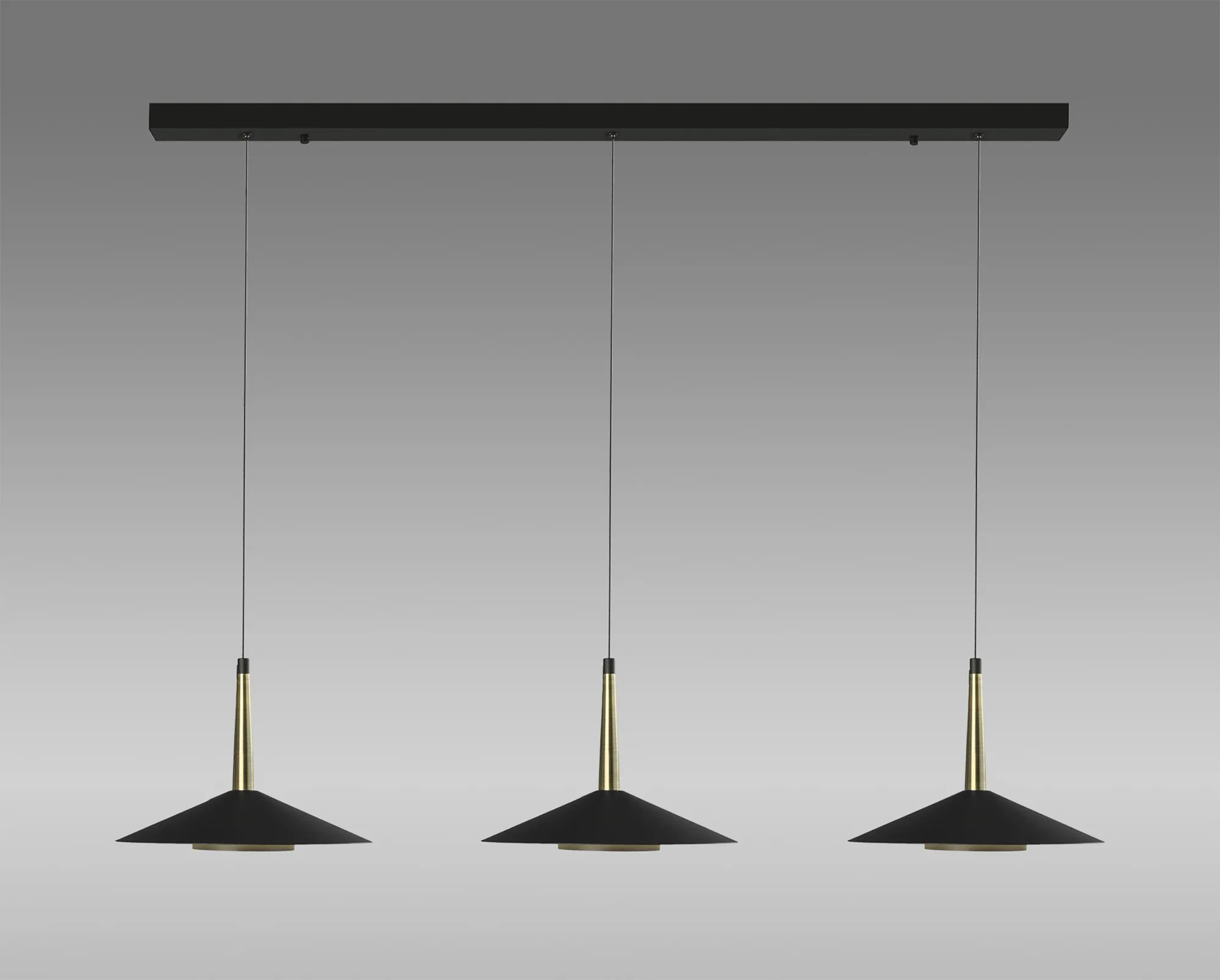

Orion Linear Pendant 3 Light 24W LED
Gallery Images (14)

Orion 3 Light Linear Pendant, 24W LED, 3000K, 1770lm, Black/Antique Brass, 3yrs Warranty

Item Has a LARGE CARTON With Dimensions of: 130x33x31cm.

M7475

Qty: Order Item Add to Wishlist

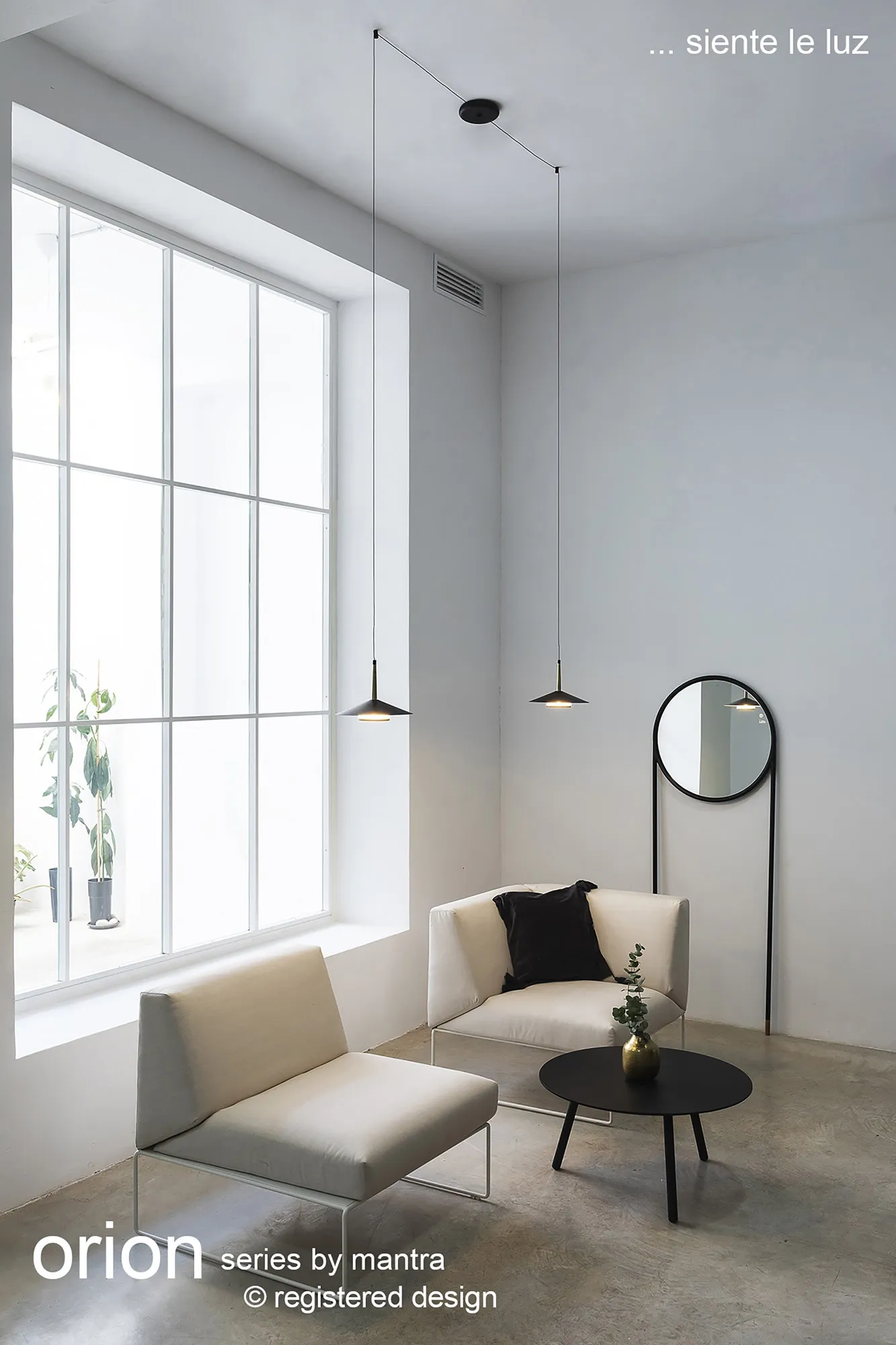

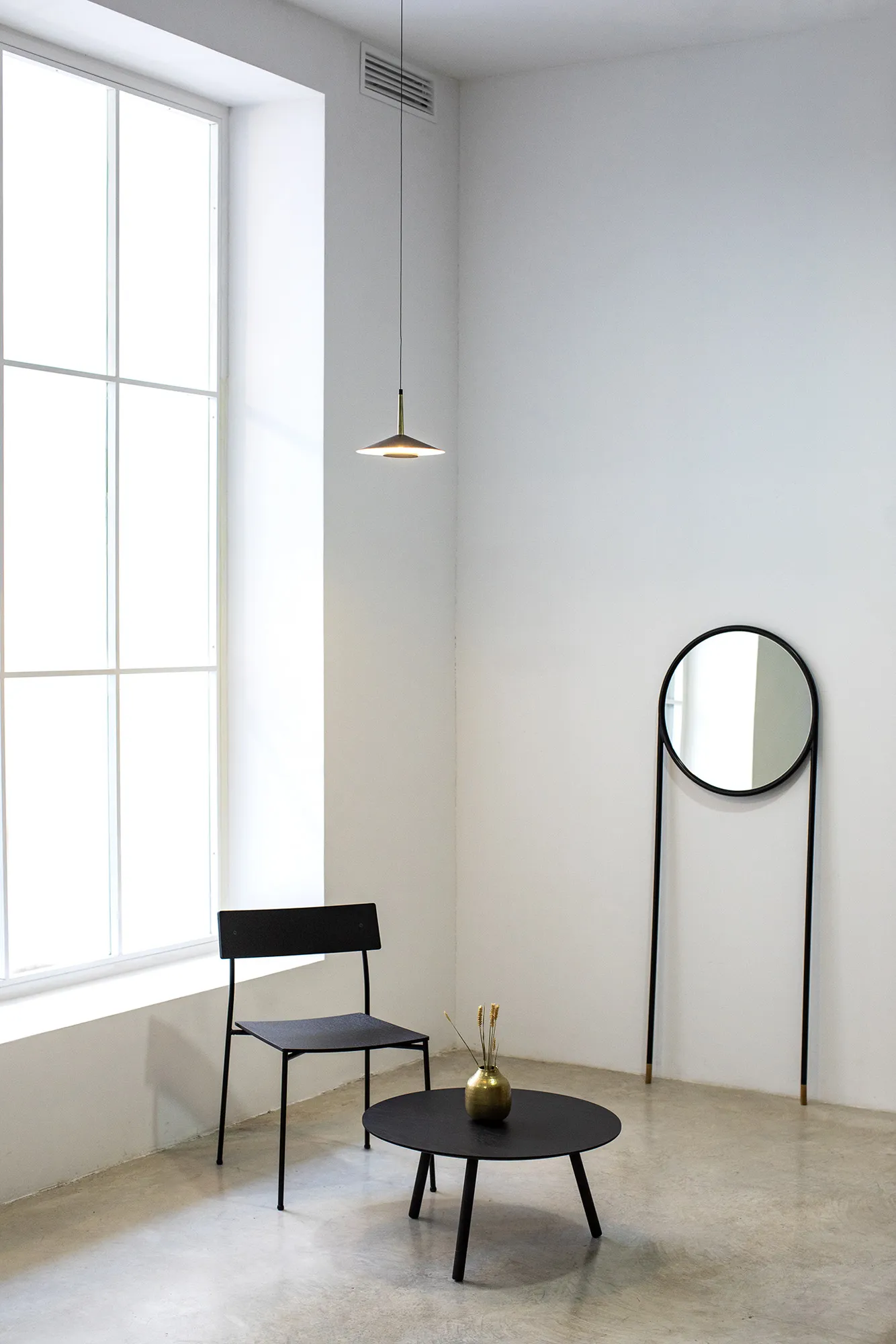

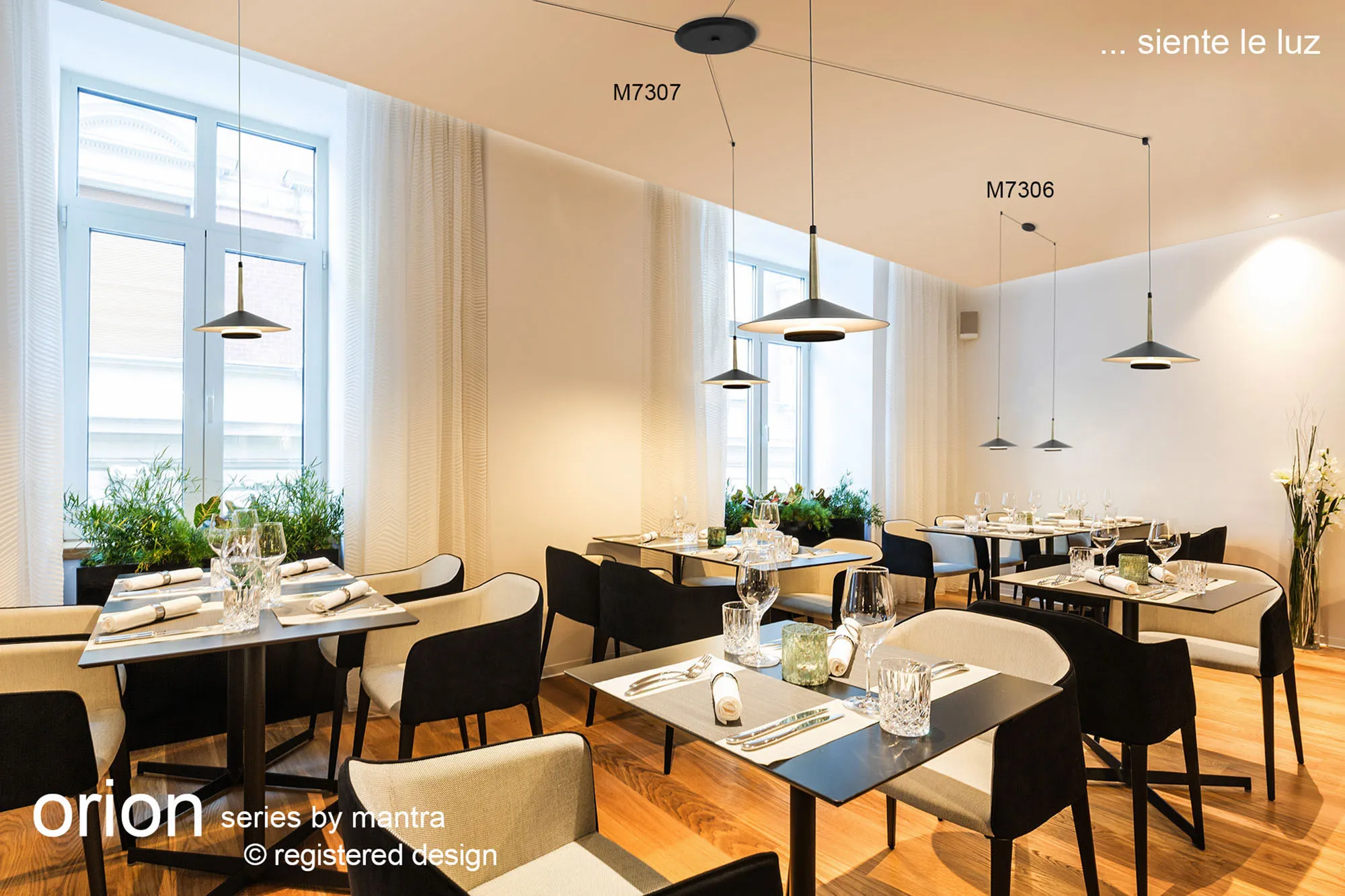

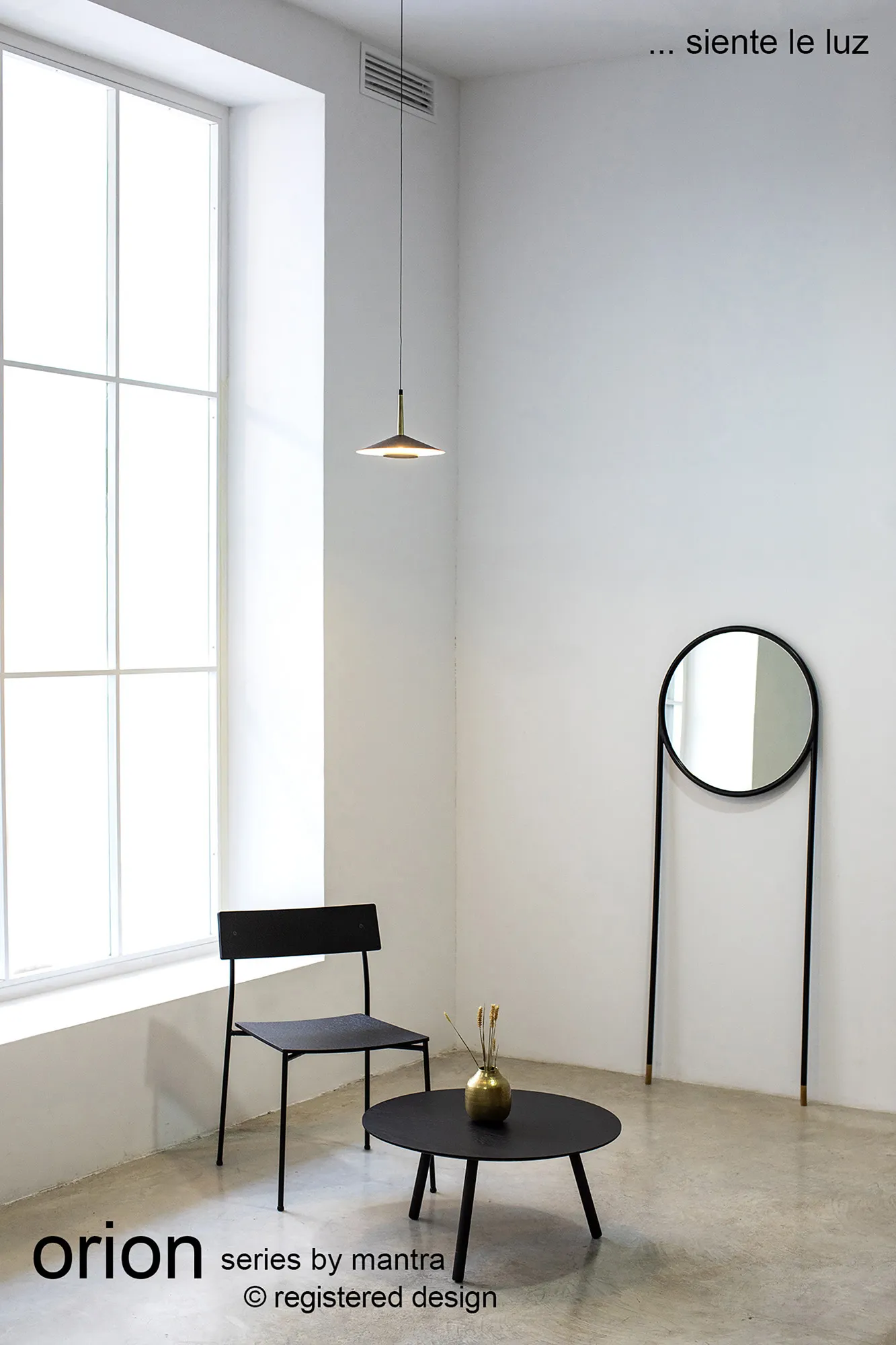

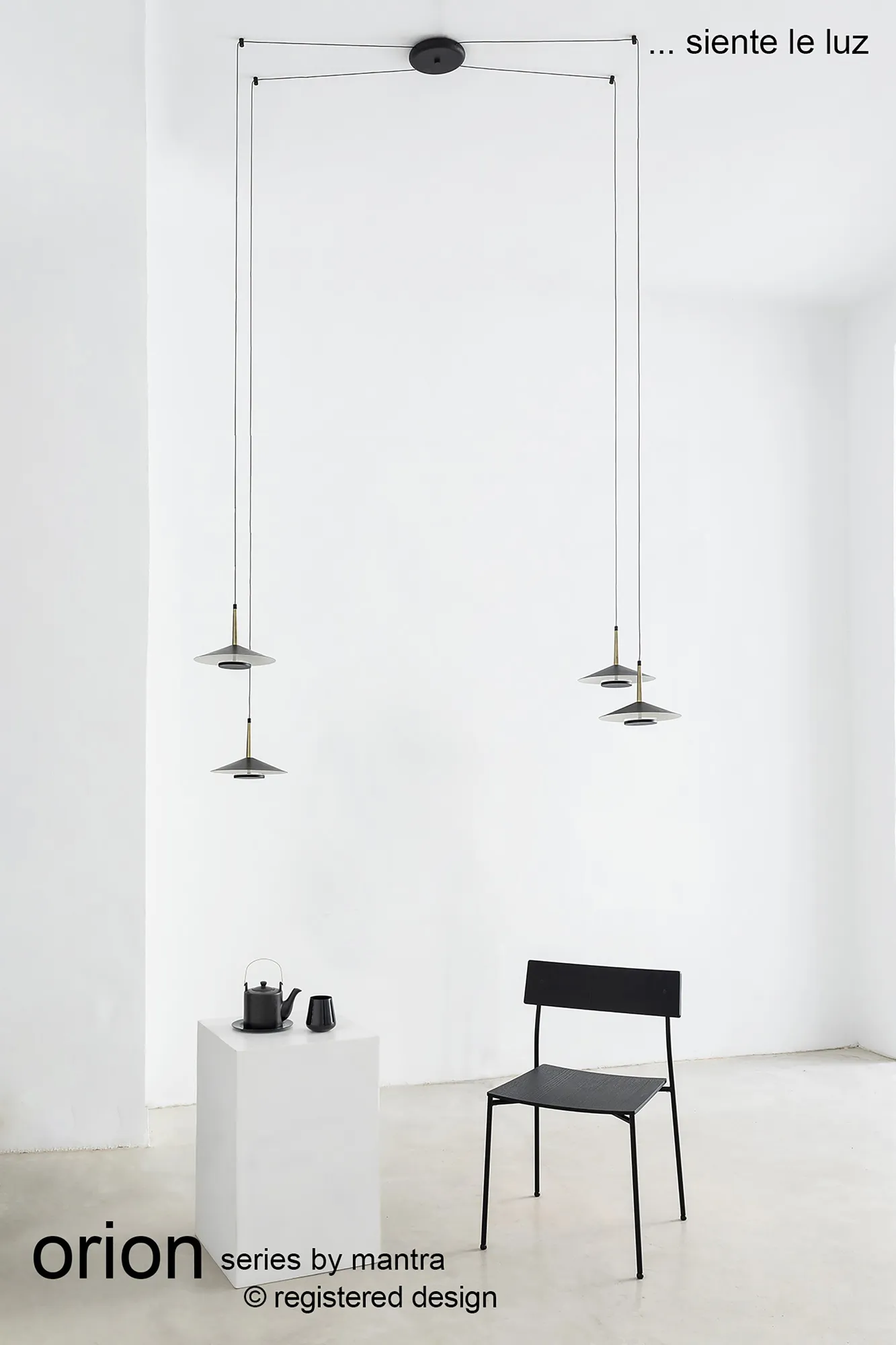

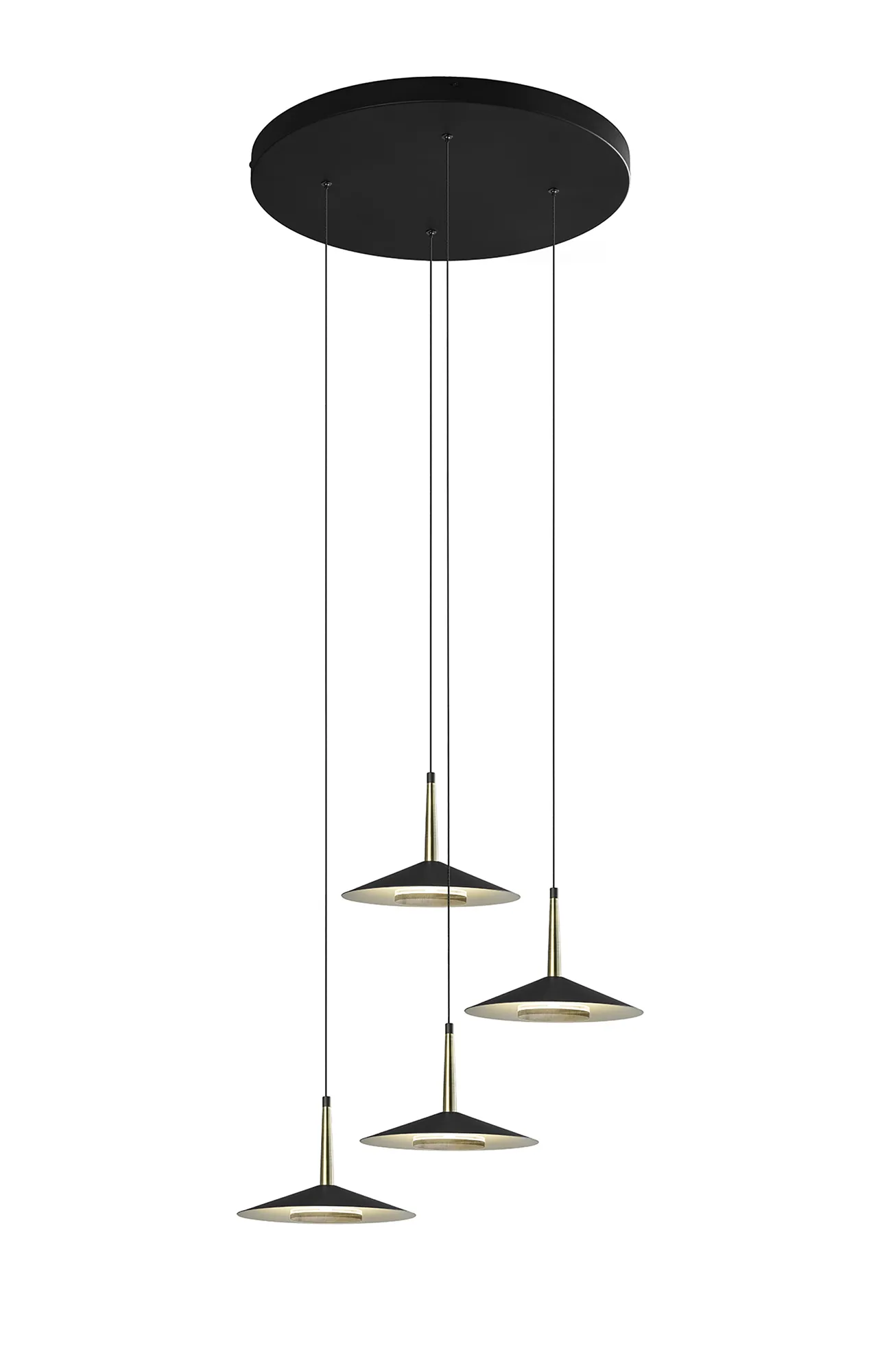

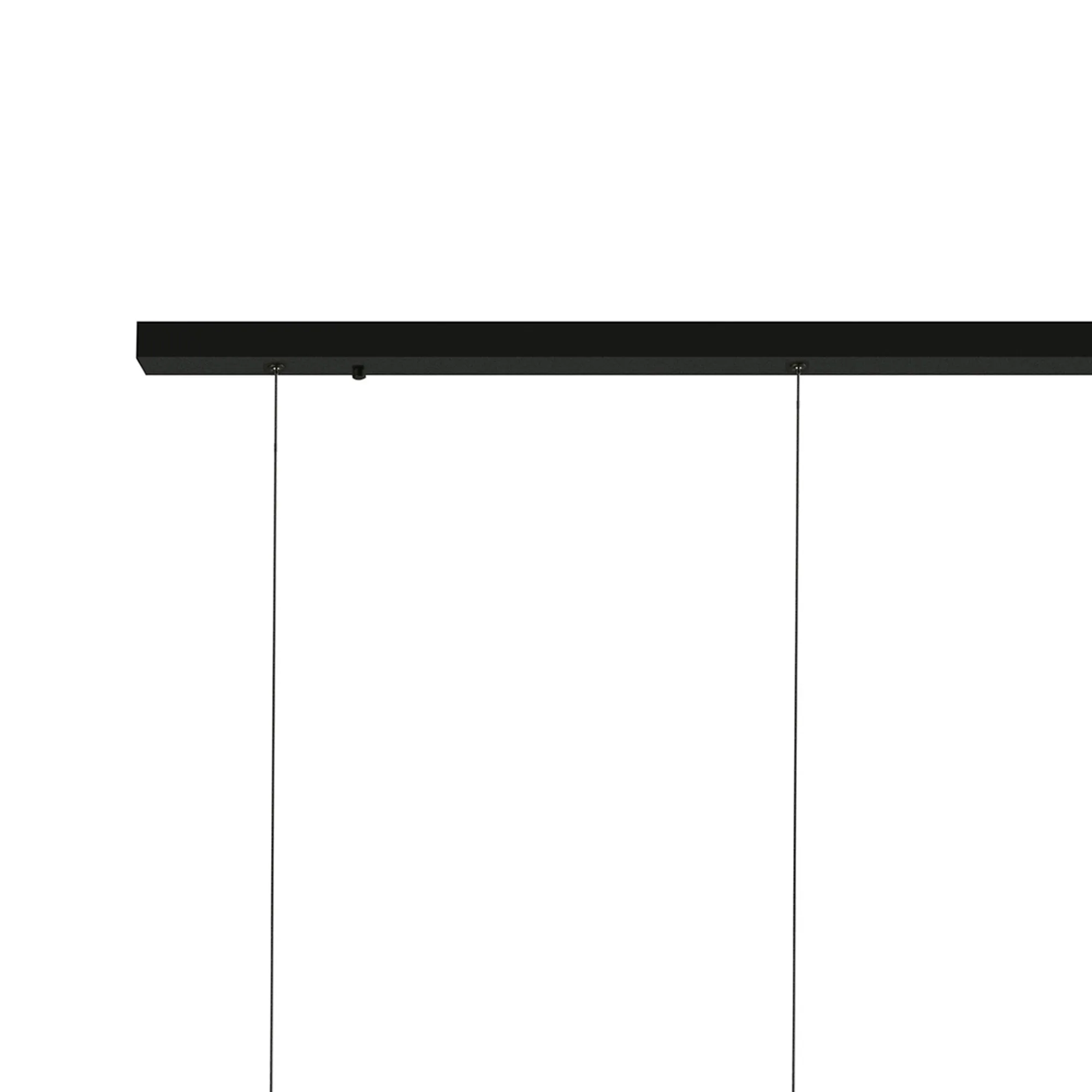

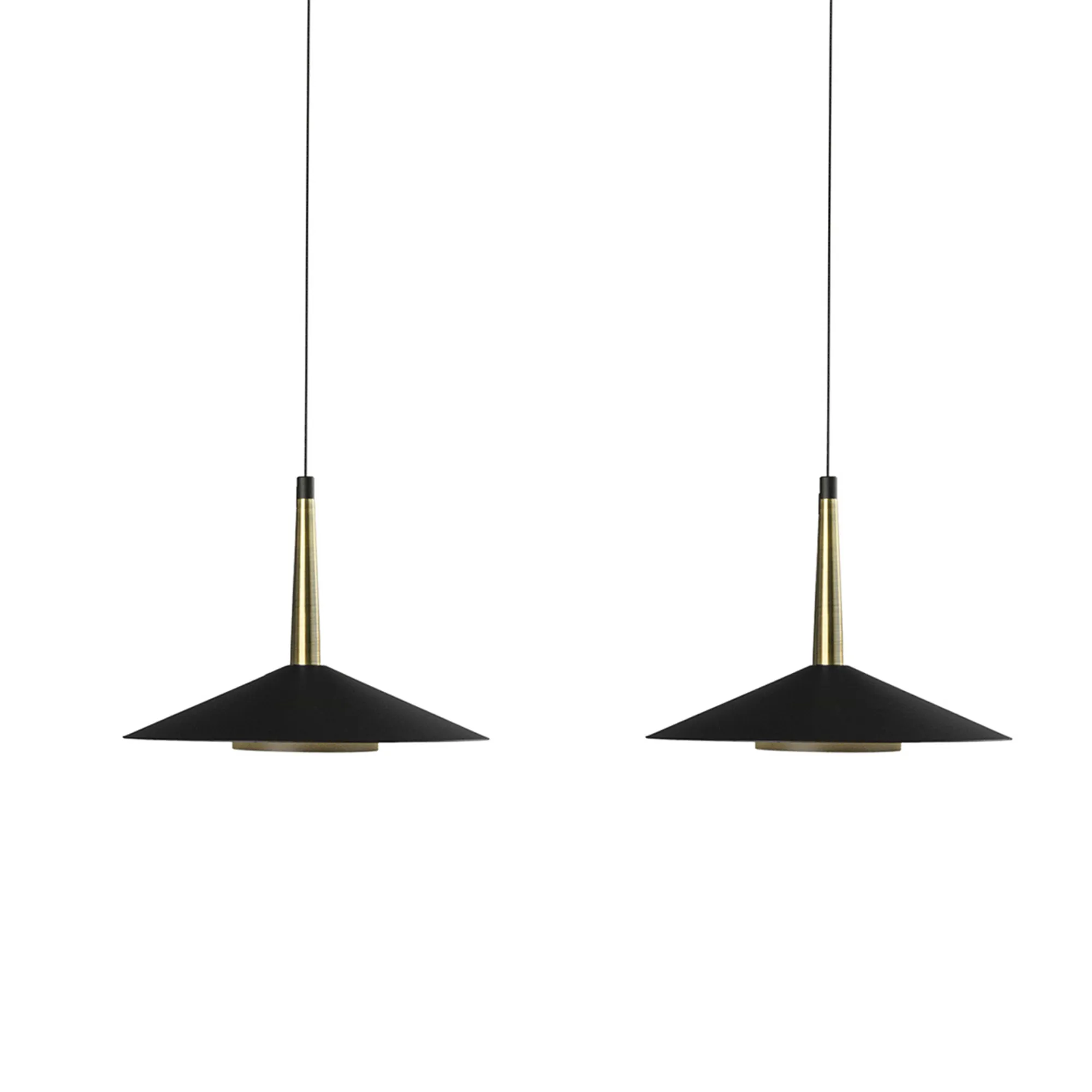

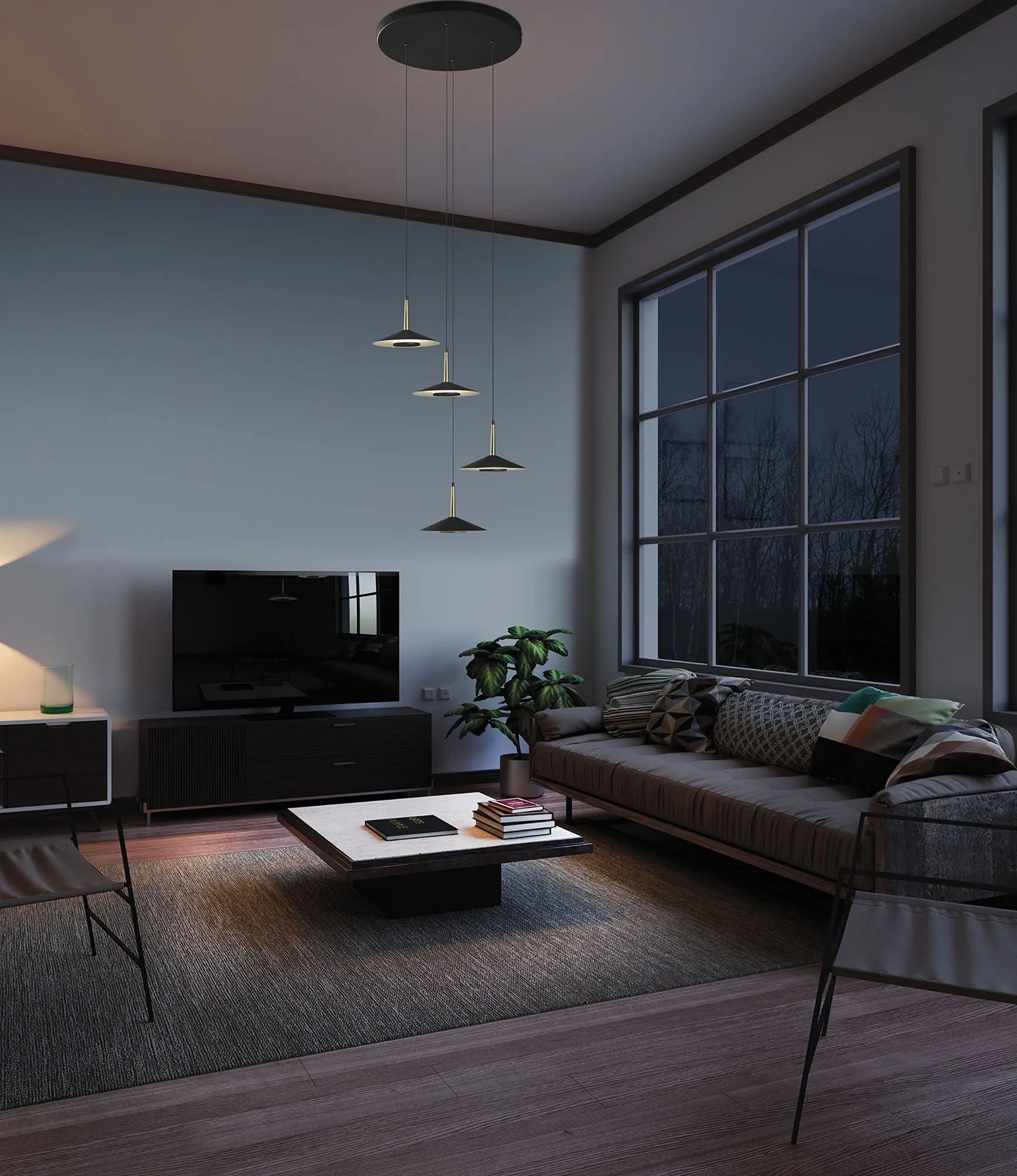

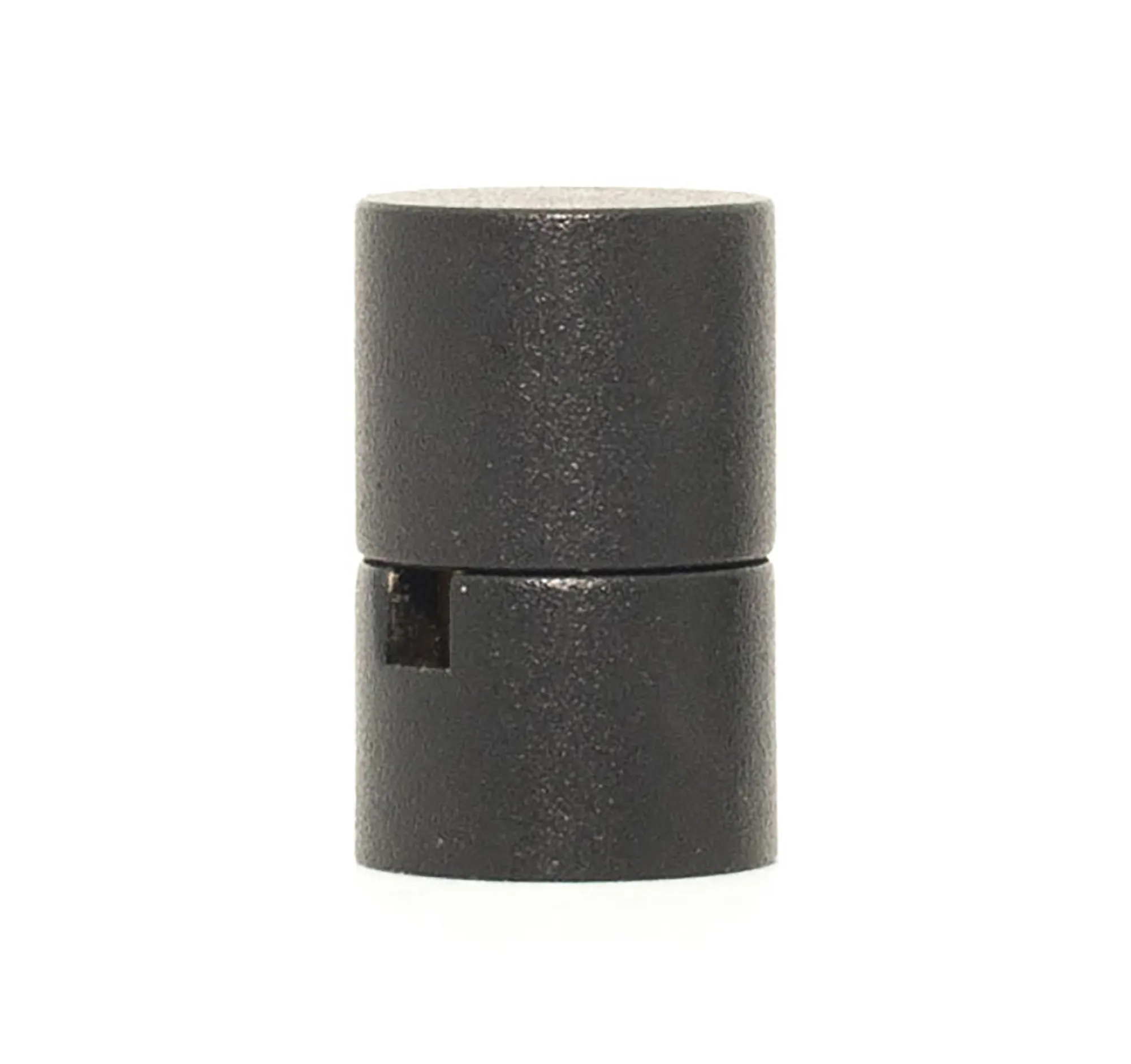

Mantra's Orion range is a collection of pendant lights with an unconventional twist. The two and four light versions are supplied with wire locker components which can be used to widen the range at which each light, with their shallow cone frame, is hung from the ceiling. This rids the user of the constraints enforced by a ceiling bar allowing further control and design over the aesthetic of the fixture. The single, 3 light linear and four light round pendants however, follow a more traditional structure with their fixed plates.
The Mantra Fusion brand is an expansion of the amazing products, already gracing the lighting industry, by Mantra Lighting. Mantra have used their internationally established brand, famous for high quality and unique design, to launch this brand new collection. Mantra Fusion was developed with the vision to provide a more affordable, efficient range of lighting solutions for home design or commercial projects, without compromising the high standards of quality and attention to detail Mantra are Show More...
Design by
Hugo Tejada
Hugo gained a technical engineering degree in industrial design from the Cardenal Herrera CEU university. He subsequently specialized in automobile design where he studied an official master's degree program at the polytechnical university of Valencia. Between 2007 - 2011 he was a leading designer for a valencian lighting firm.
Quick Spec
Brief DescriptionOrion Linear Pendant 3 Light 24W LED
Colour FinishBlack
Colour Finish 2Antique Brass
Ceiling MountableYes
Item Nett Weight (kg)3.25kg

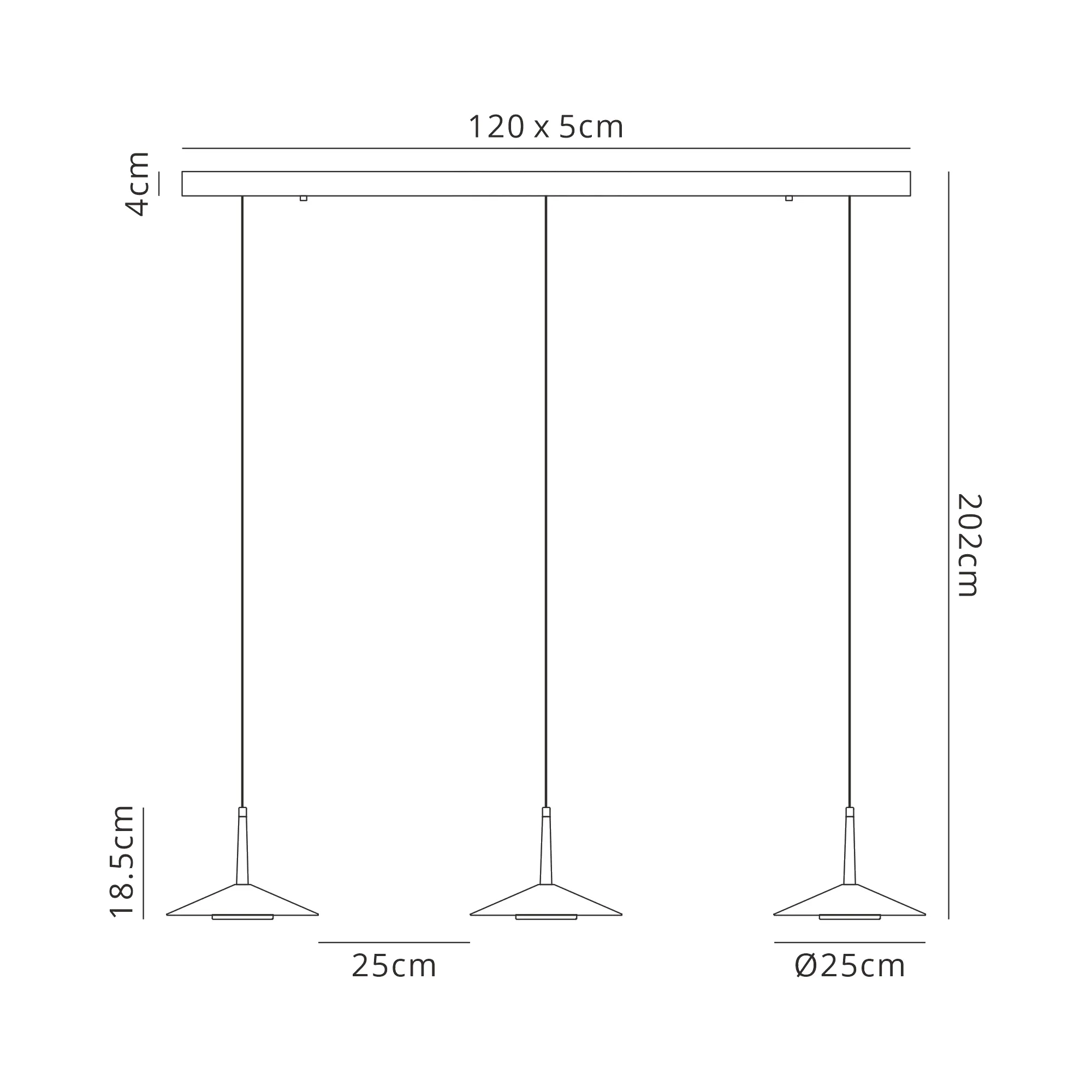

Length (mm)1200mm
Width (mm)250mm
Minimum Drop (mm)250mm
Maximum Drop (mm)2020mm
Body Height (mm)185mm
Energy ClassA++ to A
No: of Lamp3
Lamp SocketIntegral LED
Recommended LampIntegral LED
Max Wattage Lamp (W)24W
Lamp IncludedYes - Integrated
Type of Lamp IncludedIntegrated LED
Colour Temperature (K)3000K Warm White (±5%)
Beam Angle (°)120°
System Flux (lm)1770lm (±5%)
CRI>80
Driver IncludedYes
Protection ClassClass 2 - Double Insulated
DimmableNo
IP RatingIP20
Average Life (hrs)30000hrs
Warranty (yrs)3yrs
Features
Features, Will be added soon
Full Specifications
Collection GroupOrion
Barcode8435153274756
Brief DescriptionOrion Linear Pendant 3 Light 24W LED
Catalogue DescriptionLED 3 Light Linear Pendant
Colour FinishBlack
Colour Finish 2Antique Brass
Ceiling MountableYes
Item Nett Weight (kg)3.25kg
Length (mm)1200mm
Width (mm)250mm
Minimum Drop (mm)250mm
Maximum Drop (mm)2020mm
Body Height (mm)185mm
Materials UsedAcrylic
Adjustable HeightYes
Hanging MethodWire
Energy ClassA++ to A
Energy Class of LampGroup A
Max Energy ClassA++
Min Energy ClassA
No: of Lamp3
Lamp SocketIntegral LED
Recommended LampIntegral LED
Max Wattage Lamp (W)24W
Lamp IncludedYes - Integrated
Type of Lamp IncludedIntegrated LED
Colour Temperature (K)3000K Warm White (±5%)
No. of Switching Cycles30000
Average Life of LED (hrs)30000hrs
LED BrandEdison
SMD Chipset2835
LED Power (W)0.2W (±5%)
Type of LEDEdison 2835
Beam Angle (°)120°
System Flux (lm)1770lm (±5%)
CRI>80
Light DistributionAmbient
Driver IncludedYes
Type of DriverConstant Current
Constant Current Output (mA)350mA
Min/Max. Voltage Output (V)57-72V
Load Range (W)20-25W
Protection ClassClass 2 - Double Insulated
Total Power Consumption (W)24W (±5%)
Input Voltage (V)220-240V~50/60Hz
DimmableNo
IP RatingIP20
Average Life (hrs)30000hrs
Warranty (yrs)3yrs
UKCA/CEYes
RohsYes
TUVYes
Number of Cartons1
Carton Length (cm)130cm
Carton Width (cm)33cm
Carton Height (cm)31cm
Carton CBM0.133
Carton Nett Weight (kg)3.25kg (±5%)
Carton Gross Weight (kg)6.37kg (±5%)
Pieces Included1
Carton DetailsFull Colour Carton
InstallationRequires Installation By Qualified Electrician
Sloped Ceiling CompatibleYes
Sloped Ceiling Adapter RequiredNo
Product Care(1) Wipe clean with a dry cloth, do not use any cleaning detergents, do not use rough or coarse material to clean. (2) Ensure light is not illuminated when cleaning.
UK Commodity Code9405119090
Country of OriginChina
