Magneto Linear Light Diffuser 8W LED 3000K Black

Magneto 48V Linear Light Diffuser, 300mm, 8W LED, 3000K, 640lm. Black, 3yrs Warranty

M8318

Colour Temperature :
Colour Finish :
Black

Qty: Order Item Add to Wishlist

Mantra's Magneto series represents an advanced 48V track lighting system engineered for extensive configurability and performance. This modular product line encompasses a diverse selection of luminaires, including precision-engineered spotlights, refined pendant fixtures, and a comprehensive suite of compatible accessories. A key differentiator within the Magneto range is its widespread integration of TRIAC dimmable drivers, facilitating seamless and granular control over light output to meet precise application requirements. The system is offered in a triad of premium finishes-black, black/gold, and newly added white-each designed to enhance aesthetic appeal while delivering a contemporary and impactful spatial presence. With multiple wattage options available, the Magneto range provides scalable luminous efficacy tailored for both commercial and residential environments, delivering an optimal balance of functionality, design flexibility, and ambient control.
The Mantra Fusion brand is an expansion of the amazing products, already gracing the lighting industry, by Mantra Lighting. Mantra have used their internationally established brand, famous for high quality and unique design, to launch this brand new collection. Mantra Fusion was developed with the vision to provide a more affordable, efficient range of lighting solutions for home design or commercial projects, without compromising the high standards of quality and attention to detail Mantra are Show More...
Design by
Equipo Mantra
The Mantra brand is famous for its collaboration with experienced designers who provide unique, imaginative lighting concepts. The Equipo Mantra designers continue this tradition using their combined careers in the lighting, architectural and design industries to create value lighting collections, whilst still maintaining Mantra ethos siente le luz translating to the fact lighting should not only be visually attractive, functional but actually creates a feeling within you.
Quick Spec
Brief DescriptionMagneto Linear Light Diffuser 8W LED 3000K Black
Colour FinishBlack
Item Nett Weight (kg)0.24kg

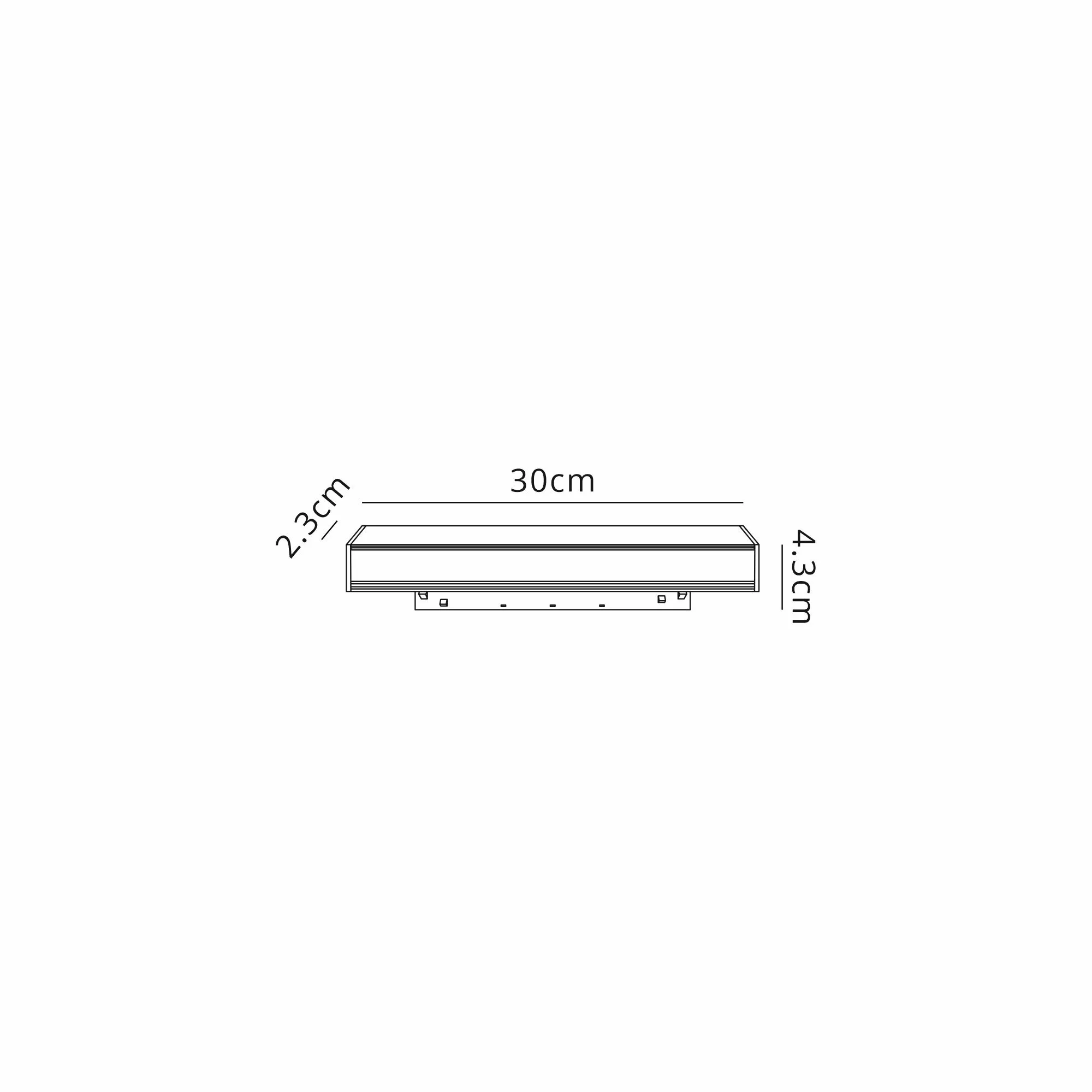

Length (mm)300mm
Width (mm)23mm
Height (mm)42.7mm
Energy ClassG
Lamp SocketIntegral LED
Recommended LampIntegral LED
Max Wattage Lamp (W)8W
Lamp IncludedYes - Integrated
Type of Lamp IncludedIntegrated LED
Colour Temperature (K)3000K Warm White (±5%)
LED Voltage (V)36V (±5%)
Beam Angle (°)120°
System Flux (lm)640lm (±5%)
CRI=80
Driver IncludedYes
Protection ClassClass 1 - Earth Connection Required
DimmableNo
IP RatingIP20
Average Life (hrs)30000hrs
Warranty (yrs)3yrs
Features
Features, Will be added soon
Full Specifications
Collection GroupMagneto
Barcode8435153283185
Catalogue Page No23
Brief DescriptionMagneto Linear Light Diffuser 8W LED 3000K Black
Colour FinishBlack
Item Nett Weight (kg)0.24kg
Length (mm)300mm
Width (mm)23mm
Height (mm)42.7mm
Materials UsedAluminium, Copper, Plastic
Energy ClassG
Energy Class of LampGroup A
Max Energy ClassG
Min Energy ClassG
Lamp SocketIntegral LED
Recommended LampIntegral LED
Max Wattage Lamp (W)8W
Lamp IncludedYes - Integrated
Type of Lamp IncludedIntegrated LED
Colour Temperature (K)3000K Warm White (±5%)
No. of Switching Cycles30000
Average Life of LED (hrs)30000hrs
LED BrandOSRAM
Qty of SMD1
LED Power (W)8W (±5%)
LED Voltage (V)36V (±5%)
Type of LEDSMD
Lumens Per Watt (lm/W)80lm/W (±5%)
Beam Angle (°)120°
System Flux (lm)640lm (±5%)
CRI=80
Light DistributionDown
Driver IncludedYes
Type of DriverDC48V
Power Factor (?)0.5? (±5%)
Constant Voltage Output (V)DC48V
Protection ClassClass 1 - Earth Connection Required
Total Power Consumption (W)8W (±5%)
Input Voltage (V)220-240V~50/60Hz
DimmableNo
IP RatingIP20
Average Life (hrs)30000hrs
Warranty (yrs)3yrs
UKCA/CEYes
RohsYes
TUVYes
EMV/EMCYes
Number of Cartons1
Carton Length (cm)5.5cm
Carton Width (cm)3cm
Carton Height (cm)31.5cm
Carton CBM0.0005
Carton Nett Weight (kg)0.24kg (±5%)
Carton Gross Weight (kg)0.28kg (±5%)
Pieces Included1
Carton DetailsYellow Carton & Colour Label
InstallationRequires Installation By Qualified Electrician
Product Care(1) Wipe clean with a dry cloth, do not use any cleaning detergents, do not use rough or coarse material to clean. (2) Ensure light is not illuminated when cleaning.
UK Commodity Code9405119090
Country of OriginChina
