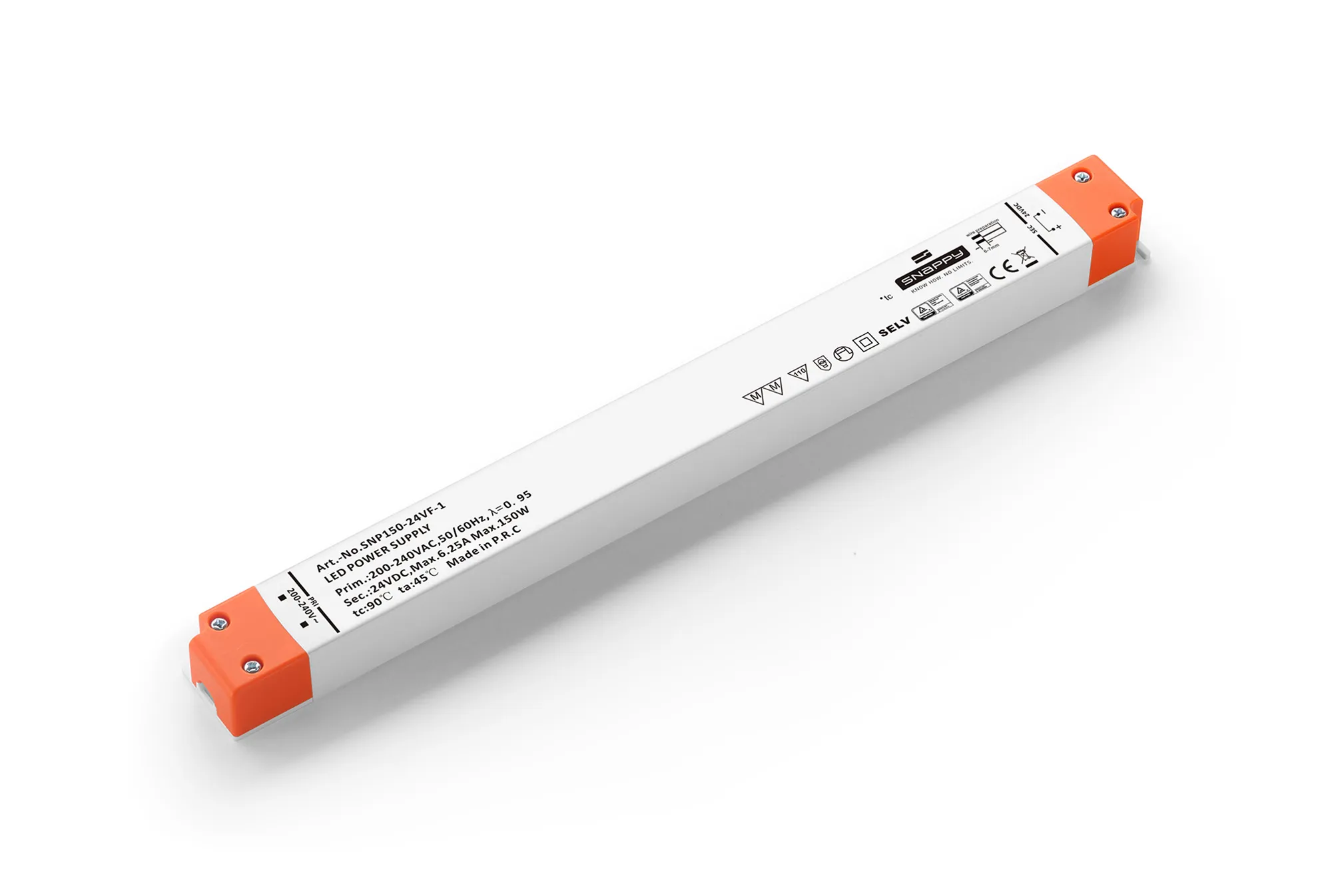

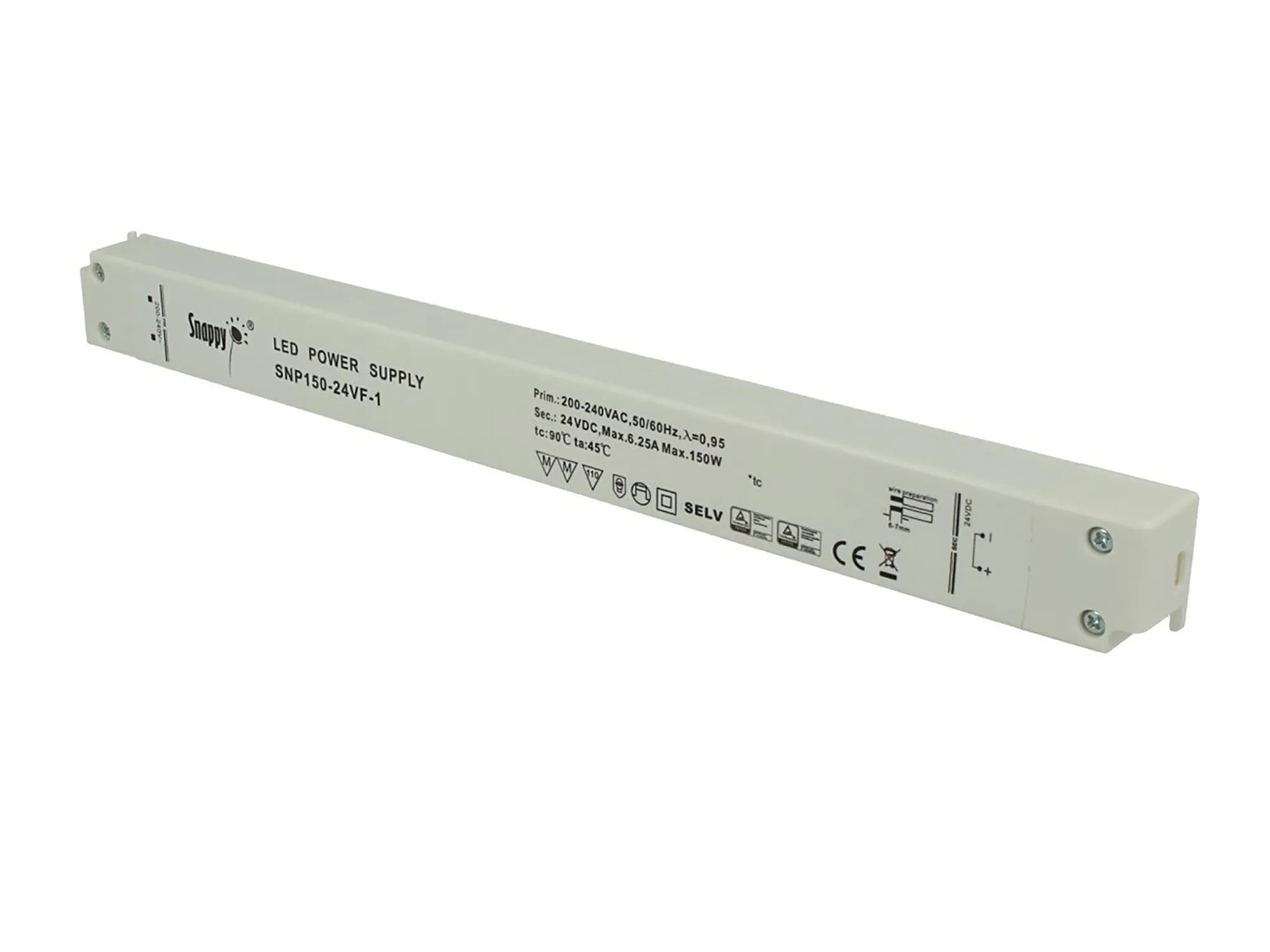

SNP, 150W Constant Voltage Non-Dimmable LED Driver 24VDC 6.25A IP20.

SNP, 150W, Constant Voltage Non-Dimmable PC Linetype LED Driver, 24VDC,IP20, Screw Connection, 5 yrs Warranty.

SNP150-24VF-1

Qty: Order Item Add to Wishlist

Class II power supply, Short circuit, Overload and Over temperature protection.Compliance to ERP directive, High performence, Wide operating temperature.
Snappy was founded in 2003 and focused on manufacturing high frequency transformers and transferred its main business to LED power supplies 6 years ago. Snappy has earned it's excellent reputation in Europe by providing remarkably advanced products along side outstanding customer service. With this they have become a widely recognised and reputable brand name, entrusted to provide high quality. Snappy offers a broad range of innovative and reliable indoor and outdoor LED power supplies which go Show More...
To Follow
Quick Spec
Brief DescriptionSNP, 150W Constant Voltage Non-Dimmable LED Driver 24VDC 6.25A IP20.
Colour FinishWhite
Item Nett Weight (kg)0.250kg

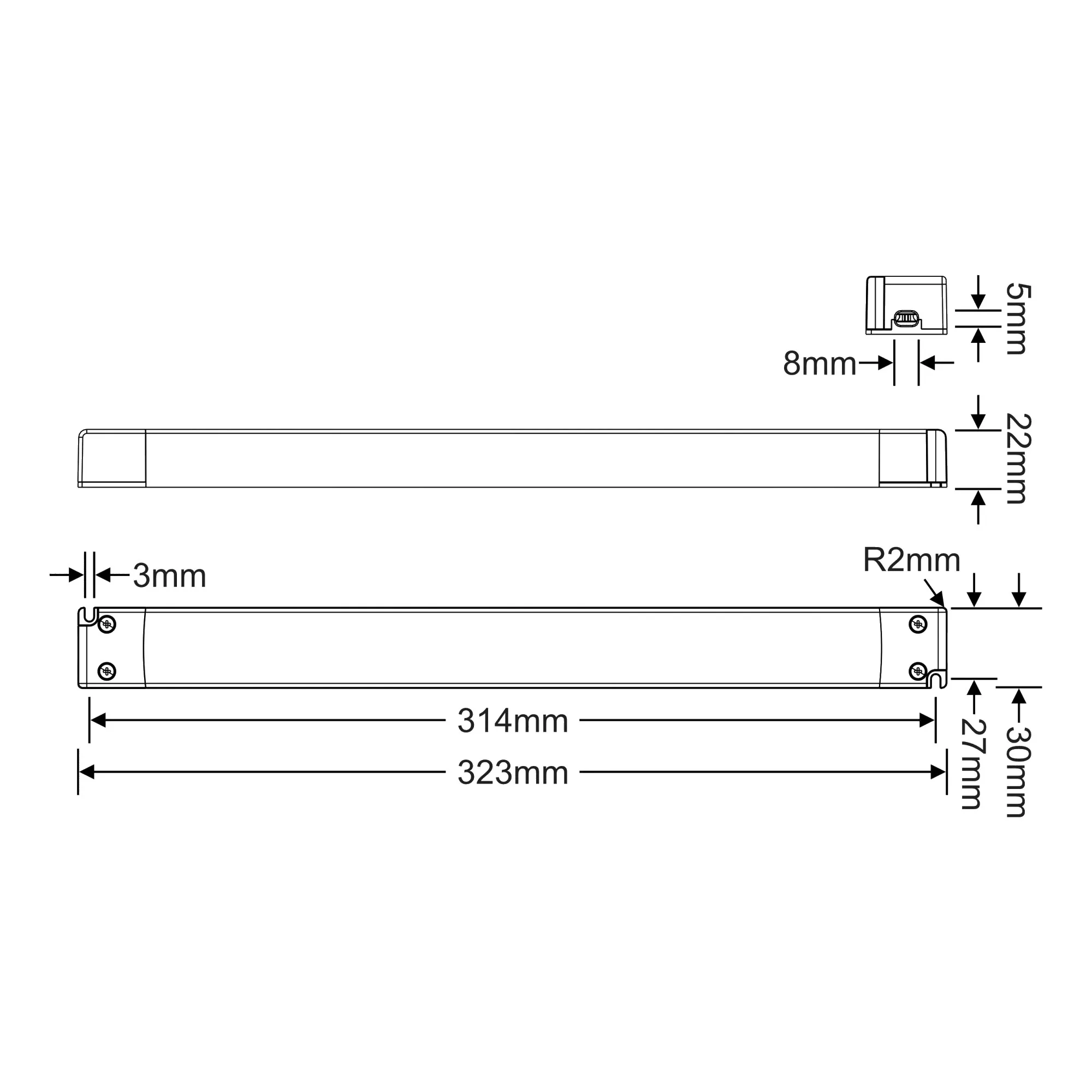

Length (mm)323mm
Width (mm)30mm
Height (mm)21.5mm
Protection ClassClass 2 - Double Insulated
DimmableNo
IP RatingIP20
Average Life (hrs)43800hrs
Warranty (yrs)5yrs
Features
Open Circuit;Short Circuit;Over Load;Over Heat Protection Safety According to EN61347-1,EN61347-2-13 EMI&EMS According toEN55015; EN61000-3-2;EN61000-3-3;EN61547
Full Specifications
Collection GroupSNP
Barcode5056037126638
Brief DescriptionSNP, 150W Constant Voltage Non-Dimmable LED Driver 24VDC 6.25A IP20.
Colour FinishWhite
Item Nett Weight (kg)0.250kg
Length (mm)323mm
Width (mm)30mm
Height (mm)21.5mm
Type of DriverConstant Voltage
Dimming Range (%)Non Dimmable
Power Factor (?)>0.90 (±5%)
Constant Voltage Output (V)24V DC
Max. Current Output (A)6.25A
Load Range (W)0-150W
Maximum Output Distance (m)2m
Ta (°C)45°C
Tc (°C)85°C
Casing MaterialPolycarbonate
Connection TerminalScrew
Dimming ProtocolON/OFF
Protection ClassClass 2 - Double Insulated
Total Power Consumption (W)150W (±5%)
Input Voltage (V)180-264V~50/60Hz
Input Current (A)1A
DimmableNo
IP RatingIP20
Average Life (hrs)43800hrs
Warranty (yrs)5yrs
UKCA/CEYes
RohsYes
TUVyes
ENECNo
SELVYes
EMV/EMCyes
Additional CertificationIEC61347-1, IEC61347-2-13, IEC61347-1, IEC61347-2-13, EN55015, EN61547.
Number of Cartons1
Carton Length (cm)34cm
Carton Width (cm)4cm
Carton Height (cm)3cm
Carton CBM0.0004
Carton Nett Weight (kg)0.250kg (±5%)
Carton Gross Weight (kg)0.270kg (±5%)
UK Commodity Code8504409090
Country of OriginChina
