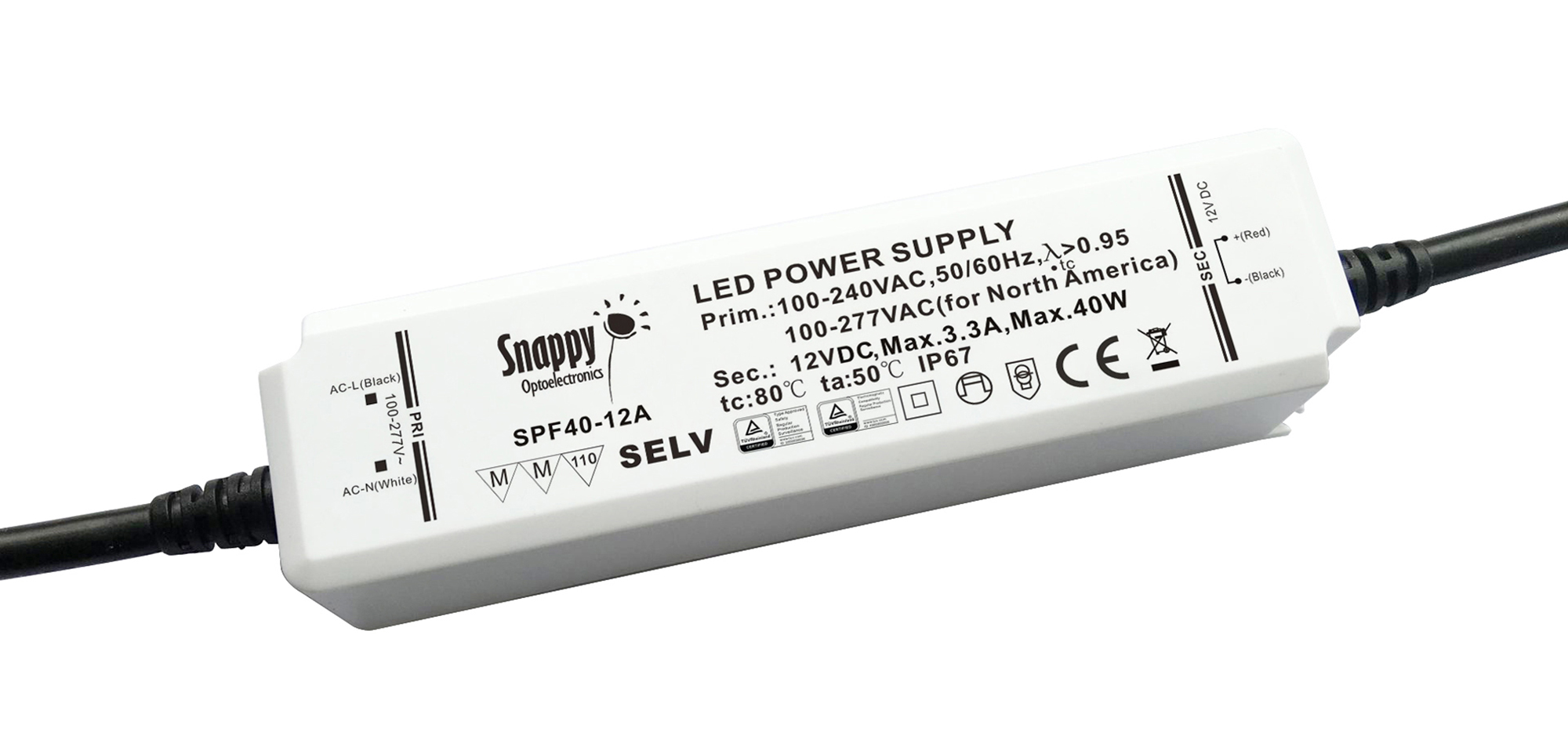

40W CV & CC Non-Dimmable LED Driver 12VDC IP65

SPF, 40W, CV & CC Non-Dimmable PC LED Driver, 12VDC, IP65, 30cm Prewired Cable, 5 yrs Warranty

SPF40-12A

Colour Finish :

Qty: Order Item Add to Wishlist

Snappy was founded in 2003 and focused on manufacturing high frequency transformers and transferred its main business to LED power supplies 6 years ago. Snappy has earned it's excellent reputation in Europe by providing remarkably advanced products along side outstanding customer service. With this they have become a widely recognised and reputable brand name, entrusted to provide high quality. Snappy offers a broad range of innovative and reliable indoor and outdoor LED power supplies which go Show More...
To Follow
Quick Spec
Brief Description40W CV & CC Non-Dimmable LED Driver 12VDC IP65
Item Nett Weight (kg)1.5kg
Length (mm)16mm
Width (mm)42mm
Height (mm)30mm
Protection ClassClass 2 - Double Insulated
DimmableNo
IP RatingIP65
Average Life (hrs)43800hrs
Warranty (yrs)5yrs
Features
Open Circuit;Short Circuit;Over Load;Over Heat Protection Safety According to EN61347-1,EN61347-2-13 EMI&EMS According toEN55015; EN61000-3-2;EN61000-3-3;EN61547 A series:Output current and voltage
Full Specifications
Collection GroupSPF
Barcode5056037106333
Brief Description40W CV & CC Non-Dimmable LED Driver 12VDC IP65
Item Nett Weight (kg)1.5kg
Length (mm)16mm
Width (mm)42mm
Height (mm)30mm
Type of DriverConstant Voltage
Dimming Range (%)Non Dimmable
Power Factor (?)>0.95 (±5%)
Constant Voltage Output (V)12V DC
Constant Current Output (mA)3330mA
Load Range (W)0-40W
Typical Current Ripple (%)(±5%)
Maximum Output Distance (m)2m
Ta (°C)50°C
Tc (°C)80°C
Casing MaterialPolycarbonate
Connection TerminalPrewired 30cm
Dimming ProtocolON/OFF
Protection ClassClass 2 - Double Insulated
Total Power Consumption (W)40W (±5%)
Input Voltage (V)90-305V~50/60Hz
Input Current (A)<0.22A
DimmableNo
IP RatingIP65
Average Life (hrs)43800hrs
Warranty (yrs)5yrs
UKCA/CEYes
RohsYes
TUVYes
ENECNo
SELVYes
EMV/EMCYes
Additional CertificationSAA, C-tick, UL
Number of Cartons1
Carton Length (cm)22cm
Carton Width (cm)7cm
Carton Height (cm)4cm
Carton CBM0.0005
Carton Nett Weight (kg)0.345kg (±5%)
Carton Gross Weight (kg)0.38kg (±5%)
UK Commodity Code8504318050
Country of OriginChina
