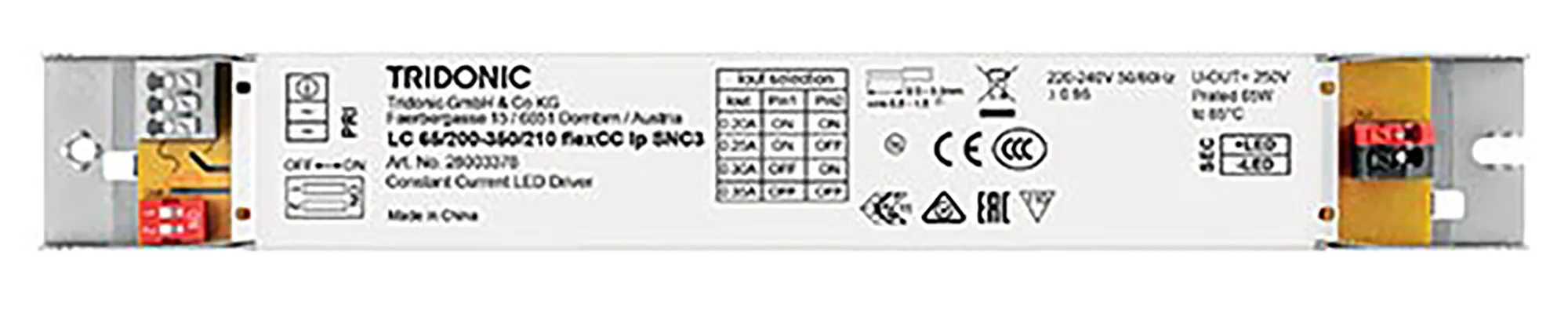

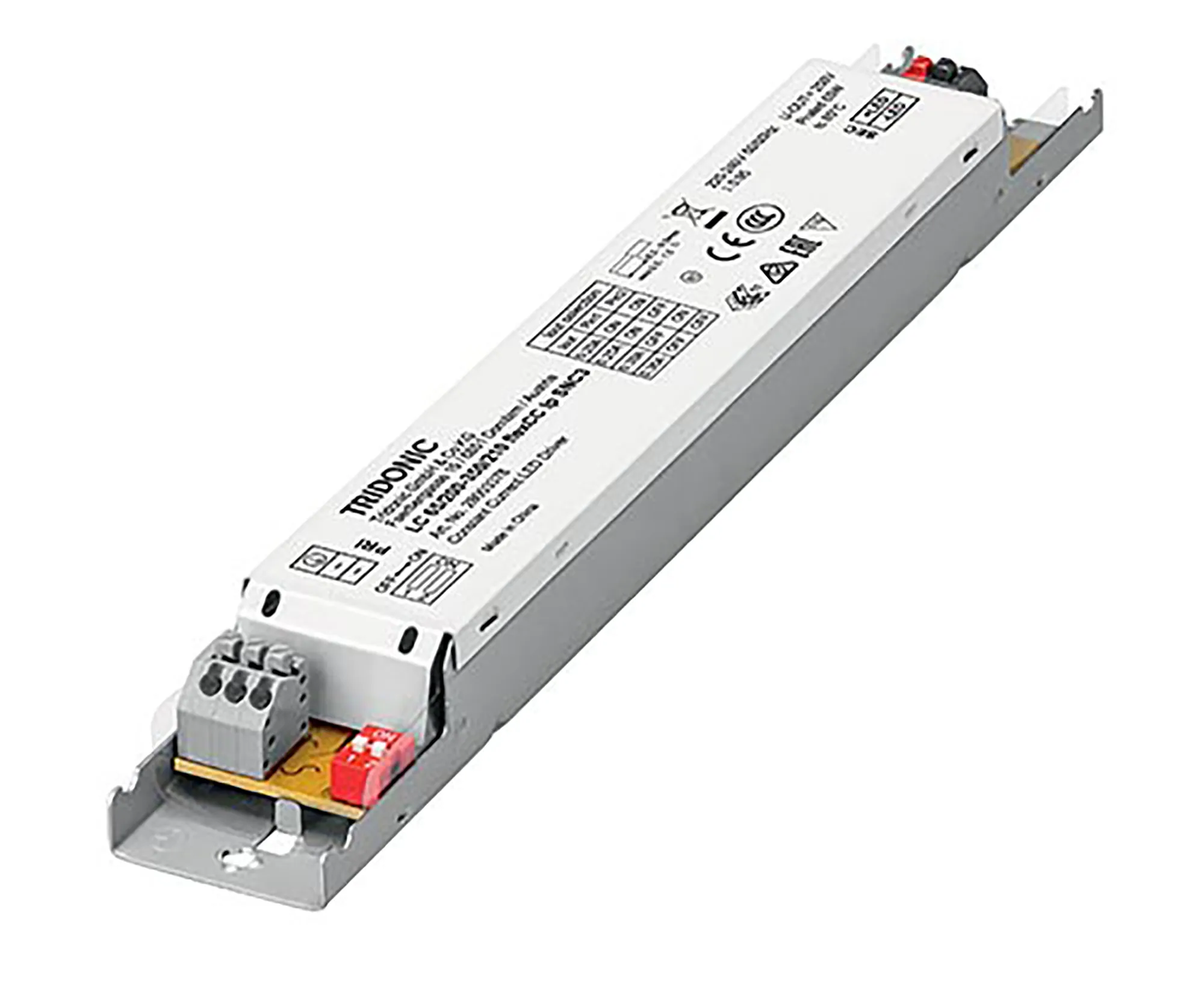

65W 200-350mA flexCC lp SNC3, Constant Current Fixed current LED Driver, 90-210Vdc out put, IP20.

Tridonic, LC 65W 200/250/300/350 mA flexCC lp SNC3, Fixed LED Converter Compact essence series non-SELV, Made In PRC, 5yrs Warranty.

28003378

Qty: Order Item Add to Wishlist

Built-in constant current LED Driver, Long life time and high efficiency, For luminaires of protection class I and protection class II, Temperature protection as per EN 61347-2-13 C5e.Up to 91 % efficiency.
Tridonic is a world-leading supplier of lighting technology, supporting its customers with intelligent hardware and software and offering the highest level of quality, reliability and energy savings. As a global driver of innovation in the field of lighting-based network technology, Tridonic develops scalable, future-oriented solutions that enable new business models for lighting manufacturers, building managers, systems integrators, planners and many other types of customers. Tridonic has been Show More...
To Follow
Quick Spec
Brief Description65W 200-350mA flexCC lp SNC3, Constant Current Fixed current LED Driver, 90-210Vdc out put, IP20.
Colour FinishWhite
Item Nett Weight (kg)0.145kg

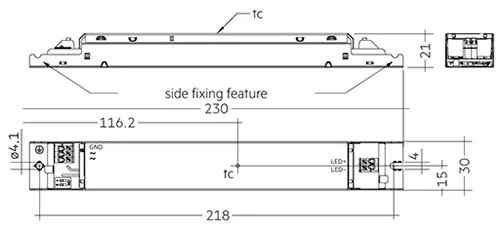

Length (mm)218mm
Width (mm)30mm
Height (mm)21mm
Energy ClassA++ to A
Protection ClassClass 2 - Double Insulated
DimmableNo
IP RatingIP20
Average Life (hrs)50000hrs
Warranty (yrs)5yrs
Features
Overload protection, Short-circuit protection and No-load protections.Temperature protection as per EN 61347-2-13 C5e.
Full Specifications
Collection GroupLC
Barcode5056037205326
Brief Description65W 200-350mA flexCC lp SNC3, Constant Current Fixed current LED Driver, 90-210Vdc out put, IP20.
Colour FinishWhite
Item Nett Weight (kg)0.145kg
Length (mm)218mm
Width (mm)30mm
Height (mm)21mm
Energy ClassA++ to A
Max Energy ClassA++
Min Energy ClassA
Lumen Maintenance (hrs)50000hrs / LM80hrs (±5%)
Type of DriverConstant Current
Dimming Range (%)Non Dimmable
Power Factor (?)>0.95 (±5%)
Constant Current Output (mA)200-350mA
Min/Max. Voltage Output (V)90-210V
Load Range (W)42-65.1W
Typical Current Ripple (%)±30%
Maximum Output Distance (m)2m
Ta (°C)-20° to 60°C
Tc (°C)75°C
Casing MaterialMetal Body
Connection TerminalPush-Fit
Dimming ProtocolON/OFF
Efficiency0.92
Protection ClassClass 2 - Double Insulated
Total Power Consumption (W)65W (±5%)
Input Voltage (V)220-240V~50/60Hz
Input Current (A)0.31A
DimmableNo
IP RatingIP20
Average Life (hrs)50000hrs
Warranty (yrs)5yrs
UKCA/CEYes
RohsYes
ENECYes
SELVNo
Number of Cartons1
Carton Length (cm)21.8cm
Carton Width (cm)3.0cm
Carton Height (cm)2.1cm
Carton CBM0.0001
Carton Nett Weight (kg)0.145kg (±5%)
Carton Gross Weight (kg)0.165kg (±5%)
Additional DetailsTridonic, LC 65/200-350/210 flexCC lp SNC3
UK Commodity Code85044090
Country of OriginChina
