65W 250/300/350mA fixC lp ADV TALEXX Constant Current LED Driver

Tridonic LC 65W 250mA fixC lp ADV, Constant current, Fixed output, 250mA, IP20.

87500456

Colour Finish :
White

Qty: Order Item Add to Wishlist

Fixed output constant current built-in LED Driver, For class I luminaires,Temperature protection as per EN 61347-2-13 C5e.
Tridonic is a world-leading supplier of lighting technology, supporting its customers with intelligent hardware and software and offering the highest level of quality, reliability and energy savings. As a global driver of innovation in the field of lighting-based network technology, Tridonic develops scalable, future-oriented solutions that enable new business models for lighting manufacturers, building managers, systems integrators, planners and many other types of customers. Tridonic has been Show More...
To Follow
Quick Spec
Brief Description65W 250/300/350mA fixC lp ADV TALEXX Constant Current LED Driver
Colour FinishWhite
Item Nett Weight (kg)0.186kg

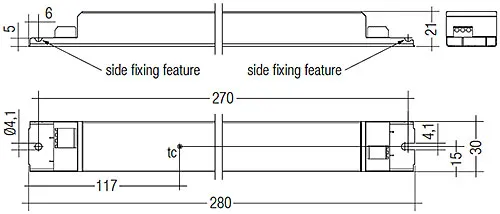

Length (mm)280mm
Width (mm)30mm
Height (mm)21mm
Energy ClassA++ to A
Protection ClassClass 2 - Double Insulated
DimmableNo
IP RatingIP20
Average Life (hrs)50000hrs
Warranty (yrs)5yrs
Features
Overload protection, Over temperature protection, Short-circuit protection and No-load protection.Burst protection voltage 1 kV. Surge protection voltage 1 kV (L to N), Surge protection voltage 2 kV (L/N to earth).
Full Specifications
Collection GroupLC
BarcodeTo Follow
Brief Description65W 250/300/350mA fixC lp ADV TALEXX Constant Current LED Driver
Colour FinishWhite
Item Nett Weight (kg)0.186kg
Length (mm)280mm
Width (mm)30mm
Height (mm)21mm
Energy ClassA++ to A
Max Energy ClassA++
Min Energy ClassA
Lumen Maintenance (hrs)50000hrs / LM80 (±5%)
Type of DriverConstant Current
Dimming Range (%)Non Dimmable
Power Factor (?)>0.98 (±5%)
Constant Current Output (mA)250mA
Min/Max. Voltage Output (V)83-250V
Typical Current Ripple (%)<3%
Maximum Output Distance (m)2m
Ta (°C)-20° to 45°C
Tc (°C)70°C
Casing MaterialMetal Body
Connection TerminalPush-Fit
Dimming ProtocolON/OFF
Efficiency0.83
Protection ClassClass 2 - Double Insulated
Total Power Consumption (W)65W (±5%)
Input Voltage (V)220-240V~50/60Hz
Input Current (A)0.32A
DimmableNo
IP RatingIP20
Average Life (hrs)50000hrs
Warranty (yrs)5yrs
UKCA/CEYes
RohsYes
ENECYes
Number of Cartons1
Carton Length (cm)28.0cm
Carton Width (cm)3.0cm
Carton Height (cm)2.1cm
Carton CBM0.0002
Carton Nett Weight (kg)0.186kg (±5%)
Carton Gross Weight (kg)0.186kg (±5%)
Additional DetailsTridonic, LC 65W 250mA fixC lp ADV
UK Commodity Code8504318050
Country of OriginChina
