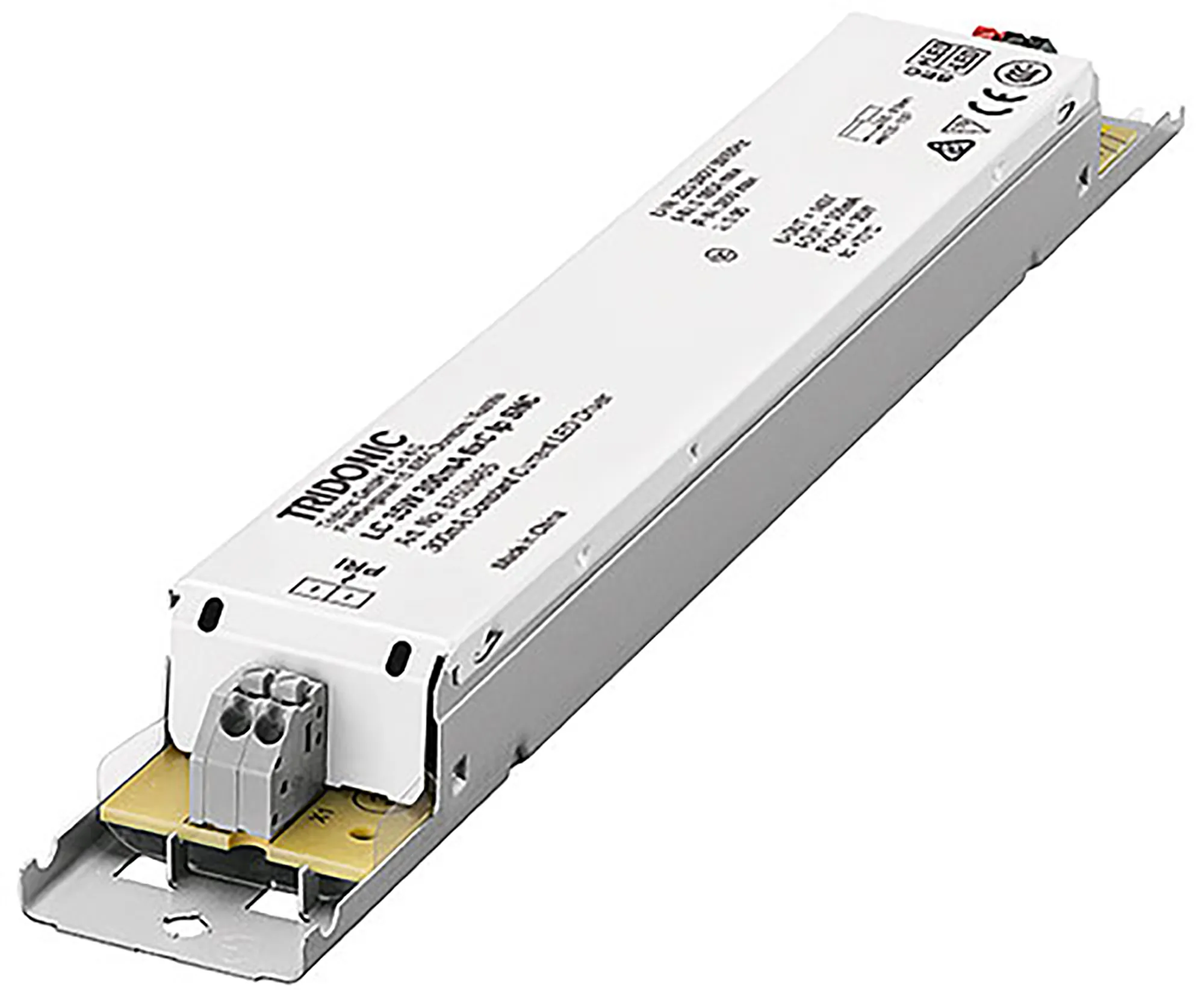

35W 300mA fixC lp SNC ESSENCE Constant Current LED Driver

Tridonic, LC 35W 300mA fixC lp SNC, LED Driver Linear ESSENCE, Made In PRC, 5yrs Warranty

87500465

Colour Finish :
White

Qty: Order Item Add to Wishlist

Constant current Fixed output built-in LED Driver, For luminaires of protection class I and protection class II, Temperature protection as per EN 61347-2-13 C5e.Surge protection feature.
Tridonic is a world-leading supplier of lighting technology, supporting its customers with intelligent hardware and software and offering the highest level of quality, reliability and energy savings. As a global driver of innovation in the field of lighting-based network technology, Tridonic develops scalable, future-oriented solutions that enable new business models for lighting manufacturers, building managers, systems integrators, planners and many other types of customers. Tridonic has been Show More...
To Follow
Quick Spec
Brief Description35W 300mA fixC lp SNC ESSENCE Constant Current LED Driver
Colour FinishWhite
Item Nett Weight (kg)0.142kg

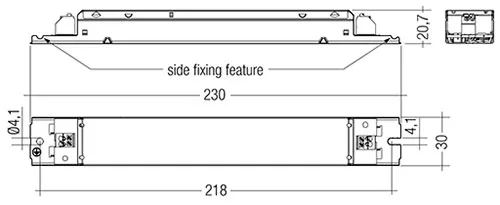

Length (mm)218mm
Width (mm)30mm
Height (mm)20.7mm
Energy ClassA++ to A
Protection ClassClass 2 - Double Insulated
DimmableNo
IP RatingIP20
Average Life (hrs)50000hrs
Warranty (yrs)5yrs
Features
Overload protection, Short-circuit protection and No-load protection.Burst protection voltage 1 kV. Surge protection voltage 1 kV (L to N), Surge protection voltage 2 kV (L/N to earth).
Full Specifications
Collection GroupLC
BarcodeTo Follow
Brief Description35W 300mA fixC lp SNC ESSENCE Constant Current LED Driver
Colour FinishWhite
Item Nett Weight (kg)0.142kg
Length (mm)218mm
Width (mm)30mm
Height (mm)20.7mm
Energy ClassA++ to A
Max Energy ClassA++
Min Energy ClassA
Lumen Maintenance (hrs)50000hrs / LM80 (±5%)
Type of DriverConstant Current
Dimming Range (%)Non Dimmable
Power Factor (?)>0.95 (±5%)
Constant Current Output (mA)300mA
Min/Max. Voltage Output (V)70-116.5V
Typical Current Ripple (%)±30%
Maximum Output Distance (m)2m
Ta (°C)-20° to +40°C
Tc (°C)70°C
Casing MaterialMetal Body
Connection TerminalPush-Fit
Dimming ProtocolON/OFF
Efficiency0.92
Protection ClassClass 2 - Double Insulated
Total Power Consumption (W)35W (±5%)
Input Voltage (V)220-240V~50/60Hz
Input Current (A)0.185 A
DimmableNo
IP RatingIP20
Average Life (hrs)50000hrs
Warranty (yrs)5yrs
UKCA/CEYes
RohsYes
ENECYes
Number of Cartons1
Carton Length (cm)21.8cm
Carton Width (cm)3.0cm
Carton Height (cm)2.07cm
Carton CBM0.0001
Carton Nett Weight (kg)0.142kg (±5%)
Carton Gross Weight (kg)0.142kg (±5%)
Additional DetailsTridonic, LC 35W 300mA fixC lp SNC
UK Commodity Code8504318050
Country of OriginChina
