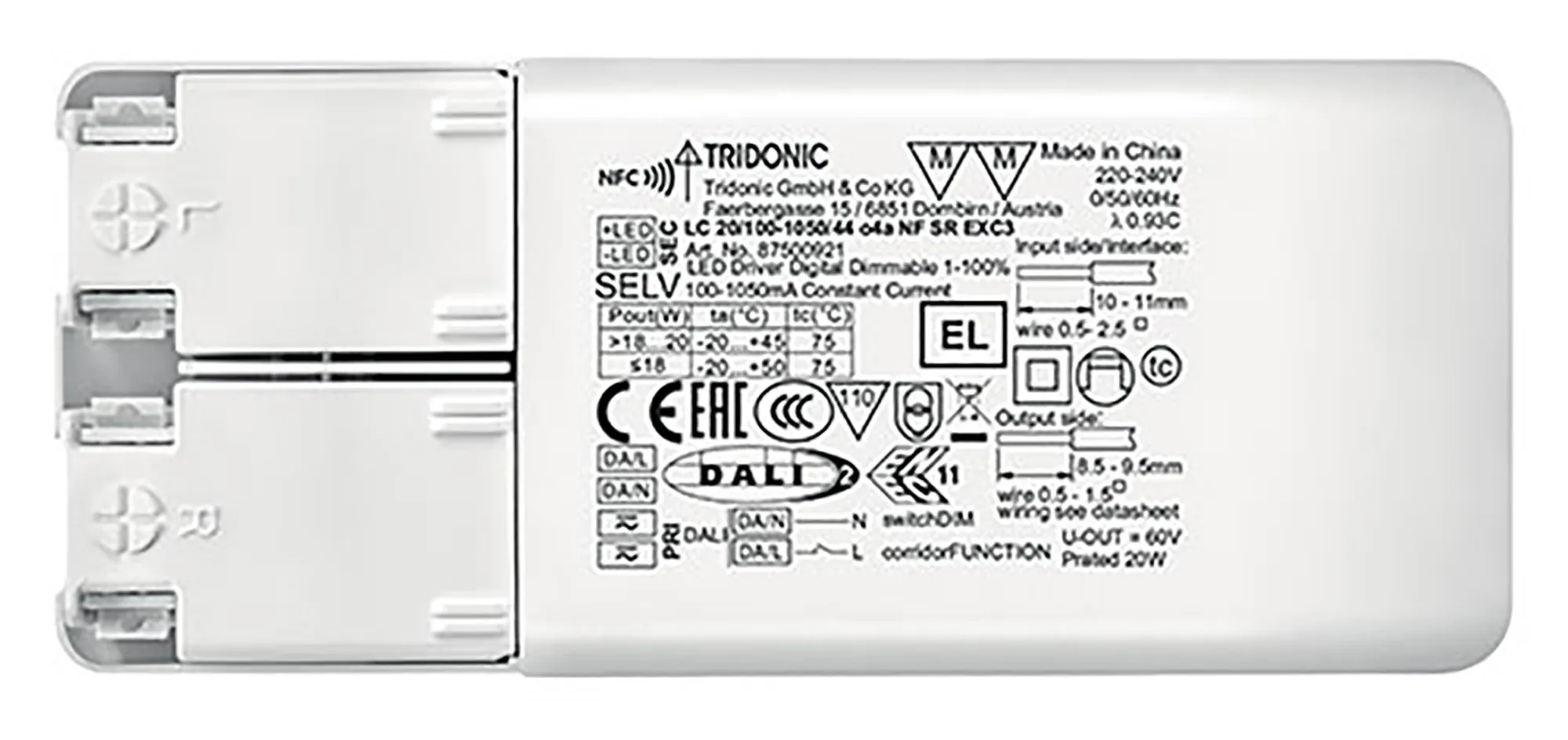

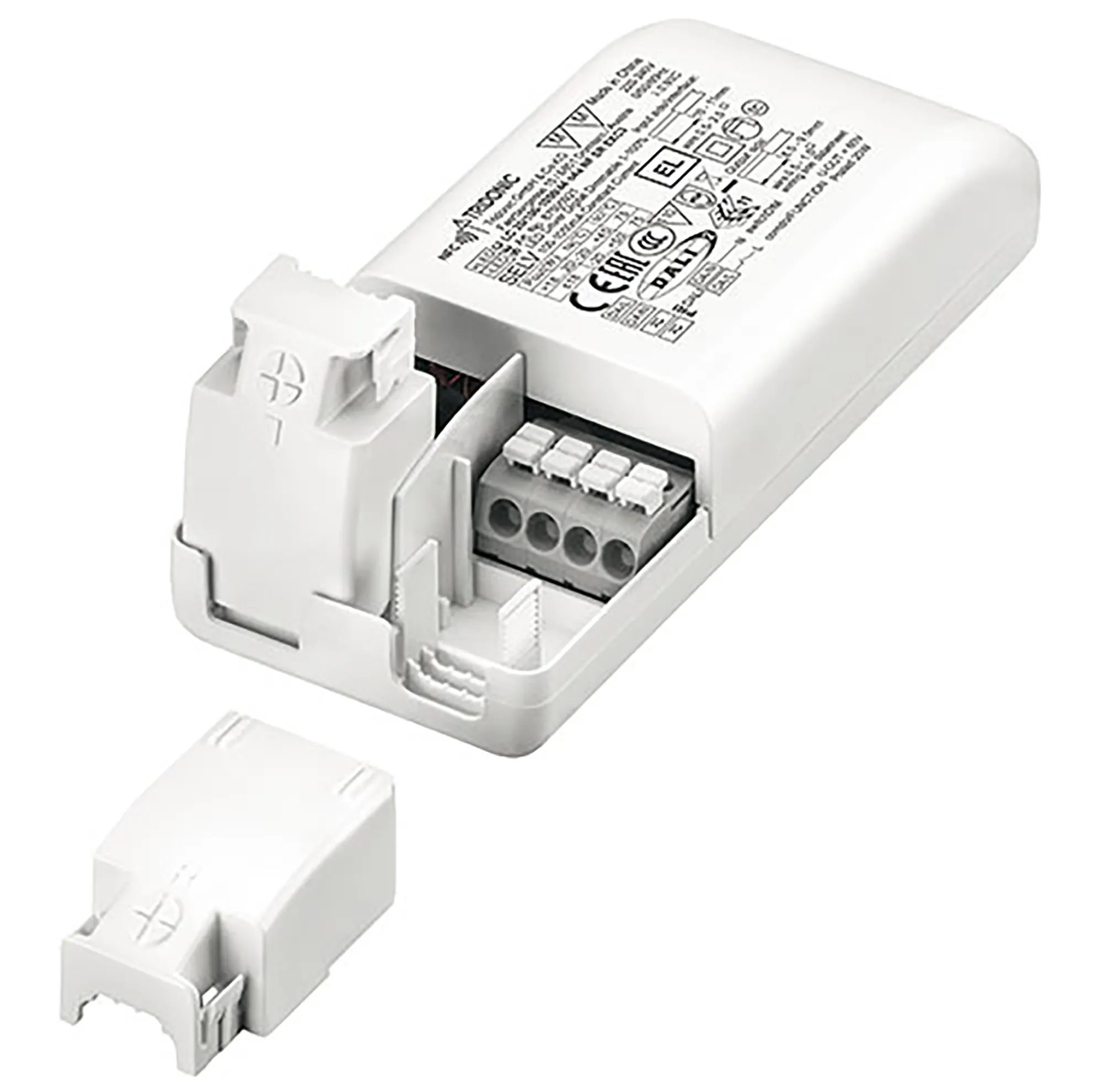

20W 100-1050mA one4all & NFC Dimmable Constant Current LED Driver IP20

Tridonic, LC 20W 100-1050mA 44V o4a NF SR EXC3, Constant current LED Converter DALI-2& NFC, Made In China, IP20, 5yrs Warranty

87500921

Colour Finish :
White

Qty: Order Item Add to Wishlist

Dimmable built-in constant current LED Driver, DALI-2 / NFC for current adjustment, High Efficency, Wide dimming range, Nominal life-time up to 100000 hr, Terminal blocks: 0° push terminals, one4all and NFC interface.
Tridonic is a world-leading supplier of lighting technology, supporting its customers with intelligent hardware and software and offering the highest level of quality, reliability and energy savings. As a global driver of innovation in the field of lighting-based network technology, Tridonic develops scalable, future-oriented solutions that enable new business models for lighting manufacturers, building managers, systems integrators, planners and many other types of customers. Tridonic has been Show More...
To Follow
Quick Spec
Brief Description20W 100-1050mA one4all & NFC Dimmable Constant Current LED Driver IP20
Colour FinishWhite
Item Nett Weight (kg)0.104kg

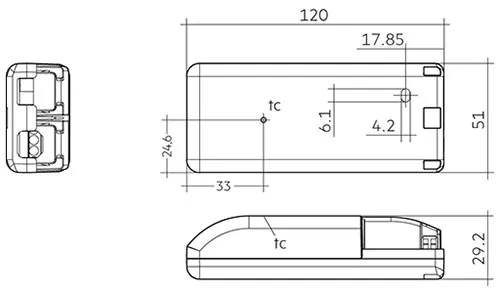

Length (mm)120mm
Width (mm)51mm
Height (mm)29.2mm
Energy ClassA++ to A
Protection ClassClass 2 - Double Insulated
DimmableYes - Suitable Dimmer Required
Dimmer IncludedNo
IP RatingIP20
Average Life (hrs)100000hrs
Warranty (yrs)5yrs
Features
Flexible configuration via companionSUITE (NFC, DALI-2), Application-oriented operating window for maximum compatibility, New strain relief concept – fast mounting and pre-assembled connection of the LED load possible Constant light output function (CLO).
Full Specifications
Collection GroupLC
Barcode5056037204992
Brief Description20W 100-1050mA one4all & NFC Dimmable Constant Current LED Driver IP20
Colour FinishWhite
Item Nett Weight (kg)0.104kg
Length (mm)120mm
Width (mm)51mm
Height (mm)29.2mm
Energy ClassA++ to A
Max Energy ClassA++
Min Energy ClassA
Lumen Maintenance (hrs)50000hrs / LM80hrs (±5%)
Type of DriverConstant Current
Dimming Range (%)1-100%
Power Factor (?)>0.93 (±5%)
Constant Current Output (mA)100-1050mA
Min/Max. Voltage Output (V)15-44V
Load Range (W)4.4-20W
Typical Current Ripple (%)(±5%)
Maximum Output Distance (m)2m
Ta (°C)-20° to +45°C
Tc (°C)75°C
Casing MaterialPolycarbonate
Connection TerminalPush Terminal
Dimming ProtocolDALI-2 DT 6, DSI, switchDIM, corridor FUNCTION, Near Field Communication(NFC)
Efficiency0.92
Protection ClassClass 2 - Double Insulated
Total Power Consumption (W)20W (±5%)
Input Voltage (V)220-240V~50/60Hz
Input Current (A)0.112A
DimmableYes - Suitable Dimmer Required
Dimmer IncludedNo
IP RatingIP20
Average Life (hrs)100000hrs
Warranty (yrs)5yrs
UKCA/CEYes
RohsYes
ENECYes
SELVYes
Additional CertificationNFC
Number of Cartons1
Carton Length (cm)12cm
Carton Width (cm)5.1cm
Carton Height (cm)2.92cm
Carton CBM0.0002
Carton Nett Weight (kg)0.104kg (±5%)
Carton Gross Weight (kg)0.124kg (±5%)
Additional DetailsLC 20W 100-1050mA 44V o4a NF SR EXC3
UK Commodity Code8504318050
Country of OriginChina
