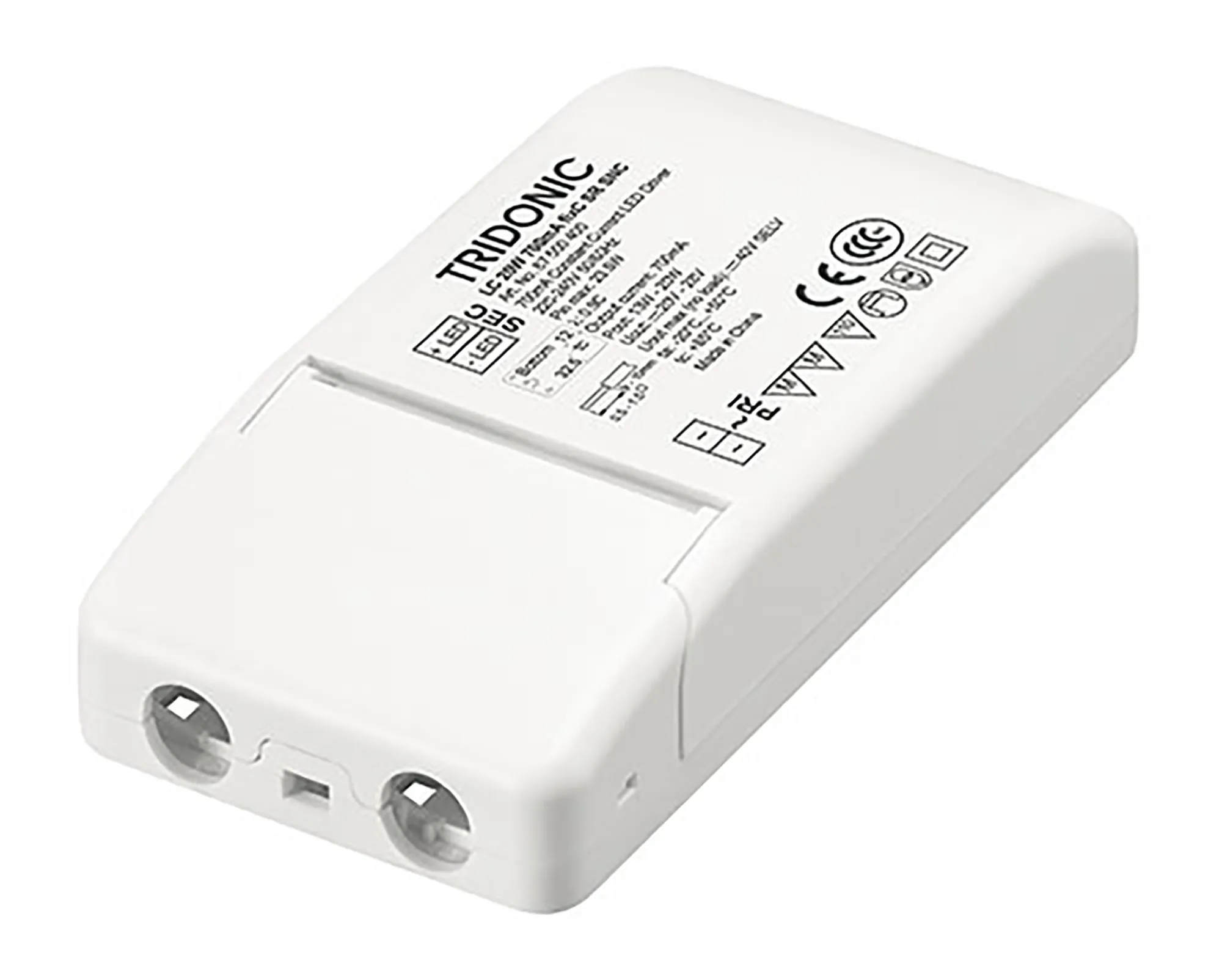

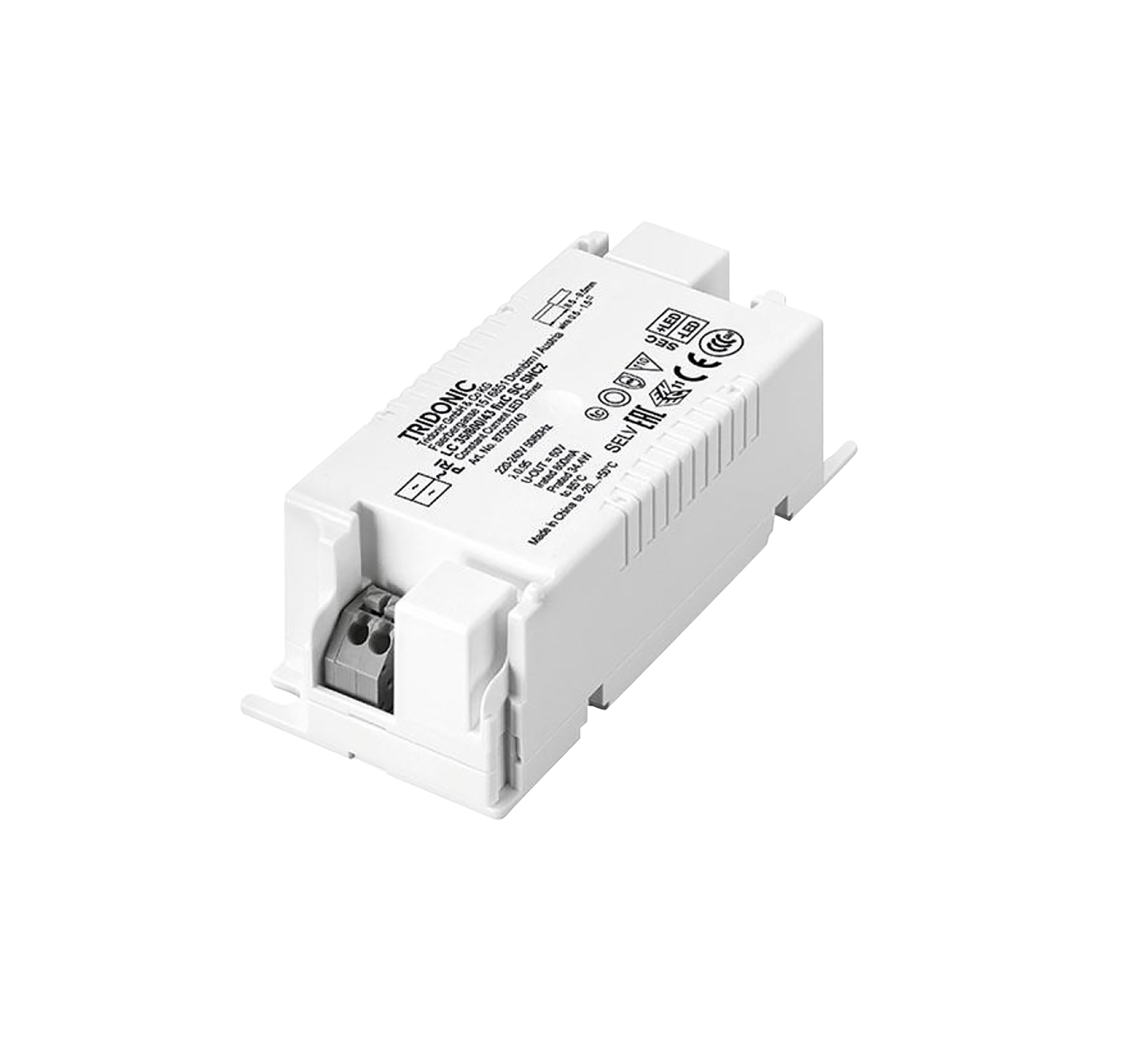

20W 500mA fixC SR SNC ESSENCE Constant Current LED Driver

Tridonic, LC 20W 500mA fixC SR SNC, LED Converter Compact SNC - ESSENCE, Made In PRC, 5yrs Warranty

87500573

Qty: Order Item Add to Wishlist

Constant current Independent LED Driver with cable clamps, KC certificate, For luminaires with M and MM as per EN 60598, VDE 0710 and VDE 0711, Temperature protection as per EN 61347-2-13 C5e, Extra flat housing for constrained installation conditions.
Tridonic is a world-leading supplier of lighting technology, supporting its customers with intelligent hardware and software and offering the highest level of quality, reliability and energy savings. As a global driver of innovation in the field of lighting-based network technology, Tridonic develops scalable, future-oriented solutions that enable new business models for lighting manufacturers, building managers, systems integrators, planners and many other types of customers. Tridonic has been Show More...
To Follow
Quick Spec
Brief Description20W 500mA fixC SR SNC ESSENCE Constant Current LED Driver
Colour FinishWhite
Item Nett Weight (kg)0.078kg

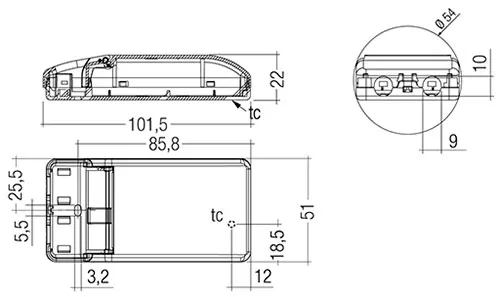

Length (mm)101.5mm
Width (mm)51mm
Height (mm)22mm
Energy ClassA++ to A
Protection ClassClass 2 - Double Insulated
DimmableNo
IP RatingIP20
Average Life (hrs)50000hrs
Warranty (yrs)5yrs
Features
Overload protection, Short-circuit protection, No-load protection, No output current overshoot at mains on/off.
Full Specifications
Collection GroupLC
BarcodeTo Follow
Brief Description20W 500mA fixC SR SNC ESSENCE Constant Current LED Driver
Colour FinishWhite
Item Nett Weight (kg)0.078kg
Length (mm)101.5mm
Width (mm)51mm
Height (mm)22mm
Energy ClassA++ to A
Max Energy ClassA++
Min Energy ClassA
Lumen Maintenance (hrs)50000hrs / LM80 (±5%)
Type of DriverConstant Current
Dimming Range (%)Non Dimmable
Power Factor (?)>0.93 (±5%)
Constant Current Output (mA)500mA
Min/Max. Voltage Output (V)30-43V
Typical Current Ripple (%)±30%
Maximum Output Distance (m)2m
Ta (°C)-20° to +40°C
Tc (°C)85°C
Casing MaterialPolycarbonate
Connection TerminalPush-Fit
Dimming ProtocolON/OFF
Efficiency0.88
Protection ClassClass 2 - Double Insulated
Total Power Consumption (W)20W (±5%)
Input Voltage (V)220-240V~50/60Hz
Input Current (A)0.12A
DimmableNo
IP RatingIP20
Average Life (hrs)50000hrs
Warranty (yrs)5yrs
UKCA/CEYes
RohsYes
ENECYes
SELVYes
Number of Cartons1
Carton Length (cm)10.15cm
Carton Width (cm)5.1cm
Carton Height (cm)2.2cm
Carton CBM0.0001
Carton Nett Weight (kg)0.078kg (±5%)
Carton Gross Weight (kg)0.078kg (±5%)
Additional DetailsTridonic, LC 20W 500mA fixC SR SNC
UK Commodity Code85044090
Country of OriginChina
