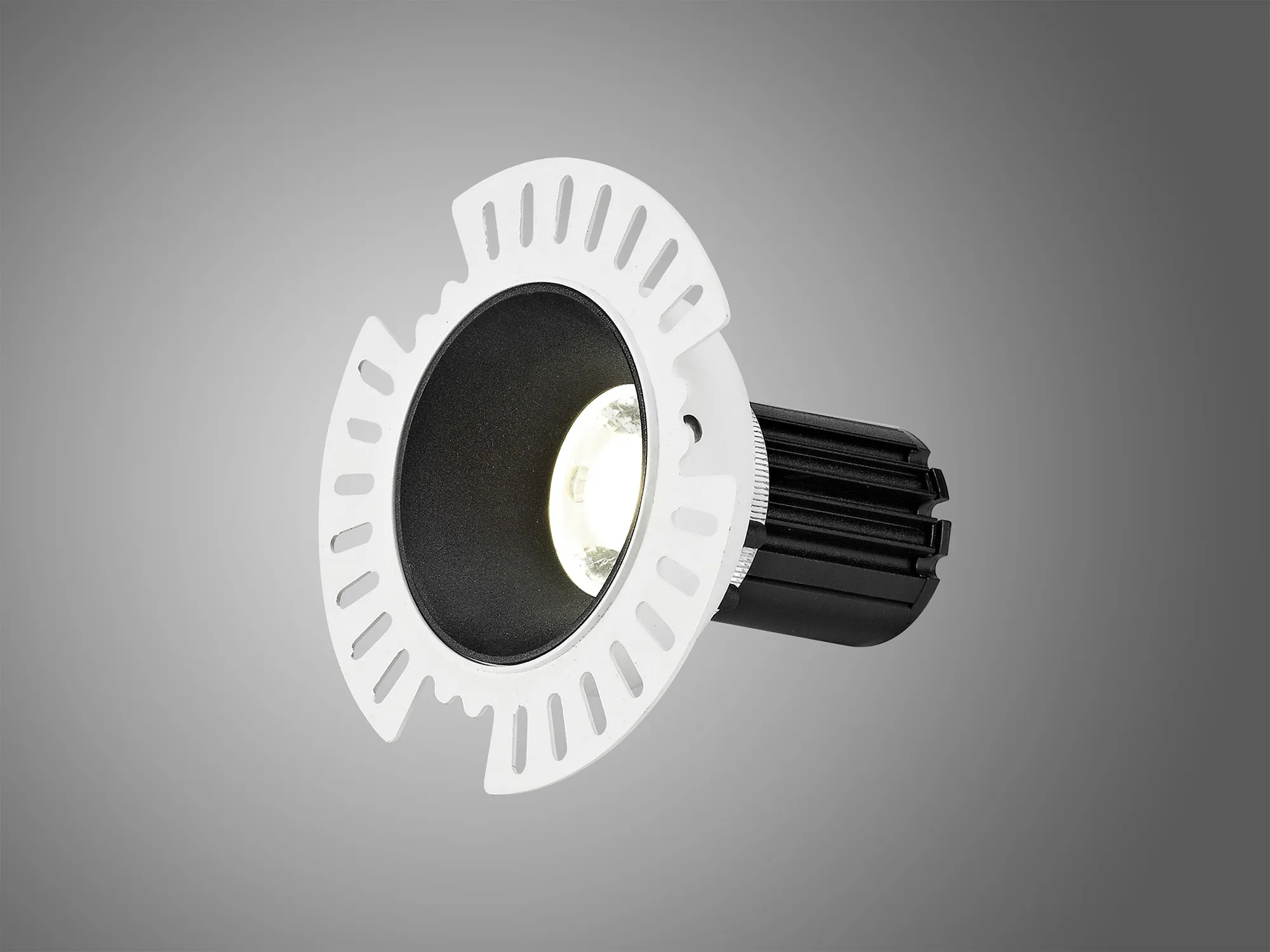

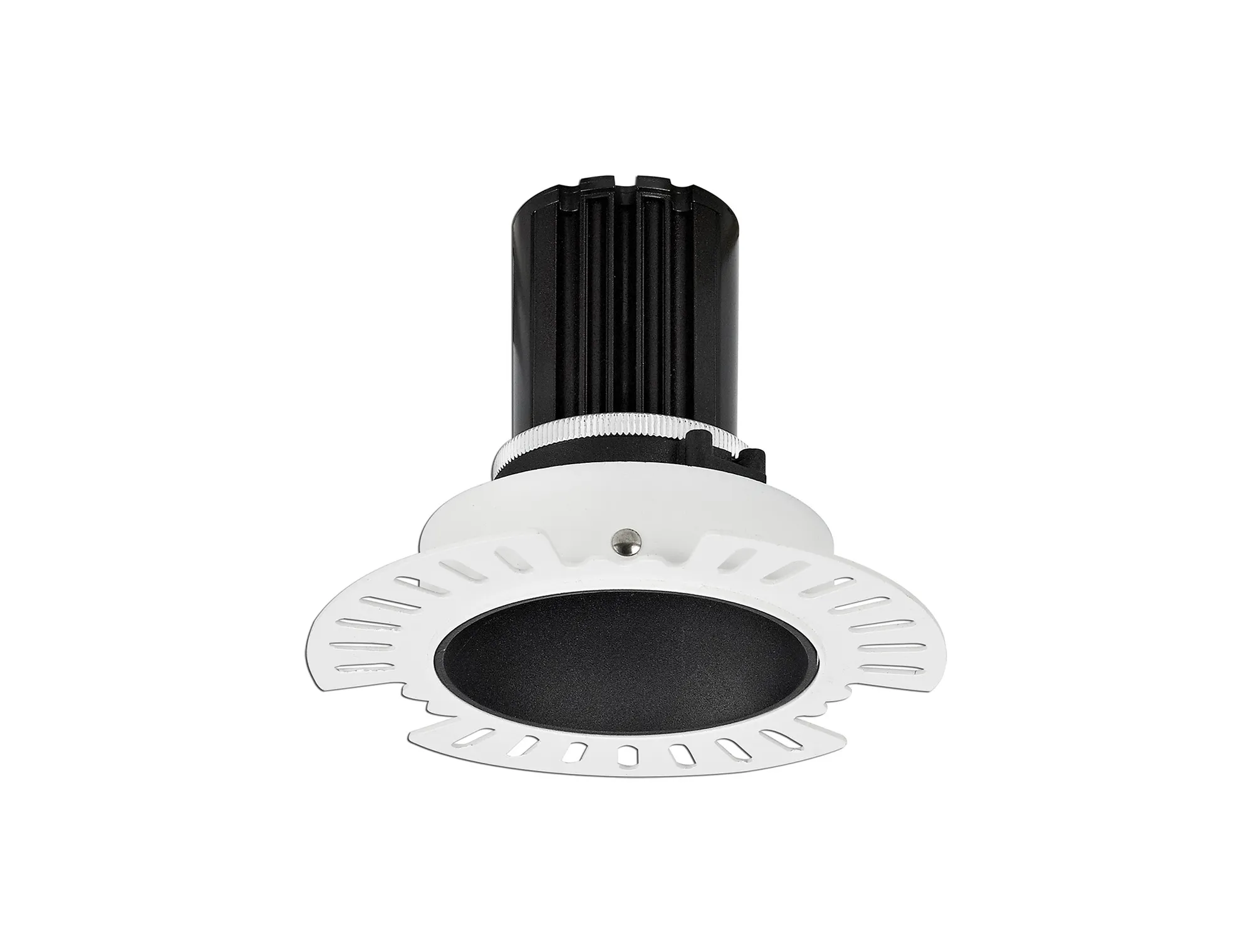

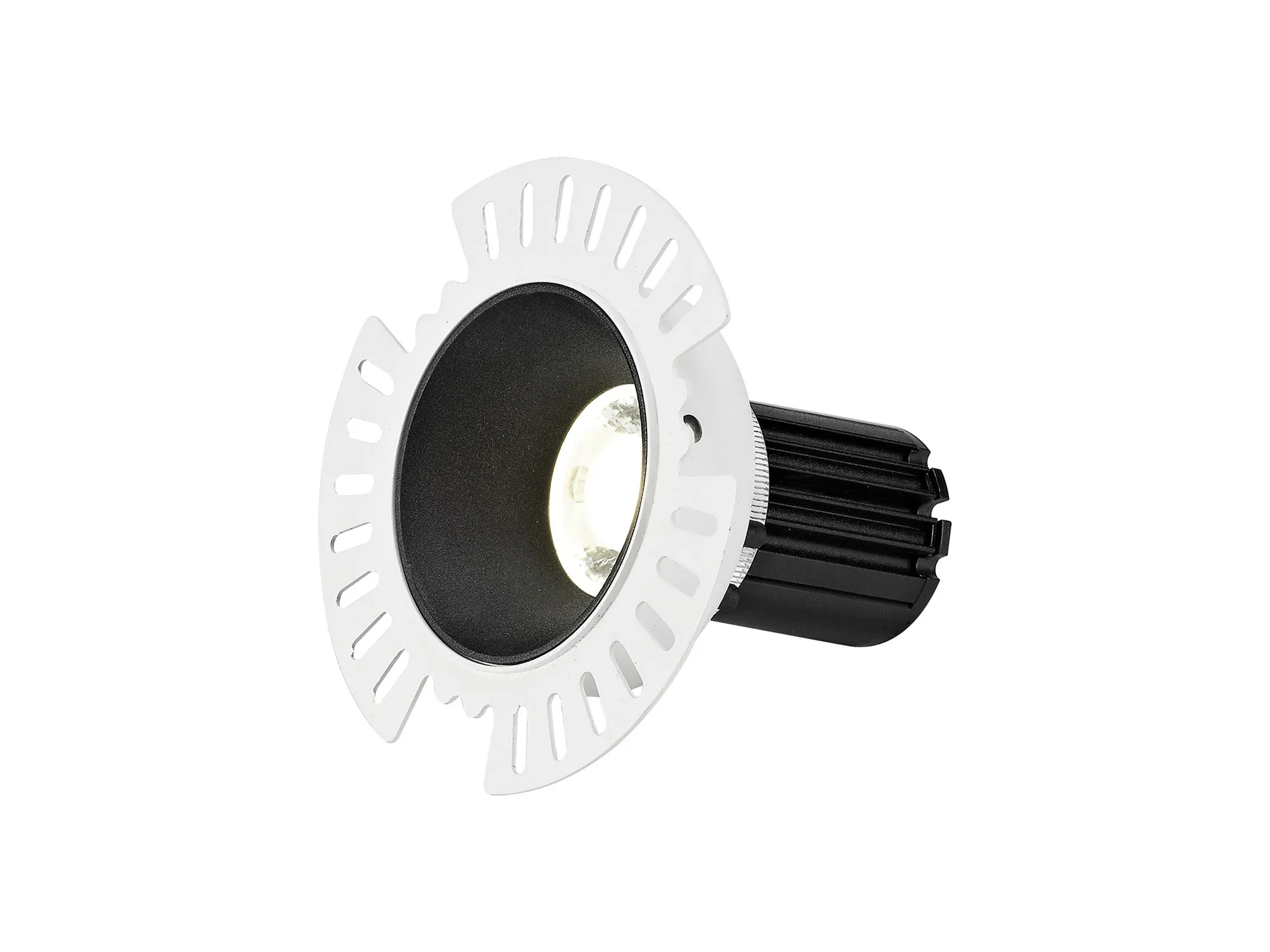

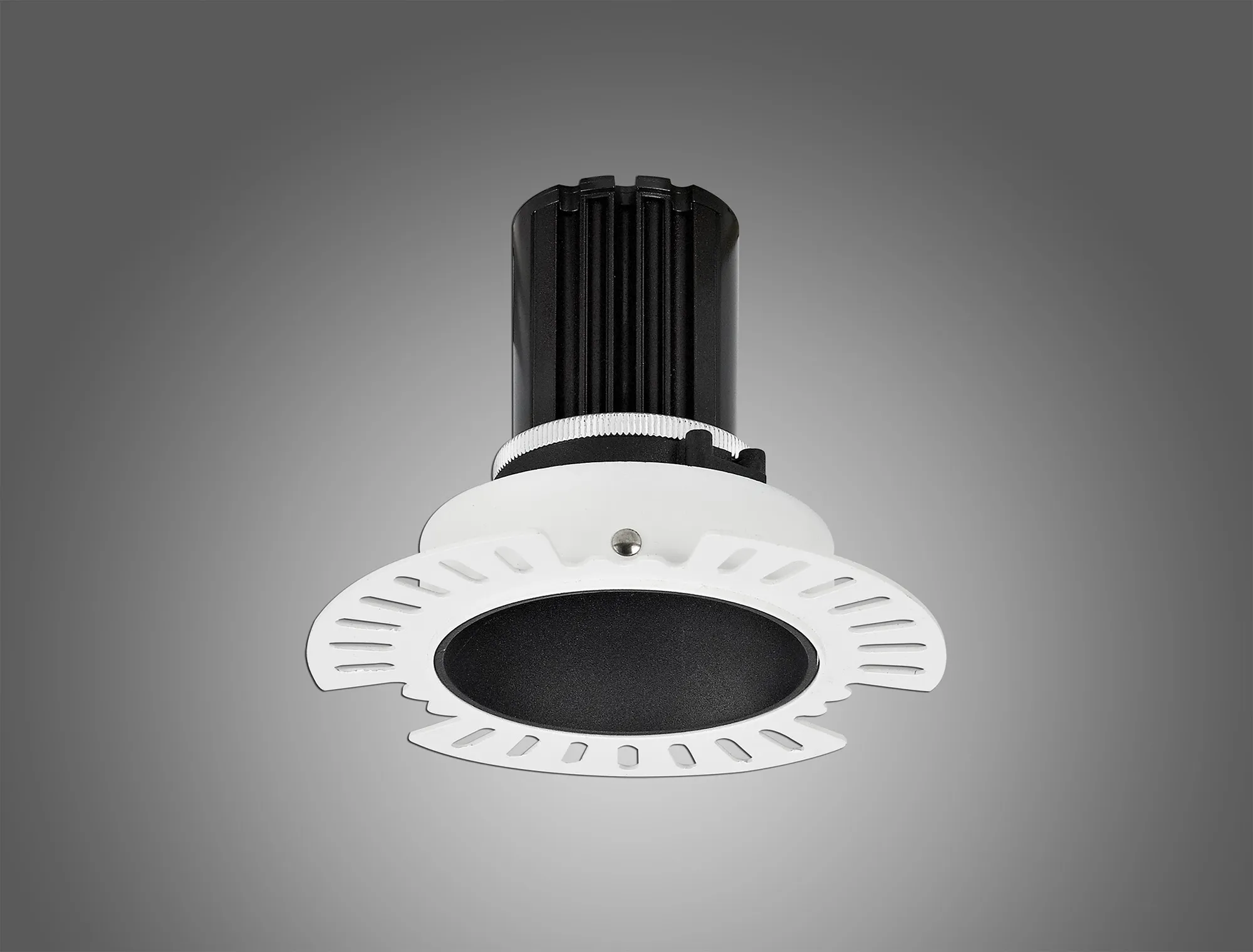

Basy 10 Tridonic Powered 10W 2700K 710lm 36° CRI>90 LED Engine Black Fixed Recessed Spotlight, IP20

Basy 10 Dimmable Tridonic 10W 631lm 2700K 36°, Black IP20 Fixed Recessed Spotlight , NO DRIVER REQUIRED, 5yrs Warranty

DM200963

Colour Temperature :
Beam Angle :
Colour Finish :
Black

Qty: Order Item Add to Wishlist

Comprensive range of Fixed spotlight recessed mount IP20 available in Black, Dimmable Tridonic engine. 3 colour temperatures, 3 beam angles, dimmable, Small colour tolerance.
Dlux the industry becomes flooded with inferior quality products that offer poor performance we believe it is crucial that lighting continues to be the essence of the surrounding we work or live in. Every d’lux product is carefully designed and engineered to offer accurate lighting solutions and not just simply provide some light. With the evolution of LED based lighting the synergy of lighting and nature is even closer as we endeavour to save the environment we live in.
We have established Show More...
Design by
Dlux Design Team
When designing and manufacturing long lasting, high quality LED solutions for both domestic and commercial applications, an impressive understanding and education in LED technology and power systems is imperative, which is exactly what the combined experience of Dlux team members’ offers. Each carefully selected specialist contributes their own unique talents and knowledgeability to the stellar products offered by this brand.
Quick Spec
Brief DescriptionBasy 10 Tridonic Powered 10W 2700K 710lm 36° CRI>90 LED Engine Black Fixed Recessed Spotlight, IP20
Colour FinishBlack
RecessableYes
Item Nett Weight (kg)0.3kg
Diameter (mm)130mm
Height (mm)120mm
Cut Out (mm)90mm
Energy ClassA++
No: of Lamp1
Lamp SocketIntegral LED
Recommended LampIntegral LED
Max Wattage Lamp (W)10W
Lamp IncludedYes
Type of Lamp IncludedIntegrated LED
Colour Temperature (K)2700K Warm White (±5%)
Beam Angle (°)36°
System Flux (lm)631lm (±5%)
CRI>90
UGR<=19
Driver IncludedYes
Protection ClassClass 2 - Double Insulated
Thermal ClassYes
DimmableYes - Suitable Dimmer Required
Dimmer IncludedNo
IP RatingIP20
Average Life (hrs)50000hrs
Warranty (yrs)5yrs
Features
Easy Installation and maintenance
Full Specifications
Collection GroupBasy
Barcode5056037150527
Brief DescriptionBasy 10 Tridonic Powered 10W 2700K 710lm 36° CRI>90 LED Engine Black Fixed Recessed Spotlight, IP20
Colour FinishBlack
Type of FinishPowder Coated
RecessableYes
Item Nett Weight (kg)0.3kg

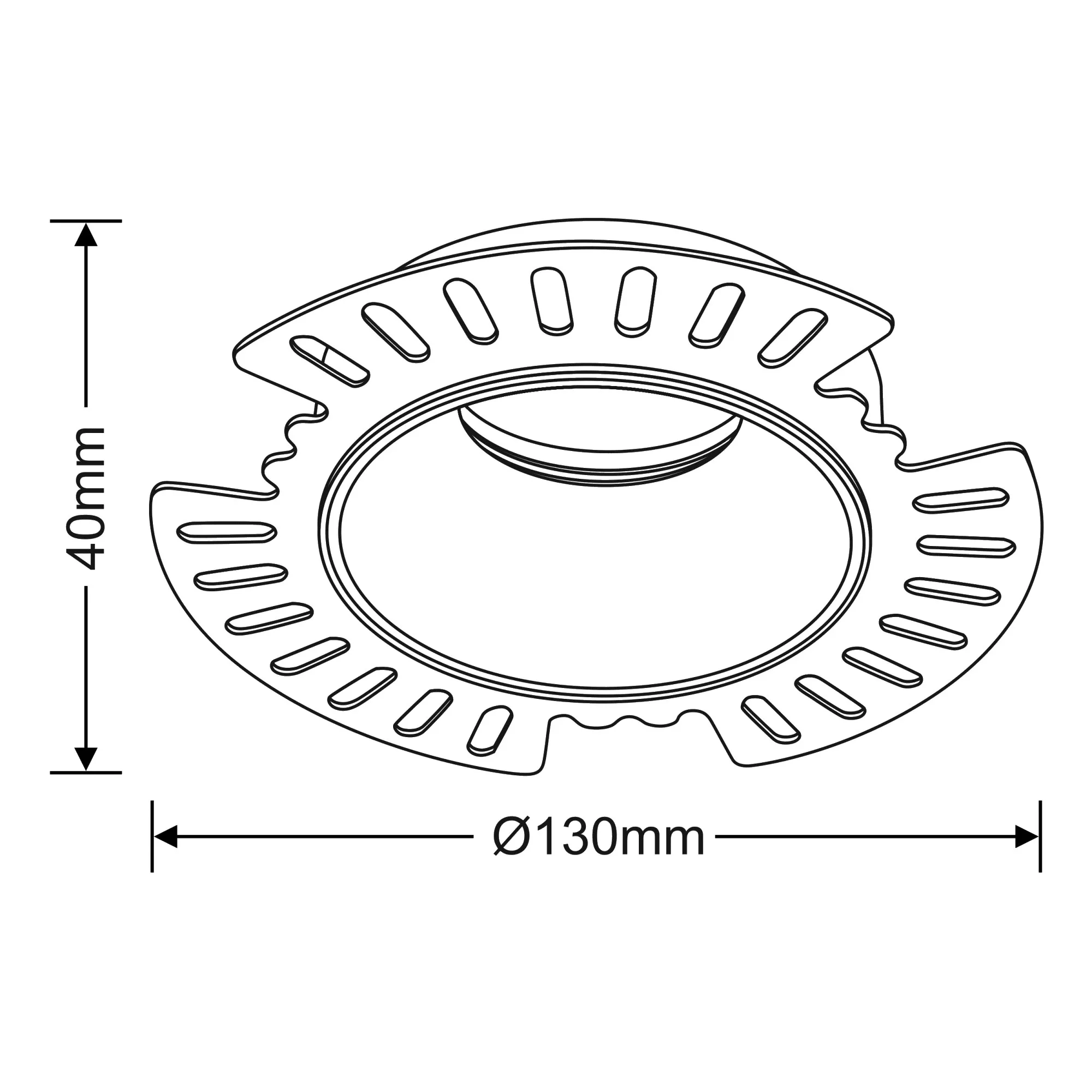

Diameter (mm)130mm
Height (mm)120mm
Cut Out (mm)90mm
Materials UsedDie-cast Aluminium
Energy ClassA++
Max Energy ClassA++
Min Energy ClassA++
No: of Lamp1
Lamp SocketIntegral LED
Recommended LampIntegral LED
Max Wattage Lamp (W)10W
Lamp IncludedYes
Type of Lamp IncludedIntegrated LED
Colour Temperature (K)2700K Warm White (±5%)
Average Life of LED (hrs)50000hrs
LED BrandTridonic
LED Power (W)9.5W (±5%)
Type of LEDCOB
Lumens Per Watt (lm/W)63.1lm/W (±5%)
Lumen Maintenance (hrs)50000hrs / LM80hrs (±5%)
Beam Angle (°)36°
System Flux (lm)631lm (±5%)
CRI>90
MacAdam<3
UGR<=19
Driver IncludedYes
Ta (°C)-20° to 40°C
Tc (°C)90°
Casing MaterialDie-casting Aluminum
Connection TerminalPre-wired
Dimming ProtocolLeading-edge & Trailing-edge
Protection ClassClass 2 - Double Insulated
Thermal ClassYes
Total Power Consumption (W)9.5W (±5%)
Input Voltage (V)220-240V~50/60Hz
DimmableYes - Suitable Dimmer Required
Dimmer IncludedNo
IP RatingIP20
F RatingNo
Average Life (hrs)50000hrs
Warranty (yrs)5yrs
UKCA/CEYes
RohsYes
Fixing Bracket DetailsTrimless Type
Heat Sink ColourBlack
Number of Cartons1
Carton Length (cm)13cm
Carton Width (cm)13cm
Carton Height (cm)12cm
Carton CBM0.002
Carton Nett Weight (kg)0.3kg (±5%)
Carton Gross Weight (kg)0.32kg (±5%)
Pieces Included1
InstallationRequires Installation By Qualified Electrician
Additional DetailsLED Fixed spot light with high color rendering.
Product Care(1) Ensure light is not illuminated when cleaning. (2) Remove dirt with a damp cloth, do not use any detergents, do not clean with any pressurised water.
UK Commodity Code9405119090
Country of OriginChina
