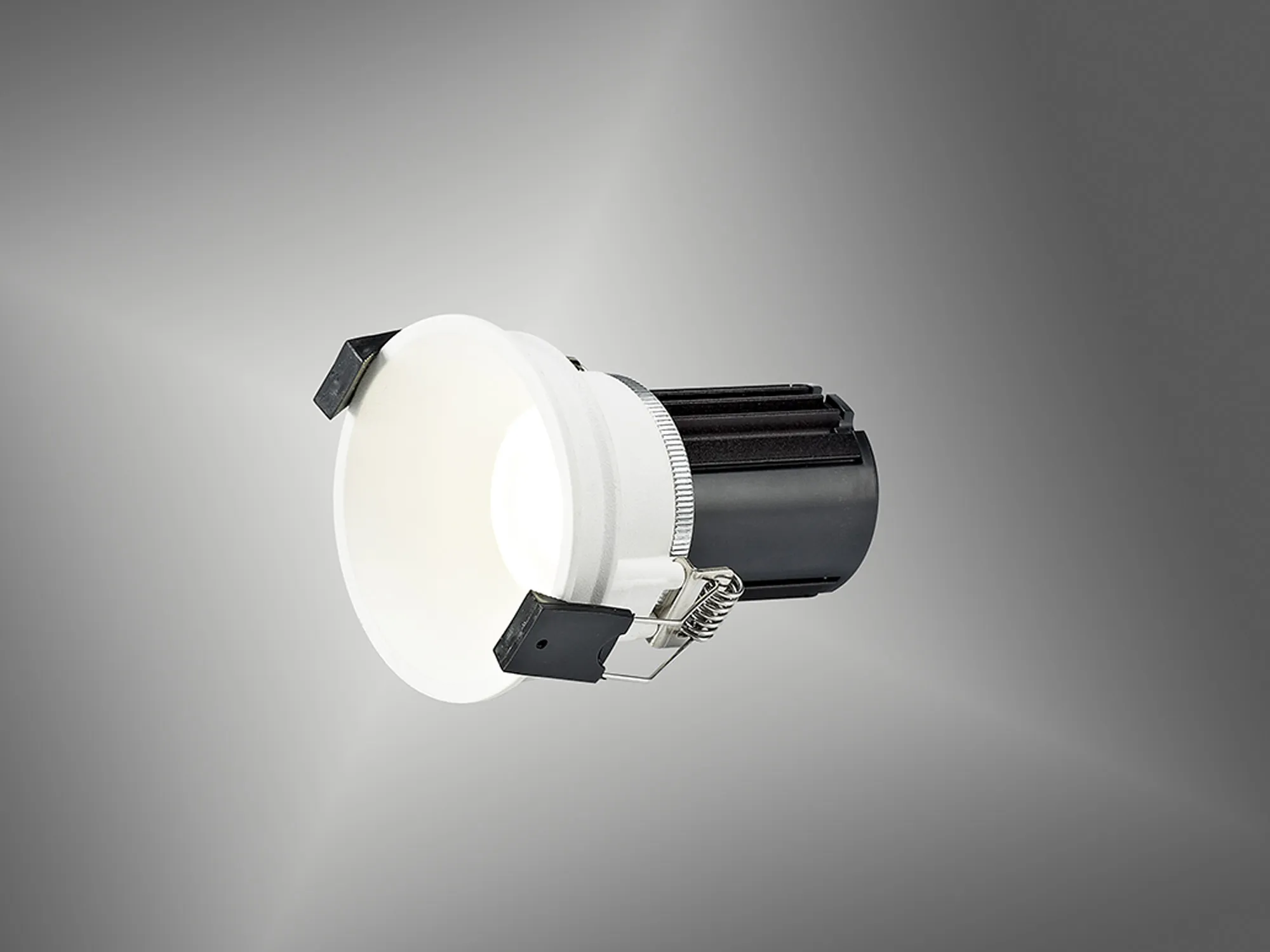

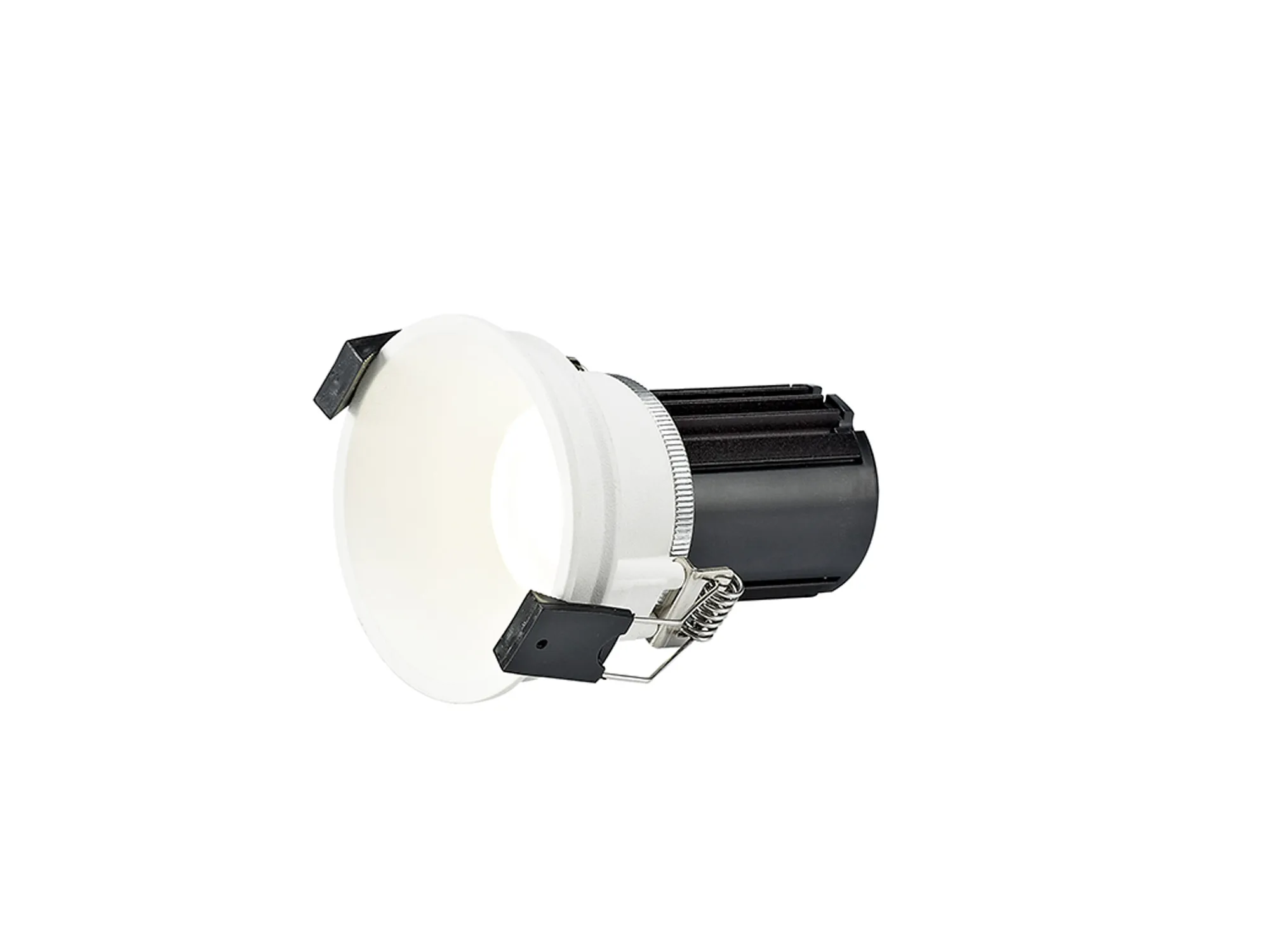

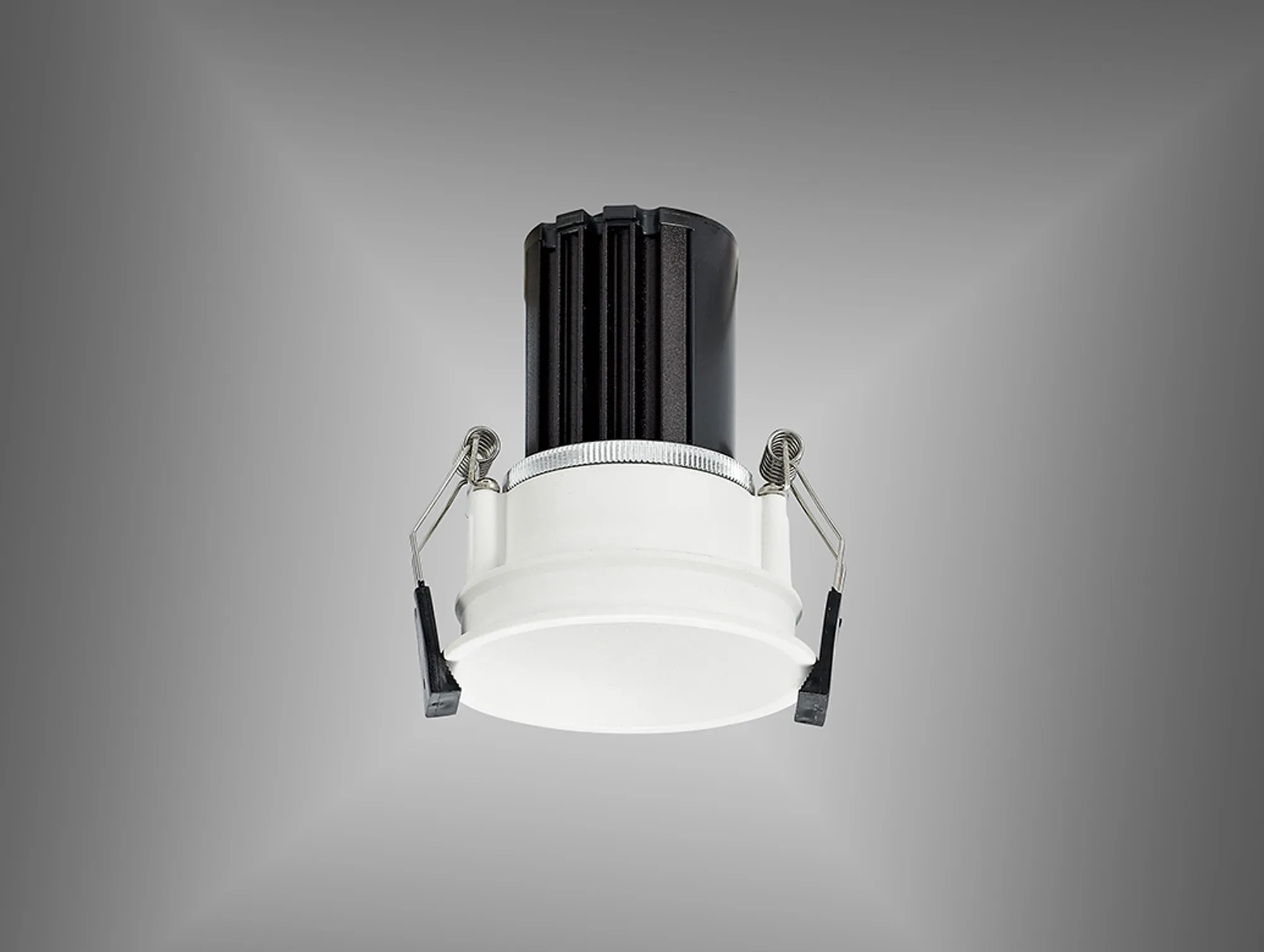

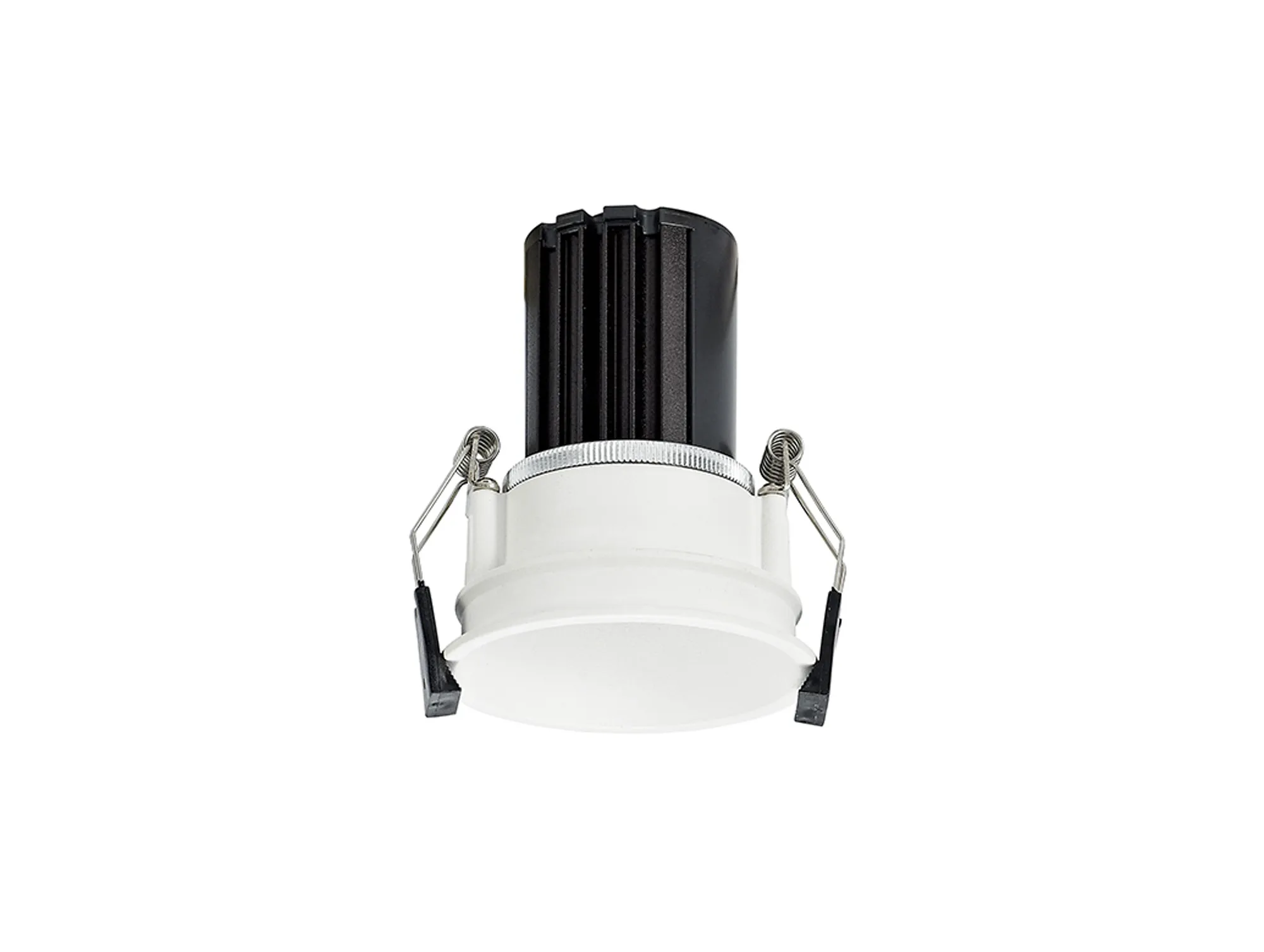

Bania 12 Tridonic Powered 12W 2700K 1200lm 36° , 300mA CRI>90 LED Engine White Fixed Recessed Spotlight, Cut Out: 76mm, IP20, 5yrs Warranty

Bania 12W Powered by Tridonic 12W 1200lm 2700K 36° Engine, 300mA,White IP20 Fixed Recessed Spotlight, 5yrs Warranty

DM201615

Colour Temperature :
Beam Angle :
Colour Finish :
White

Qty: Order Item Add to Wishlist

Dlux the industry becomes flooded with inferior quality products that offer poor performance we believe it is crucial that lighting continues to be the essence of the surrounding we work or live in. Every d’lux product is carefully designed and engineered to offer accurate lighting solutions and not just simply provide some light. With the evolution of LED based lighting the synergy of lighting and nature is even closer as we endeavour to save the environment we live in.
We have established Show More...
Design by
Dlux Design Team
When designing and manufacturing long lasting, high quality LED solutions for both domestic and commercial applications, an impressive understanding and education in LED technology and power systems is imperative, which is exactly what the combined experience of Dlux team members’ offers. Each carefully selected specialist contributes their own unique talents and knowledgeability to the stellar products offered by this brand.
Quick Spec
Brief DescriptionBania 12 Tridonic Powered 12W 2700K 1200lm 36° , 300mA CRI>90 LED Engine White Fixed Recessed Spotlight, Cut Out: 76mm, IP20, 5yrs Warranty
Colour FinishWhite
RecessableYes
Item Nett Weight (kg)0.26kg

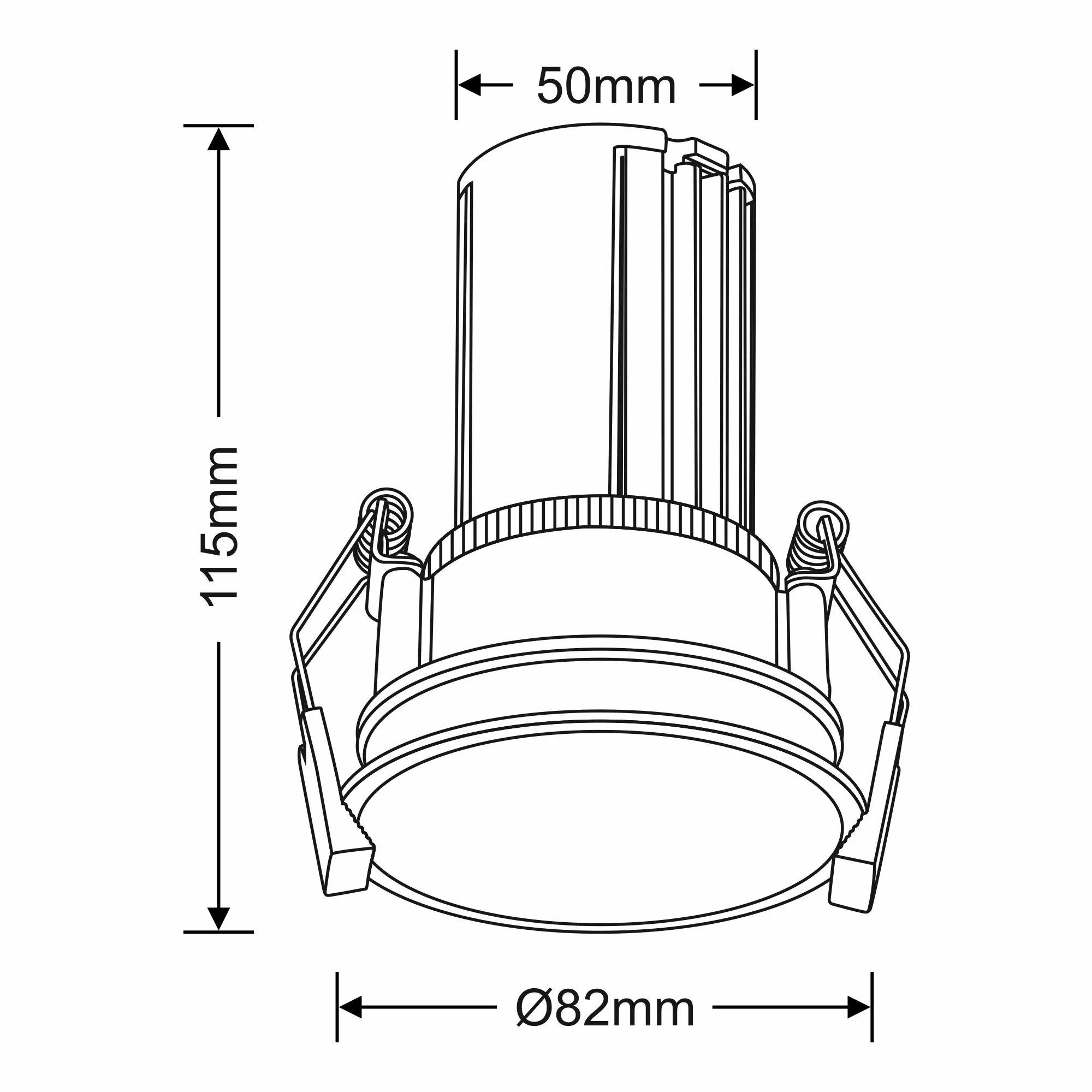

Diameter (mm)82mm
Height (mm)115mm
Cut Out (mm)76mm
Energy ClassA++
No: of Lamp1
Lamp SocketIntegral LED
Recommended LampIntegral LED
Max Wattage Lamp (W)12W
Lamp IncludedYes
Type of Lamp IncludedIntegrated LED
Colour Temperature (K)2700K Warm White (±5%)
Beam Angle (°)36°
System Flux (lm)1200lm (±5%)
CRI>90
UGR<=19
Driver IncludedNo
Type of Driver RequiredConstant Current
Protection ClassClass 2 - Double Insulated
DimmableYes - Dimmable Driver Required
Dimmer IncludedNo
IP RatingIP20
Average Life (hrs)50000hrs
Warranty (yrs)5yrs
Features
Easy Installation and maintenance
Full Specifications
Collection GroupBania
Barcode5056037153832
Brief DescriptionBania 12 Tridonic Powered 12W 2700K 1200lm 36° , 300mA CRI>90 LED Engine White Fixed Recessed Spotlight, Cut Out: 76mm, IP20, 5yrs Warranty
Colour FinishWhite
Type of FinishPowder Coated
RecessableYes
Item Nett Weight (kg)0.26kg
Diameter (mm)82mm
Height (mm)115mm
Cut Out (mm)76mm
Materials UsedDie-cast Aluminium
Energy ClassA++
Max Energy ClassA++
Min Energy ClassA++
No: of Lamp1
Lamp SocketIntegral LED
Recommended LampIntegral LED
Max Wattage Lamp (W)12W
Lamp IncludedYes
Type of Lamp IncludedIntegrated LED
Colour Temperature (K)2700K Warm White (±5%)
Average Life of LED (hrs)50000hrs
LED BrandTridonic
LED Power (W)12W (±5%)
Type of LEDCOB
Lumen Maintenance (hrs)50000hrs / LM80hrs (±5%)
Beam Angle (°)36°
System Flux (lm)1200lm (±5%)
CRI>90
MacAdam<3
UGR<=19
Driver IncludedNo
Triac DriversDA810013,TD-28003345,TD-87500627,LT-SE-15-350-700-G1T
1-10V DriversLT-SE-12-100-400-W1A
0-10V DriversLT-SE-12-100-400-W1A
Dali DriversTD-28000674,LT-SE-12-100-400-W1D,LT-SE-12-350-700-W1D,TD-87500921
Type of Driver RequiredConstant Current
Ta (°C)-20° to 40°C
Tc (°C)90°
Casing MaterialDie-casting Aluminum
Connection TerminalPre-wired
Fixed Output DriversTD-87500629, TD-87500729, TD-28000705,TD-87500747, TD-87501082
Protection ClassClass 2 - Double Insulated
Total Power Consumption (W)12W (±5%)
Input Voltage (V)220-240V~50/60Hz
DimmableYes - Dimmable Driver Required
Dimmer IncludedNo
IP RatingIP20
F RatingNo
Average Life (hrs)50000hrs
Warranty (yrs)5yrs
UKCA/CEYes
RohsYes
Fixing Bracket DetailsSpring Type With Black Cover
Heat Sink ColourBlack
Number of Cartons1
Carton Length (cm)12cm
Carton Width (cm)8.5cm
Carton Height (cm)8.5cm
Carton CBM0.00086
Carton Nett Weight (kg)0.26kg (±5%)
Carton Gross Weight (kg)0.28kg (±5%)
Additional DetailsLED fixed spot light with high color rendering.
UK Commodity Code9405119090
Country of OriginChina
