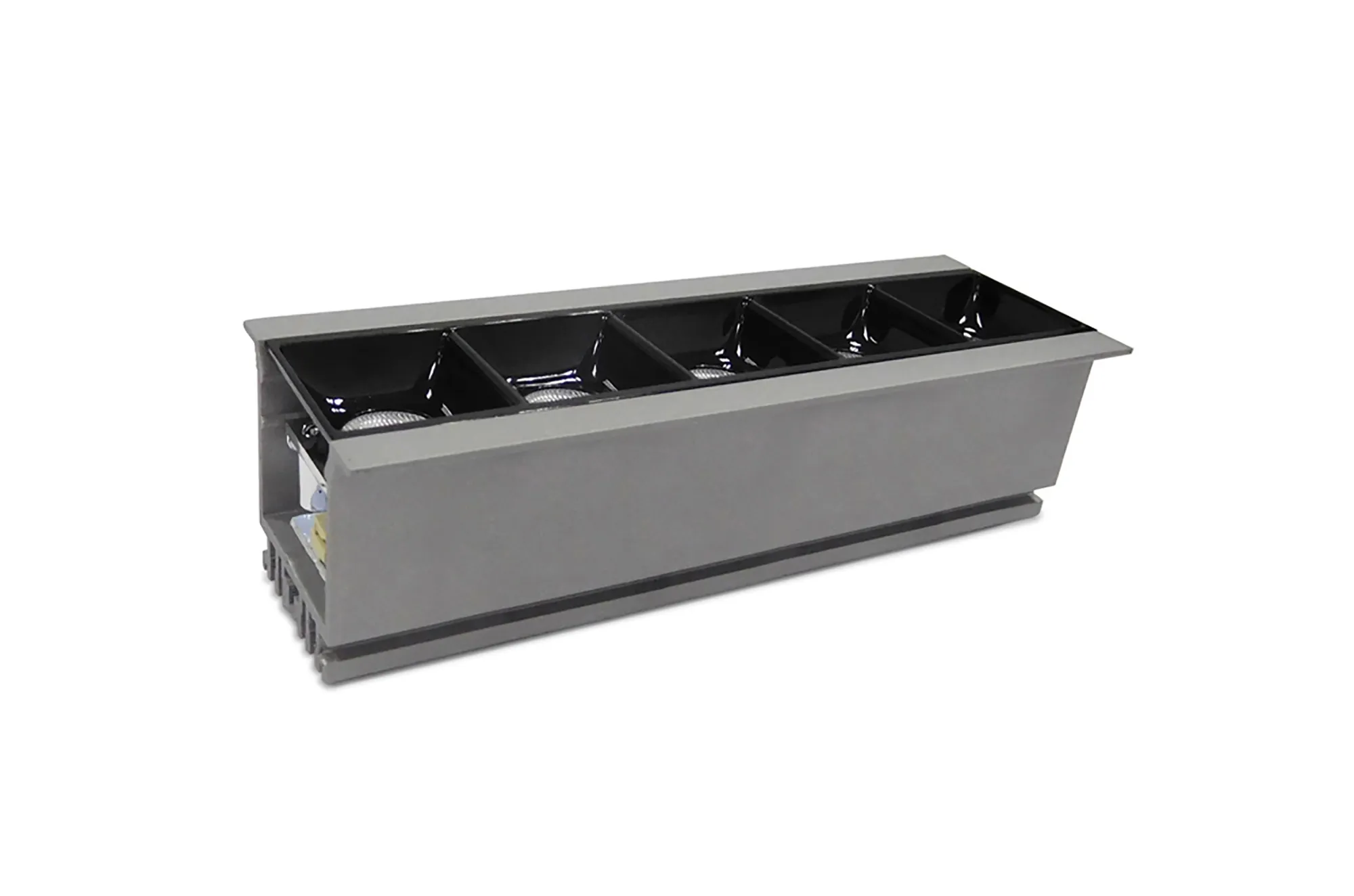

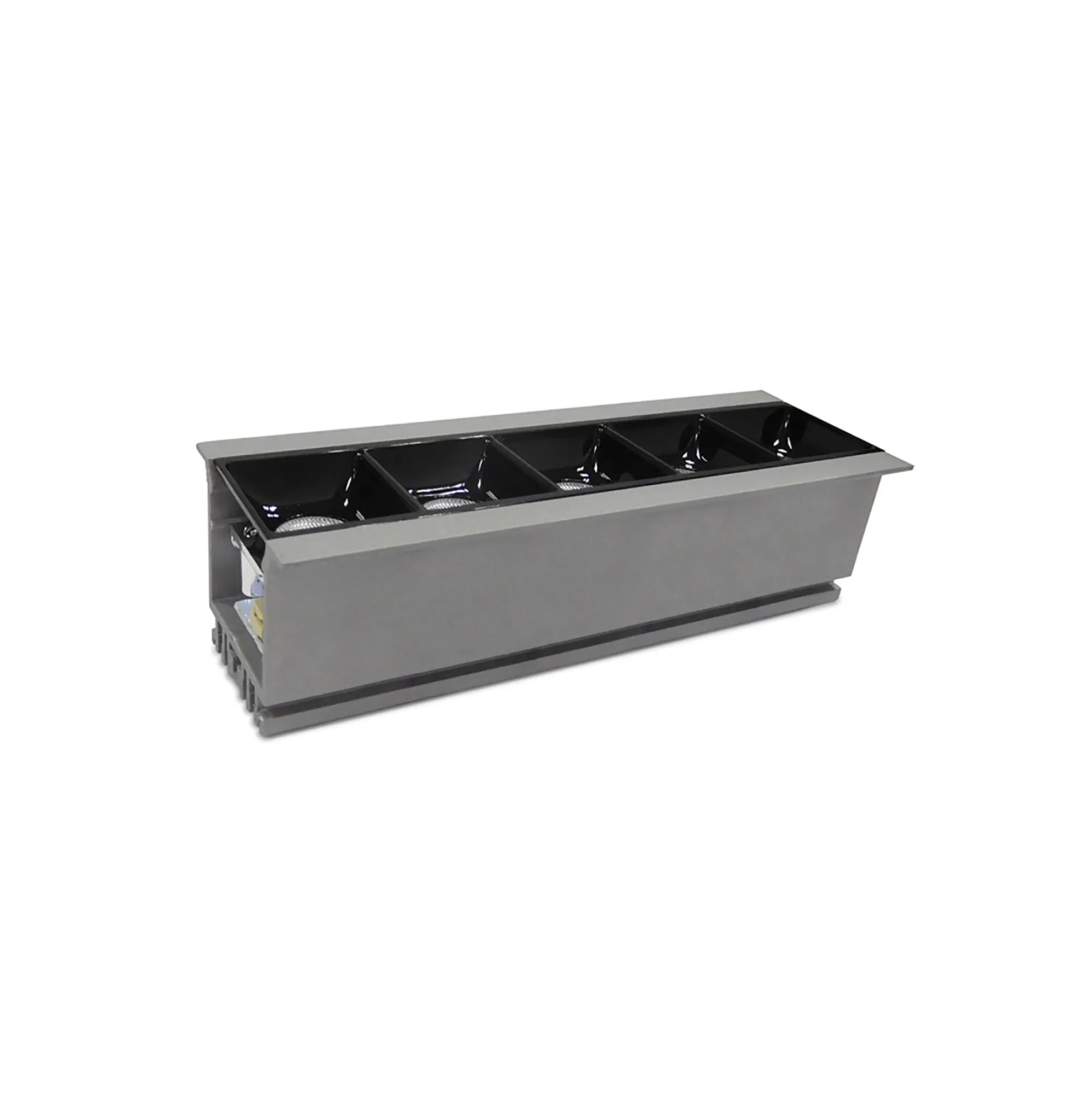

Eline 5x1.2W Surface Linear LED 360lm 30° 3000K IP20

Bline 5x1.2W, Silver/Black Surface Linear LED, 180mA, 360lm, 30° Linear Lens, 3000K Warm White, IP20, CRI 90, Driver& End Caps Excluded, 5yrs Warranty

DX210056

Beam Angle :
Colour Finish :
Silver / Matt Black

Qty: Order Item Add to Wishlist

Dlux the industry becomes flooded with inferior quality products that offer poor performance we believe it is crucial that lighting continues to be the essence of the surrounding we work or live in. Every d’lux product is carefully designed and engineered to offer accurate lighting solutions and not just simply provide some light. With the evolution of LED based lighting the synergy of lighting and nature is even closer as we endeavour to save the environment we live in.
We have established Show More...
Design by
Dlux Design Team
When designing and manufacturing long lasting, high quality LED solutions for both domestic and commercial applications, an impressive understanding and education in LED technology and power systems is imperative, which is exactly what the combined experience of Dlux team members’ offers. Each carefully selected specialist contributes their own unique talents and knowledgeability to the stellar products offered by this brand.
Quick Spec
Brief DescriptionEline 5x1.2W Surface Linear LED 360lm 30° 3000K IP20
Colour FinishSilver
Colour Finish 2Matt Black
Item Nett Weight (kg)0.165kg

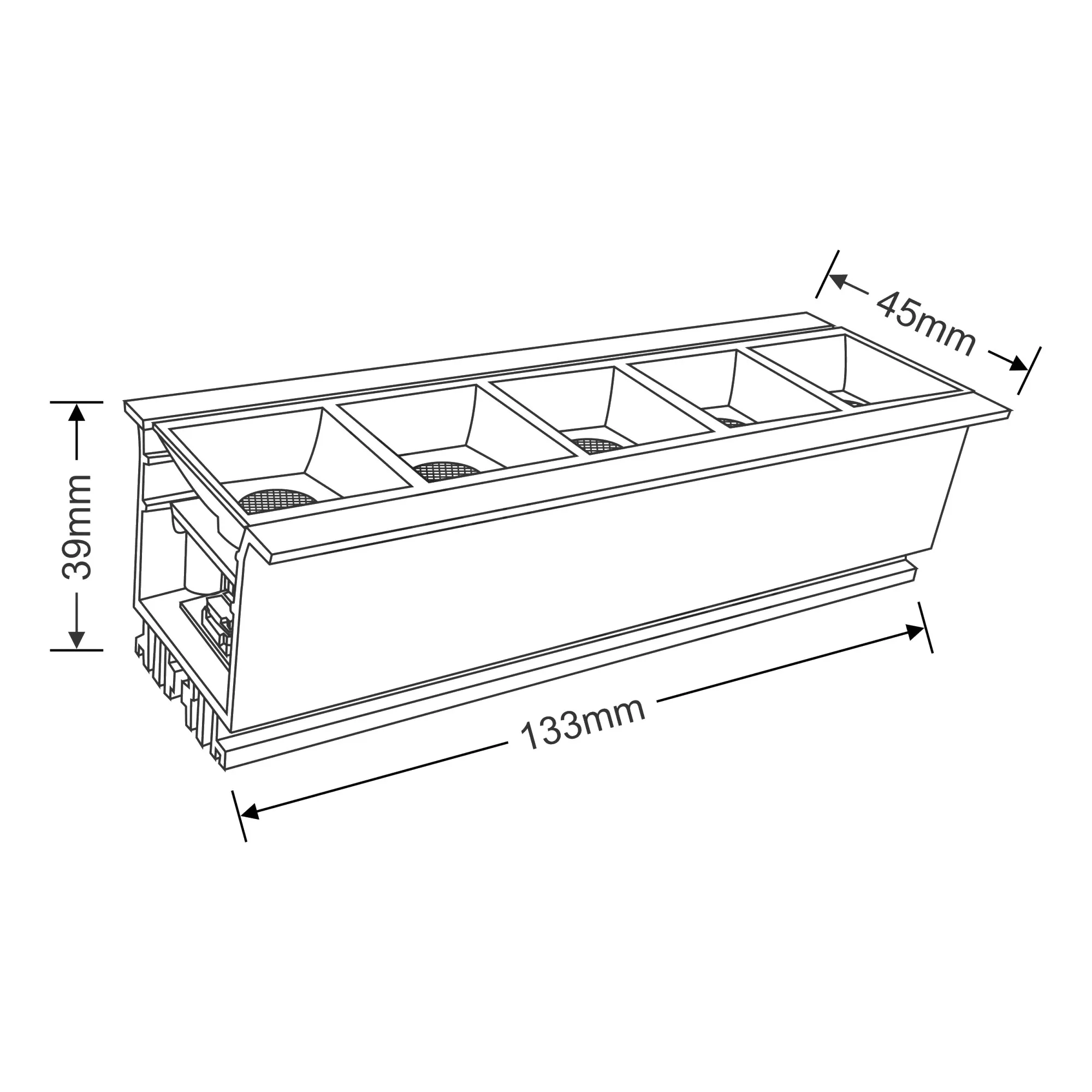

Length (mm)133mm
Width (mm)45mm
Height (mm)39mm
Energy ClassA+
Lamp SocketIntegral LED
Recommended LampIntegral LED
Lamp IncludedYes - Integrated
Type of Lamp IncludedIntegrated LED
Colour Temperature (K)3000K Warm White (±5%)
LED Voltage (V)29-32V DC (±5%)
Beam Angle (°)30°
System Flux (lm)360lm (±5%)
CRI=90
UGR<=13
Driver IncludedNo
Type of Driver RequiredConstant Current
Protection ClassClass 3 - Low Voltage
IP RatingIP20
Warranty (yrs)5yrs
Features
Features, Will be added soon
Full Specifications
Collection GroupBline
Barcode5056037140917
Brief DescriptionEline 5x1.2W Surface Linear LED 360lm 30° 3000K IP20
Colour FinishSilver
Colour Finish 2Matt Black
Type of FinishPowder Coated
Item Nett Weight (kg)0.165kg
Length (mm)133mm
Width (mm)45mm
Height (mm)39mm
Materials UsedDie-cast Aluminium
Energy ClassA+
Lamp SocketIntegral LED
Recommended LampIntegral LED
Lamp IncludedYes - Integrated
Type of Lamp IncludedIntegrated LED
Colour Temperature (K)3000K Warm White (±5%)
Average Life of LED (hrs)50000hrs
LED BrandLumileds
SMD Chipset3030
LED Power (W)1W (±5%)
LED Voltage (V)29-32V DC (±5%)
LED Current (mA)180mA (±5%)
Type of LEDSMD
Lumens Per Watt (lm/W)60lm/W (±5%)
Beam Angle (°)30°
System Flux (lm)360lm (±5%)
CRI=90
MacAdam<3
UGR<=13
Reflector/Lens TypeOptical Reflector With Lens But No Glass Protection
Driver IncludedNo
Type of Driver RequiredConstant Current
Average Life Of Driver (hrs)30000hrs
Protection ClassClass 3 - Low Voltage
Total Power Consumption (W)6W (±5%)
Protective Glass CoverNo
IP RatingIP20
F RatingYes
Warranty (yrs)5yrs
UKCA/CEYes
RohsYes
EMV/EMCYes
Number of Cartons1
Carton Length (cm)15.3cm
Carton Width (cm)7.3cm
Carton Height (cm)4.7cm
Carton CBM0.0005
Carton Nett Weight (kg)0.165kg (±5%)
Carton Gross Weight (kg)0.215kg (±5%)
UK Commodity Code9405119090
Country of OriginChina
