Triac/ELV Push Dim PWM 36W C. Voltage Dimmable Driver

Intelligent LED driver, Triac/ELV Push Dimmable, 36W 12V 3A Constant voltage, Dimmable Driver, 200-240Vac input, 85% efficiency, IP44, 3yrs Wrnty

TD-36-12-E1P1

Qty: Order Item Add to Wishlist

Constant Voltage Leading edge / Trailing edge Triac, Push dimming, Class 2 power supply. Full protective plastic housing, Short circuit, Over-heat and Over load protections. Compliant with Safety Extra Low Voltage standard, Wide Dimming Range, Linear Dimming Curve.
LTECH is a front-runner in the field of LED lighting controller. As the first high-end manufacturer in China and one of the leading suppliers in the world, they have engaged in R&D of LED lighting control technology since 2001. As an intelligent lighting technology enabler, LTECH has developed hundreds of intelligent LED controlling technologies, which creates a more efficient, energy-saving, healthy and comfortable lighting life. Widely applied to the global lighting industry, innovative produc Show More...
To Follow
Quick Spec
Brief DescriptionTriac/ELV Push Dim PWM 36W C. Voltage Dimmable Driver
Colour FinishWhite
Item Nett Weight (kg)0.185kg

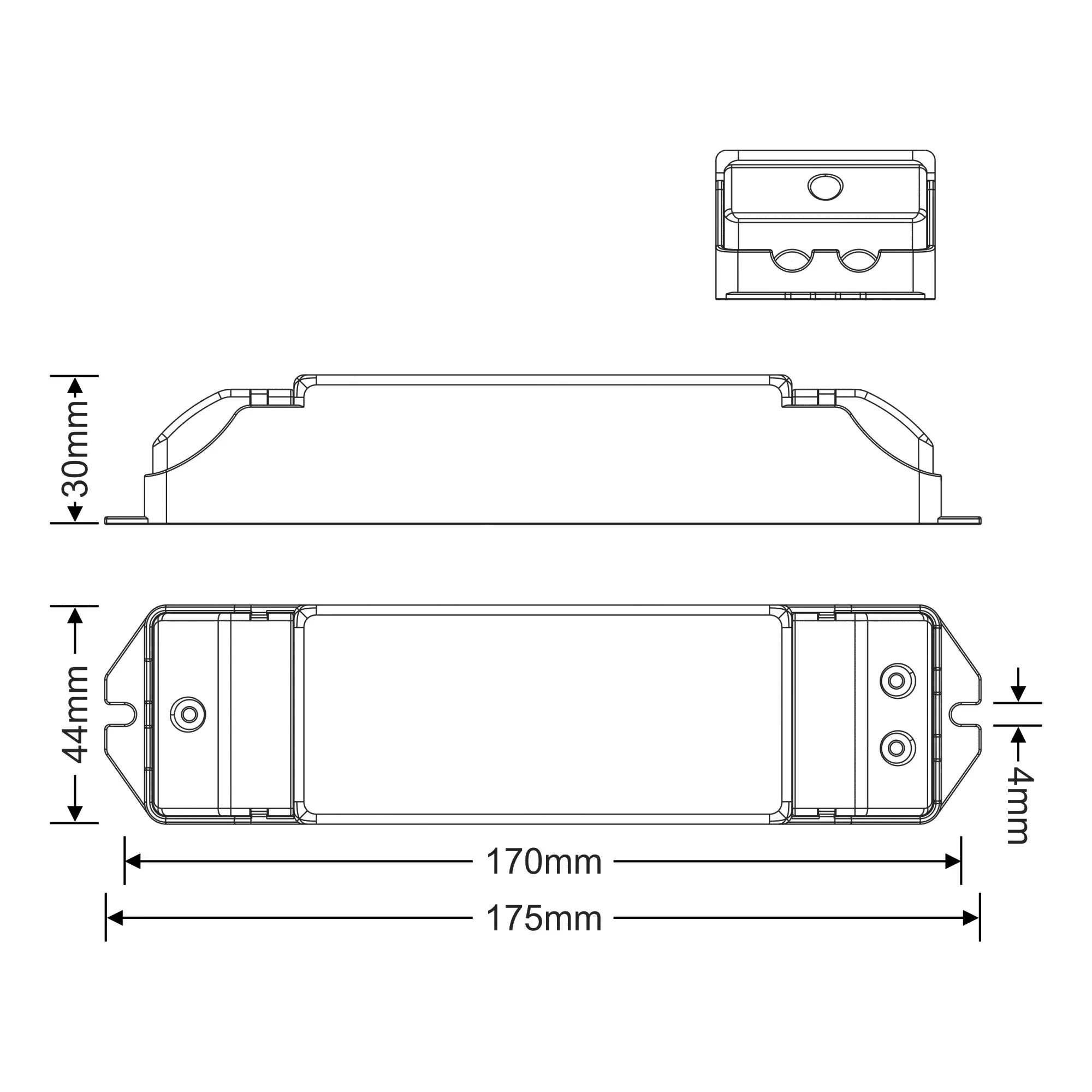

Length (mm)175mm
Width (mm)44mm
Height (mm)30mm
Protection ClassClass 2 - Double Insulated
DimmableYes - Suitable Dimmer Required
Dimmer IncludedNo
IP RatingIP20
Working Humidity (%RH)20 - 95%RH
Average Life (hrs)50000hrs
Warranty (yrs)3yrs
Features
Features, Will be added soon
Full Specifications
Collection GroupConstant Voltage
Barcode5056037131120
Brief DescriptionTriac/ELV Push Dim PWM 36W C. Voltage Dimmable Driver
Colour FinishWhite
Item Nett Weight (kg)0.185kg
Length (mm)175mm
Width (mm)44mm
Height (mm)30mm
Type of DriverConstant Voltage
Dimming Range (%)0-100%
Power Factor (?)>0.90 (±5%)
Constant Voltage Output (V)12V DC
Max. Current Output (A)3A
Load Range (W)36W
Maximum Output Distance (m)2m
Ta (°C)-30°C to 55°C
Tc (°C)+70°C
Casing MaterialPolycarbonate
Connection TerminalPush Terminal
Average Life Of Driver (hrs)50000hrs

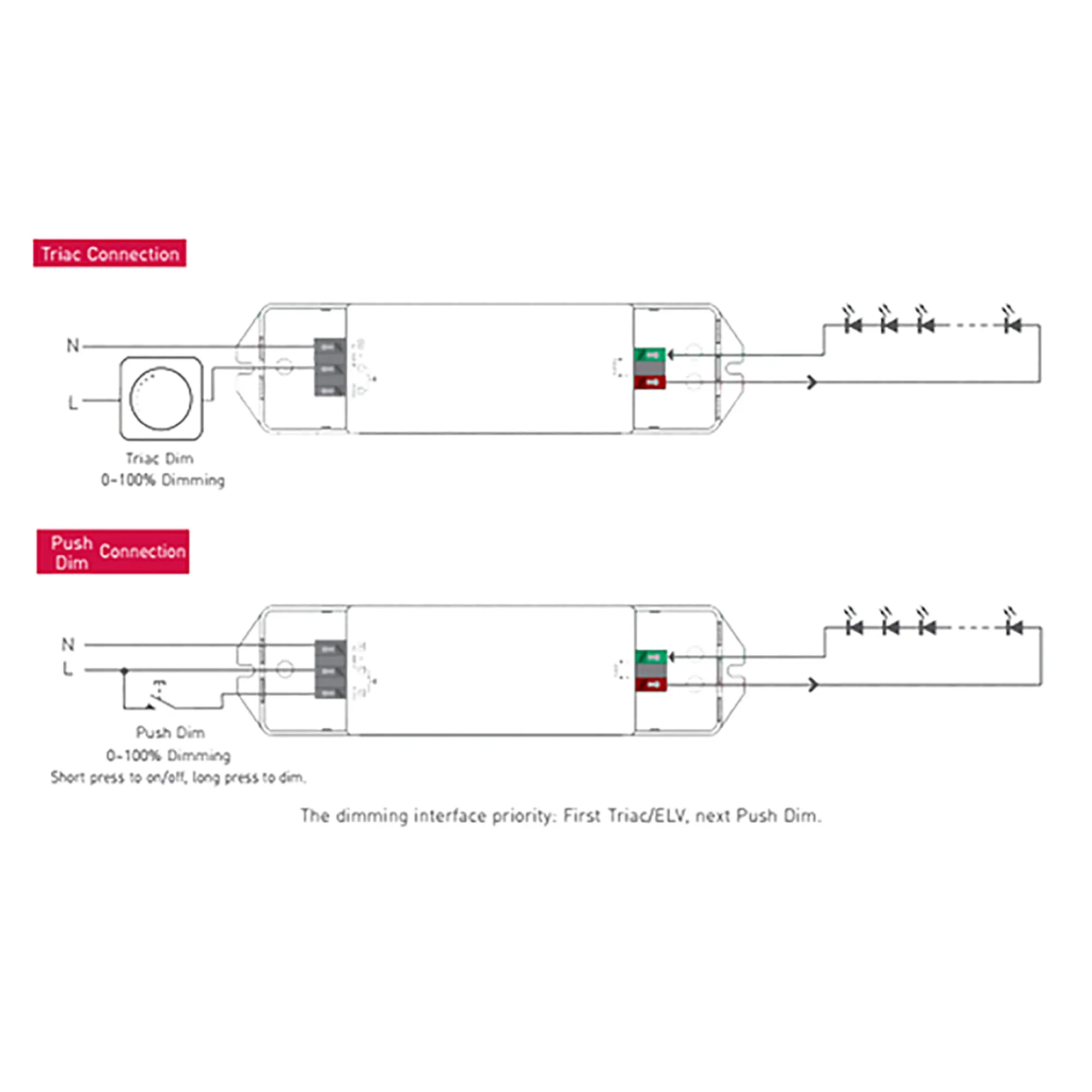

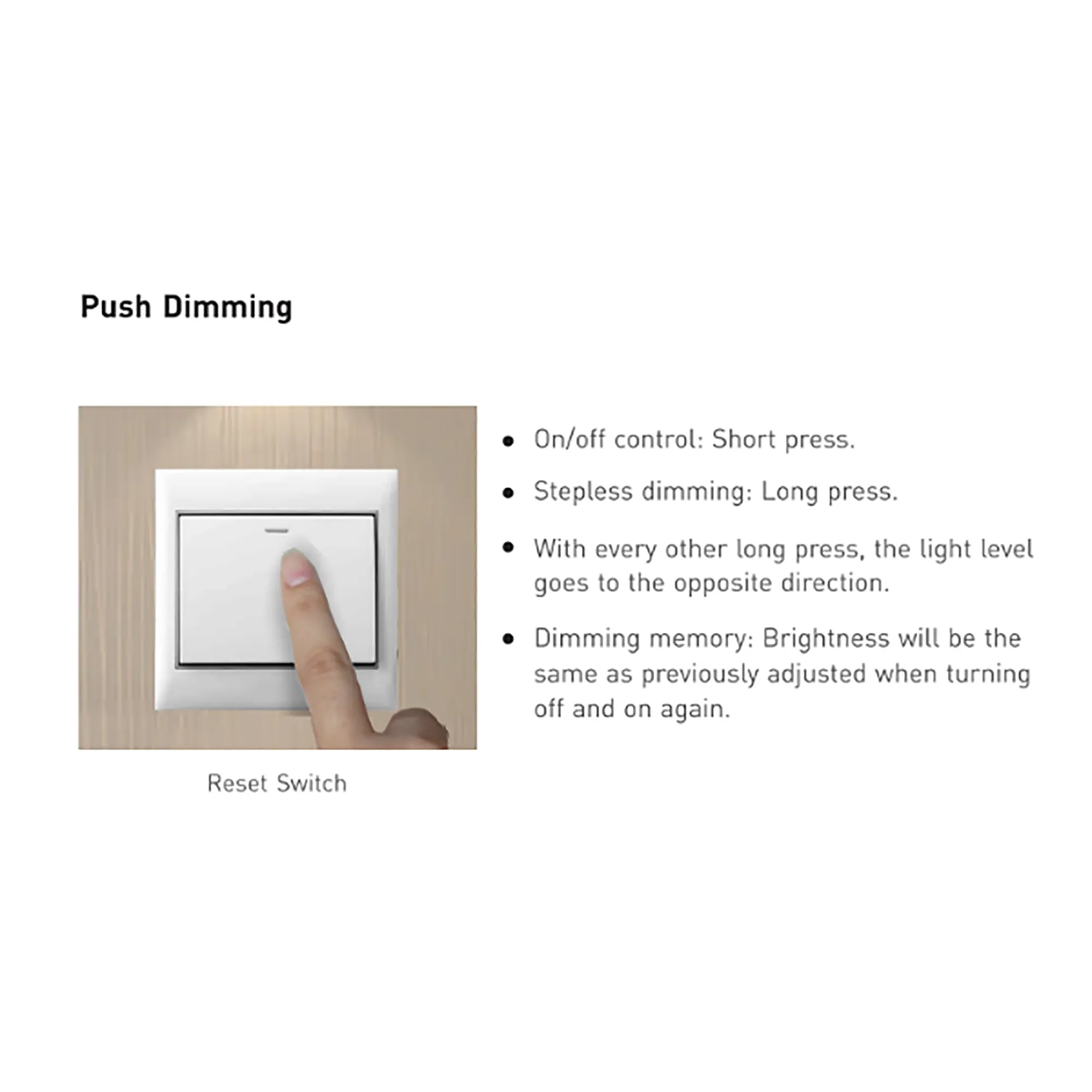

Dimming ProtocolTriac/ELV, Push Dim, PWM
Efficiency>85%
Protection ClassClass 2 - Double Insulated
Total Power Consumption (W)36W (±5%)
Input Voltage (V)200-240V~50/60Hz
Input Current (A)0.4A
Battery RequiredNo
Battery SuppliedNo
DimmableYes - Suitable Dimmer Required
Dimmer IncludedNo
IP RatingIP20
Working Humidity (%RH)20 - 95%RH
Average Life (hrs)50000hrs
Warranty (yrs)3yrs
UKCA/CEYes
RohsYes
SELVYes
EMV/EMCYes
IEC CompliantIEC/EN61347-1, IEC/EN61347-2-13
Number of Cartons1
Carton Length (cm)17.8cm
Carton Width (cm)4.8cm
Carton Height (cm)3.3cm
Carton CBM0.0002
Carton Nett Weight (kg)0.175kg (±5%)
Carton Gross Weight (kg)0.185kg (±5%)
Additional DetailsBuilt-in single chip, dimming curve and smoothing time can be customized, 100MO/500VDC/25°C/70%RH Isolation Resistance, I/P-O/P: 3750Vac Withstand Voltage. Easy Installation.
UK Commodity Code8504401400
Country of OriginChina
