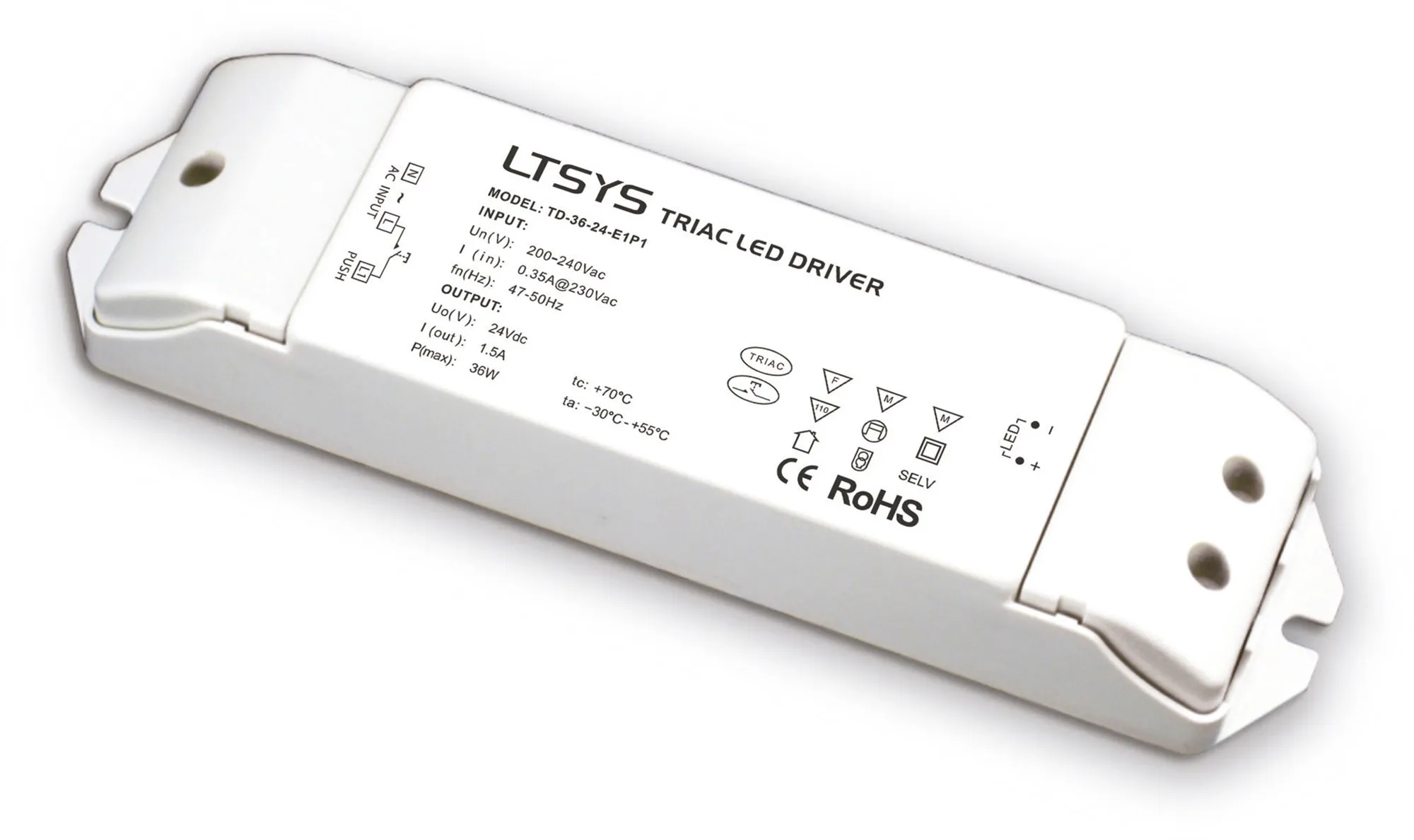

TD-36-24-E1P1

Triac/ELV Push Dim PWM 36W C. Voltage Dimmable Driver

Intelligent LED driver, Triac/ELV Push Dimmable, 36W 24V 3A Constant voltage, Dimmable Driver, 200-240Vac input, 85% efficiency, IP44, 3yrs Wrnty

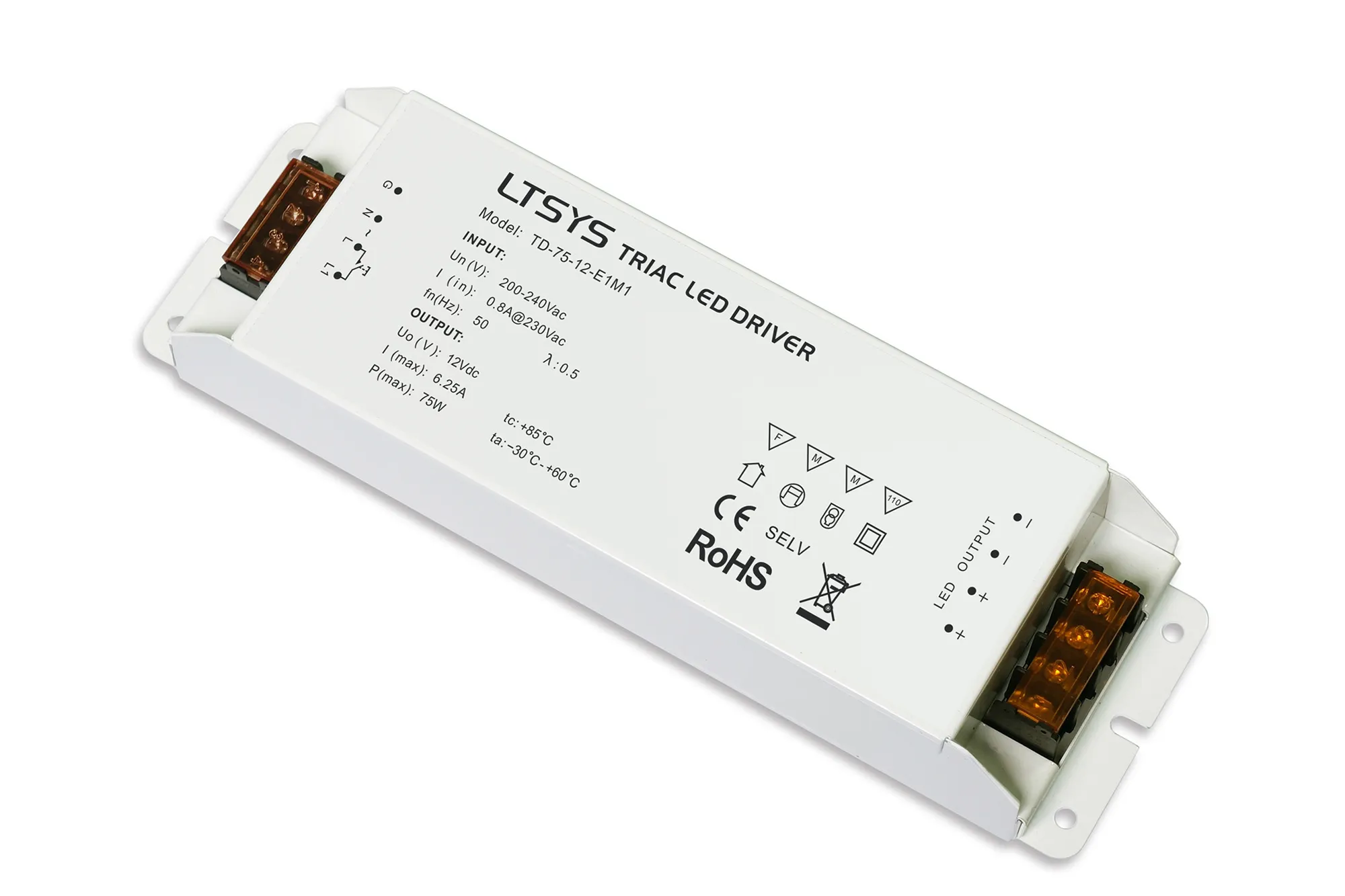

TD-75-12-E1M1

Triac/ELV Push Dim PWM 75W C. Voltage Dimmable Driver

Triac/ELV, PWM, 75W, C. Voltage Dimmable Driver, 12V, Max Current Output:6.25A, EFF=85%, 200-240V AC input, IP20, 5yrs Warranty

YOU MAY ALSO LIKE (36 Items)

SL100-24VFT

100W, Constant Voltage Non Dimmable LED Driver, 24VDC, 0.83-4.16A, Input 200-240VAC 50/60Hz, IP20.

SL, 100W, Constant Voltage Triac Dimmable LED Driver, 24VDC,IP20, Screw Connection, 5yrs Warranty.

SL150-24VFT

150W, Constant Voltage Non Dimmable LED Driver, 24VDC, 1.25-6.25A, Input 200-240VAC 50/60Hz, IP20.

SL, 150W, Constant Voltage Triac Dimmable LED Driver, 24VDC,IP20, Screw Connection, 5yrs Warranty.

SP150-24VLT

150W Constant Voltage Triac-Dimmable LED Driver 24VDC 2-6.25A IP20.

SP, 150W, Constant Voltage Triac Dimmable LED Driver, 24VDC, IP20, Screw Connection, 5yrs Warranty.

SP30-24VFT-1

30W Constant Voltage Triac-Dimmable LED Driver 24VDC 0.25-1.25A IP20.

SP, 30W, Constant Voltage Triac Dimmable LED Driver, 24VDC, IP20, Screw Connection, 5yrs Warranty.

SP3-350ILT

SP 3.5W, Constant Current Triac Dimmable LED Driver, 350mA,2.5-10V, 22V,0.35A, AC220-240V 50/60Hz , IP20, 5yrs Warranty.

SP, 3.5W, Constant Current Triac Dimmable LED Driver, 350mA, IP20, 5yrs Warranty

SP7-350ILT

SP 7.7W, Constant Current Triac Dimmable LED Driver, 350mA,10-22V, AC220-240V 50/60Hz , IP20, 5yrs Warranty.

SP, 7.7W, Constant Current Triac Dimmable LED Driver, 350mA, IP20, 5yrs Warranty

SP200-24VLT

200W Constant Voltage Triac-Dimmable LED Driver 24VDC 4.16- 8.3A IP20.

SP, 200W, Constant Voltage Triac Dimmable LED Driver, 24VDC, IP20,Screw Connection, 5yrs Warranty.

SP300-24VLT

300W Constant Voltage Triac-Dimmable LED Driver 24VDC 6- 12.5A IP20.

SP, 300W, Constant Voltage Triac Dimmable LED Driver, 24VDC, IP20, Screw Connection, 5yrs Warranty.

SP100-24VLT

100W Constant Voltage Triac-Dimmable LED Driver 24VDC 0.42-4.17A IP20.

SP, 100W, Constant Voltage Triac Dimmable PC LED Driver, 24VDC, IP20, Screw Connection, 5yrs Warranty.

SE-6-100-G1T

Triac/ELV, PWM,6W, C. Current Dimmable Driver, 100mA, DC:9-42Vdc, EFF>70%, IP20.

Triac/ELV, PWM,6W, C. Current Dimmable Driver, 100mA, DC:9-42Vdc, EFF>70%, IP20, 5yrs Warranty.

SE-6-150-G1T

Triac/ELV, PWM,6W, C. Current Dimmable Driver, 150mA, DC:9-42Vdc, EFF>70%, IP20.

Triac/ELV, PWM,6W, C. Current Dimmable Driver, 150mA, DC:9-42Vdc, EFF>70%, IP20, 5yrs Warranty.

SE-6-200-G1T

Triac/ELV, PWM,6W, C. Current Dimmable Driver, 200mA, DC:9-42Vdc, EFF>70%, IP20.

Triac/ELV, PWM,6W, C. Current Dimmable Driver, 200mA, DC:9-31.5Vdc, EFF>70%, IP20, 5yrs Warranty.

SE-6-250-G1T

Triac/ELV, PWM,6W, C. Current Dimmable Driver, 250mA, DC:9-42Vdc, EFF>70%, IP20.

Triac/ELV, PWM,6W, C. Current Dimmable Driver, 250mA, DC:9-25Vdc, EFF>70%, IP20, 5yrs Warranty.

SE-6-300-G1T

Triac/ELV, PWM,6W, C. Current Dimmable Driver, 300mA, DC:9-42Vdc, EFF>70%, IP20.

Triac/ELV, PWM,6W, C. Current Dimmable Driver, 300mA, DC:9-21Vdc, EFF>70%, IP20, 5yrs Warranty.

SE-6-350-G1T

Triac/ELV, PWM,6W, C. Current Dimmable Driver, 350mA, DC:9-42Vdc, EFF>70%, IP20.

Triac/ELV, PWM,6W, C. Current Dimmable Driver, 350mA, DC:9-18Vdc, EFF>70%, IP20, 5yrs Warranty.

SE-6-400-G1T

Triac/ELV, PWM,6W, C. Current Dimmable Driver, 400mA, DC:9-42Vdc, EFF>70%, IP20.

Triac/ELV, PWM,6W, C. Current Dimmable Driver, 400mA, DC:9-15.5Vdc, EFF>70%, IP20, 5yrs Warranty.

SE-6-450-G1T

Triac/ELV, PWM,6W, C. Current Dimmable Driver, 450mA, DC:9-42Vdc, EFF>70%, IP20.

Triac/ELV, PWM,6W, C. Current Dimmable Driver, 450mA, DC:9-14Vdc, EFF>70%, IP20, 5yrs Warranty.

SE-6-500-G1T

Triac/ELV, PWM,6W, C. Current Dimmable Driver, 500mA, DC:9-42Vdc, EFF>70%, IP20.

Triac/ELV, PWM,6W, C. Current Dimmable Driver, 500mA, DC:2-11.5Vdc, EFF>70%, IP20, 5yrs Warranty.

SE-6-550-G1T

Triac/ELV, PWM,6W, C. Current Dimmable Driver, 550mA, DC:9-42Vdc, EFF>70%, IP20.

Triac/ELV, PWM,6W, C. Current Dimmable Driver, 550mA, DC:2-11.5Vdc, EFF>70%, IP20, 5yrs Warranty.

SE-6-600-G1T

Triac/ELV, PWM,6W, C. Current Dimmable Driver, 600mA, DC:9-42Vdc, EFF>70%, IP20.

Triac/ELV, PWM,6W, C. Current Dimmable Driver, 600mA, DC:2-10.5Vdc, EFF>70%, IP20, 5yrs Warranty.

SE-6-650-G1T

Triac/ELV, PWM,6W, C. Current Dimmable Driver, 650mA, DC:9-42Vdc, EFF>70%, IP20.

Triac/ELV, PWM,6W, C. Current Dimmable Driver, 650mA, DC:2-9.5Vdc, EFF>70%, IP20, 5yrs Warranty.

SE-6-700-G1T

Triac/ELV, PWM,6W, C. Current Dimmable Driver, 700mA, DC:9-42Vdc, EFF>70%, IP20.

Triac/ELV, PWM,6W, C. Current Dimmable Driver, 700mA, DC:2-9Vdc, EFF>70%, IP20, 5yrs Warranty.

SP50-24VFT-1

50W Constant Voltage Triac-Dimmable LED Driver 24VDC 0.25-1.25A IP20.

SP, 50W, Constant Voltage Triac Dimmable PC LED Driver, 24VDC, IP20, Screw Connection, 5yrs Warranty.

TR-9-150-500-G1T

Triac/ELV Dimmable, 1.35W-9W, CC Dimmable Driver, 150/200/250/300/350/400/450/500mA, 9-36Vdc, IP20.

Intelligent LED driver, Triac/ELV Dimmable, 1.35W-9W, CC Dimmable Driver, 150/200/250/300/350/400/450/500mA, 9-36Vdc, EFF>80%, IP20, 3yrs Warranty.

SE-15-350-700-G1T

Triac/ELV Push Dim PWM 15W Constant Current Dimmable Driver 45V 150-700mA, IP44.

Triac/ELV, PWM, 3.15-15W, C. Current Dimmable Driver, 350/400/450/500/550/600/650/700mA, DC:9-42V, EFF>80%, 5yrs Warranty

TD-10-350-700-E1P1

Triac/ELV PWM 1.05-10W C. Current Dimmable Driver, 3-24Vdc, 350-700mA, 200-240Vac input, IP44.

Triac/ELV PWM, 1.05-10W, Constant Current Dimmable Driver, 350/400/450/500/550/600/650/700mA, DC:3-24V, EFF>82%, 200-240Vac input, IP44, 3yrs Warranty

TD-20-200-700-EFP1

Triac/ELV, Push Dim, PWM, 2-20W, CC Dimmable Driver, 200-700mA, DC:10-42V, EFF>80%, 3yrs Warranty

Intelligent LED driver, Triac/ELV, Push Dim, PWM, 2-20W, CC Dimmable Driver, 200/250/300/350/550/600/650/700mA, 10-42Vdc, EFF>80%, 3yrs Warranty

TD-25-200-900-EFP1

Triac/ELV Push Dim PWM 2-25W 45V 200-900mA Constant Current Dimmable Driver, IP44.

Intelligent LED driver, Triac/ELV, Push Dim, PWM, 2-25W, Constant Current Dimmable Driver, 200/300/400/500/600/700/800/900mA, 83% efficiency, IP44

TD-30-300-900-EFP1

Triac/ELV Push Dim PWM 3-30W Current Dimmable Driver

Intelligent LED driver, Triac/ELV, Push Dim, 3W-35W, CC Dimmable Driver, 300/3500/450/500/700/750/850/900mA, 45Vdc, 200-240Vac input, 85% efficiency

TD-35-550-900-EFP1

Triac/ELV, Push Dim, PWM, 5.5W-35W, CC Dimmable Driver, 550-900mA, DC:10-42V, EFF>80%, 3yrs Warranty

Intelligent LED driver, Triac/ELV, Push Dim, PWM, 5.5W-35W, CC Dimmable Driver, 550/600/650/700/750/800/850/900mA, 10-42Vdc, EFF>80%, 3yrs Warranty

SP30-12VFT

30W Constant Voltage Triac-Dimmable LED Driver 24VDC 0.5- 2.5A IP20.

SP, 30W, Constant Voltage Triac Dimmable PC LED Driver, 12VDC, IP20, Screw Connection, 3yrs Warranty.

SP30-24VFT

30W Constant Voltage Triac-Dimmable LED Driver 24VDC 0.25- 1.25A IP20.

SP, 30W, Constant Voltage Triac Dimmable PC LED Driver, 24VDC, IP20, Screw Connection, 3yrs Warranty.

SP50-24VFT

50W Constant Voltage Triac-Dimmable LED Driver 24VDC 0.8-2.08A IP20.

SP, 50W, Constant Voltage Triac Dimmable PC LED Driver, 24VDC, IP20, Screw Connection, 3yrs Warranty.

SE-12-100-400-G1T

Triac/ELV Push Dim PWM 12W Constant Current Dimmable Driver 9-42V 100-400mA, IP20.

Triac/ELV, PWM,0.9-12W, C. Current Dimmable Driver, 100/150/200/250/300/350/400mA, DC:9-42Vdc, EFF>78%, 5yrs Warranty

SE-9-350-700-G1T

Triac/ELV Push Dim PWM 9W Constant Current Dimmable Driver 2-12V 350-700mA, IP20.

Triac/ELV, PWM,0.7-8.5W, C. Current Dimmable Driver, 350/400/450/500/550/600/650/700mA, DC:2-12Vdc, EFF>70%, 5yrs Warranty

TD-36-200-1200-EFP1

Triac/ELV Dimmable, 2W-36W, CC Dimmable Driver, 200/350/500/700/900/1050/1200mA, DC:10-54V,IP20.

Intelligent LED driver, Triac/ELV Dimmable, 2W-36W, CC Dimmable Driver, 200/350/500/700/900/1050/1200mA, 10-54Vdc, EFF>80%, IP20, 3yrs Warranty.

Triac/ELV, PWM, 75W, C. Voltage Dimmable Driver, 24V, Max Current Output:3.12A, EFF=87%, 100-240V AC input, IP20, 5yrs Warranty

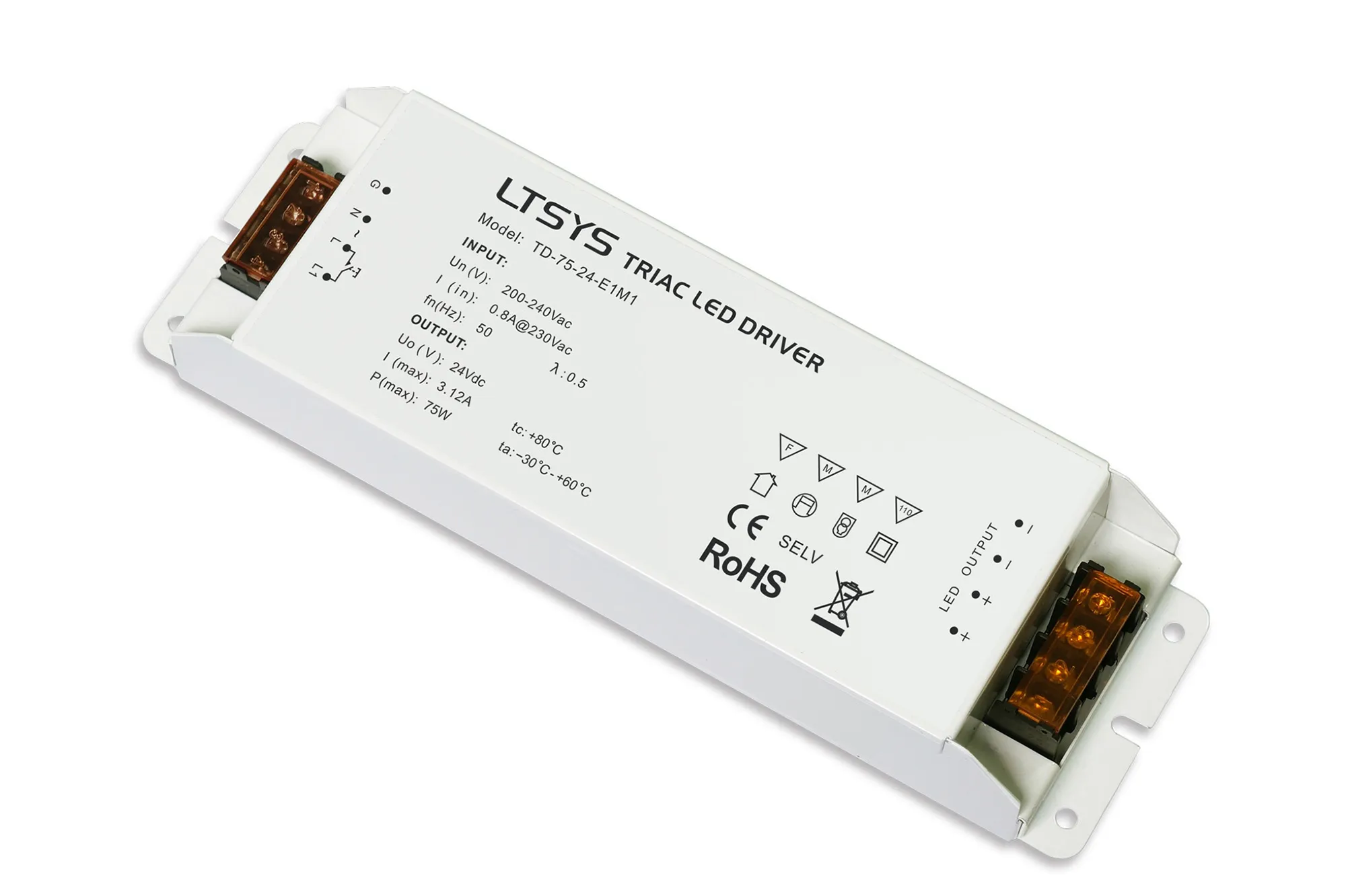

TD-75-24-E1M1

Colour Finish :

White

Qty: Order Item Add to Wishlist

Constant Voltage Leading edge / Trailing edge Triac dimming, PWM digital dimming, Class 2 power supply. Full protective plastic housing, Short circuit, Over-heat, Over load and Over voltage protections. Compliant with Safety Extra Low Voltage standard, Wide Dimming Range, Linear Dimming Curve

LTECH is a front-runner in the field of LED lighting controller. As the first high-end manufacturer in China and one of the leading suppliers in the world, they have engaged in R&D of LED lighting control technology since 2001. As an intelligent lighting technology enabler, LTECH has developed hundreds of intelligent LED controlling technologies, which creates a more efficient, energy-saving, healthy and comfortable lighting life. Widely applied to the global lighting industry, innovative produc Show More...

To Follow

Quick Spec

Brief Description	Triac/ELV Push Dim PWM 75W C. Voltage Dimmable Driver
Colour Finish	White
Item Nett Weight (kg)	0.43kg

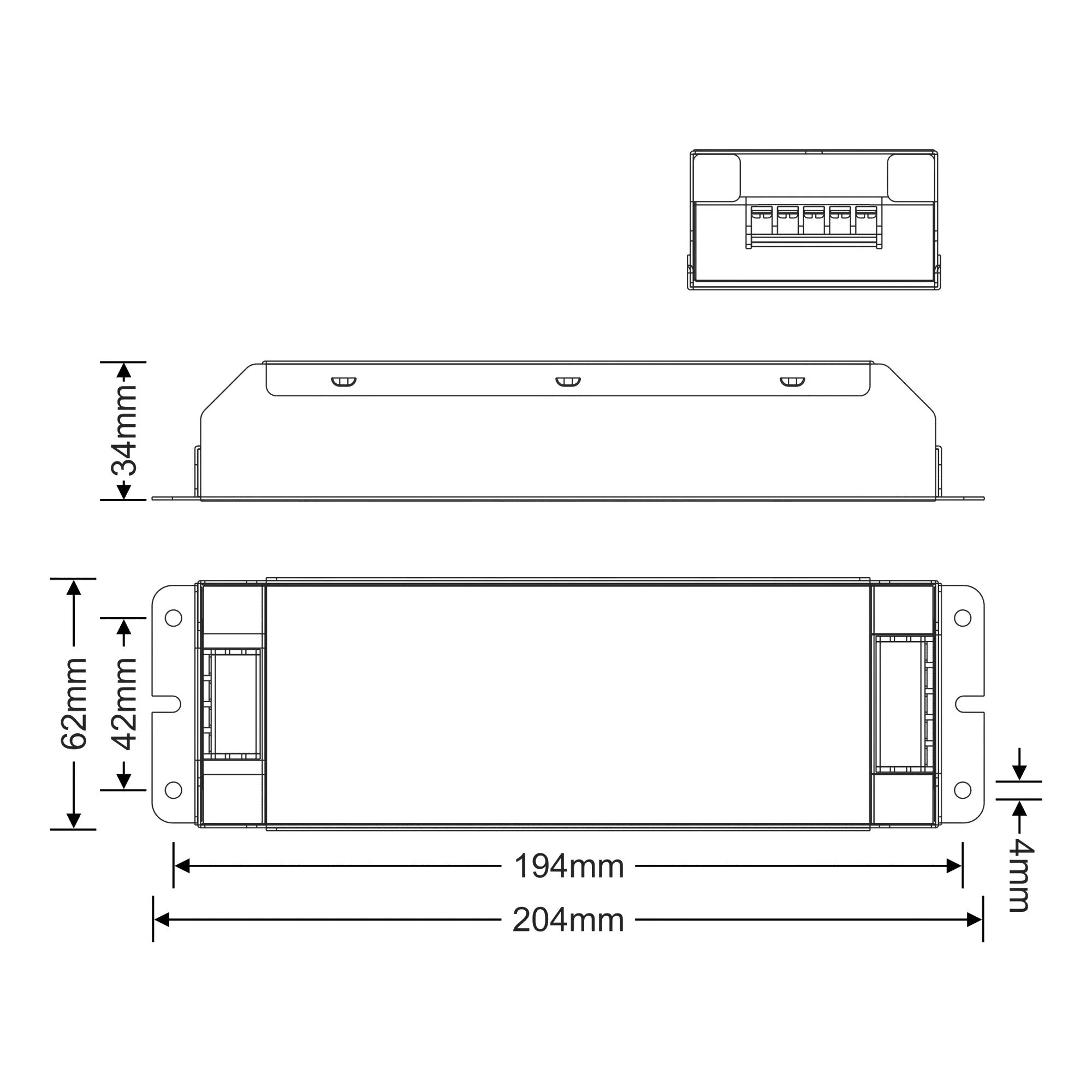

Length (mm)	204mm
Width (mm)	62mm
Height (mm)	34mm
Protection Class	Class 2 - Double Insulated
Dimmable	Yes - Suitable Dimmer Required
Dimmer Included	No
IP Rating	IP20
Working Humidity (%RH)	20 - 95%RH
Average Life (hrs)	50000hrs
Warranty (yrs)	5yrs

Features

Features, Will be added soon

Full Specifications

Marketing Information

Collection Group	Constant Voltage
Barcode	5056037131151
Brief Description	Triac/ELV Push Dim PWM 75W C. Voltage Dimmable Driver

Physical Characteristics

Colour Finish	White

Mechanical Specification

Item Nett Weight (kg)	0.43kg
Length (mm)	204mm
Width (mm)	62mm
Height (mm)	34mm

Driver Specification

Type of Driver	Constant Voltage
Dimming Range (%)	0-100%
Power Factor (?)	>0.90 (±5%)
Constant Voltage Output (V)	24V DC
Max. Current Output (A)	3.12A
Load Range (W)	0-75W
Maximum Output Distance (m)	2m
Ta (°C)	-30°C to 60°C
Tc (°C)	+85°C
Casing Material	Polycarbonate
Connection Terminal	Screw Terminal
Average Life Of Driver (hrs)	50000hrs
Dimming Protocol	Triac/ELV, Push Dim, PWM
Efficiency	87%

Electrical & Safety Specification

Protection Class	Class 2 - Double Insulated
Total Power Consumption (W)	75W (±5%)
Input Voltage (V)	200-240V~50/60Hz
Input Current (A)	0.8A
Battery Required	No
Battery Supplied	No
Dimmable	Yes - Suitable Dimmer Required
Dimmer Included	No
IP Rating	IP20

Sensor Specification

Working Humidity (%RH)	20 - 95%RH

Quality Standards

Average Life (hrs)	50000hrs
Warranty (yrs)	5yrs
UKCA/CE	Yes
Rohs	Yes
SELV	Yes
EMV/EMC	Yes
IEC Compliant	IEC/EN61347-1, IEC/EN61347-2-13, EN55015, EN61000-3-2 Class C, IEC61000-3-3, EN61000-4-2,3,4,5,6,8,11 EN61548

Carton Information

Number of Cartons	1
Carton Length (cm)	20.6cm
Carton Width (cm)	6.4cm
Carton Height (cm)	3.9cm
Carton CBM	0.0005
Carton Nett Weight (kg)	0.43kg (±5%)
Carton Gross Weight (kg)	0.440kg (±5%)

Additional Information

Additional Details	Withstand Voltage I/P-O/P-3750Vac , Isolation Resistance-I/P-O/P: 100MO/500VDC/25°C/70%RH.High reliability and stable performance. Compact size and easy installation.
UK Commodity Code	8504401400
Country of Origin	China
