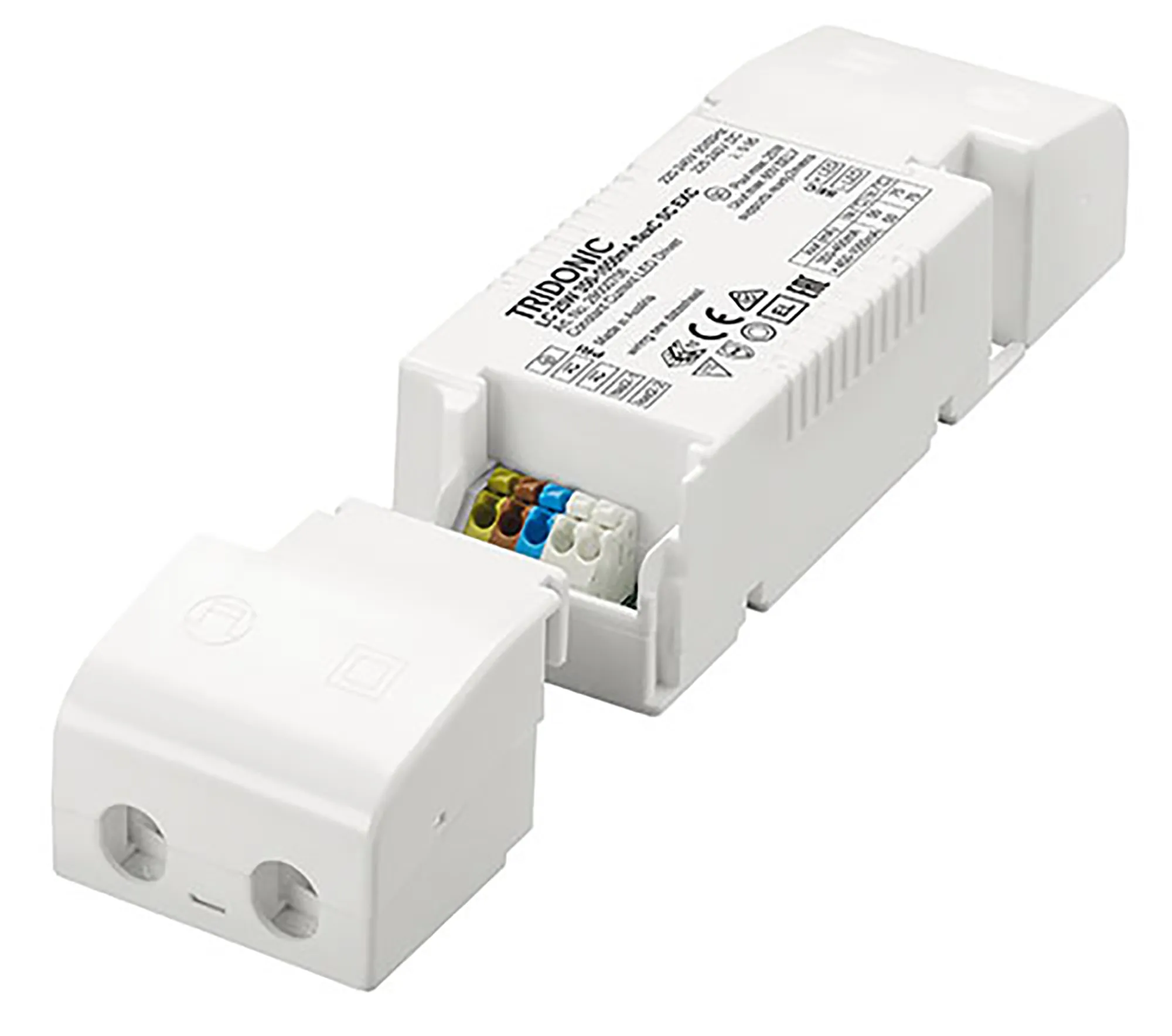

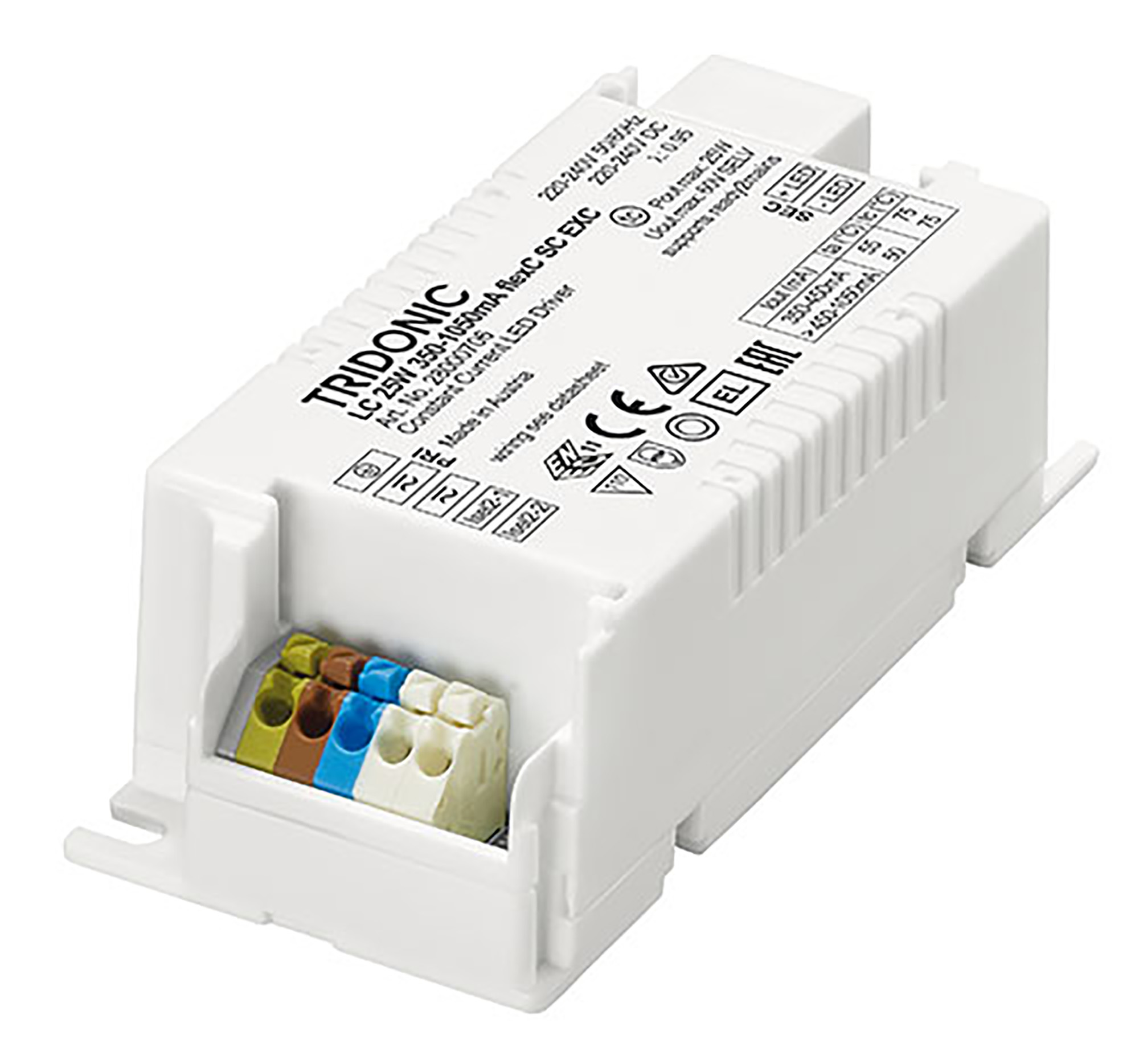

25W 350-1050mA flexC SC EXC Constant Current LED Driver

Tridonic, LC 25W 350/400/450/500/550/600/650/700/750/800/850/900/950/1000/1050mA flexC SC EXC, LED Converter Compact , Made In Austria, 5yrs Warranty

28000706

Qty: Order Item Add to Wishlist

Constant current LED Driver, Adjustable output current via ready2mains Programmer or I-SELECT 2 plugs, Up to 88 % efficiency, Life-time up to 100000 hrs.Push fit connector easy installtion.
Tridonic is a world-leading supplier of lighting technology, supporting its customers with intelligent hardware and software and offering the highest level of quality, reliability and energy savings. As a global driver of innovation in the field of lighting-based network technology, Tridonic develops scalable, future-oriented solutions that enable new business models for lighting manufacturers, building managers, systems integrators, planners and many other types of customers. Tridonic has been Show More...
To Follow
Quick Spec
Brief Description25W 350-1050mA flexC SC EXC Constant Current LED Driver
Colour FinishWhite
Item Nett Weight (kg)0.093kg

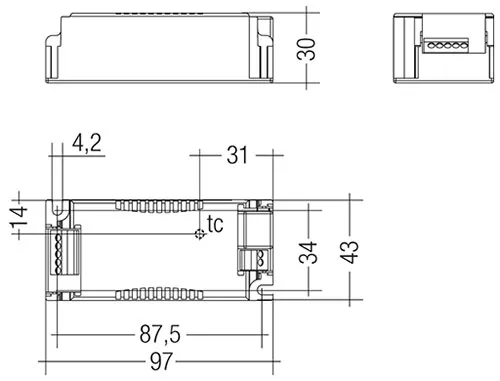

Length (mm)97mm
Width (mm)43mm
Height (mm)30mm
Energy ClassA++ to A
Protection ClassClass 2 - Double Insulated
DimmableYes - Suitable Dimmer Required
Dimmer IncludedNo
IP RatingIP20
Average Life (hrs)100000hrs
Warranty (yrs)5yrs
Features
Adjustable output current in 1-mA-steps (ready2mains, I-SELECT 2), Over temperature, Short-circuit, Overload, Noload, Input voltage range, Suitable for emergency escape lighting systems acc. to EN 50172,Flexible configuration via ready2mains and I-SELECT 2.
Full Specifications
Collection GroupLC
BarcodeTo Follow
Brief Description25W 350-1050mA flexC SC EXC Constant Current LED Driver
Colour FinishWhite
Item Nett Weight (kg)0.093kg
Length (mm)97mm
Width (mm)43mm
Height (mm)30mm
Energy ClassA++ to A
Max Energy ClassA++
Min Energy ClassA
Lumen Maintenance (hrs)50000hrs / LM80 (±5%)
Type of DriverConstant Current
Dimming Range (%)Non Dimmable
Power Factor (?)>0.95 (±5%)
Constant Current Output (mA)350-1050mA
Min/Max. Voltage Output (V)20-50V
Typical Current Ripple (%)±5%
Maximum Output Distance (m)2m
Ta (°C)-25° to +50°C
Tc (°C)75°C
Casing MaterialPolycarbonate
Connection TerminalPush-Fit
Dimming ProtocolReady2Mains
Efficiency0.83
Protection ClassClass 2 - Double Insulated
Total Power Consumption (W)25W (±5%)
Input Voltage (V)220-240V~50/60Hz
Input Current (A)0.14A
DimmableYes - Suitable Dimmer Required
Dimmer IncludedNo
IP RatingIP20
Average Life (hrs)100000hrs
Warranty (yrs)5yrs
UKCA/CEYes
RohsYes
ENECYes
SELVYes
Number of Cartons1
Carton Length (cm)9.7cm
Carton Width (cm)4.3cm
Carton Height (cm)3.0cm
Carton CBM0.0001
Carton Nett Weight (kg)0.093kg (±5%)
Carton Gross Weight (kg)0.093kg (±5%)
Additional DetailsTridonic, LC 25W 350-1050mA flexC SC EXC
UK Commodity Code85044090
Country of OriginAustria
