25W 350-1050mA flexC C EXC Constant Current LED Driver

Tridonic, LC 25W 350/400/450/500/550/600/650/700/750/800/850/900/950/1000/1050mA flexC C EXC, LED Converter Compact , Made In Austria, 5yrs Warranty

28000694

Colour Finish :
White

Qty: Order Item Add to Wishlist

Constant current LED Driver, Adjustable output current using ready2mains Programmer or I-SELECT 2 plugs, High efficiency and working life time. Push connector for easy installtion.Metal body for better heat dessipation.
Tridonic is a world-leading supplier of lighting technology, supporting its customers with intelligent hardware and software and offering the highest level of quality, reliability and energy savings. As a global driver of innovation in the field of lighting-based network technology, Tridonic develops scalable, future-oriented solutions that enable new business models for lighting manufacturers, building managers, systems integrators, planners and many other types of customers. Tridonic has been Show More...
To Follow
Quick Spec
Brief Description25W 350-1050mA flexC C EXC Constant Current LED Driver
Colour FinishWhite
Item Nett Weight (kg)0.118kg

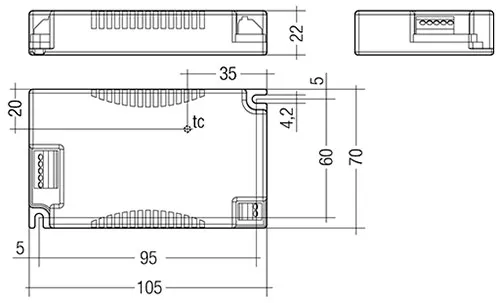

Length (mm)105mm
Width (mm)70mm
Height (mm)22mm
Energy ClassA++ to A
Protection ClassClass 2 - Double Insulated
DimmableYes - Suitable Dimmer Required
Dimmer IncludedNo
IP RatingIP20
Average Life (hrs)100000hrs
Warranty (yrs)5yrs
Features
Adjustable output current in 1-mA-steps (ready2mains, I-SELECT 2), Over temperature, Short-circuit, Overload, Noload, Input voltage range, Suitable for emergency escape lighting systems acc. to EN 50172,Flexible configuration via ready2mains and I-SELECT 2.
Full Specifications
Collection GroupLC
BarcodeTo Follow
Brief Description25W 350-1050mA flexC C EXC Constant Current LED Driver
Colour FinishWhite
Item Nett Weight (kg)0.118kg
Length (mm)105mm
Width (mm)70mm
Height (mm)22mm
Energy ClassA++ to A
Max Energy ClassA++
Min Energy ClassA
Lumen Maintenance (hrs)50000hrs / LM80 (±5%)
Type of DriverConstant Current
Dimming Range (%)Non Dimmable
Power Factor (?)>0.96 (±5%)
Constant Current Output (mA)350-1050mA
Min/Max. Voltage Output (V)20-50V
Typical Current Ripple (%)(±5%)
Maximum Output Distance (m)2m
Ta (°C)-25° to +50°C
Tc (°C)80°C
Casing MaterialPolycarbonate
Connection TerminalPush-Fit
Dimming ProtocolReady2Mains
Efficiency0.86
Protection ClassClass 2 - Double Insulated
Total Power Consumption (W)25W (±5%)
Input Voltage (V)220-240V~50/60Hz
Input Current (A)0.133A
DimmableYes - Suitable Dimmer Required
Dimmer IncludedNo
IP RatingIP20
Average Life (hrs)100000hrs
Warranty (yrs)5yrs
UKCA/CEYes
RohsYes
ENECYes
SELVYes
Number of Cartons1
Carton Length (cm)10.5cm
Carton Width (cm)7.0cm
Carton Height (cm)2.2cm
Carton CBM0.0002
Carton Nett Weight (kg)0.118kg (±5%)
Carton Gross Weight (kg)0.118kg (±5%)
Additional DetailsTridonic, LC 25W 350-1050mA flexC C EXC
UK Commodity Code8504318050
Country of OriginRepublic Of Serbia
