3 Channel CV DMX Decoder 5/12/24V DC

3 Channel CV DMX Decoder, 5/12/24V DC, 24A (8A x 3CH), 120W/288W/576W, 0-100% Dimming

830-8A

Qty: Order Item Add to Wishlist

LTECH is a front-runner in the field of LED lighting controller. As the first high-end manufacturer in China and one of the leading suppliers in the world, they have engaged in R&D of LED lighting control technology since 2001. As an intelligent lighting technology enabler, LTECH has developed hundreds of intelligent LED controlling technologies, which creates a more efficient, energy-saving, healthy and comfortable lighting life. Widely applied to the global lighting industry, innovative produc Show More...
To Follow
Quick Spec
Brief Description3 Channel CV DMX Decoder 5/12/24V DC

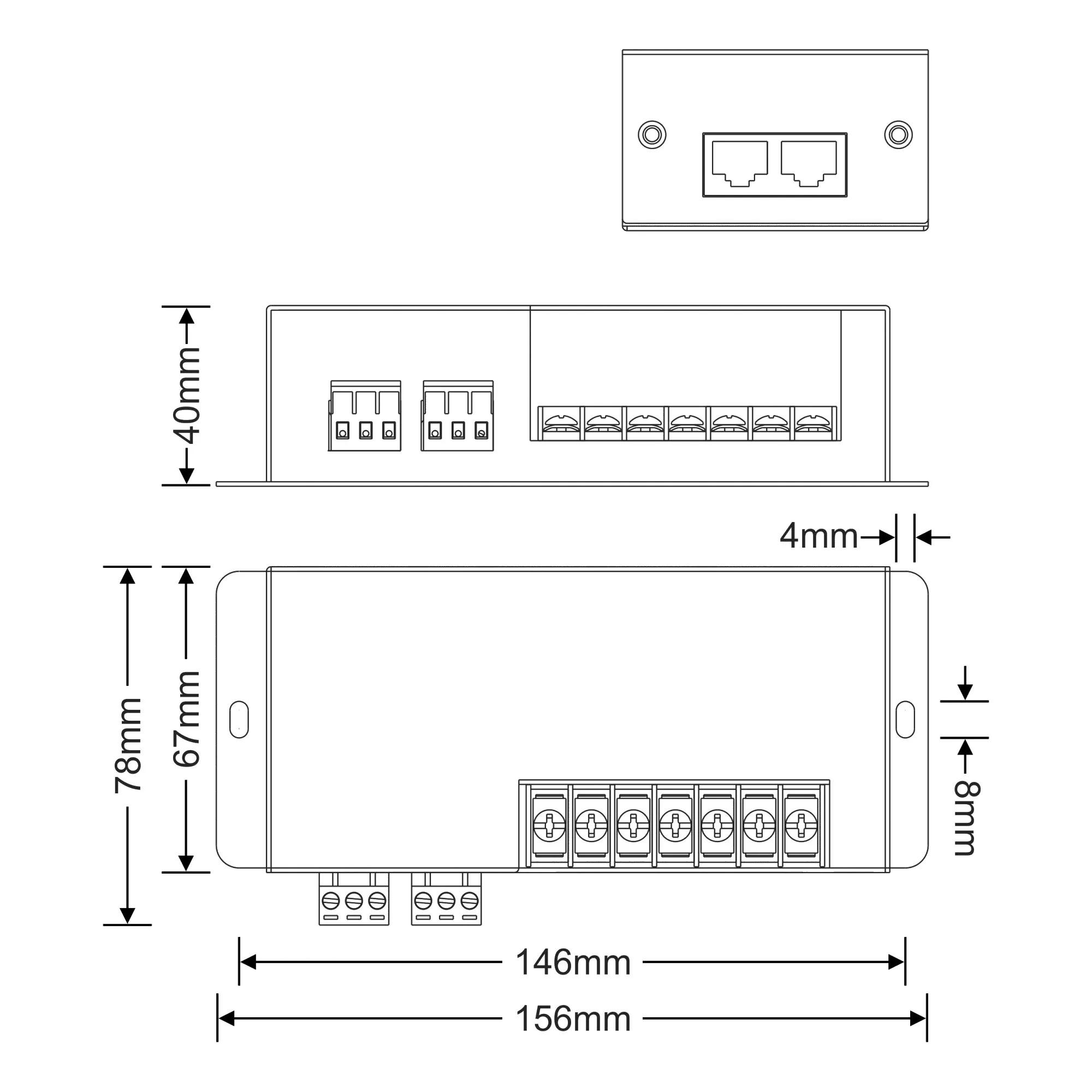

Length (mm)156mm
Width (mm)78mm
Height (mm)40mm
Features
Features, Will be added soon
Full Specifications
Collection GroupDMX Controller
Barcode5056037130529
Brief Description3 Channel CV DMX Decoder 5/12/24V DC
Length (mm)156mm
Width (mm)78mm
Height (mm)40mm
Type of DriverConstant Voltage
Dimming Range (%)0-100%
Max. Current Output (A)24A (8A x 3CH)

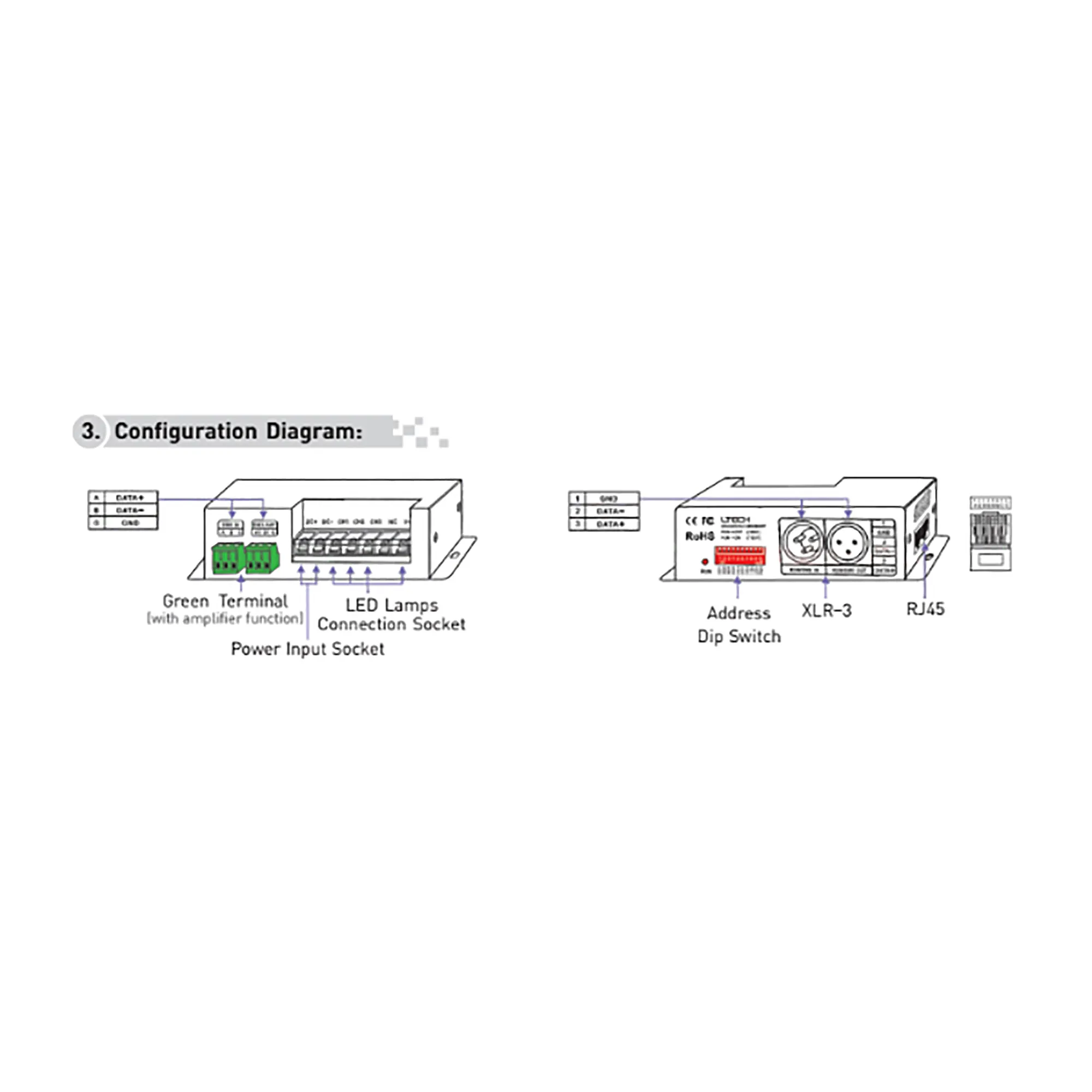

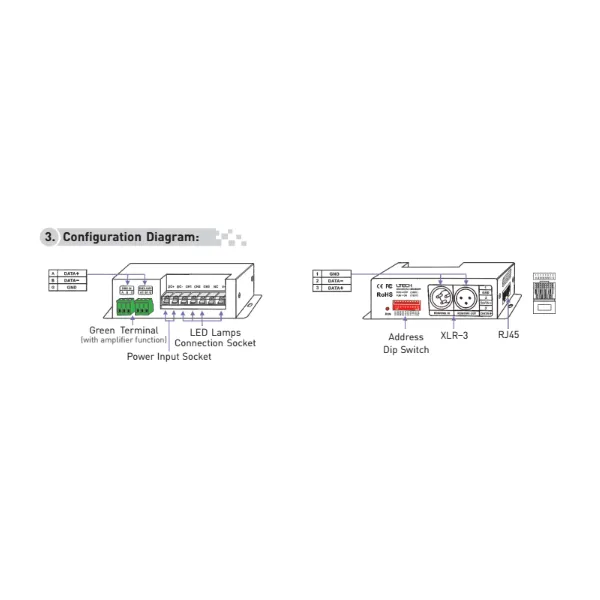

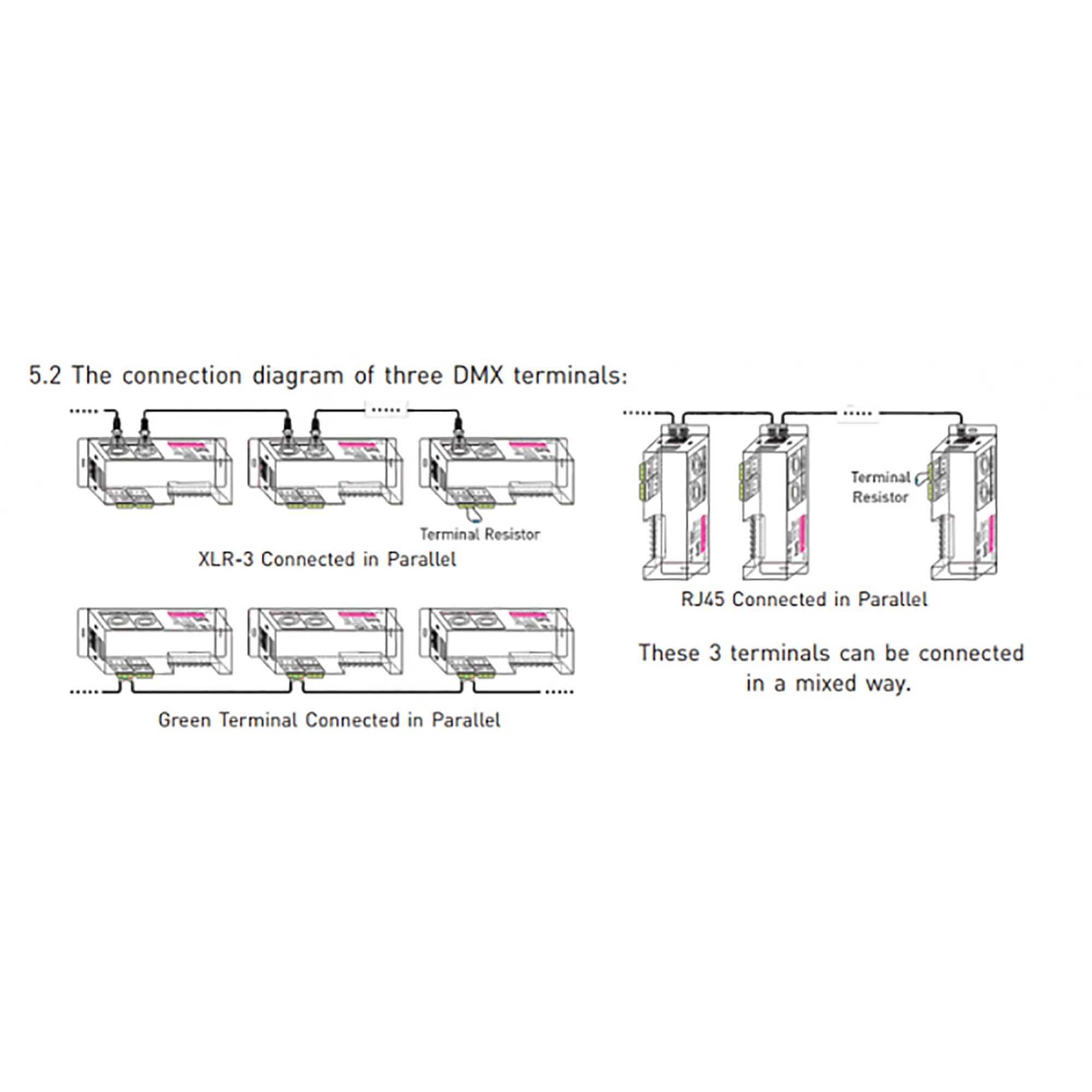

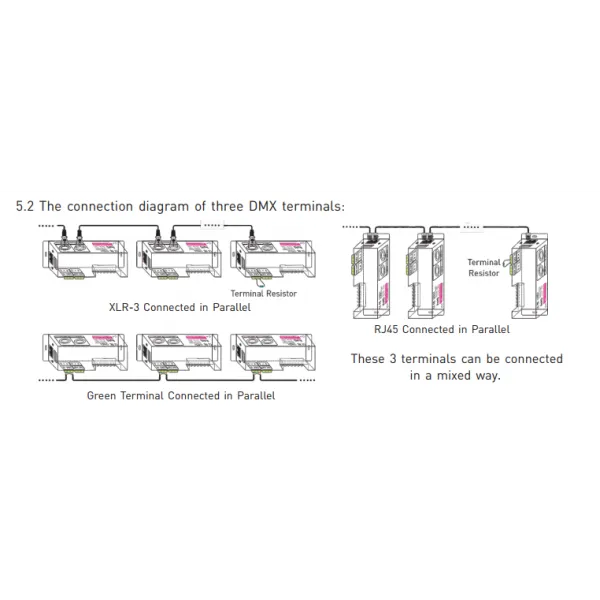

Connection TerminalDMX512 Socket, XLR-3, RJ45, Green Terminal
Input Voltage (V)5-24V DC
Number of Cartons1
Carton Length (cm)18cm
Carton Width (cm)8.2cm
Carton Height (cm)4.8cm
Carton CBM0.0007
Carton Gross Weight (kg)0.435kg (±5%)
UK Commodity Code8543709990
Country of OriginChina
