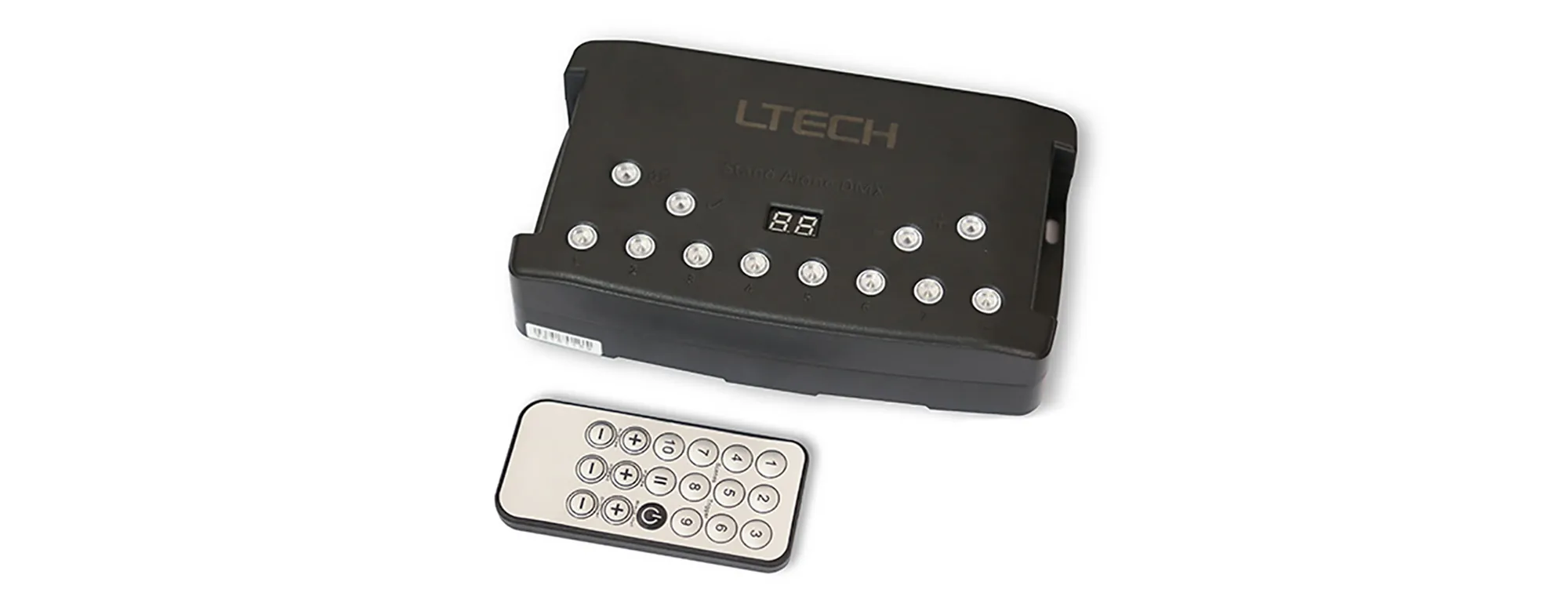

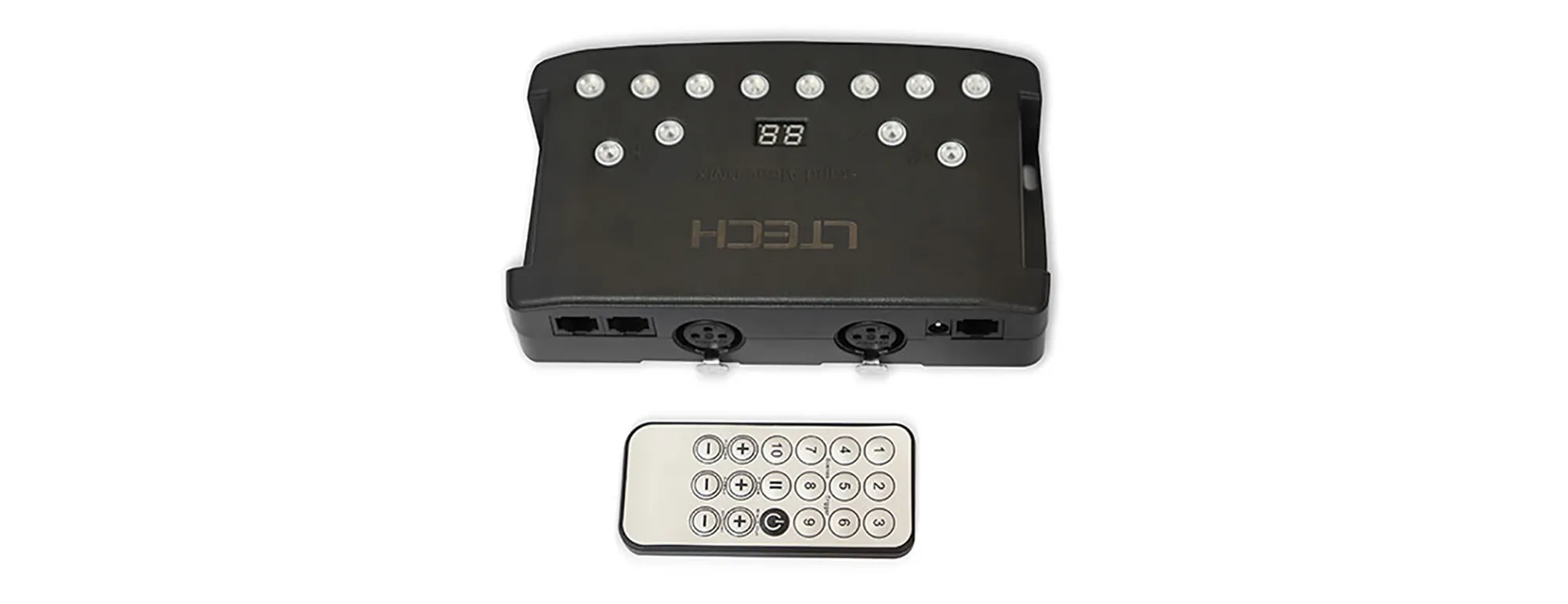

Stand alone USB-DMX 1024 Master Controller, 5V DC, Mini-USB Connection, 32bit CPU, 4MB Memory, IP20.

USB-DMX Master Controller, 5V DC, Mini-USB Connection, 1024 DMX output, XLR-3, Green Terminal, Internal Clock/Calender, 32bit CPU, IP20.

LTSA1024

Qty: Order Item Add to Wishlist

Standalone Interface USB-DMX 1024 Channel, USB2.0 input, Only with 1024 interfaces, DMX Speed: 1 to 45 Hz, MaB, Bk, Internal Clock and Calendar, 4MB internal memory, 32 bit CPU, 7 segment Display, 5Vdc input, 8 and 16 bit DMX fixtures Compatibility.
LTECH is a front-runner in the field of LED lighting controller. As the first high-end manufacturer in China and one of the leading suppliers in the world, they have engaged in R&D of LED lighting control technology since 2001. As an intelligent lighting technology enabler, LTECH has developed hundreds of intelligent LED controlling technologies, which creates a more efficient, energy-saving, healthy and comfortable lighting life. Widely applied to the global lighting industry, innovative produc Show More...
To Follow
Quick Spec
Brief DescriptionStand alone USB-DMX 1024 Master Controller, 5V DC, Mini-USB Connection, 32bit CPU, 4MB Memory, IP20.
Colour FinishBlack/Red
Item Nett Weight (kg)0.18kg

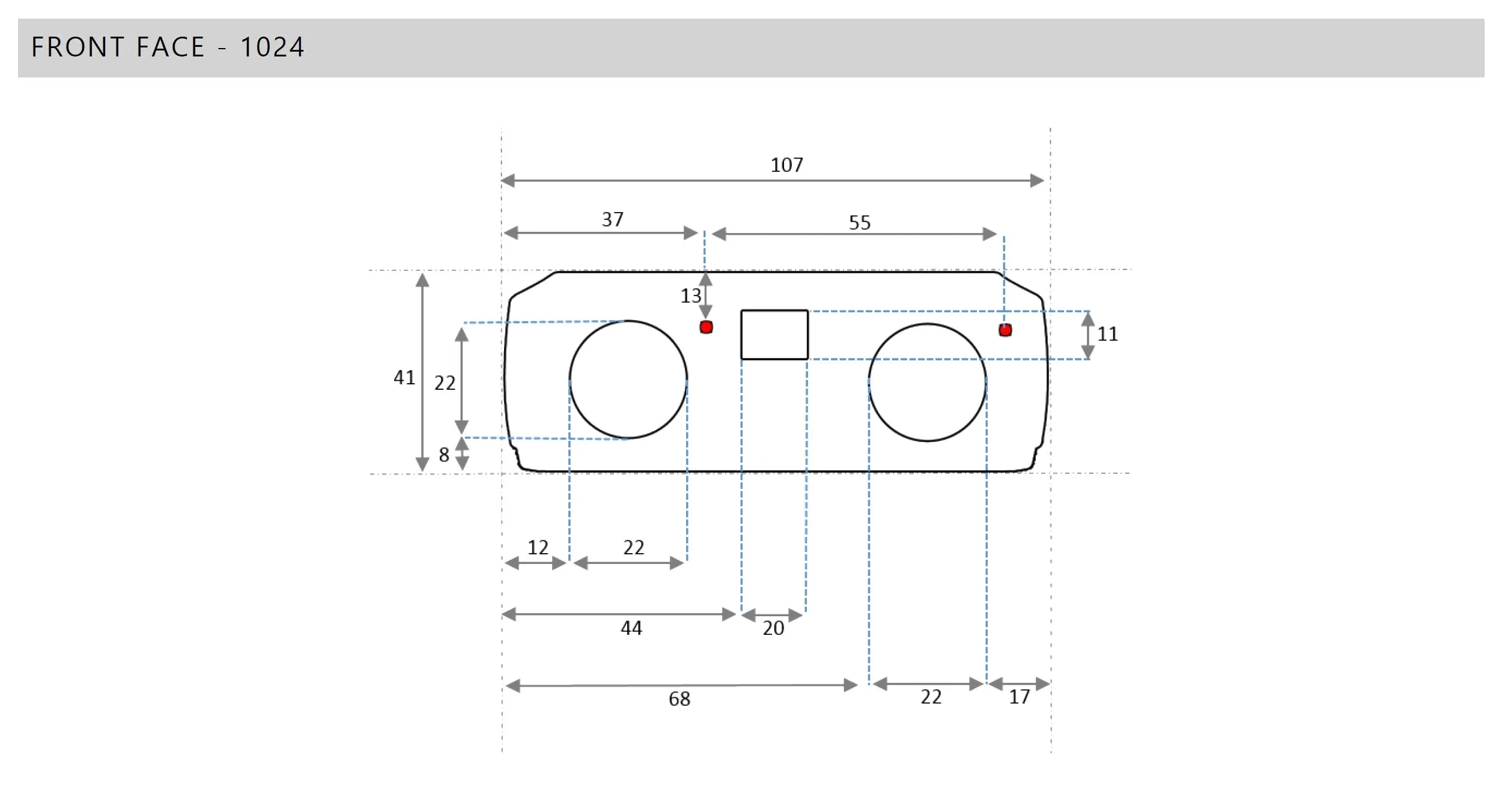

Length (mm)110mm
Width (mm)120mm
Height (mm)40mm
IP RatingIP20
Working Humidity (%RH)20~95%RH
Warranty (yrs)3yrs
Features
Features, Will be added soon
Full Specifications
Collection GroupDMX Controller
OverviewStandalone Interface USB-DMX 1024 Channel, USB2.0 input, Only with 1024 interfaces, DMX Speed: 1 to 45 Hz, MaB, Bk, Internal Clock and Calendar, 4MB internal memory, 32 bit CPU, 7 segment Display, 5Vdc input, 8 and 16 bit DMX fixtures Compatibility.
Brief DescriptionStand alone USB-DMX 1024 Master Controller, 5V DC, Mini-USB Connection, 32bit CPU, 4MB Memory, IP20.
Colour FinishBlack/Red
Item Nett Weight (kg)0.18kg
Length (mm)110mm
Width (mm)120mm
Height (mm)40mm
Type of DriverInterface
Ta (°C)-20°C to 70°C
Tc (°C)80°C
Casing MaterialPolycarbonate
Connection TerminalUSB 2.0, XLR-3, Green Terminal
Dimming ProtocolDMX1024
Input Voltage (V)5V DC
Input Current (A)0.08A-0.2A
IP RatingIP20
Working Humidity (%RH)20~95%RH
Warranty (yrs)3yrs
UKCA/CEYes
RohsYes
EMV/EMCYes
Number of Cartons1
Carton Length (cm)12cm
Carton Width (cm)11cm
Carton Height (cm)4cm
Carton CBM0.0005
Carton Nett Weight (kg)0.18kg (±5%)
Carton Gross Weight (kg)0.18kg (±5%)
Additional DetailsSystem Compatibility: Windows XP,Vista, 7, 8, 8.1, 10, MAC OS X (10.6 and +), Linux. External triggers: x4 dry contacts for up to 15 multiplexed contacts. XLR 5 connector is an optional.
UK Commodity Code8537109990
Country of OriginChina
