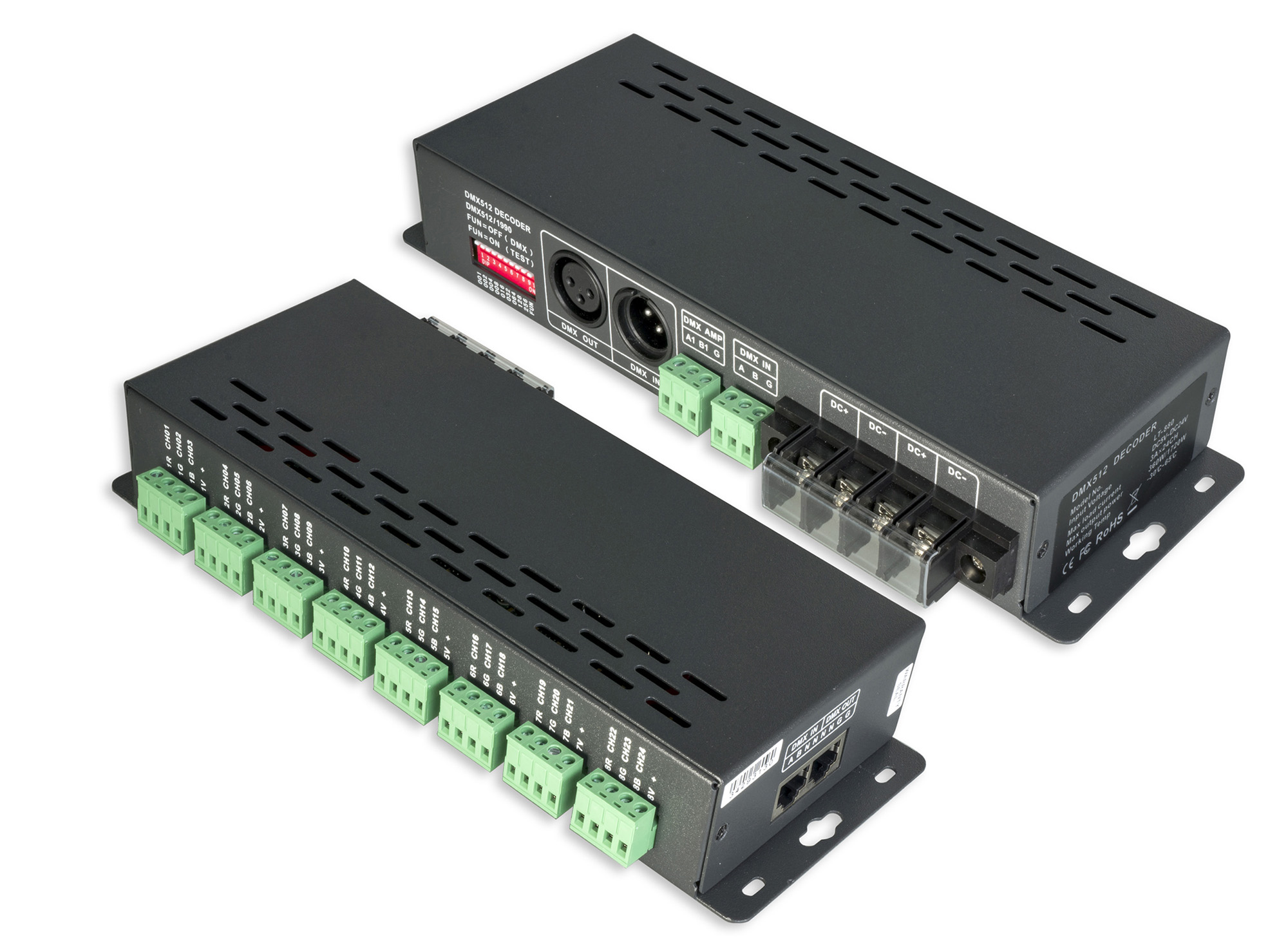

24 Channel CV DMX Decoder 5/12/24V DC

24 Channel CV DMX Decoder, 5/12/24V DC, 72A (3A x 24CH), 0-100% Dimming, DMX512 Socket, XLR-3, RJ45, Green Terminal

880

Qty: Order Item Add to Wishlist

LTECH is a front-runner in the field of LED lighting controller. As the first high-end manufacturer in China and one of the leading suppliers in the world, they have engaged in R&D of LED lighting control technology since 2001. As an intelligent lighting technology enabler, LTECH has developed hundreds of intelligent LED controlling technologies, which creates a more efficient, energy-saving, healthy and comfortable lighting life. Widely applied to the global lighting industry, innovative produc Show More...
To Follow
Quick Spec
Brief Description24 Channel CV DMX Decoder 5/12/24V DC

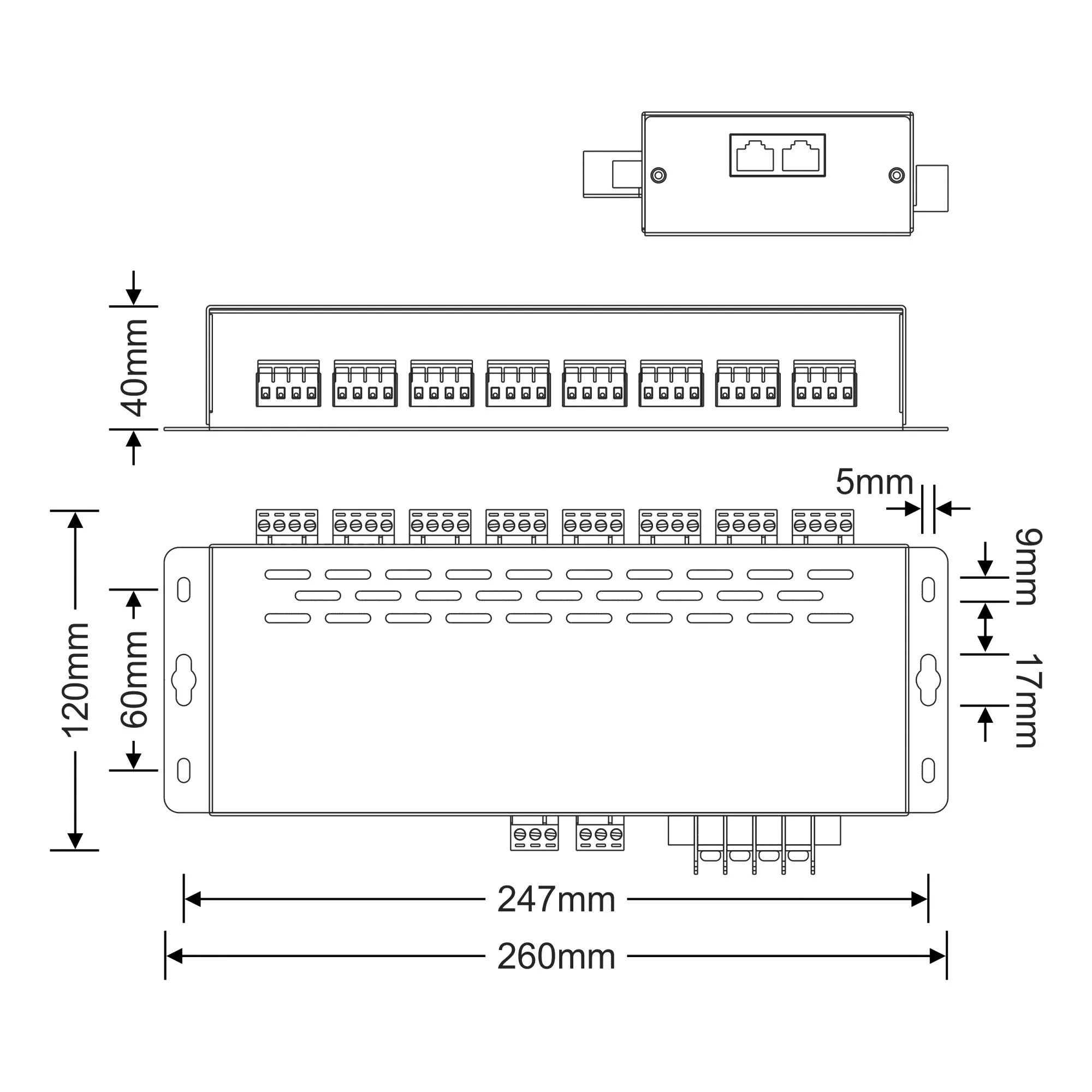

Length (mm)260mm
Width (mm)123mm
Height (mm)41mm
Features
Features, Will be added soon
Full Specifications
Collection GroupDMX Controller
Barcode5056037130574
Brief Description24 Channel CV DMX Decoder 5/12/24V DC
Length (mm)260mm
Width (mm)123mm
Height (mm)41mm
Type of DriverConstant Voltage
Dimming Range (%)0-100%
Max. Current Output (A)72A (3A x 24CH)

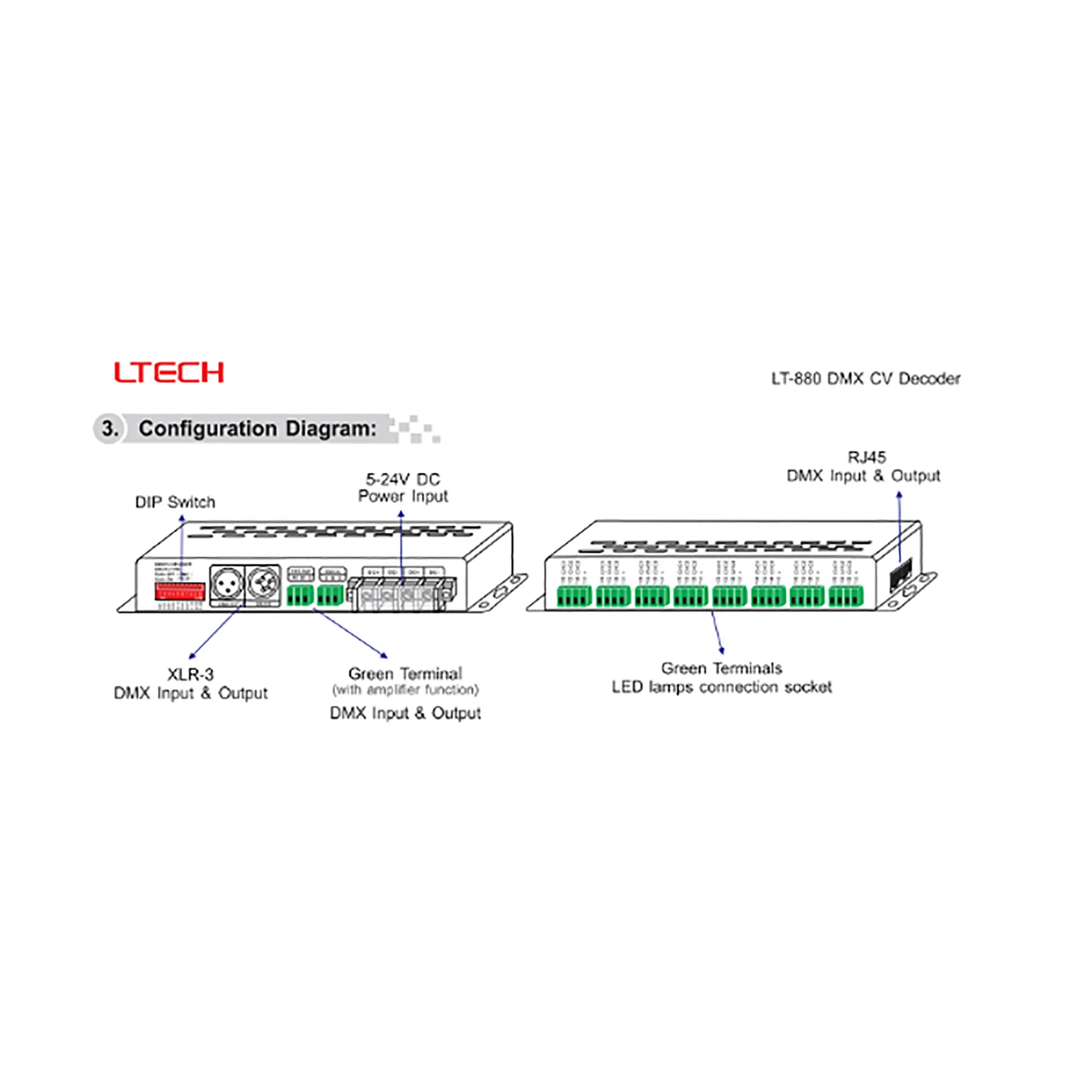

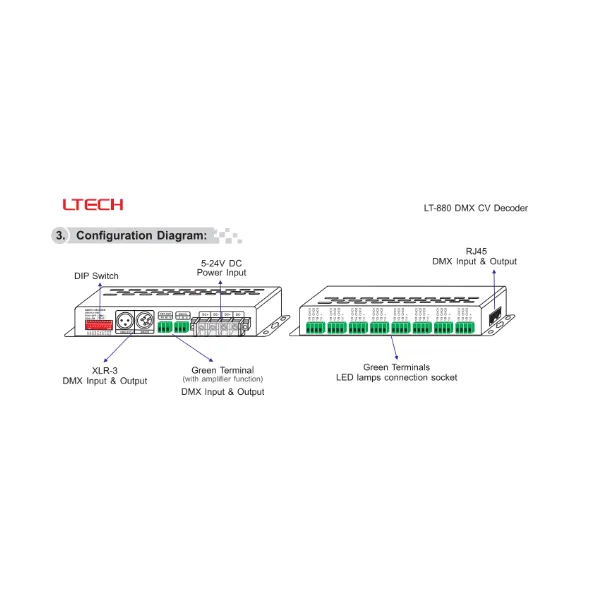

Connection TerminalDMX512 Socket, XLR-3, RJ45, Green Terminal
Input Voltage (V)5/12/24V DC
Number of Cartons1
Carton Length (cm)27.6cm
Carton Width (cm)12.8cm
Carton Height (cm)4.6cm
Carton CBM0.0016
Carton Gross Weight (kg)0.885kg (±5%)
UK Commodity Code8543709990
Country of OriginChina
