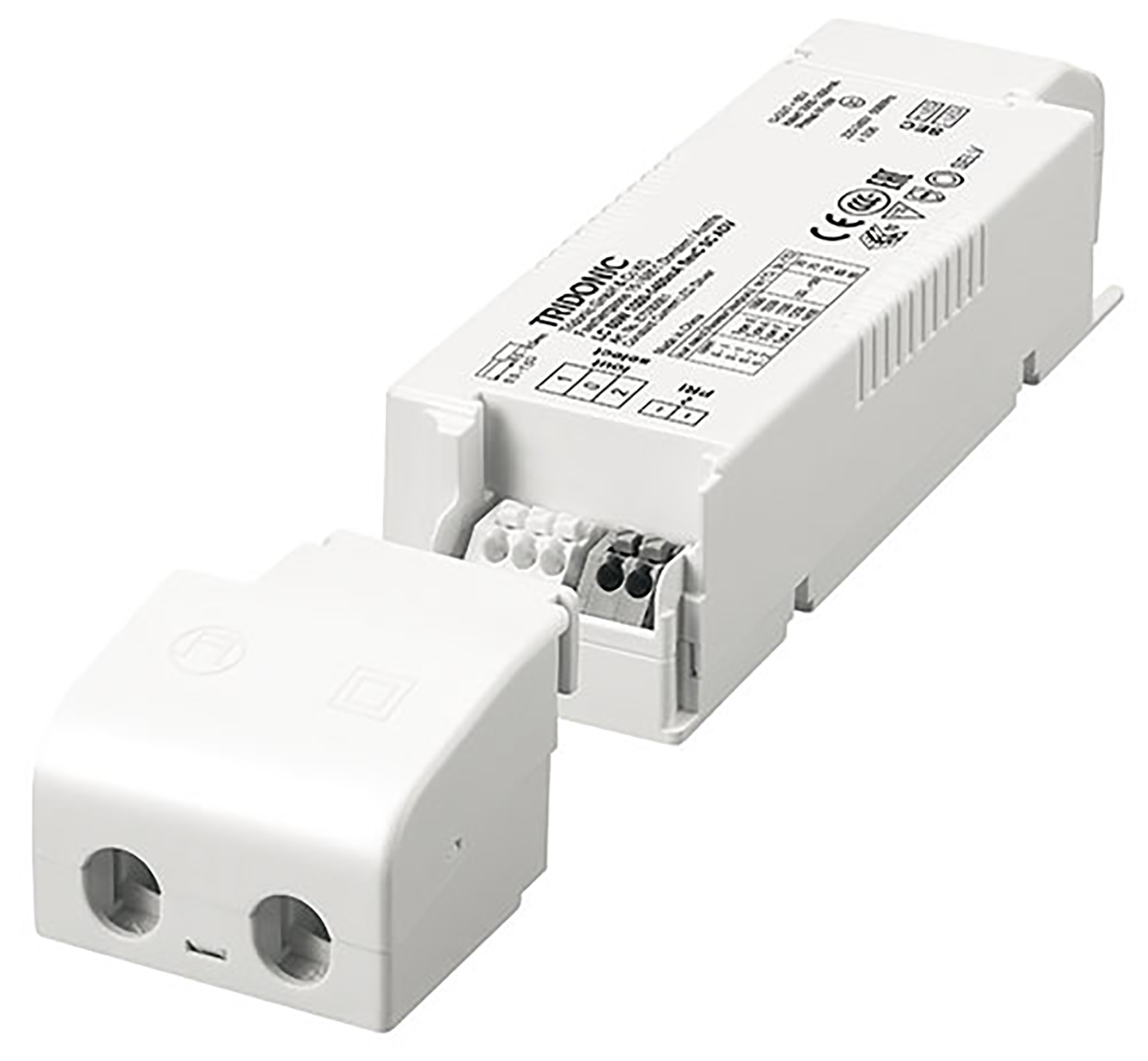

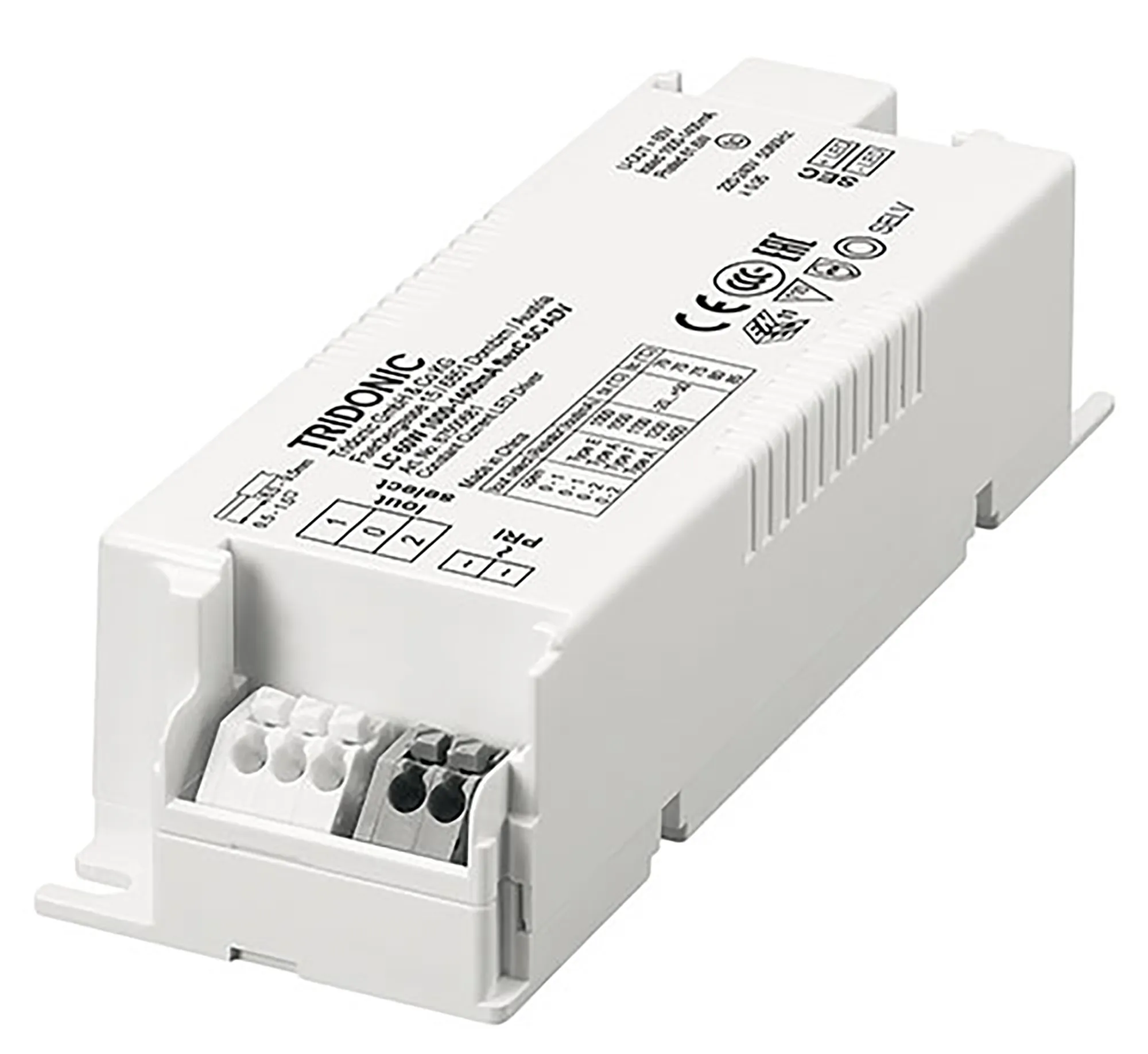

60W 1000-1400mA flexC SC ADV constant Current LED Driver

Tridonic, LC 60W 1000/1050/1100/1200/-1400mA flexC SC ADV, LED Converter Compact ADVANCE, Made In PRC, 5yrs Warranty

87500681

Colour Finish :
White

Qty: Order Item Add to Wishlist

Constant current LED Driver, Adjustable output current between 1,000 and 1,400 mA, in 5 steps with ADV plug technology, For luminaires of protection class I and protection class II, Temperature protection as per EN 61347-2-13 C5e, Compact design.
Tridonic is a world-leading supplier of lighting technology, supporting its customers with intelligent hardware and software and offering the highest level of quality, reliability and energy savings. As a global driver of innovation in the field of lighting-based network technology, Tridonic develops scalable, future-oriented solutions that enable new business models for lighting manufacturers, building managers, systems integrators, planners and many other types of customers. Tridonic has been Show More...
To Follow
Quick Spec
Brief Description60W 1000-1400mA flexC SC ADV constant Current LED Driver
Colour FinishWhite
Item Nett Weight (kg)0.158kg

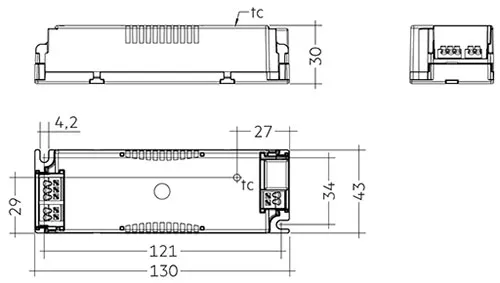

Length (mm)130mm
Width (mm)43mm
Height (mm)30mm
Energy ClassA++ to A
Protection ClassClass 2 - Double Insulated
DimmableNo
IP RatingIP20
Average Life (hrs)50000hrs
Warranty (yrs)5yrs
Features
Over temperature protection, Overload protection, Short-circuit protection, No-load protection, Burst protection voltage 1 kV, Surge protection voltage 1 kV (L to N), Surge protection voltage 2 kV (L/N to earth).
Full Specifications
Collection GroupLC
BarcodeTo Follow
Brief Description60W 1000-1400mA flexC SC ADV constant Current LED Driver
Colour FinishWhite
Item Nett Weight (kg)0.158kg
Length (mm)130mm
Width (mm)43mm
Height (mm)30mm
Energy ClassA++ to A
Max Energy ClassA++
Min Energy ClassA
Lumen Maintenance (hrs)50000hrs / LM80 (±5%)
Type of DriverConstant Current
Dimming Range (%)Non Dimmable
Power Factor (?)>0.95 (±5%)
Constant Current Output (mA)1000-1400mA
Min/Max. Voltage Output (V)27-44V
Maximum Output Distance (m)2m
Ta (°C)-20° to +50°C
Tc (°C)85°C
Casing MaterialPolycarbonate
Connection TerminalPush-Fit
Dimming ProtocolON/OFF
Efficiency0.9
Protection ClassClass 2 - Double Insulated
Total Power Consumption (W)60W (±5%)
Input Voltage (V)220-240V~50/60Hz
Input Current (A)0.3A
DimmableNo
IP RatingIP20
Average Life (hrs)50000hrs
Warranty (yrs)5yrs
UKCA/CEYes
RohsYes
ENECYes
SELVYes
Number of Cartons1
Carton Length (cm)13.0cm
Carton Width (cm)4.3cm
Carton Height (cm)3.0cm
Carton CBM0.0002
Carton Nett Weight (kg)0.158kg (±5%)
Carton Gross Weight (kg)0.158kg (±5%)
Additional DetailsTridonic, LC 60W 1000-1400mA flexC SC ADV
UK Commodity Code8504318050
Country of OriginChina
