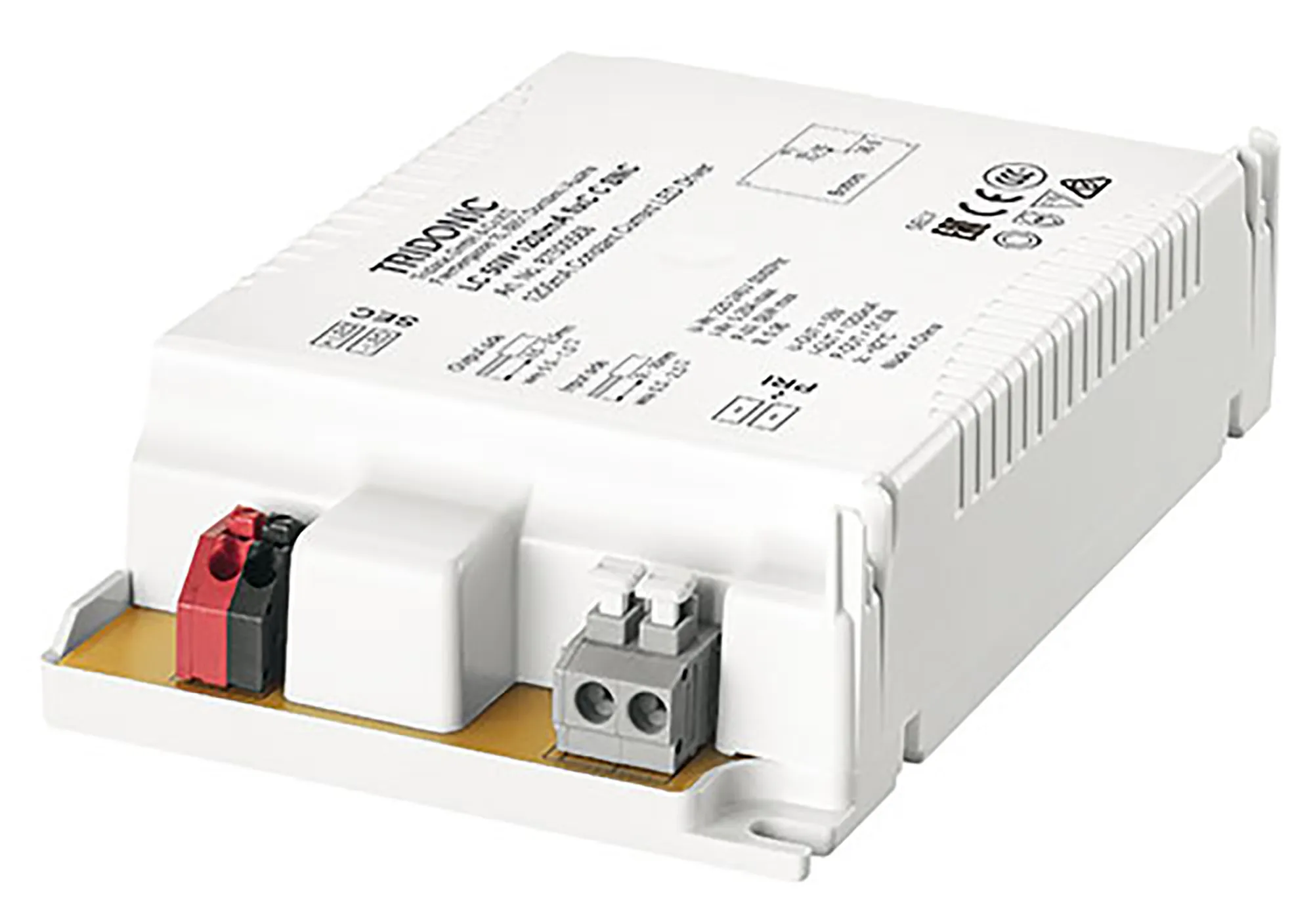

60W 700mA fixC C SNC ESSENCE Constant Current LED Driver

Tridonic, LC 60W 700mA fixC C SNC, LED Converter Compact SNC - ESSENCE, Made In PRC, 5yrs Warranty

87500569

Colour Finish :
White

Qty: Order Item Add to Wishlist

Constant current Fixed output built-in LED Driver, KC certificate, For luminaires of protection class I and protection class II, Temperature protection as per EN 61347-2-13 C5e, Long life time.
Tridonic is a world-leading supplier of lighting technology, supporting its customers with intelligent hardware and software and offering the highest level of quality, reliability and energy savings. As a global driver of innovation in the field of lighting-based network technology, Tridonic develops scalable, future-oriented solutions that enable new business models for lighting manufacturers, building managers, systems integrators, planners and many other types of customers. Tridonic has been Show More...
To Follow
Quick Spec
Brief Description60W 700mA fixC C SNC ESSENCE Constant Current LED Driver
Colour FinishWhite
Item Nett Weight (kg)0.47kg

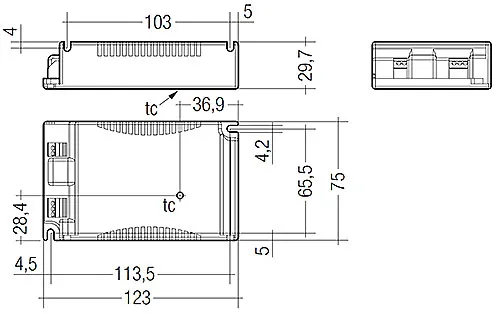

Length (mm)123mm
Width (mm)75mm
Height (mm)29.7mm
Energy ClassA++ to A
Protection ClassClass 2 - Double Insulated
DimmableNo
IP RatingIP20
Average Life (hrs)50000hrs
Warranty (yrs)5yrs
Features
Over temperature protection, Overload protection, Short-circuit protection, No-load protection.
Full Specifications
Collection GroupLC
BarcodeTo Follow
Brief Description60W 700mA fixC C SNC ESSENCE Constant Current LED Driver
Colour FinishWhite
Item Nett Weight (kg)0.47kg
Length (mm)123mm
Width (mm)75mm
Height (mm)29.7mm
Energy ClassA++ to A
Max Energy ClassA++
Min Energy ClassA
Lumen Maintenance (hrs)50000hrs / LM80 (±5%)
Type of DriverConstant Current
Dimming Range (%)Non Dimmable
Power Factor (?)>0.96 (±5%)
Constant Current Output (mA)700mA
Min/Max. Voltage Output (V)60-85V
Typical Current Ripple (%)±30%
Maximum Output Distance (m)2m
Ta (°C)-20° to +40°C
Tc (°C)85°C
Casing MaterialPolycarbonate
Connection TerminalPush-Fit
Dimming ProtocolON/OFF
Efficiency0.91
Protection ClassClass 2 - Double Insulated
Total Power Consumption (W)60W (±5%)
Input Voltage (V)220-240V~50/60Hz
Input Current (A)0.29A
DimmableNo
IP RatingIP20
Average Life (hrs)50000hrs
Warranty (yrs)5yrs
UKCA/CEYes
RohsYes
ENECYes
SELVYes
Number of Cartons1
Carton Length (cm)12.3cm
Carton Width (cm)7.5cm
Carton Height (cm)2.97cm
Carton CBM0.0003
Carton Nett Weight (kg)0.151kg (±5%)
Carton Gross Weight (kg)0.151kg (±5%)
Additional DetailsTridonic, LC 60W 700mA fixC C SNC
UK Commodity Code8504318050
Country of OriginChina
