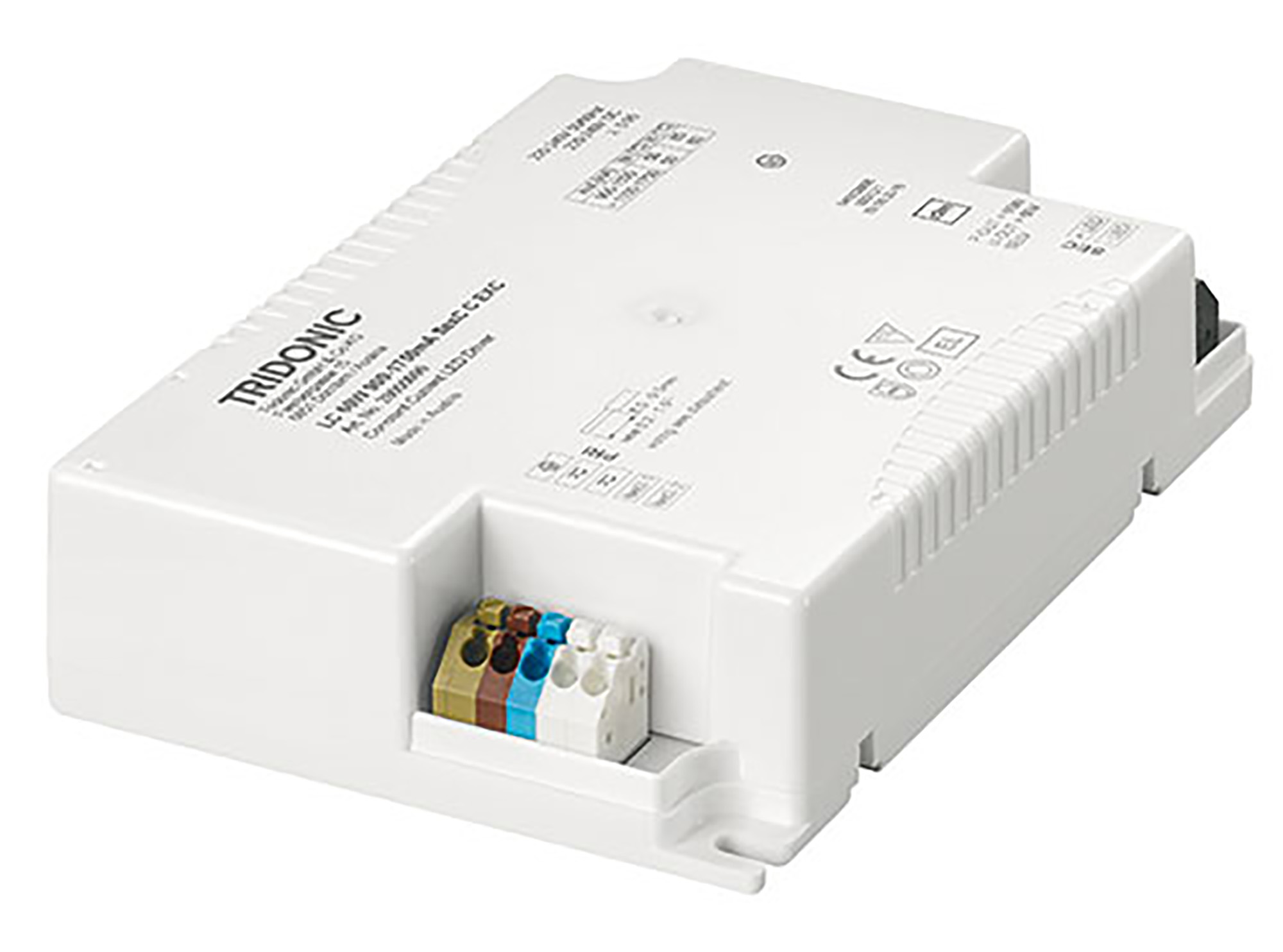

Tridonic, LC 60W 900-1750mA flexC C EXC, LED Converter Compact EXCITE, Made In Austria, 5yrs Warranty
28000696
Favourite
| Brief Description | 60W 900-1750mA flexC C EXC Constant Current LED Driver |
| Colour Finish | White |
| Item Nett Weight (kg) | 0.205kg |

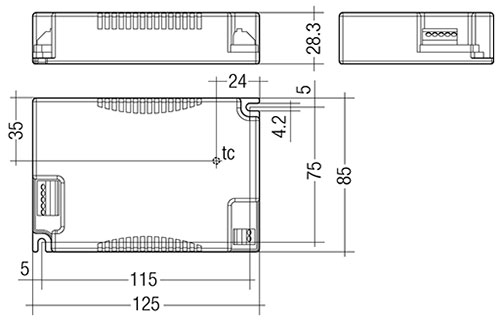

| Length (mm) | 125mm |
| Width (mm) | 85mm |
| Height (mm) | 28.3mm |
| Energy Class | A++ to A |
| Protection Class | Class 2 - Double Insulated |
| Dimmable | Yes - Suitable Dimmer Required |
| Dimmer Included | No |
| IP Rating | IP20 |
| Average Life (hrs) | 100000hrs |
| Warranty (yrs) | 5yrs |
| Adjustable output current in 1-mA-steps (ready2mains, I-SELECT 2), Over temperature, Short-circuit, Overload, Noload, Input voltage range, Suitable for emergency escape lighting systems acc. to EN 50172,Flexible configuration via ready2mains and I-SELECT 2. |
| Collection Group | LC |
| Barcode | To Follow |
| Brief Description | 60W 900-1750mA flexC C EXC Constant Current LED Driver |
| Colour Finish | White |
| Item Nett Weight (kg) | 0.205kg |
| Length (mm) | 125mm |
| Width (mm) | 85mm |
| Height (mm) | 28.3mm |
| Energy Class | A++ to A |
| Max Energy Class | A++ |
| Min Energy Class | A |
| Lumen Maintenance (hrs) | 50000hrs / LM80 (±5%) |
| Type of Driver | Constant Current |
| Dimming Range (%) | Non Dimmable |
| Power Factor (?) | >0.95 (±5%) |
| Constant Current Output (mA) | 900-1750mA |
| Min/Max. Voltage Output (V) | 20-54V |
| Typical Current Ripple (%) | (±5%) |
| Maximum Output Distance (m) | 2m |
| Ta (°C) | -25° to +50°C |
| Tc (°C) | 85°C |
| Casing Material | Polycarbonate |
| Connection Terminal | Push-Fit |
| Dimming Protocol | Ready2Mains |
| Efficiency | 0.9 |
| Protection Class | Class 2 - Double Insulated |
| Total Power Consumption (W) | 60W (±5%) |
| Input Voltage (V) | 220-240V~50/60Hz |
| Input Current (A) | 0.306A |
| Dimmable | Yes - Suitable Dimmer Required |
| Dimmer Included | No |
| IP Rating | IP20 |
| Average Life (hrs) | 100000hrs |
| Warranty (yrs) | 5yrs |
| UKCA/CE | Yes |
| Rohs | Yes |
| ENEC | Yes |
| SELV | Yes |
| Number of Cartons | 1 |
| Carton Length (cm) | 12.5cm |
| Carton Width (cm) | 8.5cm |
| Carton Height (cm) | 2.83cm |
| Carton CBM | 0.0003 |
| Carton Nett Weight (kg) | 0.205kg (±5%) |
| Carton Gross Weight (kg) | 0.205kg (±5%) |
| Additional Details | Tridonic, LC 60W 900-1750mA flexC C EXC |
| UK Commodity Code | 8504318050 |
| Country of Origin | Republic Of Serbia |
